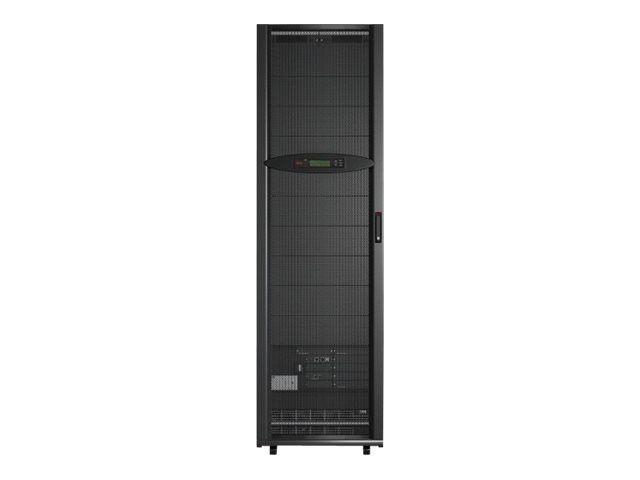

APC Symmetra PX 100kW Power Frame
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Symmetra PX 100kW Power Frame
- Power array
- AC 208 V
- 100 kW
- 100000 VA
- 3-phase
- no battery
- output connectors: 1
- black
- with Start-Up Service 5X8
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SYCF100KF |
| SHI Part #: | 21974885 |
| Category: | Chassis |
| UNSPSC: | 43201601 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Chassis |
| Description | APC Symmetra PX 100kW Power Frame - Power array - AC 208 V - 100 kW - 100000 VA - 3-phase - no battery - output connectors: 1 - black - with Start-Up Service 5X8 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $30,035.99 |
| UNSPSC | 43201601 |
| Main Specifications | |
| Dimensions & Weight / Depth | 107 cm |
| Dimensions & Weight / Height | 201.1 cm |
| Dimensions & Weight / Weight | 325.45 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | Cabinets, enclosures and chassis |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Power Capacity (VA) | 100000 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power array |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 107 cm |
| Height | 201.1 cm |
| Weight | 325.45 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 121 cm |
| Shipping Height | 214 cm |
| Shipping Weight | 358.64 kg |
| Shipping Width | 84.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 67 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SmartSlot |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | Black |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 1 year |
| Miscellaneous | |
| Compliant Standards | ISO 14001, ISO 9001, UL 1778, FCC Part 15 A, cUL, CSA, RoHS, NEMA Type 1 |
| Features | Audible alarm, LCD display, LED indicators, static bypass, modular design |
| Power Device | |
| Efficiency | 92.5% at 100% Load |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 208 V |
| Output Waveform | Sinewave |
| Power Capacity | 100 kW / 100000 VA |
| Power Output Connectors Details | 1 x hardwire 5-wire (3PH + N + G) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Total Harmonic Distortion (THD) | 2 % |
