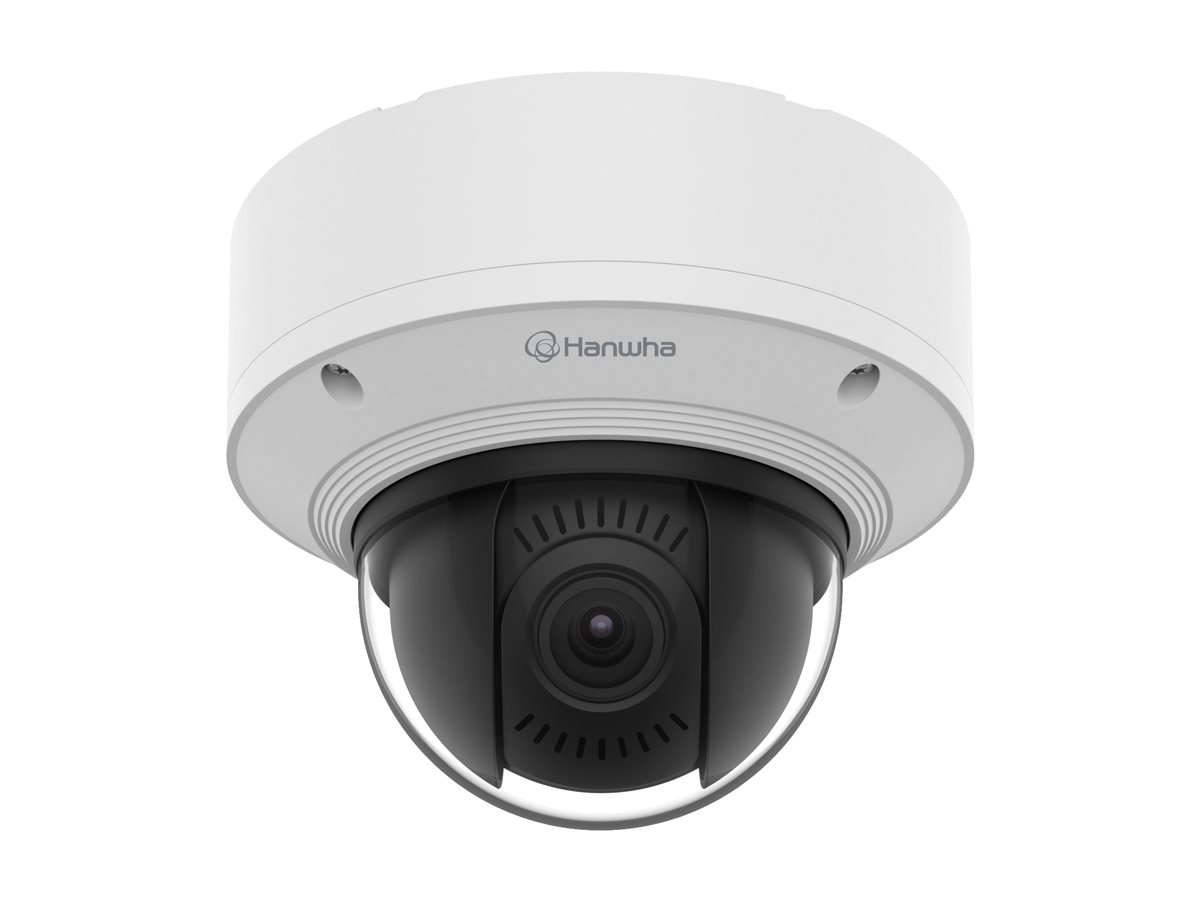

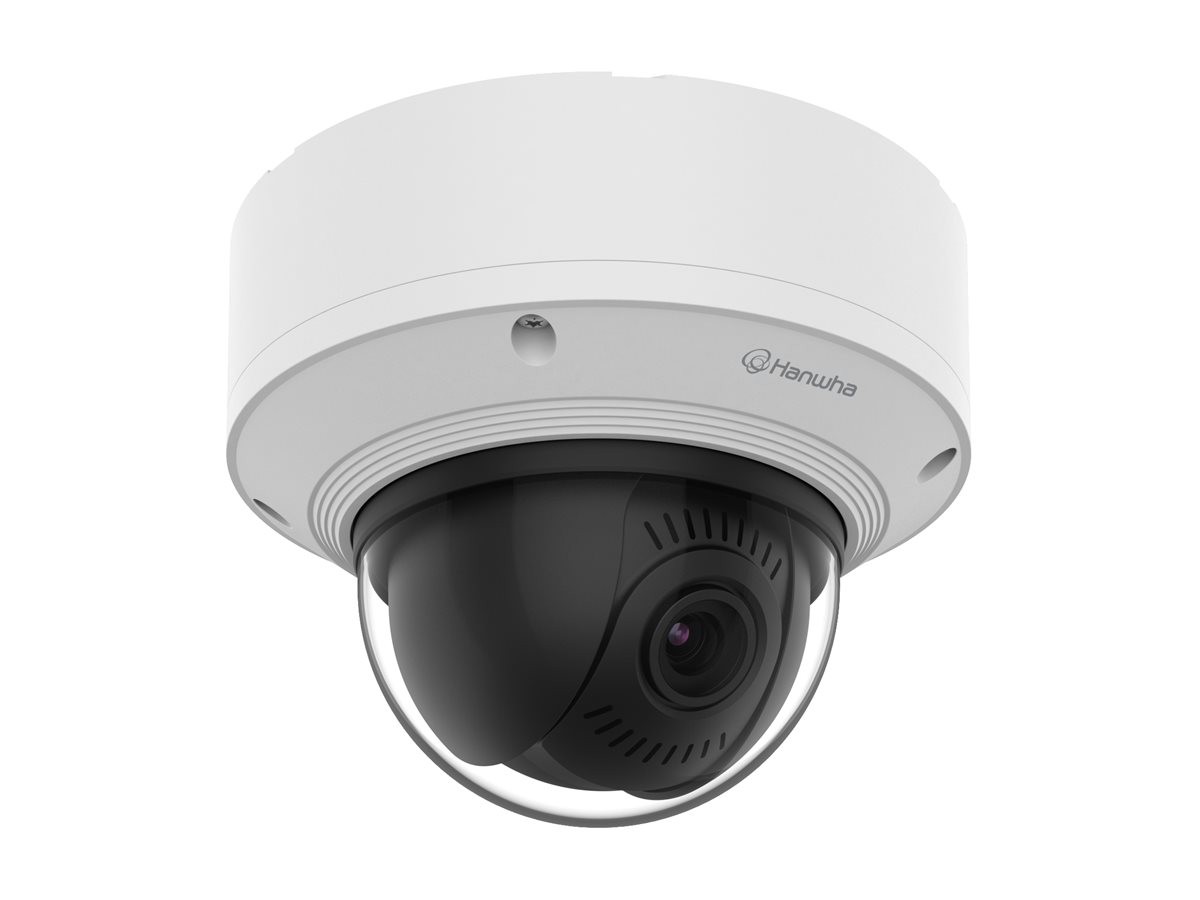

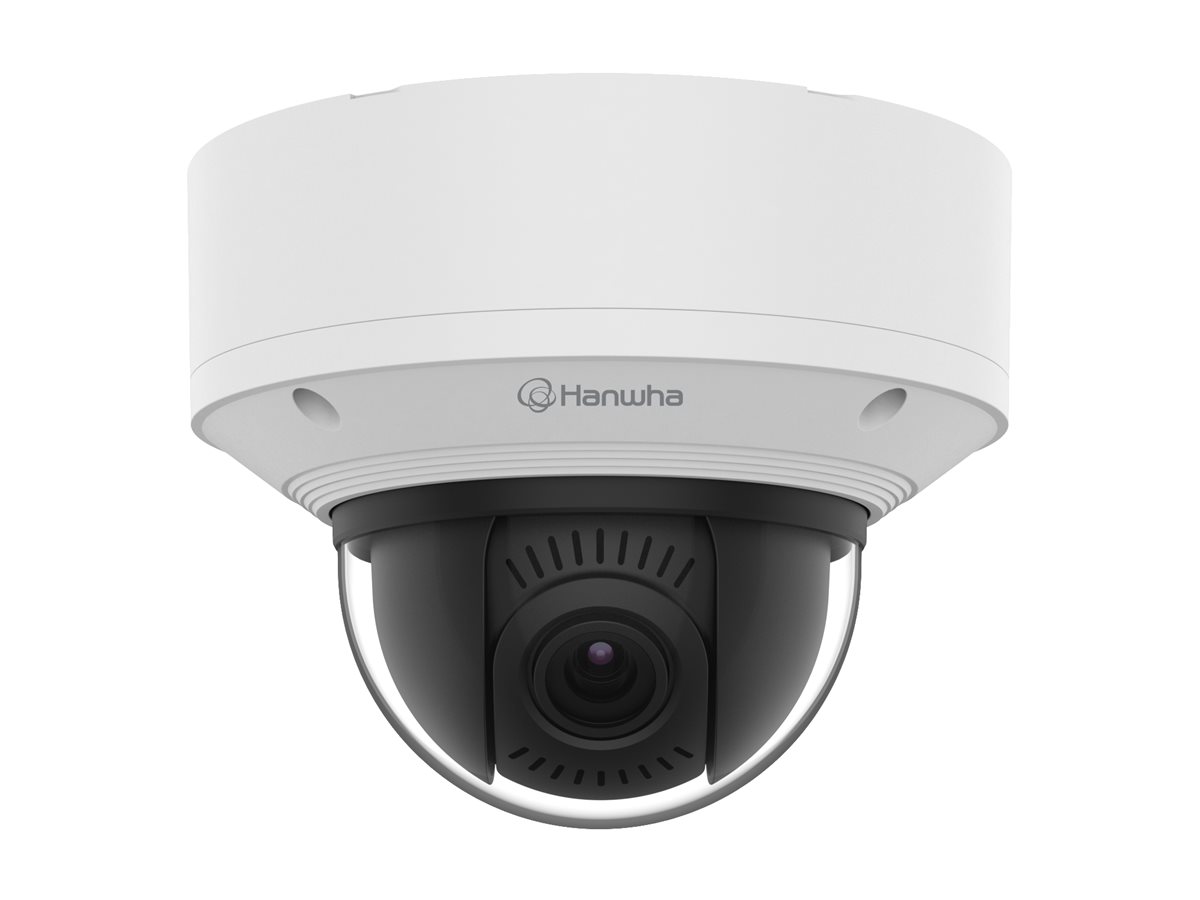

Hanwha Vision WiseNet X XND-8081VZ
MSRP$1,600.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XND-8081VZ
- Network surveillance camera
- PTZ
- indoor
- vandal-proof
- color (Day&Night)
- 6 MP
- 2560 x 1920
- auto iris
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,600.00 |
| Mfr Part #: | XND-8081VZ |
| SHI Part #: | 43075555 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XND-8081VZ - Network surveillance camera - PTZ - indoor - vandal-proof - color (Day&Night) - 6 MP - 2560 x 1920 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,600.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 12.5 cm |
| Dimensions & Weight / Weight | 1.45 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, people counting, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View, fog detection, Handover, Virtual Line detection, Directional Detection |
| Flash Memory | 256 MB |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - pan / tilt / zoom - indoor - vandal-proof |
| Video Capture | 2560 x 1920 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711u |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Height | 12.5 cm |
| Weight | 1.45 kg |
| Width | 16 cm |
| Image Sensor | |
| Effective Pixels | 2616 x 1976 |
| Type | 6 MP CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, PIM-SM, LLDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 48.6 - 135.5 |
| Focal Length | 3.6 mm - 9.4 mm |
| Horizontal Field of View (degree) | 38.7 - 102.5 |
| Lens Iris | F/1.2-2.4 auto iris (DC, P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.6 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 29 - 74.2 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IK10, IP52, IEEE 802.3af, IEEE 802.1x |
| Included Accessories | Ivory skin |
| Panning | |
| Range (degree) | -175 to +175 |
| Power | |
| Power Device | 10 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 85 |
