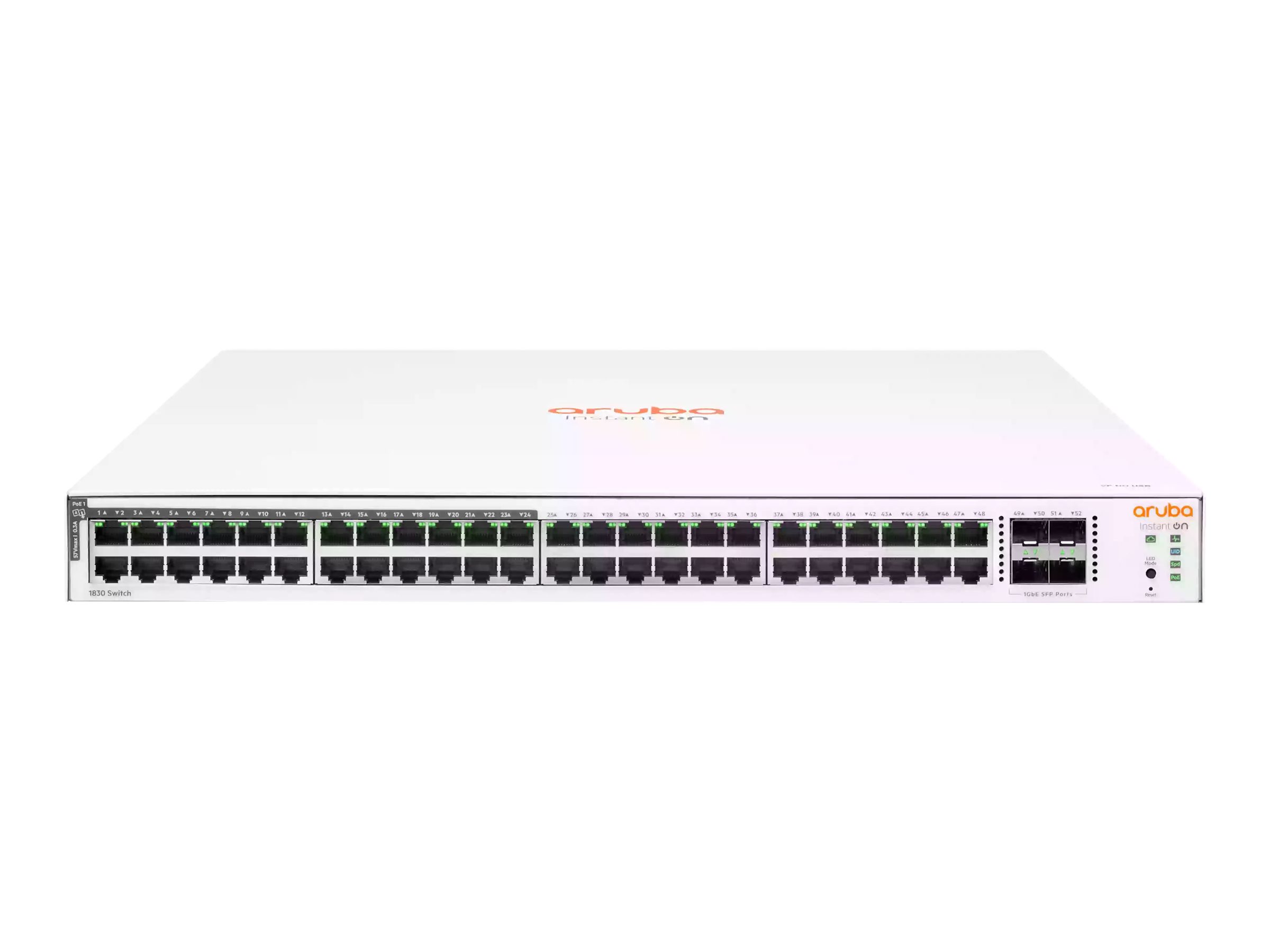

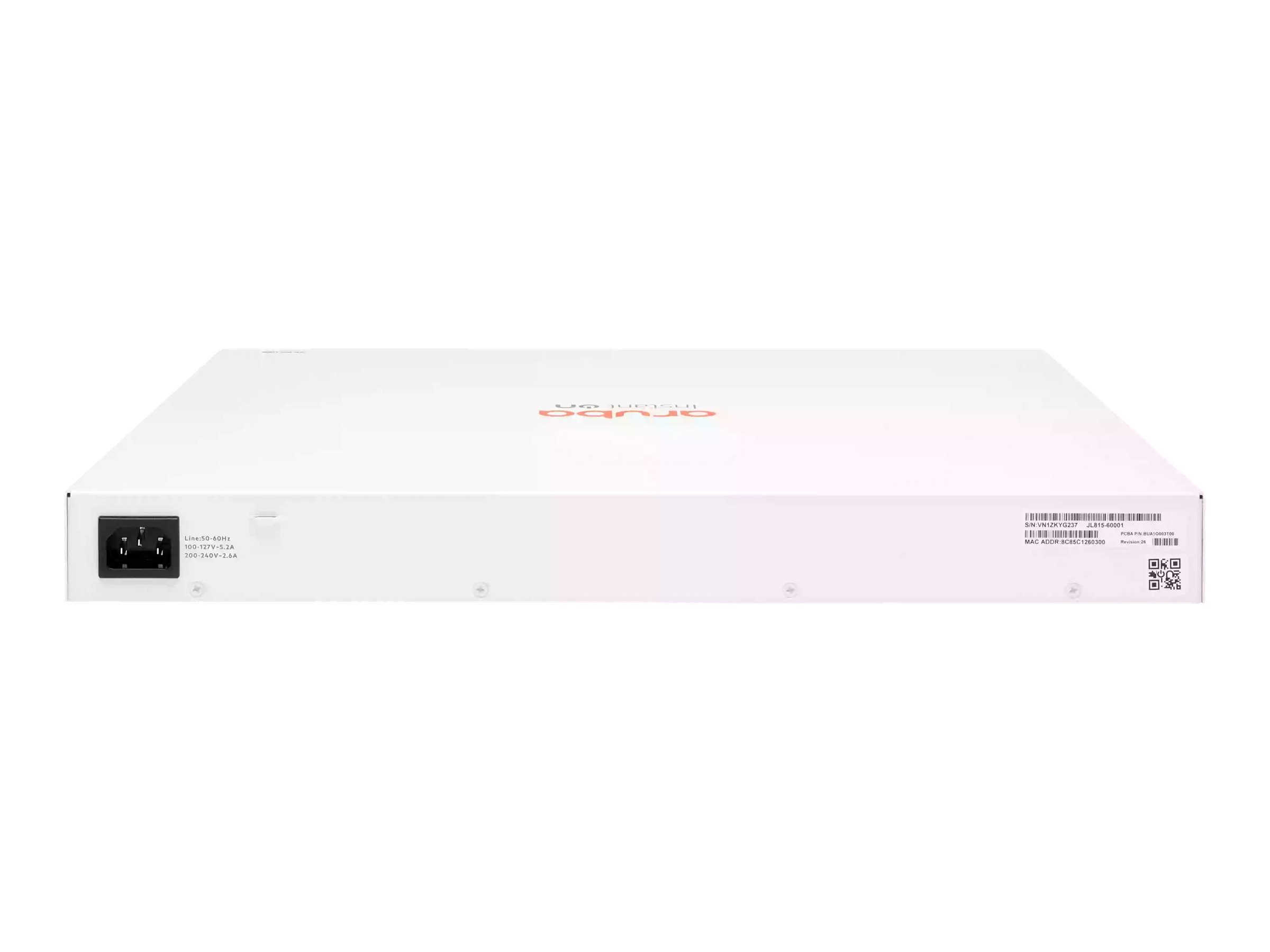

HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

MSRP$850.00
$613.00
HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • smart
  • 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
  • desktop, rack-mountable
  • PoE+ (370 W)
HPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
  • Switch
  • smart
  • 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
  • desktop, rack-mountable
  • PoE+ (370 W)
  Additional Details
Price: $613.00
MSRP: $850.00
Mfr Part #: JL815A#ABA
SHI Part #: 44274903
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategorySwitch matrixes
DescriptionHPE Networking Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch - Switch - smart - 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable - PoE+ (370 W)
ManufacturerHewlett Packard Enterprise
MSRP$850.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth35.1 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight4.94 kg
Dimensions & Weight / Width44.3 cm
Header / Brand
  • Aruba
  • HPE
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorWhite
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth35.1 cm
Height4.39 cm
Weight4.94 kg
Width44.3 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 24 x 1000Base-T RJ-45
  • 4 x Gigabit LAN SFP
  • 24 x 1000Base-T RJ-45 PoE+
General
Compliant StandardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at
Device TypeSwitch - 48 ports - smart
Enclosure TypeDesktop, rack-mountable 1U
Encryption AlgorithmSSL
FeaturesAuto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support
Flash Memory256 MB
Jumbo Frame Support9216 bytes
MAC Address Table Size16000 entries
Performance
  • Latency (100 Mbps): 5.2 µs
  • Latency (1 Gbps): 2.8 µs
  • Throughput: 77.37 Mpps
  • Switching capacity: 104 Gbps
PoE Budget370 W
Ports24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)PoE+
Processor1 x ARM: 800 MHz
RAM512 MB SDRAM
Remote Management ProtocolHTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP
Routing ProtocolIGMP, IGMPv2
Status IndicatorsPort status, link/activity, speed, port duplex mode
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - lifetime
  • Technical support - live chat - lifetime
  • Technical support - phone consulting - 90 days from date of purchase
Miscellaneous
Compliant StandardsAS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3
LocalizationEnglish / United States
MTBF83.5 years
Power
Power Consumption Operational462.5 Watt
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
