GeoVision GV-PTZ5810-IR
MSRP$240.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
GeoVision GV-PTZ5810-IR
- Network surveillance camera
- PTZ
- dome
- indoor
- color (Day&Night)
- 5 MP
- 2880 x 1620
- auto iris
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $240.00 |
| Mfr Part #: | 125-PTZ580W-IR00 |
| SHI Part #: | 44496240 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | GeoVision |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | GeoVision GV-PTZ5810-IR - Network surveillance camera - PTZ - dome - indoor - color (Day&Night) - 5 MP - 2880 x 1620 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Plus |
| Manufacturer | GeoVision |
| MSRP | $240.00 |
| UNSPSC | 45121504 |
| Main Specifications | |

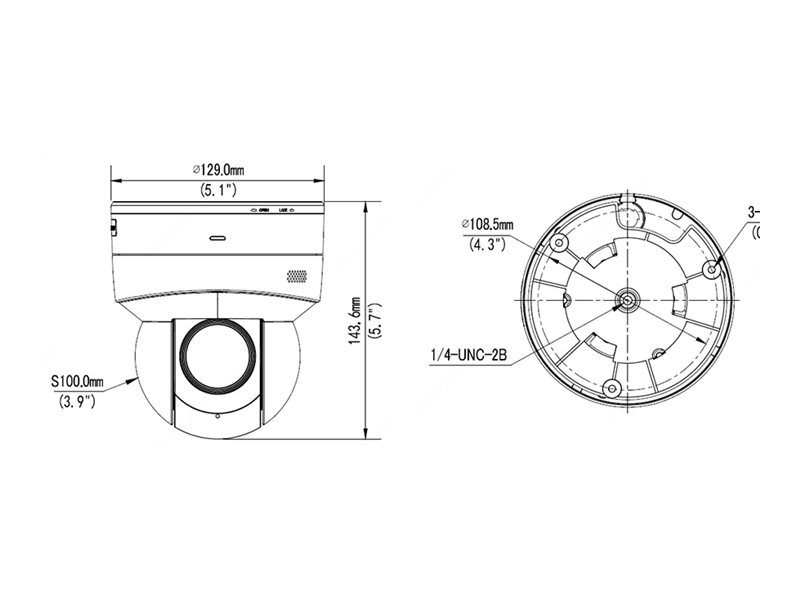

| Dimensions & Weight / Depth | 12.9 cm |
| Dimensions & Weight / Height | 14.36 cm |
| Dimensions & Weight / Weight | 750 g |
| Dimensions & Weight / Width | 12.9 cm |
| Header / Brand | GeoVision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360, 640 x 480, 704 x 288, 352 x 288 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1 sec - 1/100000 sec |
| Features | Super Low Lux, Wide Dynamic Range (WDR) Pro, Intelligent IR Technology, 32 preset positions per patrol, 3D Noise Reduction Technology, privacy masking (up to 24 areas), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, face detection, perimeter protection, people flow counting, auto white balance, manual white balance, auto gain control, DORI coverage, manual gain control, triple video stream, brightness control, saturation control, contrast control, sharpness control, image flip, image mirror, 180° image rotation, cross line detection, intrusion detection, enter area detection, leave area detection, Crowd Density, 255 preset positions |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | 2 |
| Max Digital Video Resolution | 2880 x 1620 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - pan / tilt / zoom - indoor |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC UHS-I Card |
| General | |
| Audio Formats | G.711 |
| Audio Support | Yes: two-way audio capability, built-in speaker, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 12.9 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 14.36 cm |
| Weight | 750 g |
| Width | 12.9 cm |
| Image Sensor | |
| Type | 5 MP PS CMOS 1/2.7" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DHCP, DDNS, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QOS, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| Lens Construction | |
| Focal Length | 2.7 mm - 13.5 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 30.6 - 106.9 |
| Lens Iris | F/1.2 auto iris (motorized Iris) |
| Optical Zoom | 5 x |
| Type | Motorized zoom |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3at, IEEE 802.1x, FCC, RoHS, UL |
| Included Accessories | Screw kit, drill hole template |
| Panning | |
| Range (degree) | 350 |
| Speed (degree/sec) | Up to 60 |
| Power | |
| Power Device | 15 Watt |
| Power Requirements | DC 12 V / PoE Plus |
| Tilting | |
| Range (degree) | 0 to 90 |
| Speed (degree/sec) | Up to 50 |
