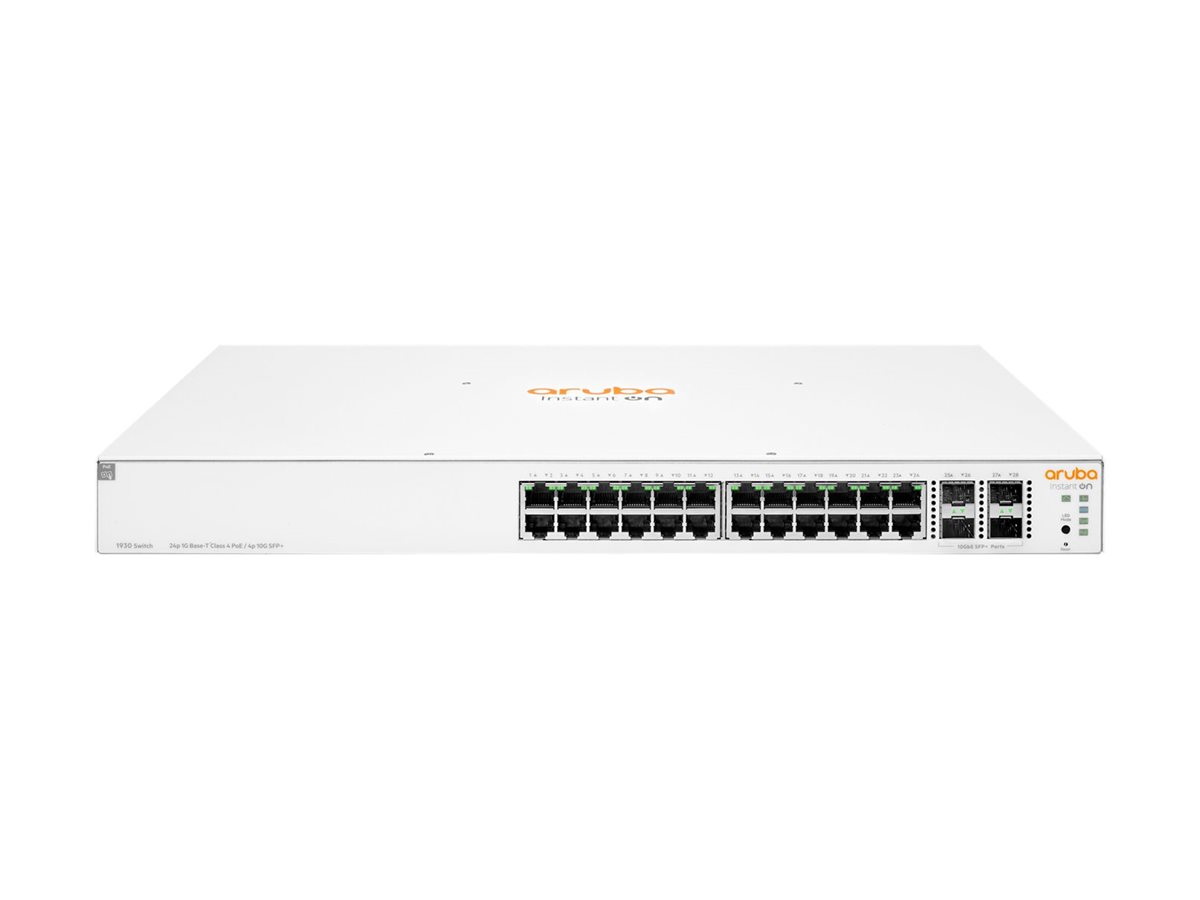

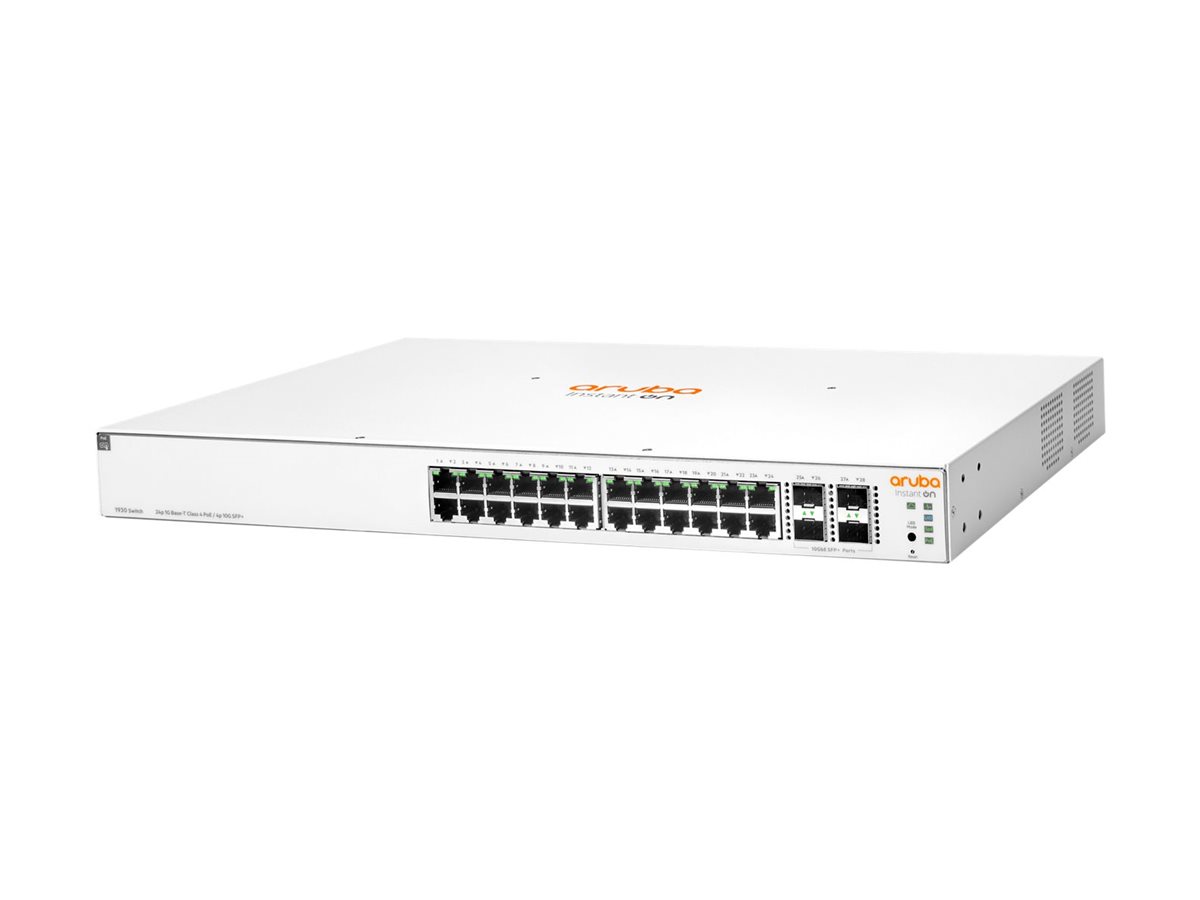

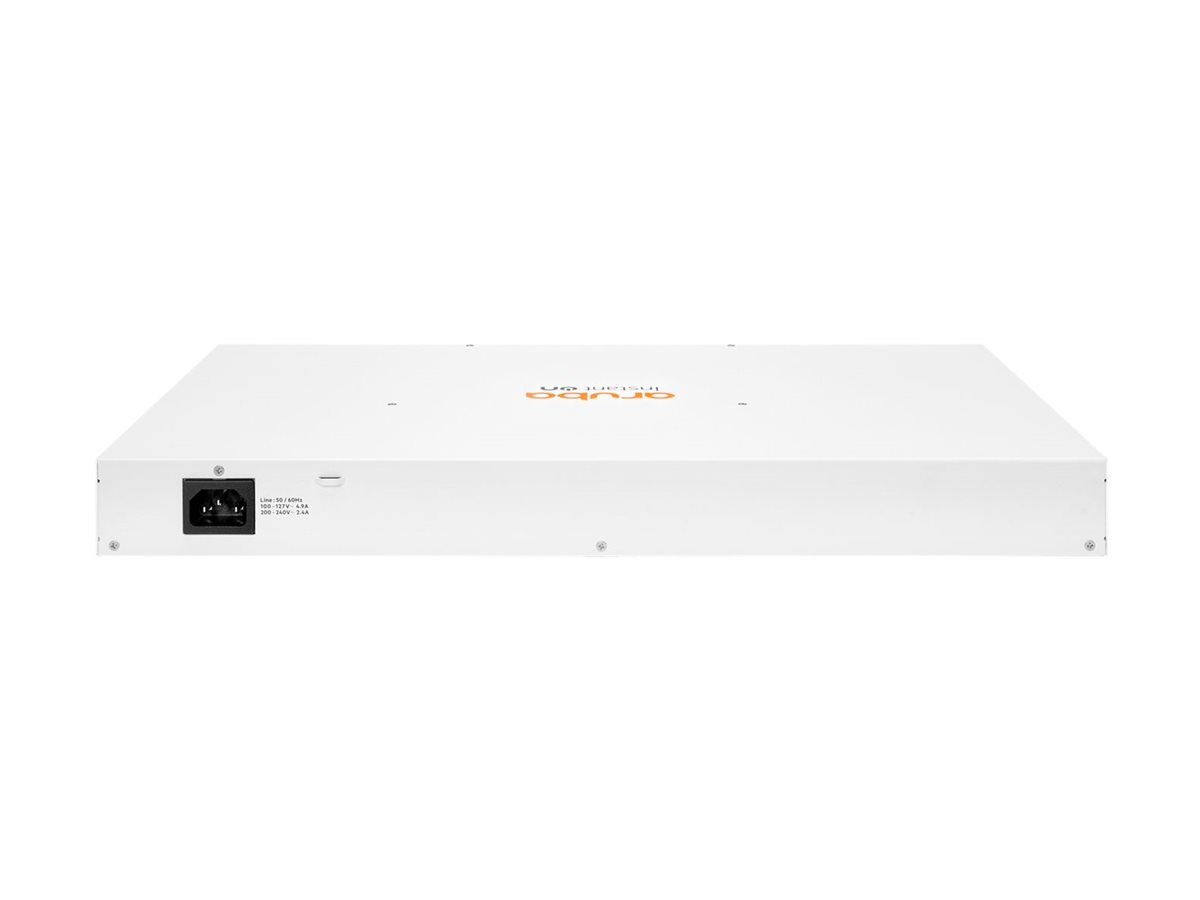

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
MSRP$772.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
- Switch
- L3
- managed
- 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
- rack-mountable
- PoE (370 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $772.00 |
| Mfr Part #: | JL684B#ABA |
| SHI Part #: | 45408752 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Networking and Security
- SFP+ transceiver module
- 10GbE
- 10GBase-SR
- SFP+ / LC multi-mode
- up to 300 m
- for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP $1,454.00
$1,221.00
- SFP (mini-GBIC) transceiver module
- 1GbE
- 1000Base-LX
- LC single-mode
- up to 10 km
- for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360
MSRP $1,016.00
$728.00
- SFP+ transceiver module
- 10GbE
- 10GBase-LR
- SFP+ / LC single-mode
- up to 10 km
- for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP $4,078.00
$2,918.00
Hardware
- 1GbE
- 1000Base-SX
- LC multi-mode
- up to 500 m
- for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360
MSRP $480.00
$182.00
- GigE
- 1000Base-SX
- LC multi-mode
- up to 500 m
- for OfficeConnect 1820; HPE Aruba 2930F 12, 2930F 8G, 2930M 40, 6300, 6405 48, 6405 96, 64XX
MSRP $480.00
$347.00
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch - Switch - L3 - managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (370 W) |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $772.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.47 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Weight | 3.67 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand |
|
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | White |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 28 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 26.47 cm |
| Height | 4.39 cm |
| Weight | 3.67 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (40 °C) |
| Humidity Range Storage | 15 - 95% (60 °C) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Device Type | Switch - 28 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| Performance |
|
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| Processor | 1 x ARM: 800 MHz |
| RAM | 512 MB SDRAM |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Routing Protocol | Static IP routing |
| Status Indicators | Port status, power, PoE |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017 |
| Localization | English / United States |
| MTBF | 71 years |
| Power | |
| Power Consumption Operational | 439 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120 V (50/60 Hz) |
