P1468-XLE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

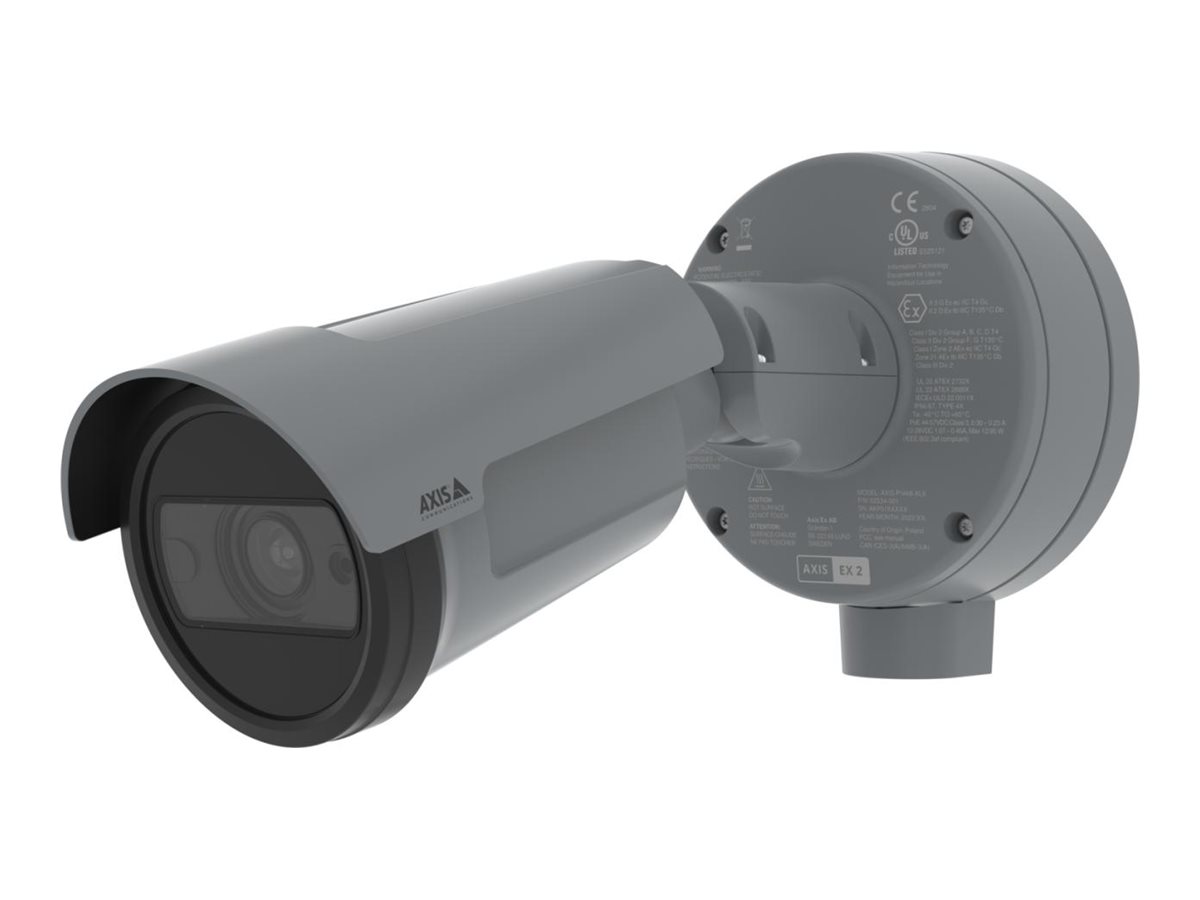

P1468-XLE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02534-001 |
| SHI Part #: | 45980604 |
| Category: | Cameras |
| UNSPSC: | 45121500 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Cameras |
| Description | P1468-XLE |
| Manufacturer | Axis Communications |
| MSRP | $3,179.00 |
| UNSPSC | 45121500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.4 cm |
| Dimensions & Weight / Height | 14.6 cm |
| Dimensions & Weight / Weight | 1.3 kg |
| Dimensions & Weight / Width | 13.2 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 160 x 90 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/66500 sec |
| Features | Remote focus, remote zoom, IR Corrected lens, infrared cut filter, hybrid IR filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, Wide Dynamic Range (WDR), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 180° image rotation, 270° image rotation, 90° image rotation, auto gain control, barrel distortion correction, brightness control, compression, contrast control, Corridor mode, defogging, digital PTZ function, dynamic text, exposure mode, exposure zone, image mirror, image overlay, Lightfinder 2.0 technology, motion-adaptive exposure, network speaker pairing, OptimizedIR, polygon privacy mask, saturation control, sharpness control, tone mapping, white balance, active tampering alarm, Audio Detection, AXIS Object Analytics, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, orientation aid PTZ, shock detection, IP address filtering, aluminum housing, polycarbonate housing |
| Flash Memory | 8 GB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Video Modes | 4K |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, AES-XTS, PEAP, MSCHAPv2, TLS 1.2, TLS 1.3 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Audio Support | Yes: built-in microphone, built-in speaker |
| Connectivity Technology | Wired |
| Depth | 29.4 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 14.6 cm |
| Weight | 1.3 kg |
| Width | 13.2 cm |
| Image Sensor | |
| Type | PS RGB CMOS 1/1.2" |
| Interfaces | |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Zeroconf, Syslog |
| Lens Construction | |
| Focal Length | 6.2 mm - 12.9 mm |
| Horizontal Field of View (degree) | 49 - 108 |
| Lens Iris | F/1.6-2.9 (P-Iris) |
| Min Focus Distance | 1 m |
| Optical Zoom | 2.1 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 27 - 58 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | NCS S 5502-B, gray |
| Compliant Standards | IECEx, UL, ATEX Directive, IEEE 802.1x, IEEE 802.1ar, CISPR 35, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, RCM, ICES-3(A)/NMB-3(A), FCC Part 15 B Class A, IEC 62236-4, CAN/CSA-C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA250 Type 4X, ISO 21207 method B, NIST SP500-267, IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, UL/CSA 60079-0, UL/CSA 60079-7, UL 60079-31, CSA C22.2 60079-31, CSA C22.2 No. 213-17, UL 121201, EAL 6+, X.509, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, JEDEC, ECA, Directive 1907/2006/EC, EN 63000:2018, RoHS 2011/65/EU, REACH |
| Included Accessories | Weathershield, connector kit, connector guard, torx L-keys, owner authentication key |
| TAA Compliant | Yes |
| Power | |
| Power Device | 7.7 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| Software Included | AXIS Site Designer, AXIS Device Manager |
