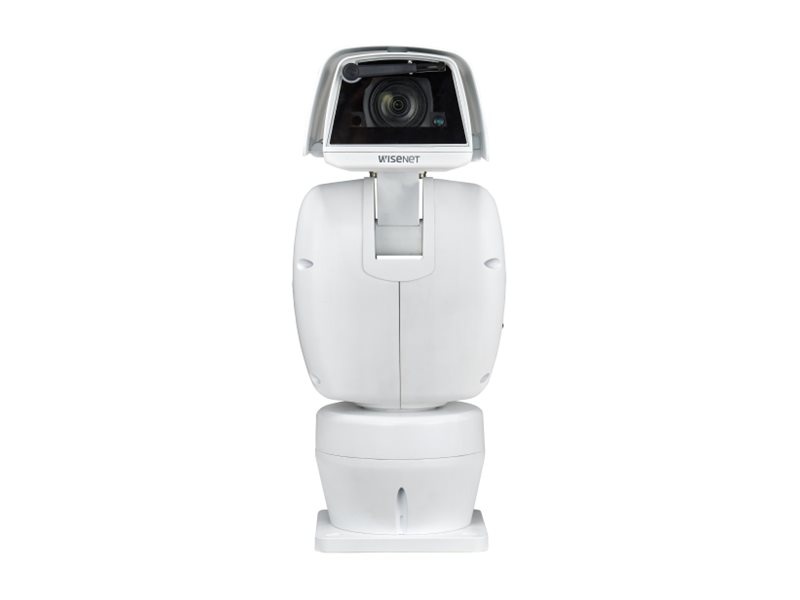

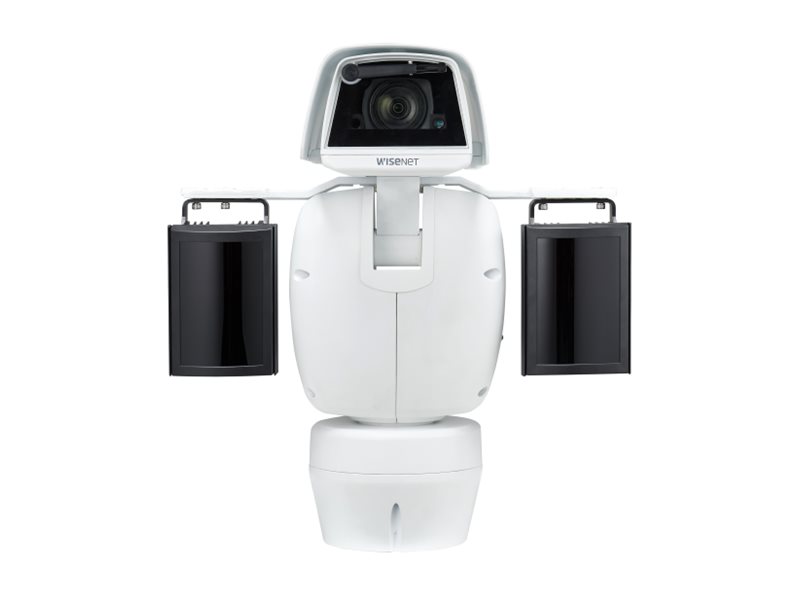

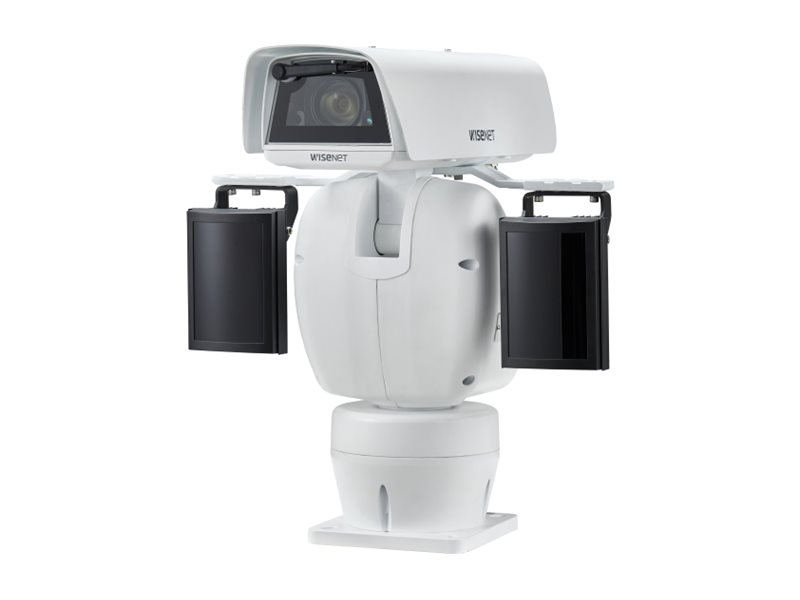

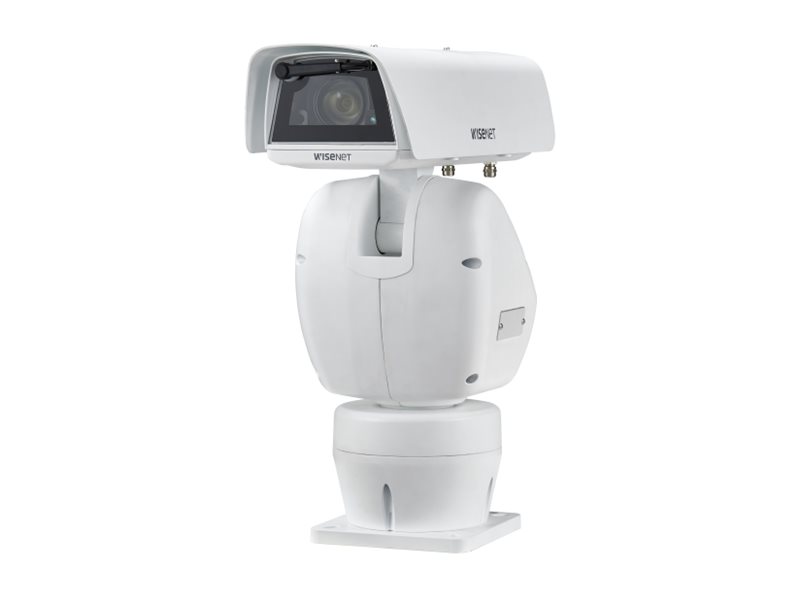

Hanwha Vision WiseNet TNU-6321
MSRP$5,100.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet TNU-6321
- Network surveillance camera
- PTZ
- outdoor
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- AC 24 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,100.00 |
| Mfr Part #: | TNU-6321 |
| SHI Part #: | 46400220 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet TNU-6321 - Network surveillance camera - PTZ - outdoor - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - AC 24 V |
| Manufacturer | HANWHA VISION |
| MSRP | $5,100.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 52.8 cm |
| Dimensions & Weight / Height | 46 cm |
| Dimensions & Weight / Weight | 14 kg |
| Dimensions & Weight / Width | 21.9 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), face detection, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), 255 preset positions, Camera Tampering Detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, Samsung Super Noise Reduction (SSNRV), WiseStream II support, anti-flicker, IP address filtering, fog detection, Unicast Streaming, aluminum housing, Handover, ONVIF (Profile T) support, Virtual Line detection, sound classification, Gain Control, WiseNet 5 chipset |
| Flash Memory | 256 MB |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1024 MB |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, G.711u |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 52.8 cm |
| Device Type | Network surveillance camera |
| Height | 46 cm |
| Weight | 14 kg |
| Width | 21.9 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 4.44 mm - 142.6 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 2.09 - 61.8 |
| Lens Iris | F/1.6-4.4 auto iris (DC) |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 32 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.24 - 36.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | UL, VCCI, EMC, FCC, IP66, KC, RCM, sDoC, IEEE 802.1x |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 120 |
| Power | |
| Power Device | 100 Watt |
| Power Requirements | AC 24 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | -90 to +40 |
| Speed (degree/sec) | Up to 40 |
