Hanwha Vision XNP-C9253R
MSRP$4,750.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

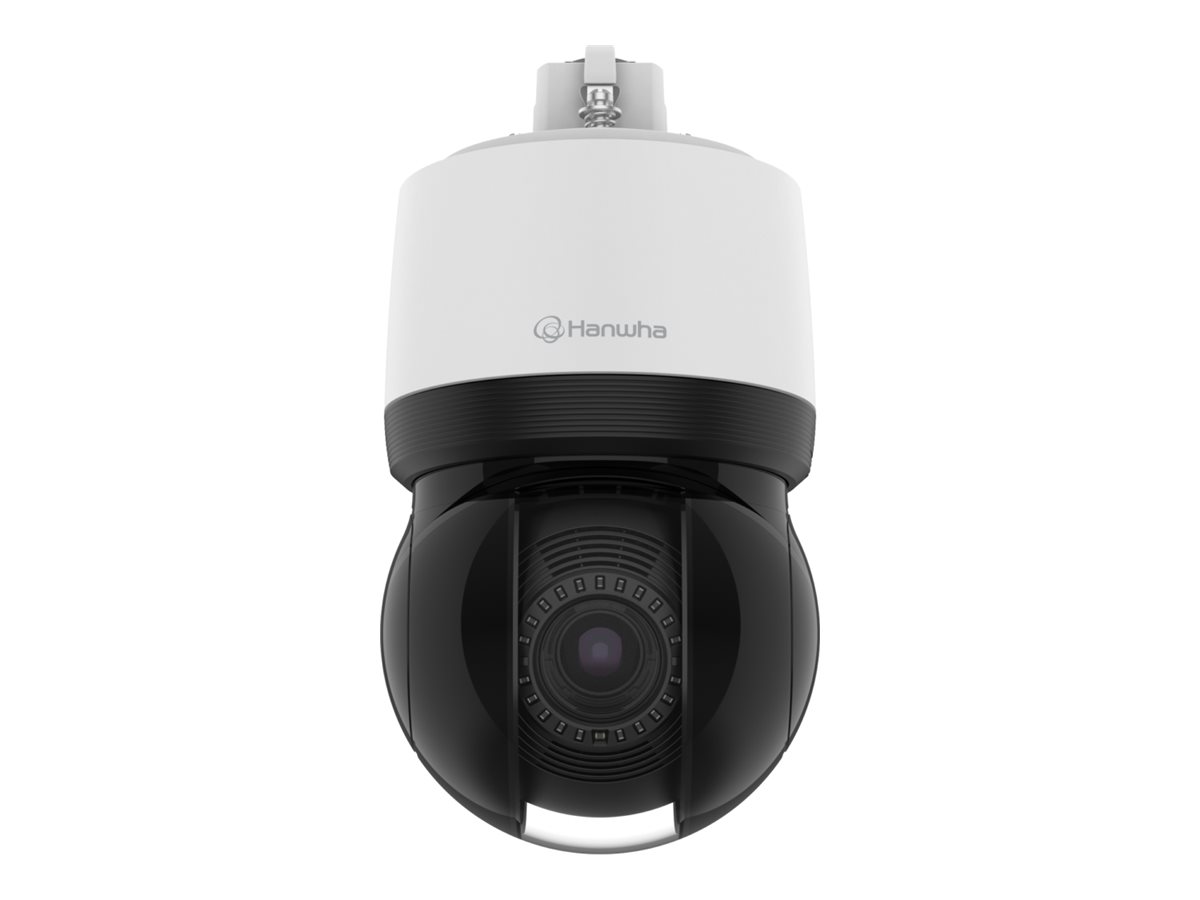

Hanwha Vision XNP-C9253R
- Network surveillance camera
- PTZ
- color (Day&Night)
- 8 MP
- 3840 x 2160
- auto iris
- motorized
- LAN 10/100
- MJPEG, H.264, H.265
- High PoE Class 6
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,750.00 |
| Mfr Part #: | XNP-C9253R |
| SHI Part #: | 46429914 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision XNP-C9253R - Network surveillance camera - PTZ - color (Day&Night) - 8 MP - 3840 x 2160 - auto iris - motorized - LAN 10/100 - MJPEG, H.264, H.265 - High PoE Class 6 |
| Manufacturer | HANWHA VISION |
| MSRP | $4,750.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.8 cm |
| Dimensions & Weight / Height | 29.33 cm |
| Dimensions & Weight / Weight | 3.2 kg |
| Dimensions & Weight / Width | 15.8 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | 300 preset positions, appearing / disappearing detection, auto ICR, Backlight Compensation (BLC), brute force delay protection, built-in gyroscope, Constant Bitrate (CBR), Defocus Detection, Defog, digest authentication, entrance / exit detection, Extreme WDR, face detection, firmware encryption, fog detection, Handover, Highlight Compensation (HLC), image flip, image mirror, intrusion detection, IP address filtering, license plate detection, loitering detection, motion detection, Multicast Streaming, notification picture to E-mail, notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, shock detection, spin dry, tamper-detection, Target lock tracking, Unicast Streaming, Variable Bitrate (VBR), Vehicle Detection, Virtual Line detection, white balance, Wide Dynamic Range (WDR), WiseIR |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 200 m |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 90% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 15.8 cm |
| Device Type | Network surveillance camera |
| Height | 29.33 cm |
| Weight | 3.2 kg |
| Width | 15.8 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT |
| Lens Construction | |
| Focal Length | 5 mm - 125 mm |
| Focus Adjustment | One-shot contrast |
| Horizontal Field of View (degree) | 2.71 - 57.42 |
| Lens Iris | F/1.6-3.73 auto iris (DC) |
| Min Focus Distance | 5 m |
| Optical Zoom | 25 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.55 - 33.54 |
| Miscellaneous | |
| Color | White, black, RAL 9003, RAL 9005 |
| Compliant Standards | IP66, IK10, NEMA Type 4X, NEMA TS-2 (2.2.8-2.2.9), FIPS 140-2 Level 2, IEEE 802.3bt, IEEE 802.1x, NDAA, FCC, CE/EAC |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 700 |
| Power | |
| Power Device | 24 Watt |
| Power Requirements | High PoE Class 6 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 500 |
