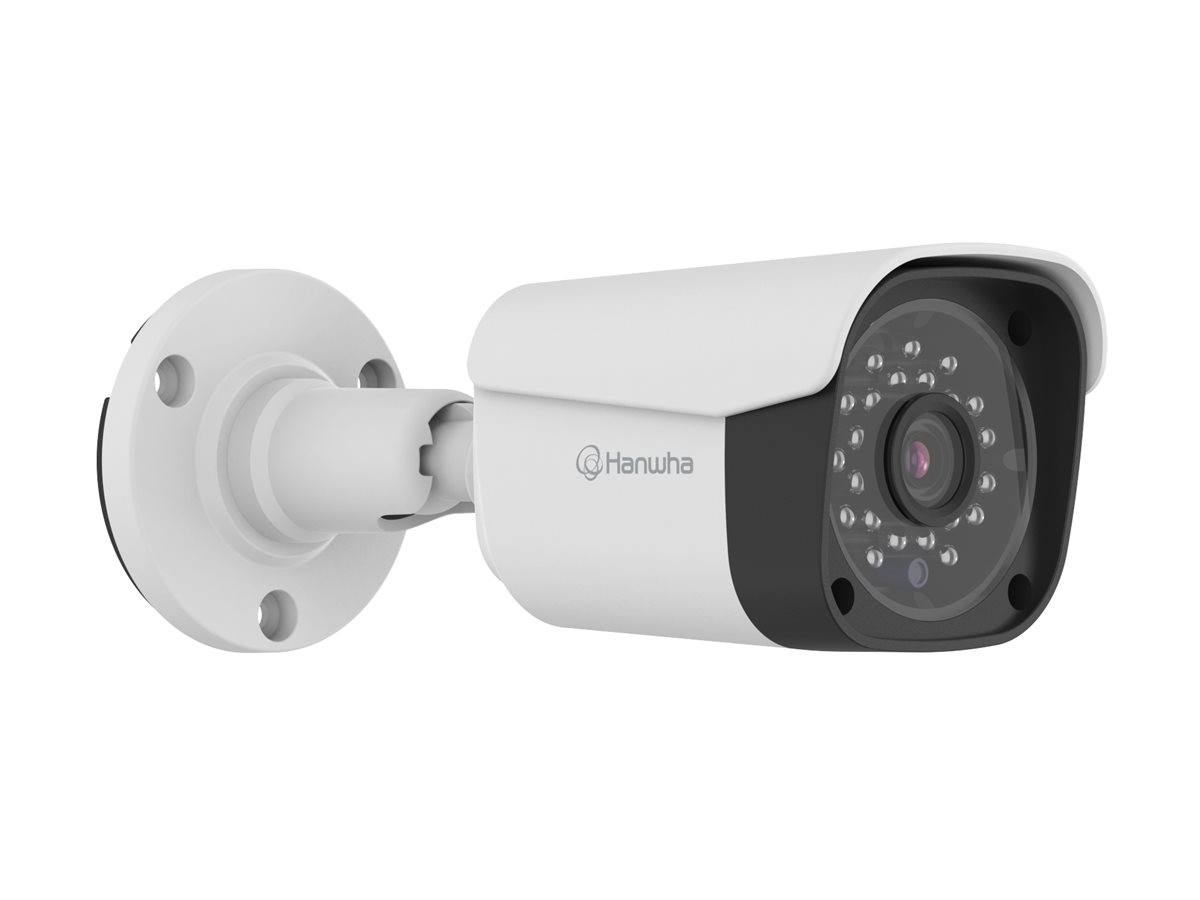

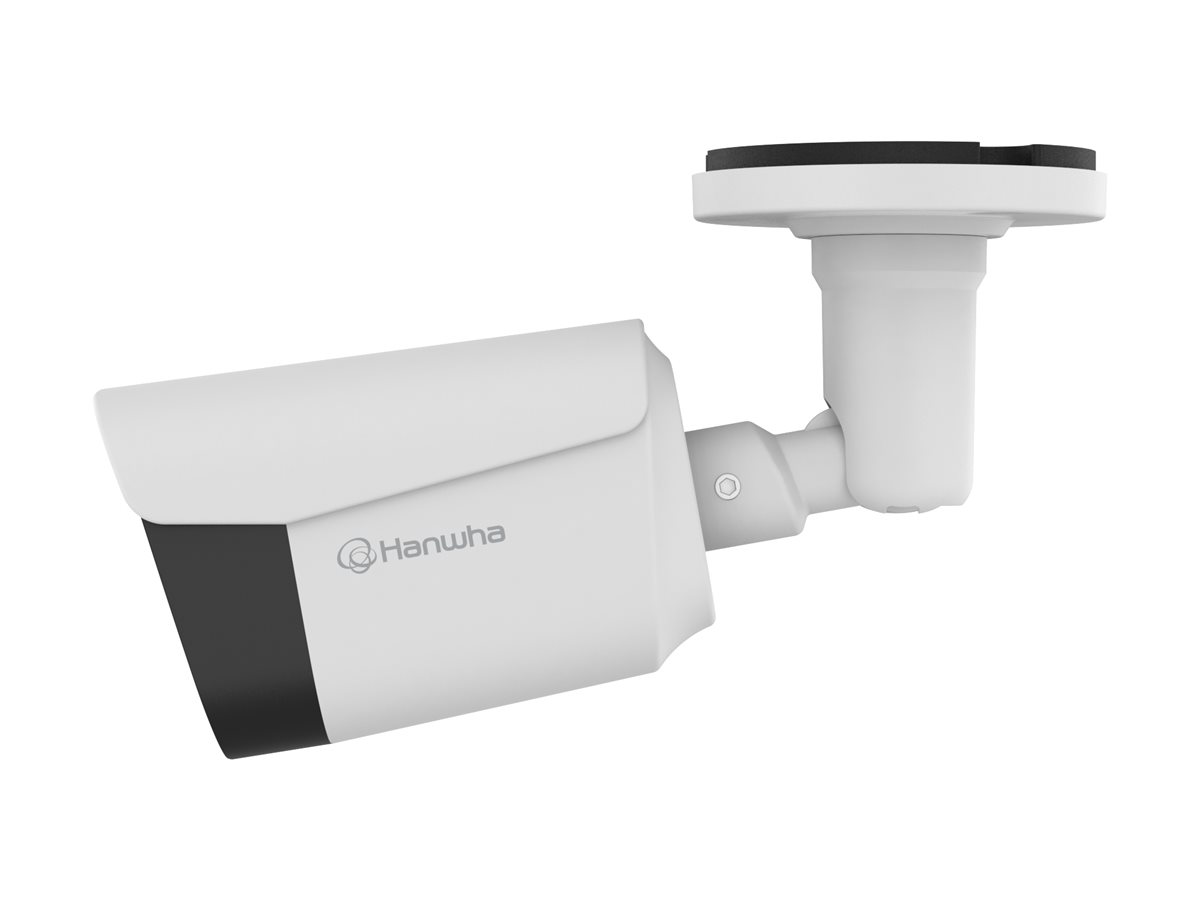

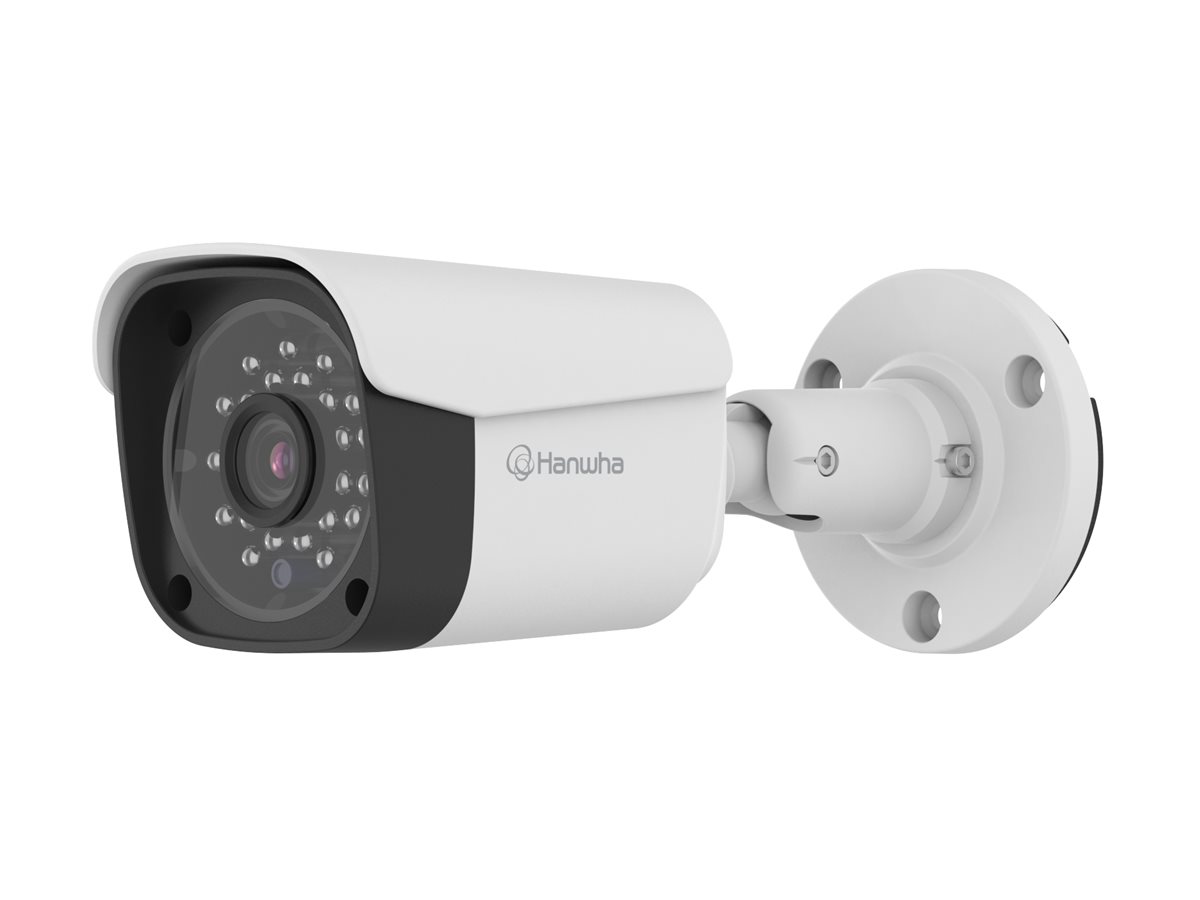

Hanwha Vision WiseNet A-Series ACO-8020R
MSRP$115.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet A-Series ACO-8020R
- Surveillance camera
- bullet
- color (Day&Night)
- 5 MP
- 2592 x 1944
- fixed focal
- CVBS, AHD, CVI
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $115.00 |
| Mfr Part #: | ACO-8020R |
| SHI Part #: | 46730203 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet A-Series ACO-8020R - Surveillance camera - bullet - color (Day&Night) - 5 MP - 2592 x 1944 - fixed focal - CVBS, AHD, CVI |
| Manufacturer | HANWHA VISION |
| MSRP | $115.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.6 cm |
| Dimensions & Weight / Height | 6.9 cm |
| Dimensions & Weight / Weight | 420 g |
| Dimensions & Weight / Width | 7 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440 |
| Exposure Range | 1/30 sec - 1/50000 sec |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Gain Control, vertical flip and mirror |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports | Composite video - BNC |
| General | |
| Connectivity Technology | Wired |
| Depth | 18.6 cm |
| Device Type | Surveillance camera |
| Form Factor | Bullet |
| Height | 6.9 cm |
| Weight | 420 g |
| Width | 7 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.5" |
| Interfaces | |
| Video | CVBS, AHD, CVI |
| Lens Construction | |
| Diagonal Field of View (degree) | 104 |
| Focal Length | 3.6 mm |
| Horizontal Field of View (degree) | 83.9 |
| Lens Iris | F/1.6 |
| Min Focus Distance | 80 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 63.4 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IP67, IK10, NDAA |
| Power | |
| Power Device | DC 12 V 5.4 Watt |
