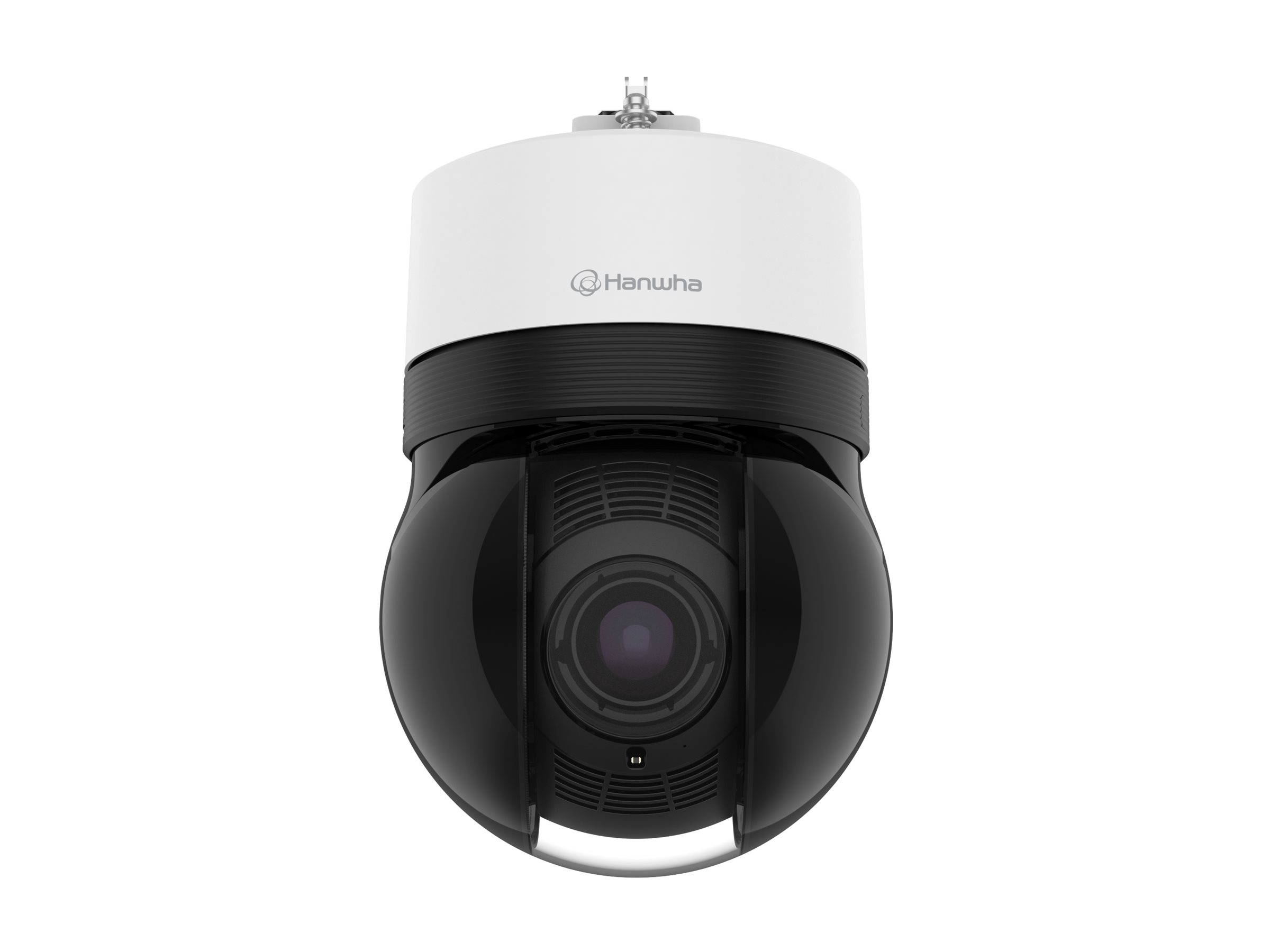

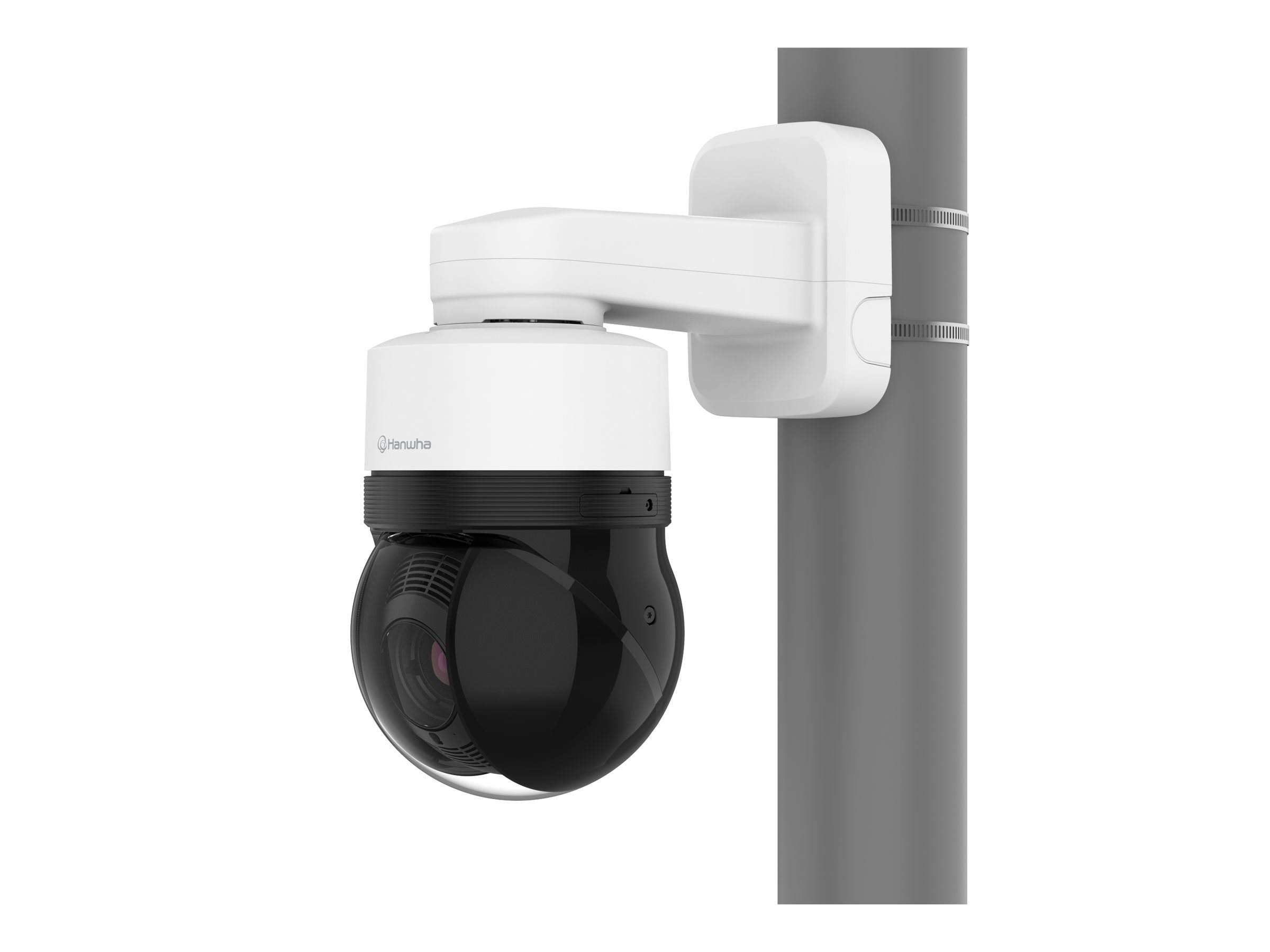

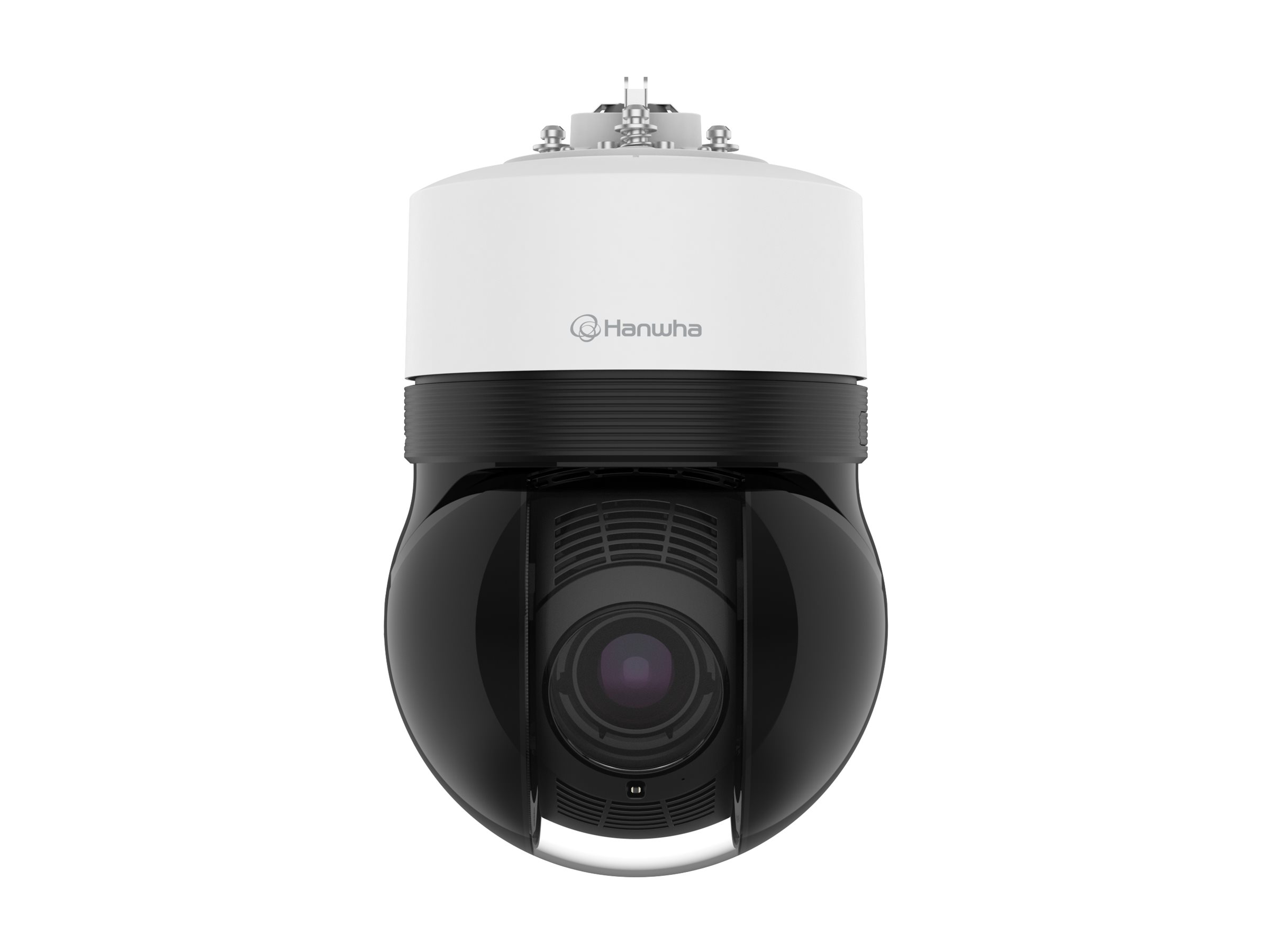

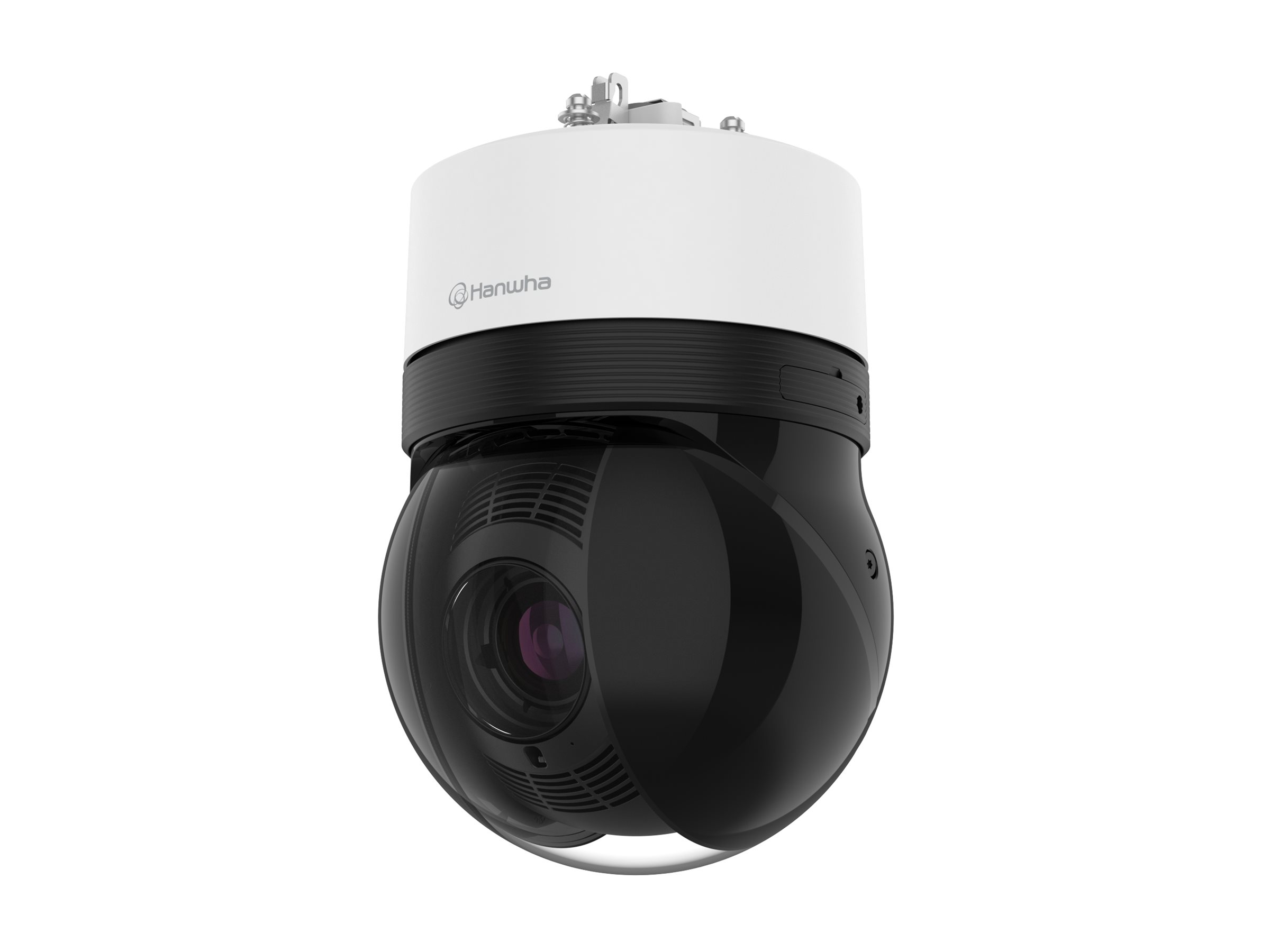

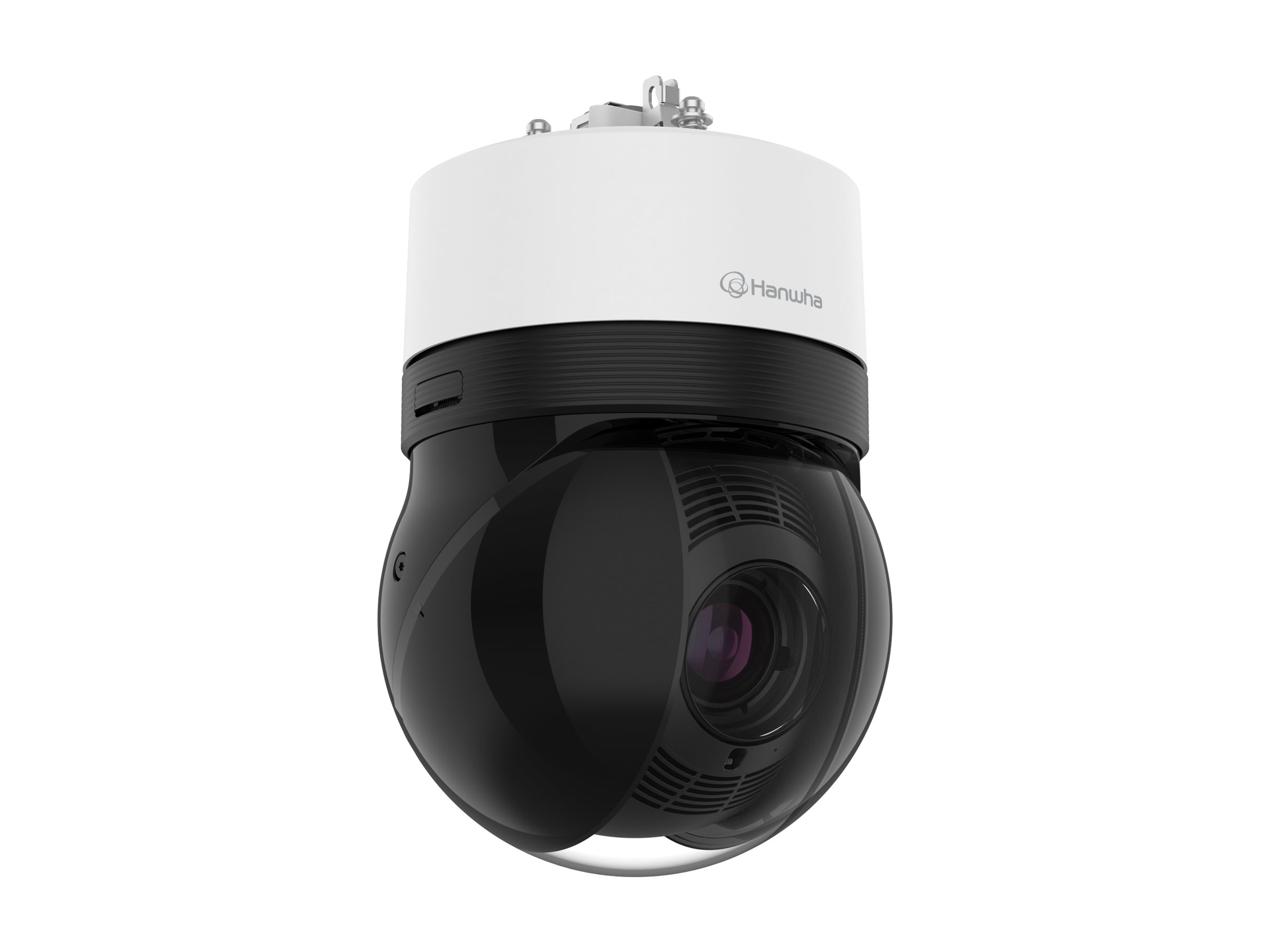

Hanwha Vision XNP-C7310R
MSRP$4,250.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision XNP-C7310R
- Network surveillance camera
- PTZ
- dome
- color (Day&Night)
- 4 MP
- 2592 x 1520
- auto iris
- motorized
- LAN 10/100
- MJPEG, H.264, H.265
- PoE ++
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,250.00 |
| Mfr Part #: | XNP-C7310R |
| SHI Part #: | 47650530 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision XNP-C7310R - Network surveillance camera - PTZ - dome - color (Day&Night) - 4 MP - 2592 x 1520 - auto iris - motorized - LAN 10/100 - MJPEG, H.264, H.265 - PoE ++ |
| Manufacturer | HANWHA VISION |
| MSRP | $4,250.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.8 cm |
| Dimensions & Weight / Height | 26.49 cm |
| Dimensions & Weight / Weight | 4.4 kg |
| Dimensions & Weight / Width | 18.8 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Auto ICR, direction detection, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), built-in gyroscope, Defog, motion detection, Privacy Mask Function, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), image flip, image mirror, Person Detection, face detection, Vehicle Detection, vehicle type classification, license plate detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, tamper-detection, fog detection, shock detection, appearing / disappearing detection, sound classification, network disconnection trigger, Handover, notification picture to FTP, notification picture to E-mail, Target lock tracking, auto tracking, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, brute force delay protection, digest authentication, secure boot, signed firmware, spin dry, WiseStream II support, WiseStream III support, 802.1x authentication |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 300 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2 Level 2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 18.8 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 26.49 cm |
| Weight | 4.4 kg |
| Width | 18.8 cm |
| Image Sensor | |
| Type | 4 MP CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT |
| Lens Construction | |
| Diagonal Field of View (degree) | 2.95 - 68.2 |
| Focal Length | 6.91 mm - 214.7 mm |
| Focus Adjustment | One-shot contrast, automatic |
| Horizontal Field of View (degree) | 2.54 - 59.4 |
| Lens Iris | F/1.36-4.6 auto iris (P-Iris) |
| Min Focus Distance | 3 m |
| Optical Zoom | 31 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.49 - 35.8 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IP66, IP67, IK10, NEMA Type 4X, IEEE 802.1x, IEEE 802.3bt, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, CISPR-32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NDAA |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 550 |
| Power | |
| Power Device | 23 Watt |
| Power Requirements | PoE ++ |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 550 |
