Hanwha Vision XNP-C9310R
MSRP$5,100.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

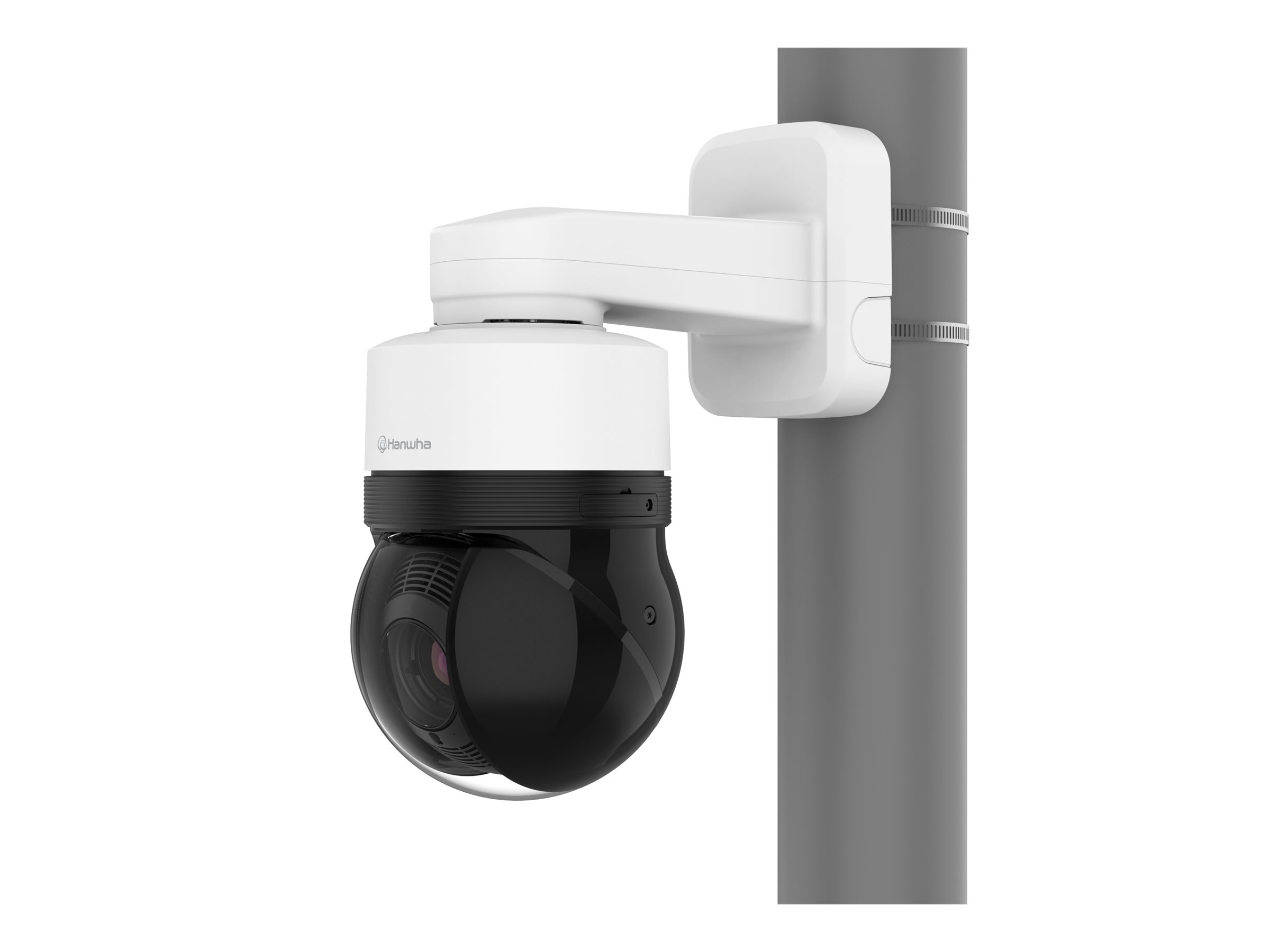

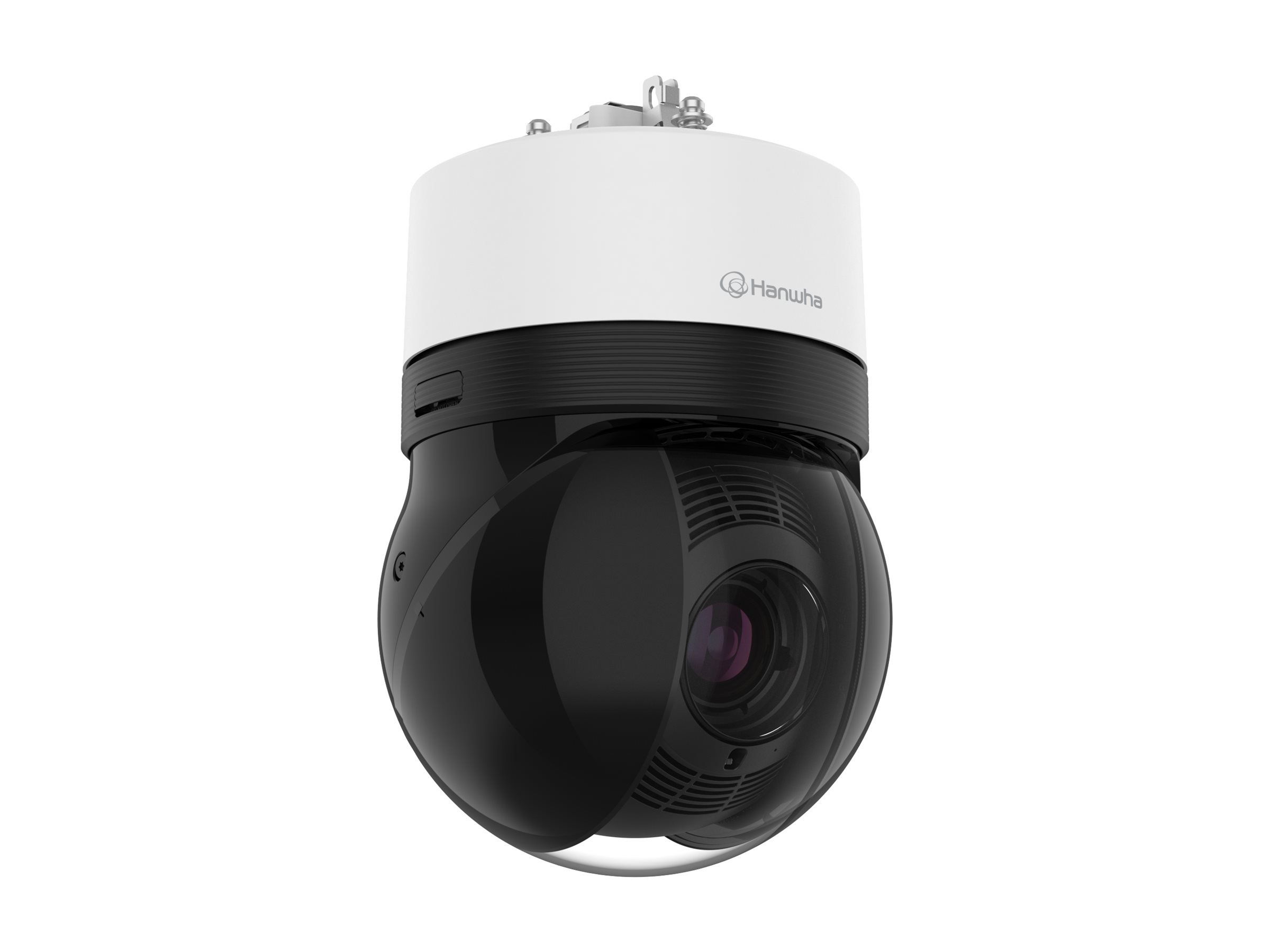

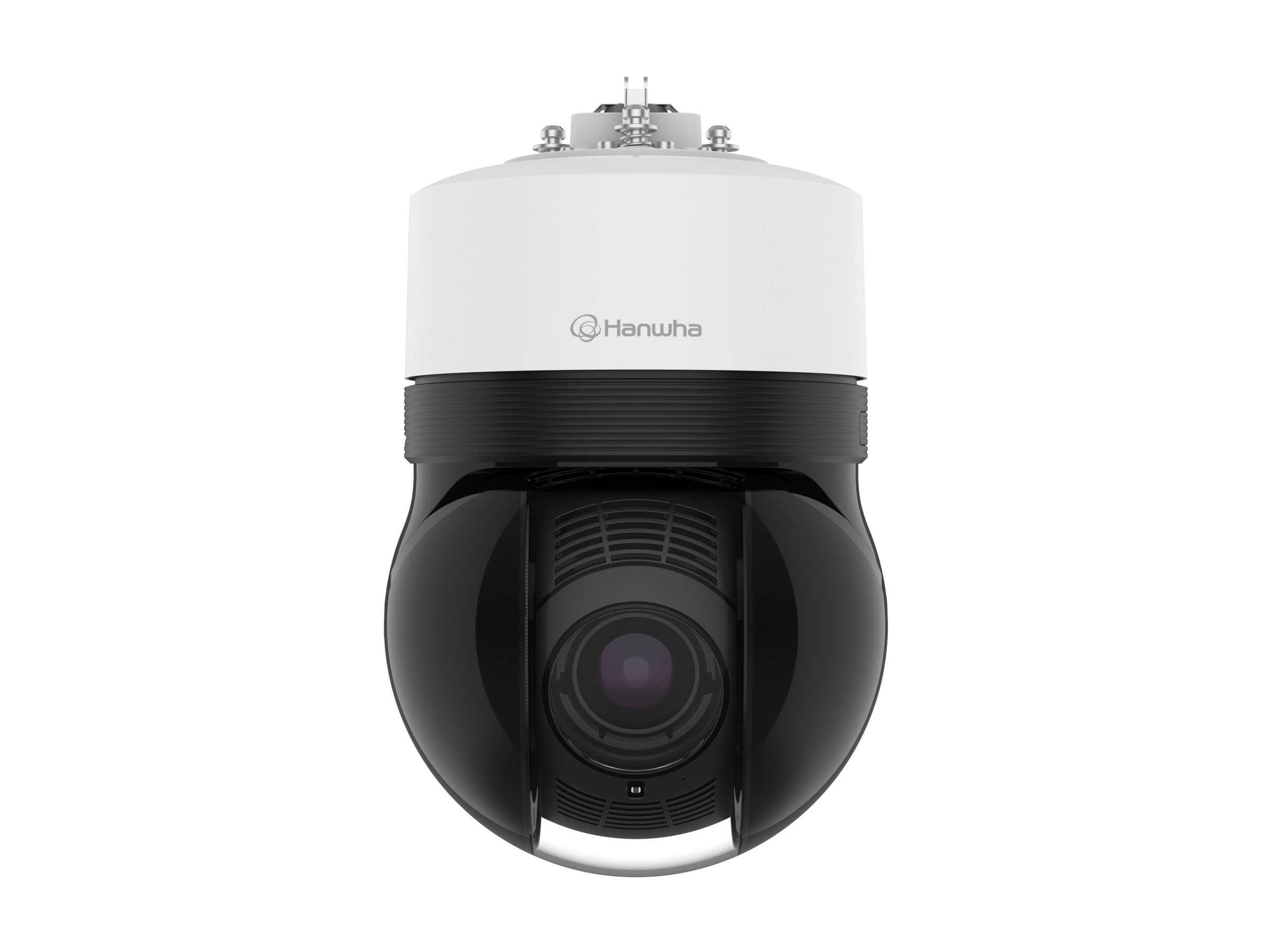

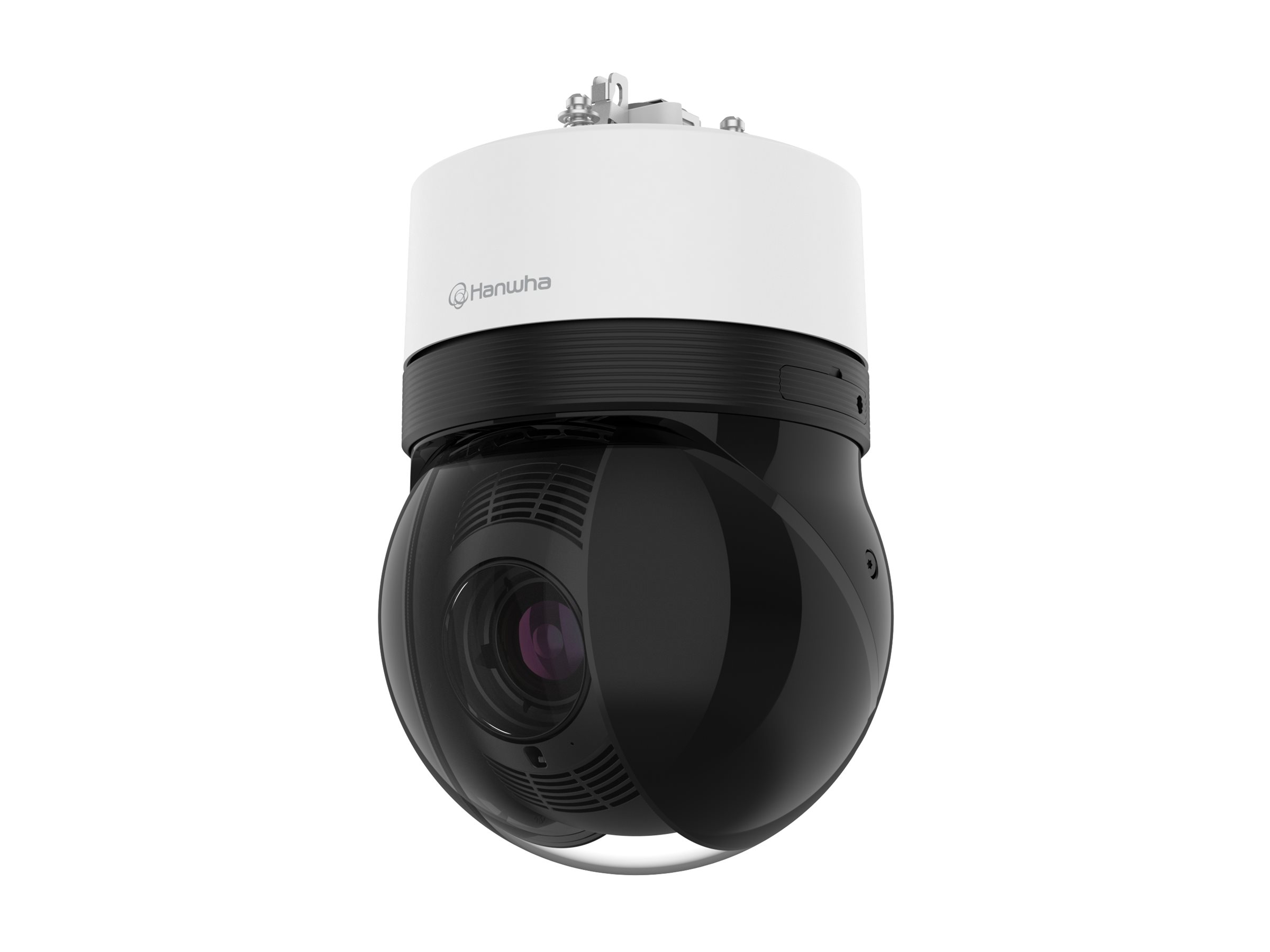

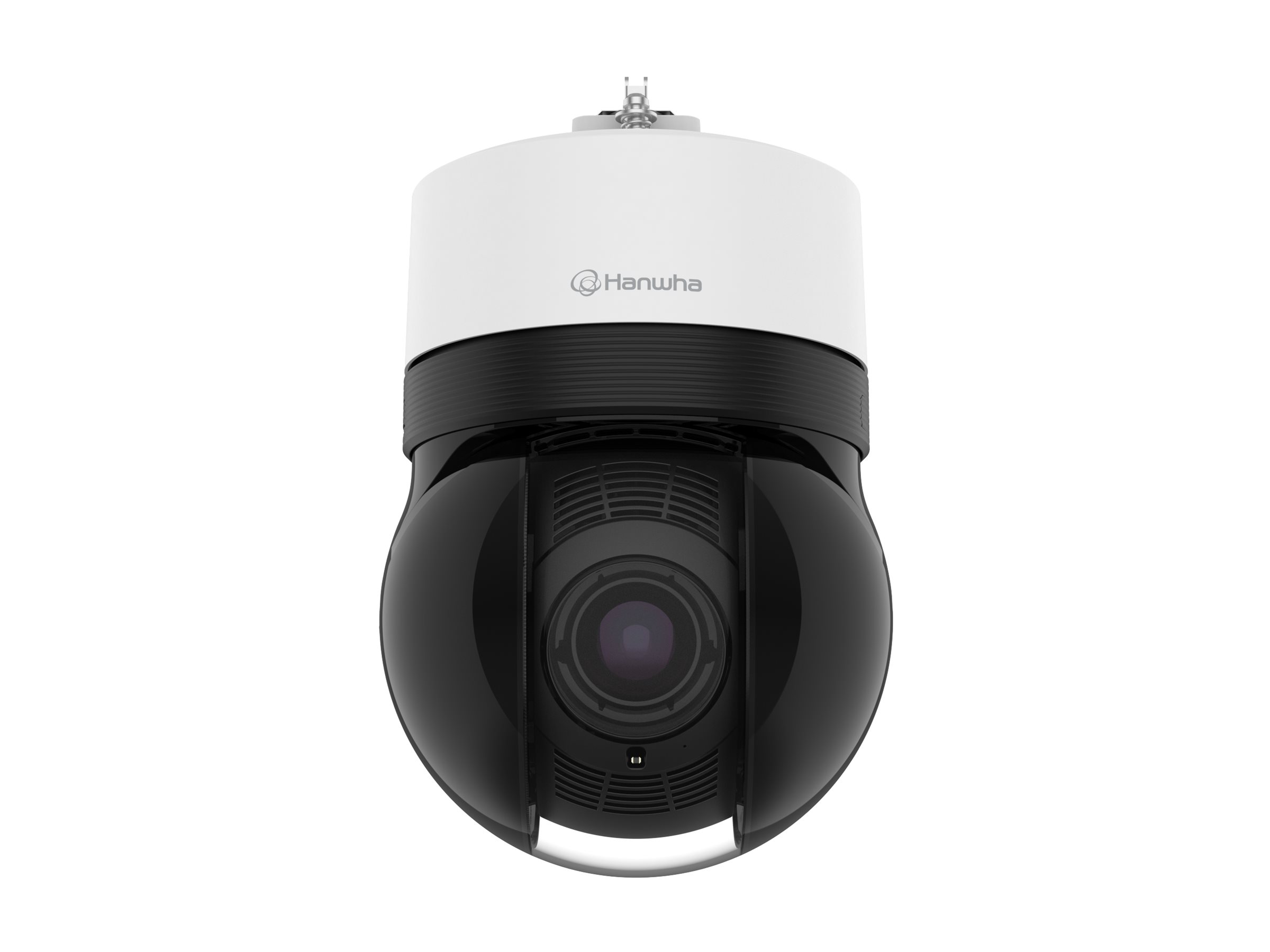

Hanwha Vision XNP-C9310R
- Network surveillance camera
- PTZ
- dome
- color (Day&Night)
- 4 MP
- 3840 x 2160
- motorized
- LAN 10/100
- H.264, H.265, MJPEG
- High PoE Class 8
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,100.00 |
| Mfr Part #: | XNP-C9310R |
| SHI Part #: | 47650531 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision XNP-C9310R - Network surveillance camera - PTZ - dome - color (Day&Night) - 4 MP - 3840 x 2160 - motorized - LAN 10/100 - H.264, H.265, MJPEG - High PoE Class 8 |
| Manufacturer | HANWHA VISION |
| MSRP | $5,100.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.8 cm |
| Dimensions & Weight / Height | 26.49 cm |
| Dimensions & Weight / Weight | 4.4 kg |
| Dimensions & Weight / Width | 18.8 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Quick-zoom, direction detection, auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNRV), digital noise reduction, Digital Image Stabilization (DIS), built-in gyroscope, Defog, Privacy Mask Function, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), white balance, anti-flicker, image flip, image mirror, Person Detection, face detection, Vehicle Detection, vehicle type classification, license plate detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, tamper-detection, fog detection, shock detection, appearing / disappearing detection, sound classification, network disconnection trigger, notification picture to FTP, notification picture to E-mail, Handover, Target lock tracking, auto tracking, Smart Codec, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, brute force delay protection, Trusted Platform Module (TPM) |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 250 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, PEAP, MSCHAPv2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Camera Mount Type | Ceiling mount, pole mount, wall mount |
| Connectivity Technology | Wired |
| Depth | 18.8 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 26.49 cm |
| Weight | 4.4 kg |
| Width | 18.8 cm |
| Image Sensor | |
| Type | 4 MP CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, NTCIP, MQTT, SUNAPI |
| Lens Construction | |
| Diagonal Field of View (degree) | 2.97 - 68.8 |
| Focal Length | 6.91 mm - 214.7 mm |
| Focus Adjustment | One-shot contrast, automatic |
| Horizontal Field of View (degree) | 2.59 - 60.6 |
| Lens Iris | F/1.36-4.6 (P-Iris) |
| Min Focus Distance | 3 m |
| Optical Zoom | 31 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.45 - 35.1 |
| Miscellaneous | |
| Color | White, black, RAL 9003, RAL 9005 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, UL, KC, sDoC, EMC, VCCI, RCM, 802.3bt type 4, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL62368-1/CAN/CSA C22.2 No.62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA TS-2 2013 (2.2.7-2.2.8-2.2.9), NEMA 250 Type 4X |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 550 |
| Power | |
| Power Device | 23 Watt |
| Power Requirements | High PoE Class 8 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 550 |
