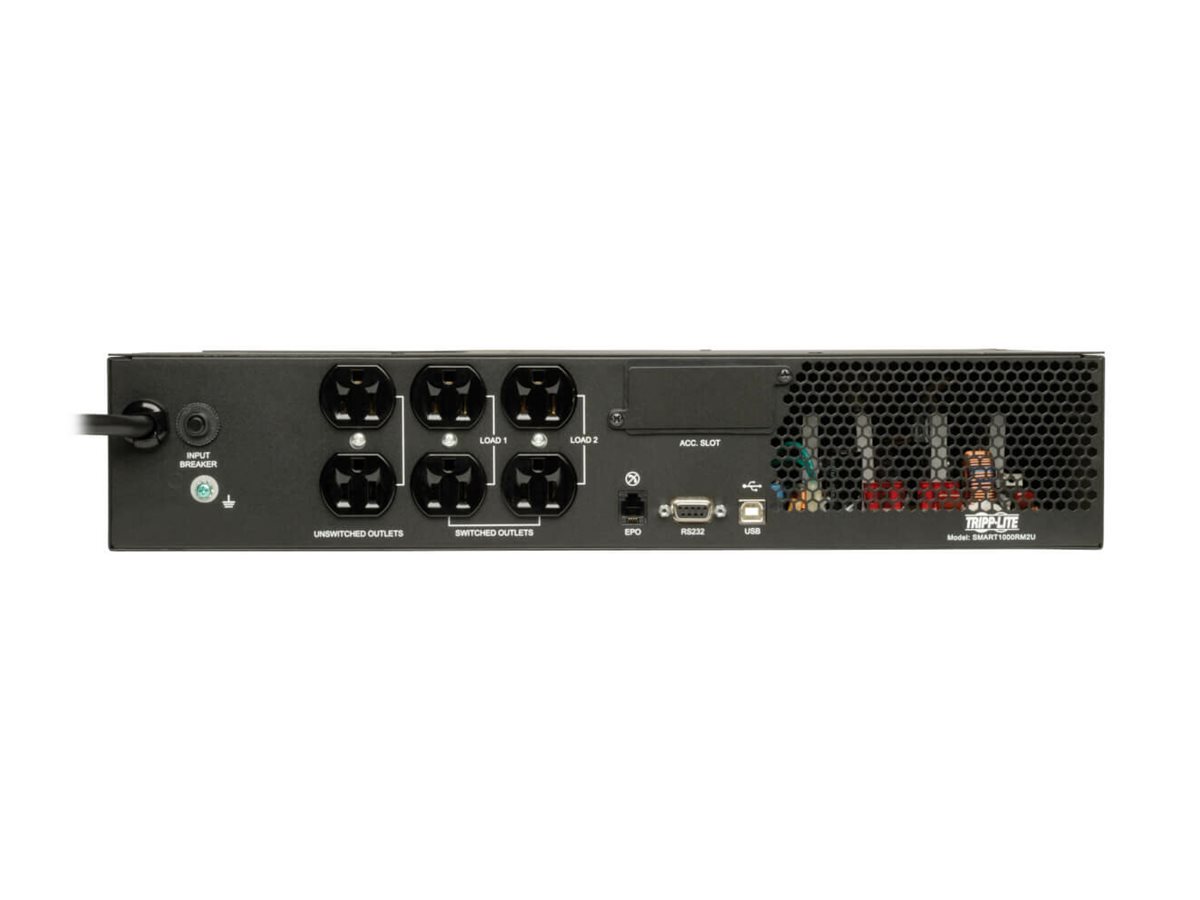

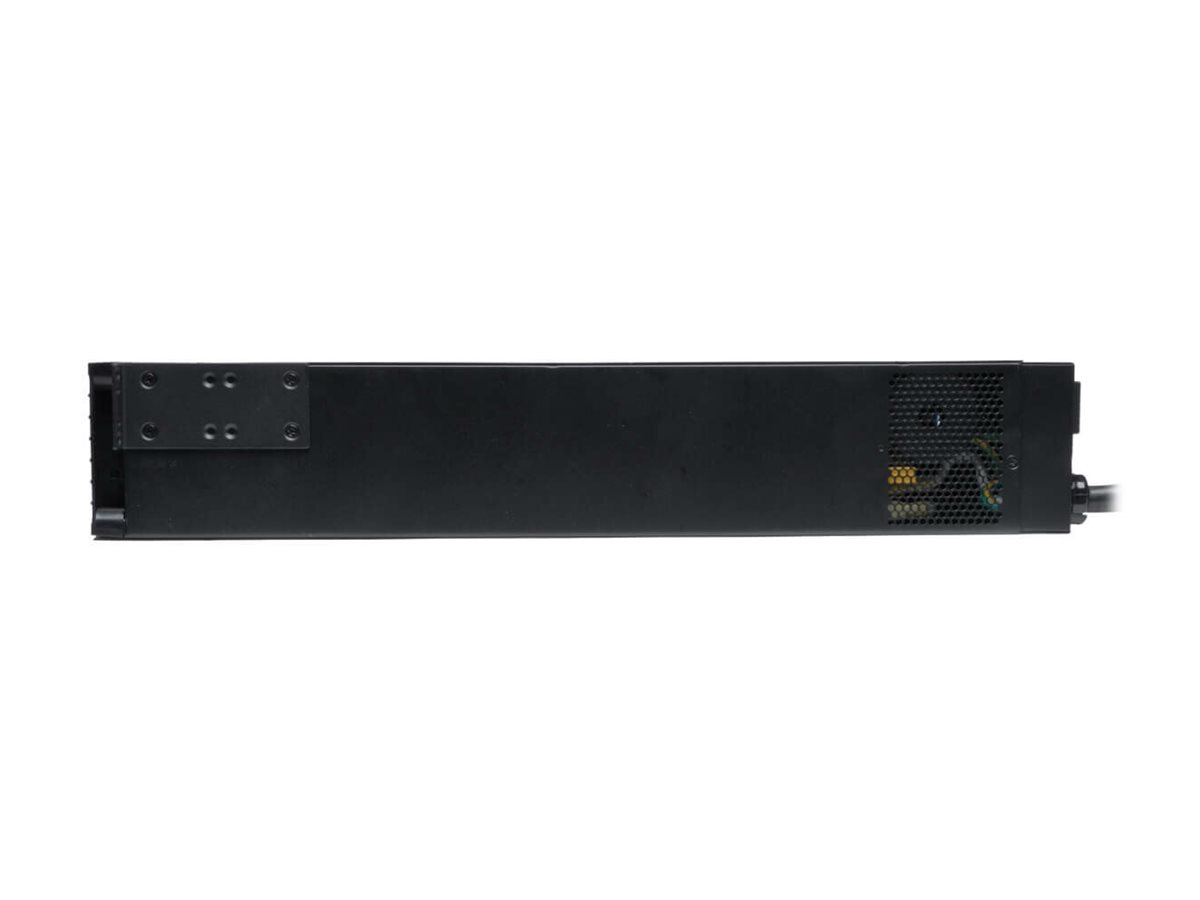

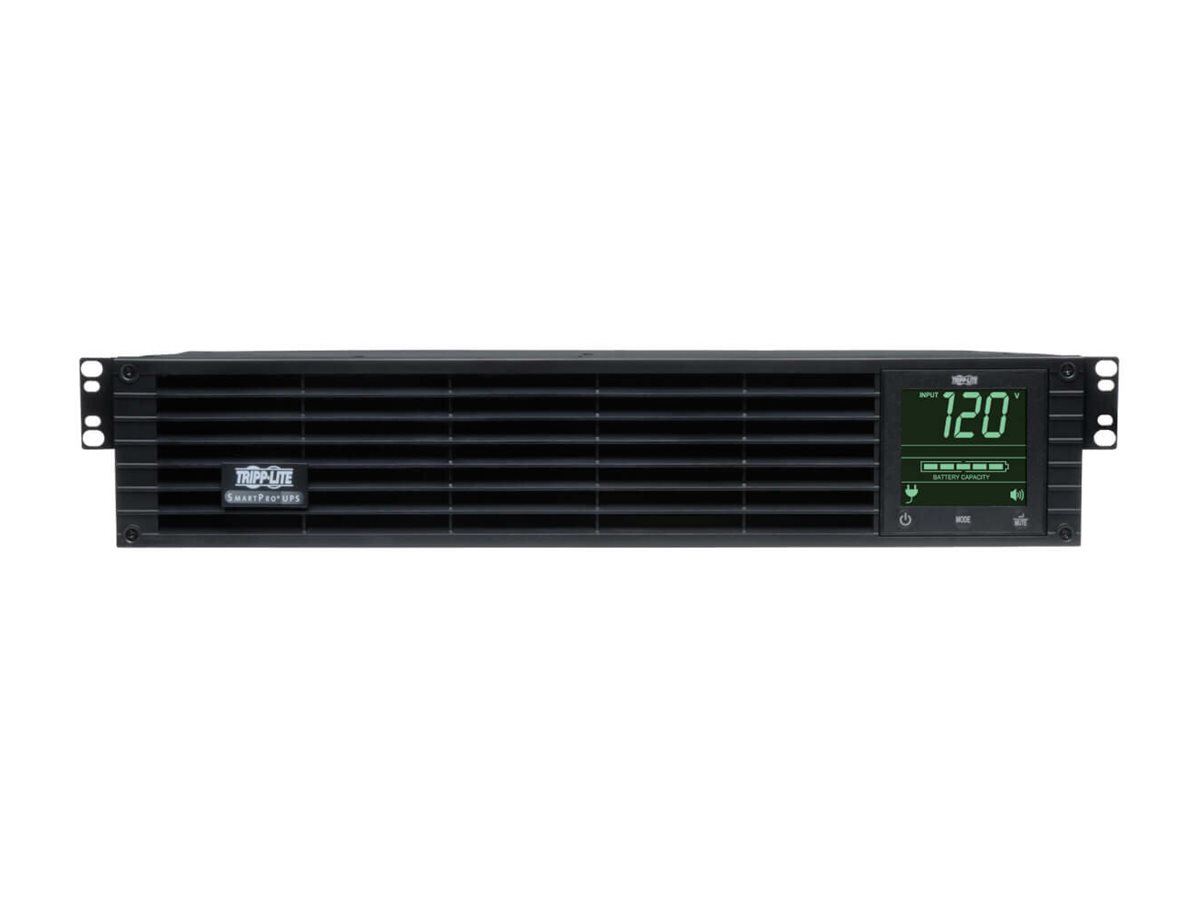

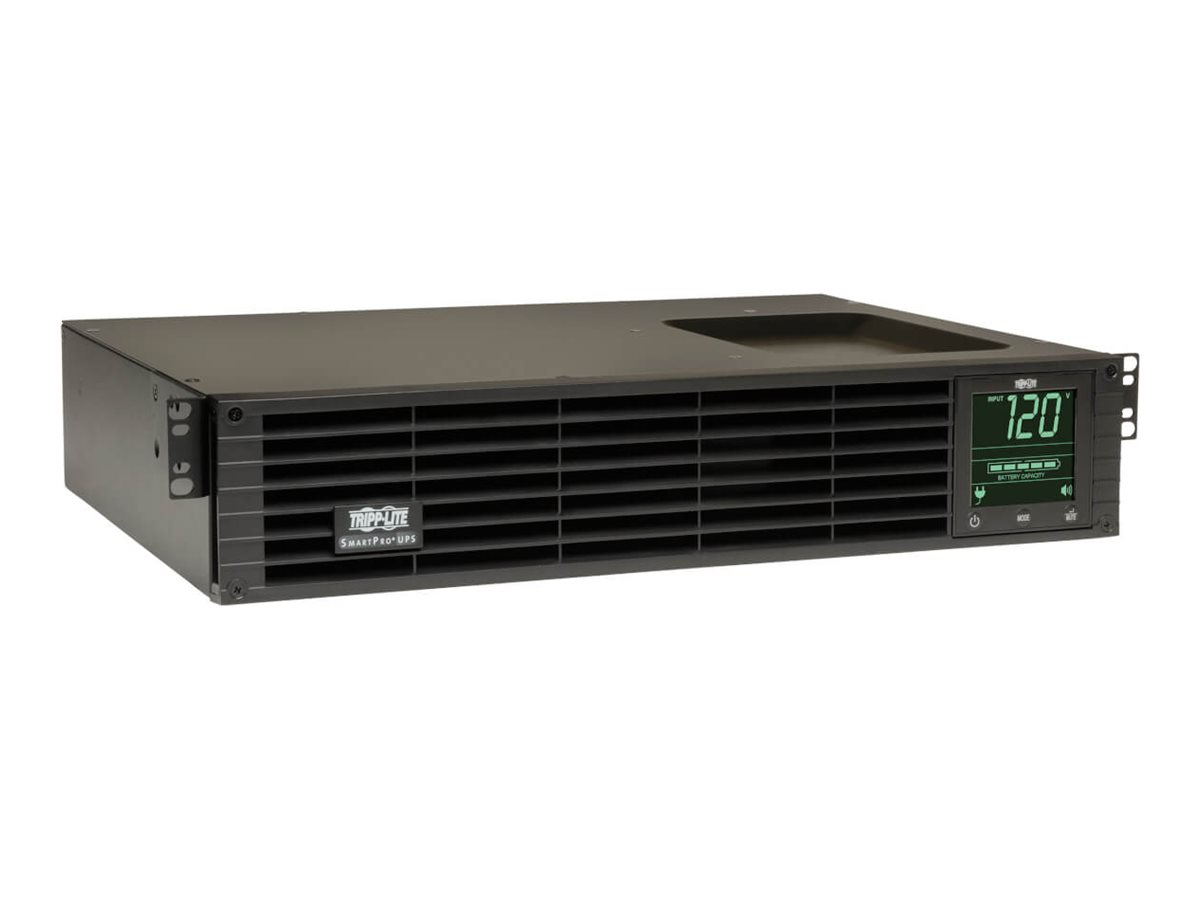

Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM

MSRP$1,260.34

$1,219.00

Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
UPS AC 120 V 800 Watt 1000 VA output connectors: 6

Contracts
DIR-CPO-5094

Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM

UPS
AC 120 V
800 Watt
1000 VA
output connectors: 6
2U
black

Additional Details
Price:	$1,219.00
MSRP:	$1,260.34
Mfr Part #:	SMART1000RM2U
SHI Part #:	14480827
Category:	Rechargeable batteries
UNSPSC:	26111701
Manufacturer:	Eaton
Product Type:	Hardware
Product Line:	Tripp Lite

Power Cables

Eaton Tripp Lite Series Power Cord, NEMA 5-15P to C15

Heavy-Duty, 15A, 125V, 14 AWG, 8 ft. (2.43 m), Black
Power cable
NEMA 5-15 (M) to IEC 60320 C15
AC 110 V
2.44 m
molded

MSRP $56.00

$54.16

Tripp Lite 10ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 10'

Power cable
NEMA 5-15 (M) to IEC 60320 C13
AC 110 V
3 m
molded
black

MSRP $36.93

$35.72

Tripp Lite 6ft Computer Power Cord Cable 5-15P to Left Angle C13 10A 18AWG 6'

Power cable
IEC 60320 C13 to NEMA 5-15 (M)
AC 110 V
1.8 m
left-angled connector
black

MSRP $14.21

$13.74

Storage Networking (SAN)

Tripp Lite PDU Basic 120V 1.8kW 15A 5-15R 13 Outlet 5-15P Horizontal 1URM

Horizontal rackmount
power distribution unit (rack-mountable)
15 A
AC 120 V
1.8 kW
input: NEMA 5-15

MSRP $191.00

$184.74

Tripp Lite PDU Switched ATS 120V 1.4kW 15A 5-15R 8 Outlet 2 5-15P 1URM

Horizontal rackmount
power distribution unit (rack-mountable)
15 A
AC 120 V
1.4 kW
1800 VA

MSRP $1,145.00

$1,107.44

Tripp Lite PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM

Horizontal rackmount
power distribution unit (rack-mountable)
15 A
AC 120 V
1.4 kW
input: NEMA 5-15

MSRP $221.00

$213.75

General Information
Category	Rechargeable batteries
Description	Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM - UPS - AC 120 V - 800 Watt - 1000 VA - output connectors: 6 - 2U - black
Manufacturer	Eaton
MSRP	$1,260.34
UNSPSC	26111701
Main Specifications
Dimensions & Weight / Depth	31.8 cm
Dimensions & Weight / Height	8.8 cm
Dimensions & Weight / Weight	16.06 kg
Dimensions & Weight / Width	44.1 cm
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable / external
Power Device / Output Connector Qty	6
Power Device / Power Capacity (VA)	1000 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	3-year warranty with product registration
Battery
Features	Valve-regulated
Recharge Time	4 hours
Run Time (Up To)	5.3 min at full load 15 min at half load
Transfer Time	4 ms
Voltage Provided	DC 24 V
Compatibility Information
Designed For	P/N: PDUNV
Dimensions & Weight
Depth	31.8 cm
Height	8.8 cm
Weight	16.06 kg
Width	44.1 cm
Dimensions & Weight (Shipping)
Shipping Depth	47.24 cm
Shipping Height	22.35 cm
Shipping Weight	20.77 kg
Shipping Width	58.17 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	45 dB
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	1 x USB - 4 pin USB Type B 1 x RS-232 - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) - RJ-11
General
Device Type	UPS - rack-mountable / external
Height (Rack Units)	2U
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Cables Included	Power cable - integrated - 3.05 m USB cable RS232 cable
Compliant Standards	CSA, Mexico NOM, FCC Part 15 Class B (USA), RoHS, UL 1778
Equipment Protection Value	250000 US Dollars
Features	Tower mountable, hot-swappable battery, EMI filtering, RFI filtering, steel housing, VMware Ready, back panel grounding lug, pure sinewave output, Automatic Voltage Regulation (AVR), overvoltage correction, undervoltage correction, rotatable LCD panel, cooling fan, cold-start function, VRLA battery support, battery backup capability, audible alarm, remote ON/OFF function, emergency power off, Auto Probe
Rack Mounting Kit	Included
Networking
Remote Management Interface	RS-232, USB
Power Device
Circuit Protection	Circuit breaker
Efficiency	95%
Frequency Provided	60 Hz
Input Connectors	1 x power NEMA 5-15P
Input Voltage	AC 120 V
Input Voltage Range	AC 83 - 147 V
Input Wiring	1-phase
Output Voltage	AC 120 V ± 5% - 60 Hz
Output Waveform	Sinewave
Power Capacity	800 Watt / 1000 VA
Power Factor (PF)	0.8
Power Output Connectors Details	4 x power NEMA 5-15R (UPS and surge) 2 x power NEMA 5-15R
Surge Energy Rating	570 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
Software / System Requirements
Software Included	TrippLite PowerAlert
Sustainability Information
ENERGY STAR	Yes
