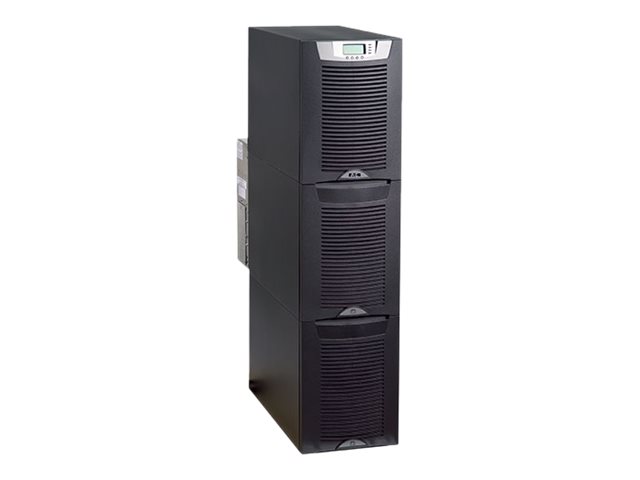

Eaton 9355 - Power array
MSRP$28,179.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Eaton 9355 - Power array
- AC 208 V
- 9 kW
- 10000 VA
- 3-phase 9 Ah
- Ethernet 10/100, RS-232
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $28,179.00 |
| Mfr Part #: | KA1011130000010 |
| SHI Part #: | 15612414 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Servers
- UPS parallel tie cabinet
- wall mountable
- for Eaton 9355, 9355 Model 10, 9355 Model 15, 9355 Model 20, 9355 Model 30
MSRP $15,800.00
$15,281.76
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Eaton 9355 - Power array - AC 208 V - 9 kW - 10000 VA - 3-phase 9 Ah - Ethernet 10/100, RS-232 - black |
| Manufacturer | Eaton |
| MSRP | $28,179.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 85.1 cm |
| Dimensions & Weight / Height | 81.8 cm |
| Dimensions & Weight / Weight | 169 kg |
| Dimensions & Weight / Width | 30.5 cm |
| General / Subcategory | UPS |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 10000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power array |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Capacity | 9 Ah |
| Features | Maintenance free, sealed |
| Quantity | 32 |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 1 ms |
| Dimensions & Weight | |
| Depth | 85.1 cm |
| Height | 81.8 cm |
| Weight | 169 kg |
| Width | 30.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 56 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 1 (free) x X-Slot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | UL 1778 5th edition, CSA C22.2 No. 107.3.14, FCC CFR47 Part 15, ICES-003 Class A, ISO 9001:2015, ISO 14001:2004, ANSI C62.41 Category B3, IEC 61000-4-5, cULus, NOM-NYCE |
| Features | Advance Battery Management (ABM), audible alarm, LCD display, built-in maintenance bypass, internal bypass, LED indicators, built-in isolation transformer, double conversion, automatic self-test, Parallel Capability |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP, WAP, SSH |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 91% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Voltage | AC 208 V |
| Input Voltage Margin | + 10% / - 15% |
| Input Wiring | 3-phase |
| Output Voltage | AC 208 V ± 1% - 50/60 Hz |
| Power Capacity | 9 kW / 10000 VA |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 5 % |
| UPS Technology | On-line |
