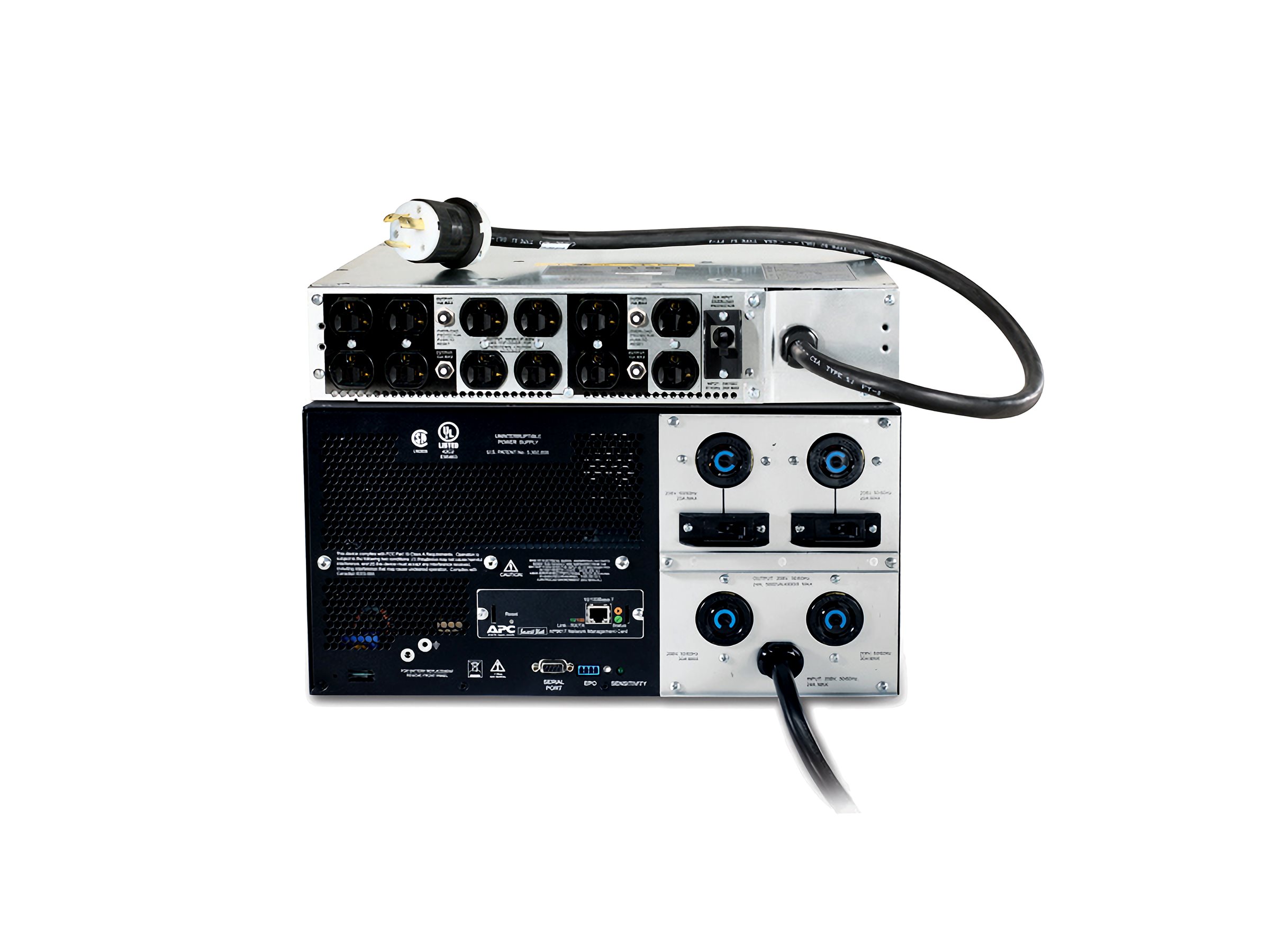

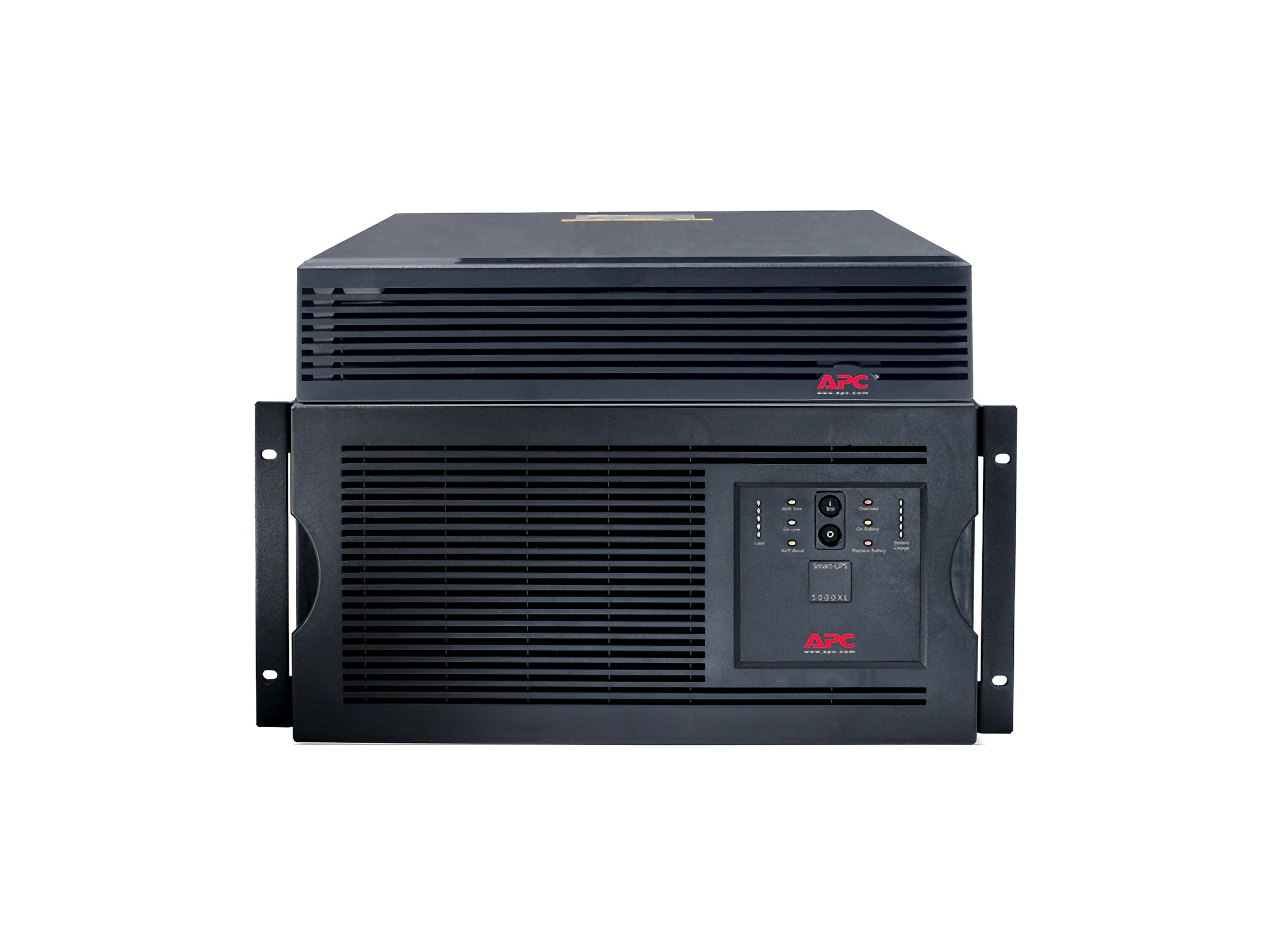

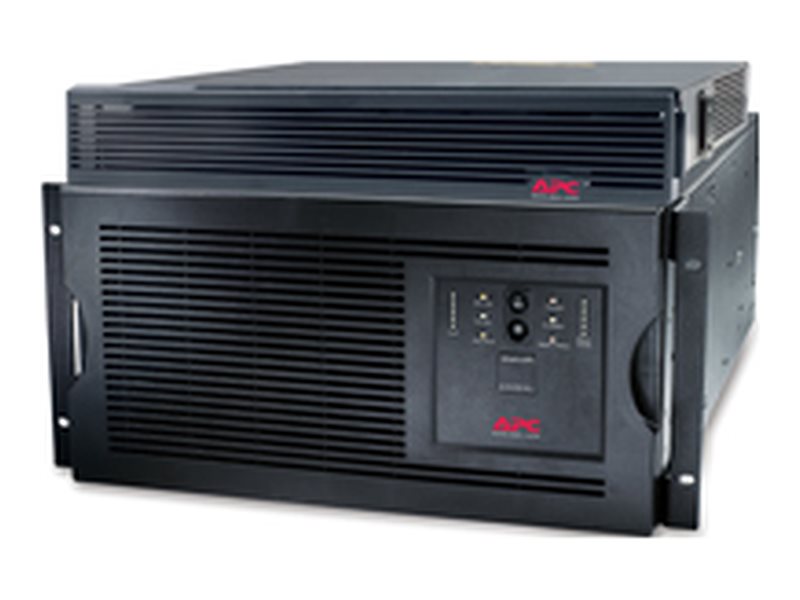

PTO KIT SMART UPS 5KVA RMW/TRNSFORMER FREIGHT
MSRP$10,500.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
PTO KIT SMART UPS 5KVA RMW/TRNSFORMER FREIGHT
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $10,500.00 |
| Mfr Part #: | SUA5000R5TXFMR |
| SHI Part #: | 17255447 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Access Points and Bridges
- black
- for NetShelter EP; NetShelter ES; NetShelter SX; Netshelter VX; NetShelter WX
MSRP $134.00
$129.60
Audio/Video Cables
- Network adapter kit
- black
- for P/N: SMT1000RM1U, SRTL10KRM4UT, SRTL5KRM2UI-HW, SRTL5KRM2UT-HW, SRTL8KRM4UT
MSRP $240.00
$232.13
- 2 m
- for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24
MSRP $40.00
$38.69
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | PTO KIT SMART UPS 5KVA RMW/TRNSFORMER FREIGHT |
| Manufacturer | APC by Schneider Electric |
| MSRP | $10,500.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 63.5 cm |
| Dimensions & Weight / Height | 31.1 cm |
| Dimensions & Weight / Weight | 145 kg |
| Dimensions & Weight / Width | 48.3 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 15 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Quantity | 2 |
| Recharge Time | 3 hours |
| Run Time (Up To) | 9.4 min at full load |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 63.5 cm |
| Height | 31.1 cm |
| Weight | 145 kg |
| Width | 48.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 76.2 cm |
| Shipping Height | 63.5 cm |
| Shipping Weight | 161 kg |
| Shipping Width | 61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 53 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Internal |
| Bundled with | 208V to 120/208V Transformer |
| Color | Black |
| Device Type | UPS - external |
| Height (Rack Units) | 7U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class A certified, CSA, UL 1449, UL 1778, FCC Part 15 |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LED indicators, noise filtering |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 157 - 255 V |
| Input Voltage Range (Adjustable) | AC 151 - 268 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120/208 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4 kW / 5000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 1020 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
