Hardware Power Management

Power Management

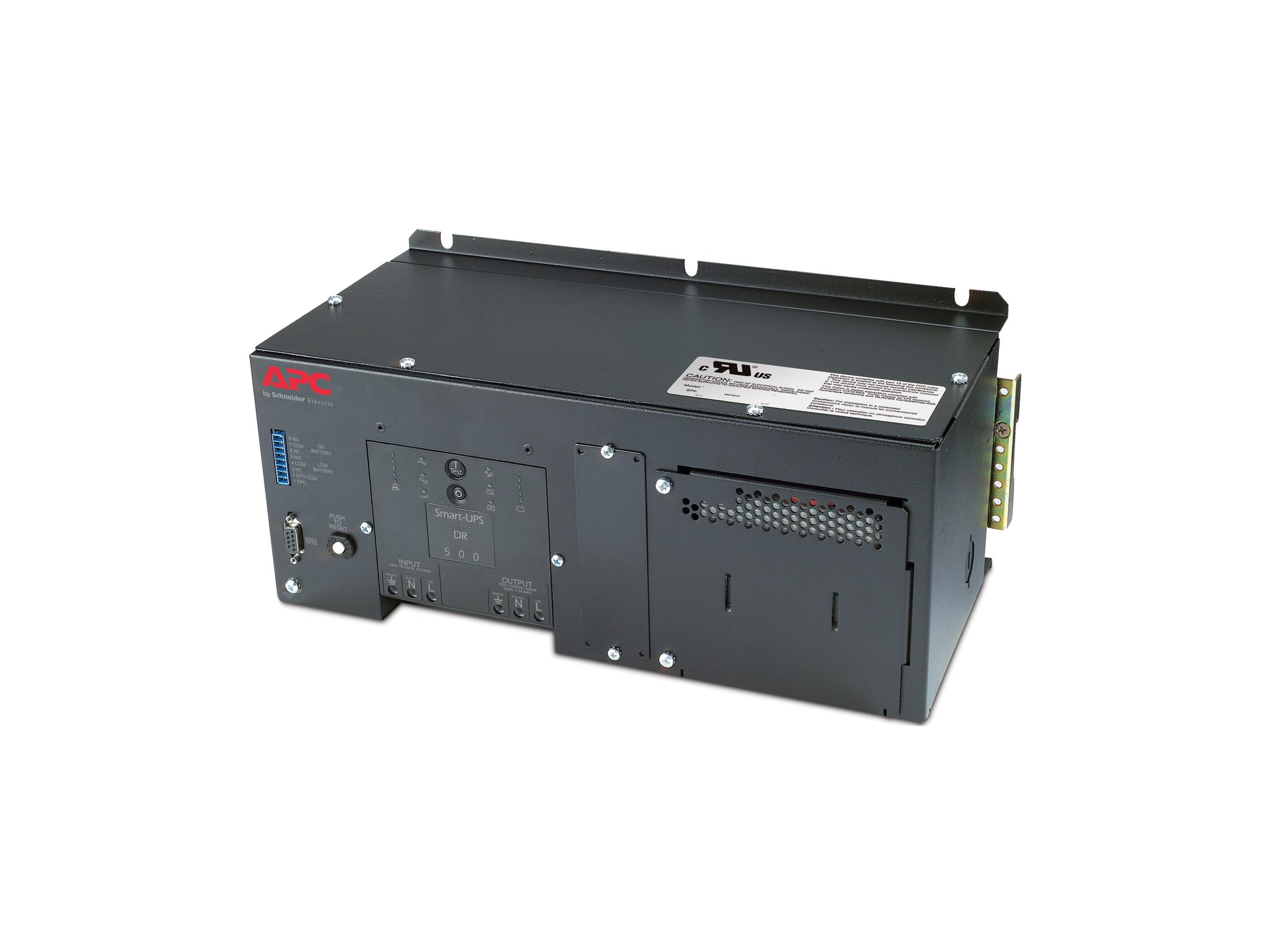

PTO SKU INDL PANEL AND DIN RAILUPS WITH STANDARD BATT 500VAC 120V

MSRP$1,010.00

$976.87

PTO SKU INDL PANEL AND DIN RAILUPS WITH STANDARD BATT 500VAC 120V

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

Contracts
DIR-CPO-5094

PTO SKU INDL PANEL AND DIN RAILUPS WITH STANDARD BATT 500VAC 120V

Additional Details
Price:	$976.87
MSRP:	$1,010.00
Mfr Part #:	SUA500PDR-S
SHI Part #:	26286573
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	APC by Schneider Electric
Product Type:	Hardware

Audio/Video Cables

APC - Serial cable - RJ-45 (M) to DB-9 (F)

2 m
for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24

MSRP $40.00

$38.69

APC - Serial cable - RJ-45 (M) to DB-9 (F)

4.57 m
for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24

MSRP $60.00

$58.03

APC Simple Signaling

Serial cable
for P/N: SRV1KA-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT

MSRP $102.00

$98.65

General Information
Category	Power conditioning equipment
Description	PTO SKU INDL PANEL AND DIN RAILUPS WITH STANDARD BATT 500VAC 120V
Manufacturer	APC by Schneider Electric
MSRP	$1,010.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	17.1 cm
Dimensions & Weight / Height	14.8 cm
Dimensions & Weight / Weight	12.86 kg
Dimensions & Weight / Width	36.2 cm
General / Subcategory	UPS
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	RS-232
Packaged Quantity	1
Power Device / Form Factor	DIN rail mountable
Power Device / Output Connector Qty	1
Power Device / Power Capacity (VA)	500 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	2-year warranty
Battery
Quantity	1
Recharge Time	2.5 hours
Run Time (Up To)	8 min at full load 24 min at half load
Technology	Lead acid
Dimensions & Weight
Depth	17.1 cm
Height	14.8 cm
Weight	12.86 kg
Width	36.2 cm
Dimensions & Weight (Shipping)
Shipping Depth	29.7 cm
Shipping Height	48.1 cm
Shipping Weight	13.32 kg
Shipping Width	29.7 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	55 dBA
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x SmartSlot
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9)
General
Color	Black
Device Type	UPS - DIN rail mountable
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 2 years
Miscellaneous
Compliant Standards	UL, UL 1449, RoHS, REACH
Networking
Remote Management Interface	RS-232
Power Device
Circuit Protection	Circuit breaker
Frequency Provided	57 - 63 Hz
Frequency Required	50/60 Hz
Input Connectors	1 x hardwire 3-wire (1PH + N + G)
Input Voltage	AC 120 V
Input Voltage Range	AC 82 - 144 V
Input Voltage Range (Adjustable)	AC 75 - 154 V
Output Voltage	AC 120 V ± 5% - 57 - 63 Hz
Output Waveform	Sinewave
Power Capacity	325 Watt / 500 VA
Power Output Connectors Details	1 x hardwire 3-wire (HN + E)
Surge Energy Rating	540 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
