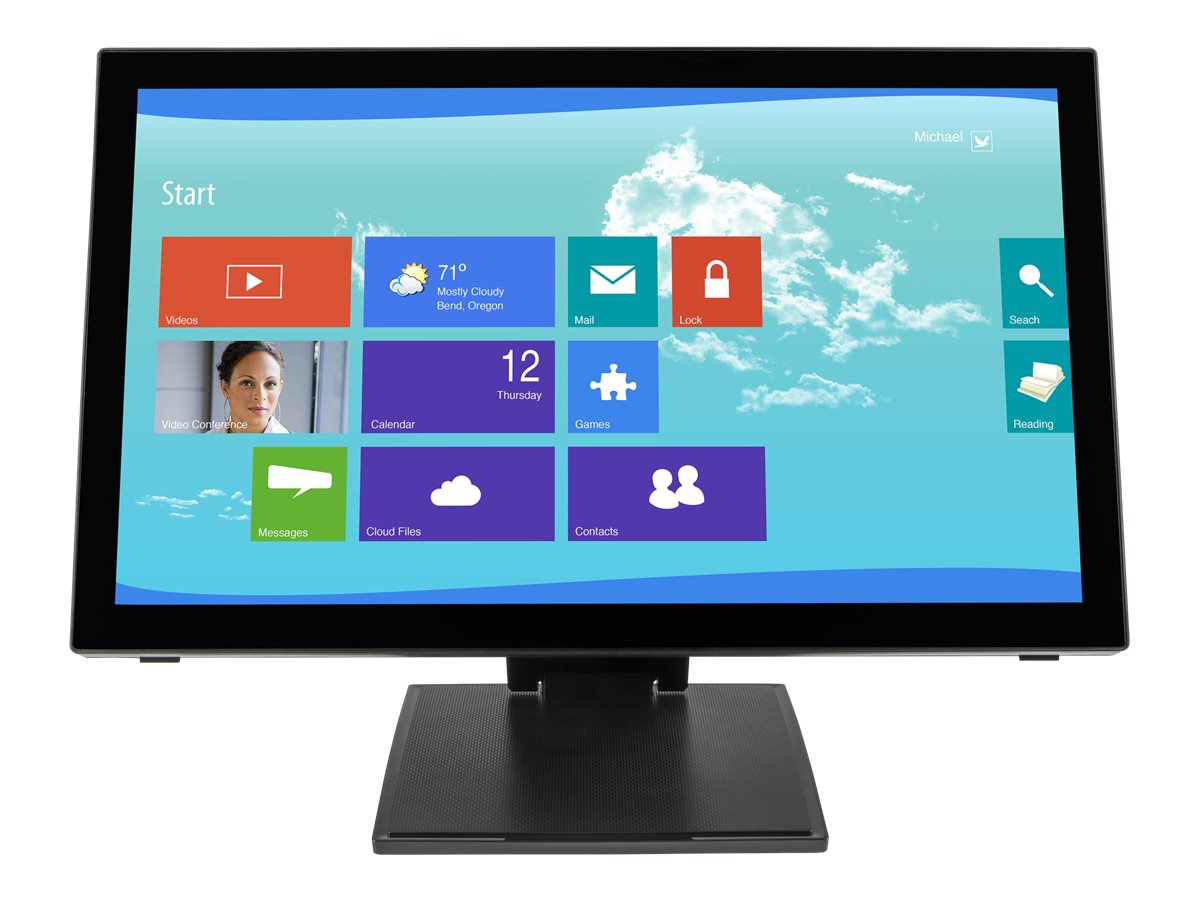

Planar Helium PCT2265
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Planar Helium PCT2265
- LED monitor
- 22" (21.5" viewable)
- touchscreen
- 1920 x 1080 Full HD (1080p)
- 250 cd/m²
- 2000:1
- 18 ms
- HDMI, DVI-D, VGA
- speakers
- with 3-Years Warranty Planar Customer First
| Additional Details | |
|---|---|
| Mfr Part #: | 997-7251-00 |
| SHI Part #: | 27578128 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | Planar Helium PCT2265 - LED monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) - 250 cd/m² - 2000:1 - 18 ms - HDMI, DVI-D, VGA - speakers - with 3-Years Warranty Planar Customer First |
| Manufacturer | Planar |
| UNSPSC | 43211903 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.85 cm |
| Dimensions & Weight / Height | 38.5 cm |
| Dimensions & Weight / Weight | 6.64 kg |
| Dimensions & Weight / Width | 52.24 cm |
| Display / Diagonal Size | 22 in |
| Display / Diagonal Size (metric) | 55.9 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Pixel Pitch | 0.2482 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Planar |
| Image Brightness | 250 cd/m² |
| Input Device / Type | Touchscreen |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required | Microsoft Windows 7 / 8 / 10 |
| Audio | |
| Output Power / Channel | 2 Watt |
| Type | Speakers - stereo |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.4 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Built-in Devices | USB 3.0 hub |
| Bundled with | 3-Years Warranty Planar Customer First |
| Color Support | 16.7 million colors |
| Contrast Ratio | 2000:1 |
| Diagonal Size | 22" |
| Dimensions (WxDxH) | 52.24 cm x 23.85 cm x 38.5 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class F |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/451485 |
| Features | HDCP, LED edgelight system |
| Horizontal Viewing Angle | 178 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Pixel Pitch | 0.2482 mm |
| Response Time | 18 ms |
| Vertical Refresh Rate | 50 - 76 Hz |
| Vertical Viewing Angle | 178 |
| Viewable Size | 21.5" |
| Weight | 6.64 kg |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years - response time: 2 days |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -5/+90 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class B certified, cTUVus, RoHS2 |
| Features | Security lock slot (cable lock sold separately) |
| Included Accessories | Stand |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 100/240 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.5 Watt |
| Power Consumption (On mode) | 19 W |
| Power Consumption (Typical) | 28 Watt |
| Power Consumption SDR (On mode) | 19 kWh/1000h |
| Power Consumption Stand by | 0.5 Watt |
| Power Supply | Internal |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10 |
