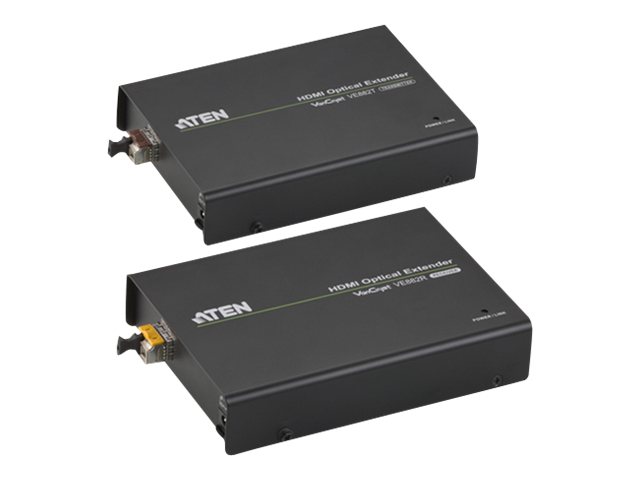

ATEN VanCryst VE882 HDMI Optical Extender Transmitter and Receiver Units
MSRP$1,051.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ATEN VanCryst VE882 HDMI Optical Extender Transmitter and Receiver Units
- Video/audio/infrared/serial extender
- HDMI
- up to 600 m
- 1310 nm / 1550 nm
- for P/N: VE883K1-AT-E, VE883K2-AT-E
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,051.00 |
| Mfr Part #: | VE882 |
| SHI Part #: | 27692844 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VanCryst VE882 HDMI Optical Extender Transmitter and Receiver Units - Video/audio/infrared/serial extender - HDMI - up to 600 m - 1310 nm / 1550 nm - for P/N: VE883K1-AT-E, VE883K2-AT-E |
| Manufacturer | ATEN |
| MSRP | $1,051.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.3 cm |
| Dimensions & Weight / Height | 3.12 cm |
| Dimensions & Weight / Weight | 420 g |
| Dimensions & Weight / Width | 14.17 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDMI |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | P/N: VE883K1-AT-E, VE883K2-AT-E |
| Dimensions & Weight | |
| Depth | 10.3 cm |
| Height | 3.12 cm |
| Weight | 420 g |
| Width | 14.17 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, FCC Part 15 A |
| Mounting Kit | Included |
| Rack Mounting Kit | Optional |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Features | 3D support, 8KV/15KV ESD Protector, HDCP compliant |
| Max Resolution | 1920 x 1200 / 1080p @ 60 Hz |
| Max Transfer Distance | 600 m |
| Optical Wave Length | 1310 nm / 1550 nm |
| Status Indicators | Power |
| Power | |
| Installed Qty | 2 |
| Power Device | External power adapter |
