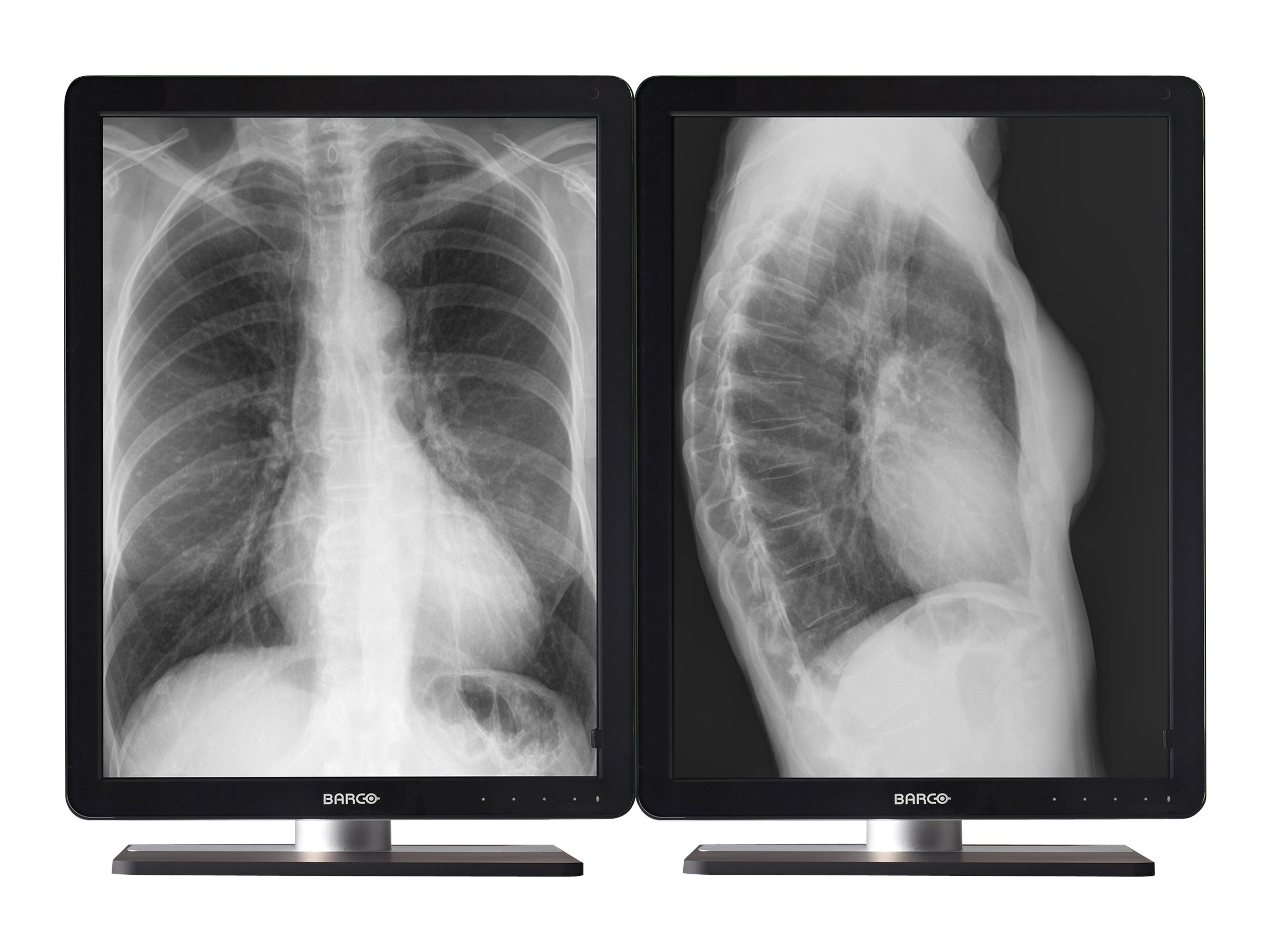

Barco Coronis 3MP MDCG-3221

Login for Price
Barco Coronis 3MP MDCG-3221
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • LED monitor
  • 3MP
  • grayscale
  • 21.3" (21.3" viewable)
  • 2048 x 1536
Contracts
   DIR-CPO-5094
Barco Coronis 3MP MDCG-3221
  • LED monitor
  • 3MP
  • grayscale
  • 21.3" (21.3" viewable)
  • 2048 x 1536
  • DD-IPS
  • 1700 cd/m²
  • 1400:1
  • 40 ms
  • DVI-D, DisplayPort
  • black/white
  • with Barco MXRT-5500 graphics adapter
  Additional Details
Mfr Part #: K9602638
SHI Part #: 29111510
Category: Flat panel displays
UNSPSC: 43211902
Manufacturer: Barco
Product Type: Hardware
General Information
CategoryFlat panel displays
DescriptionBarco Coronis 3MP MDCG-3221 - LED monitor - 3MP - grayscale - 21.3" (21.3" viewable) - 2048 x 1536 - DD-IPS - 1700 cd/m² - 1400:1 - 40 ms - DVI-D, DisplayPort - black/white - with Barco MXRT-5500 graphics adapter
ManufacturerBarco
UNSPSC43211902
Main Specifications
Dimensions & Weight / Depth23.5 cm
Dimensions & Weight / Height47.2 cm
Dimensions & Weight / Weight12.8 kg
Dimensions & Weight / Width49.1 cm
Display / Diagonal Size21.3 in
Display / Diagonal Size (metric)54 cm
Display / Interface
  • DisplayPort
  • DVI
Display / Native Resolution2048 x 1536
Display / Pixel Pitch0.2115 mm
Display / TypeLED-backlit LCD monitor
Header / BrandBarco
Image Brightness1700 cd/m²
Miscellaneous / Compliant Standards
  • CAN/CSA C22.2 No. 60601-1-08
  • CCC
  • DEMKO - EN 60601-1:2006
  • Directive 2004/108/EC
  • Directive 2007/47/EC class II b
  • EN 60601-1-2:2007
  • FCC Class B certified
  • FDA 510k
  • GB 17625.1-2003 EMC
  • GB 4943.1
  • GB 9254-2008
  • ICES-001 level B
  • IEC 60601-1-2
  • IEC 60950-1:2005 (ed.2)+A1:2009
  • IEC60601-1:2005 + A1:2012
  • KCC
  • RoHS
  • VCCI
Miscellaneous / Product Color
  • Black
  • White
Packaged Quantity1
Service & Support / Type5-year warranty
Connectivity
Interfaces
  • DVI-D (dual link)
  • DisplayPort
  • USB 2.0 upstream
  • 2 x USB 2.0 downstream
Dimensions & Weight
Dimensions & Weight Details
  • With stand - width: 49.1 cm - depth: 23.5 cm - height: 47.2 cm - weight: 12.8 kg
  • Without stand - width: 49.1 cm - depth: 8.4 cm - height: 37.8 cm
Environmental Parameters
Humidity Range Operating8 - 80% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
General
Aspect Ratio4:3
Backlight TechnologyLED backlight
Brightness1700 cd/m²
Built-in DevicesUSB 2.0 hub
Bundled withBarco MXRT-5500 graphics adapter
ColorBlack/white
Color Support1024 gray levels (10-bit)
Contrast Ratio1400:1
Diagonal Size21.3"
Dimensions (WxDxH)49.1 cm x 23.5 cm x 47.2 cm - with stand
Display TypeLED-backlit LCD monitor / TFT active matrix - 3MP - grayscale
FeaturesUniform Luminance Technology (ULT), I-Guard, Ambient Light Compensation (ALC), Protective Glass Panel, DICOM calibrated, Backlight Output Stabilization (BLOS), Per Pixel Uniformity (PPU), Intelligent Multi Sensor technology
Horizontal Refresh Rate15 - 129 kHz
Horizontal Viewing Angle178
Native Resolution2048 x 1536
OSD LanguagesChinese (simplified), English, German, French, Italian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Arabic, Japanese, Korean
Panel TypeDD-IPS
Pixel Pitch0.2115 mm
Response Time40 ms
Screen CoatingAnti-reflective
Vertical Refresh Rate24 - 100 Hz
Vertical Viewing Angle178
Video Bandwidth280 MHz
Weight12.8 kg
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Mechanical
Display Position AdjustmentsHeight, swivel, tilt
Height Adjustment100 mm
Swivel Angle60
Tilt Angle-5/+25
VESA Mounting Interface100 x 100 mm
Miscellaneous
Cables Included
  • 1 x DVI cable
  • 1 x DisplayPort cable
  • 1 x USB cable
Compliant StandardsFCC Class B certified, VCCI, IEC 60601-1-2, CCC, RoHS, KCC, FDA 510k, Directive 2004/108/EC, GB 9254-2008, GB 17625.1-2003 EMC, CAN/CSA C22.2 No. 60601-1-08, GB 4943.1, IEC60601-1:2005 + A1:2012, EN 60601-1-2:2007, DEMKO - EN 60601-1:2006, ICES-001 level B, Directive 2007/47/EC class II b, IEC 60950-1:2005 (ed.2)+A1:2009
FeaturesPowerSave, portrait / landscape mode
Included AccessoriesStand
Power
Input VoltageAC 120/230 V
Power Consumption (Typical)40 Watt
Power SupplyExternal
Software / System Requirements
Included SoftwareMediCal QAWeb
