StarTech.com Thunderbolt 2 Dual Monitor Docking Station


StarTech.com Thunderbolt 2 Dual Monitor Docking Station

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • HDMI
  • Docking station
  • Thunderbolt
  • HDMI, 2 x Mini DP
  • GigE
Contracts
   DIR-CPO-5094
StarTech.com Thunderbolt 2 Dual Monitor Docking Station
  • HDMI
  • Docking station
  • Thunderbolt
  • HDMI, 2 x Mini DP
  • GigE
  • for P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB, LTLOCK, SVA12M5NA
  Additional Details
Mfr Part #: TB2DOCK4KDHC
SHI Part #: 29717264
Category: Docking stations
UNSPSC: 43211602
Manufacturer: StarTech.com
Product Type: Hardware
General Information
CategoryDocking stations
DescriptionStarTech.com Thunderbolt 2 Dual Monitor Docking Station - HDMI - Docking station - Thunderbolt - HDMI, 2 x Mini DP - GigE - for P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB, LTLOCK, SVA12M5NA
ManufacturerStarTech.com
UNSPSC43211602
Main Specifications
Dimensions & Weight / Depth23.4 cm
Dimensions & Weight / Height3.8 cm
Dimensions & Weight / Weight470 g
Dimensions & Weight / Width8.2 cm
Header / Brand
  • Startech
  • StarTech.com
Header / Country Kits
  • Europe
  • North America
  • United Kingdom
Miscellaneous / Product ColorSilver
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / TypeNone
Packaged Quantity1
Service & Support / Type3-year warranty
System / Device Type (AI)Docking station
Compatibility Information
Designed ForP/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB, LTLOCK, SVA12M5NA
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 2 x Thunderbolt 2 - Mini DisplayPort
  • 1 x display / video - HDMI - 19 pin HDMI Type A
  • 4 x SuperSpeed USB 3.0 - 9 pin USB Type A
  • 1 x eSATA - 7 pin external Serial ATA
  • 1 x audio - SPDIF output - TOSLINK
  • 1 x audio - line-out/microphone - mini-phone 3.5 mm 4-pole
  • 1 x microphone - input - mini-phone stereo 3.5 mm
  • 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45
General
Depth23.4 cm
Enclosure ColorSilver
Height3.8 cm
LocalizationNorth America, United Kingdom, Europe
Product TypeDocking station
Weight470 g
Width8.2 cm
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous

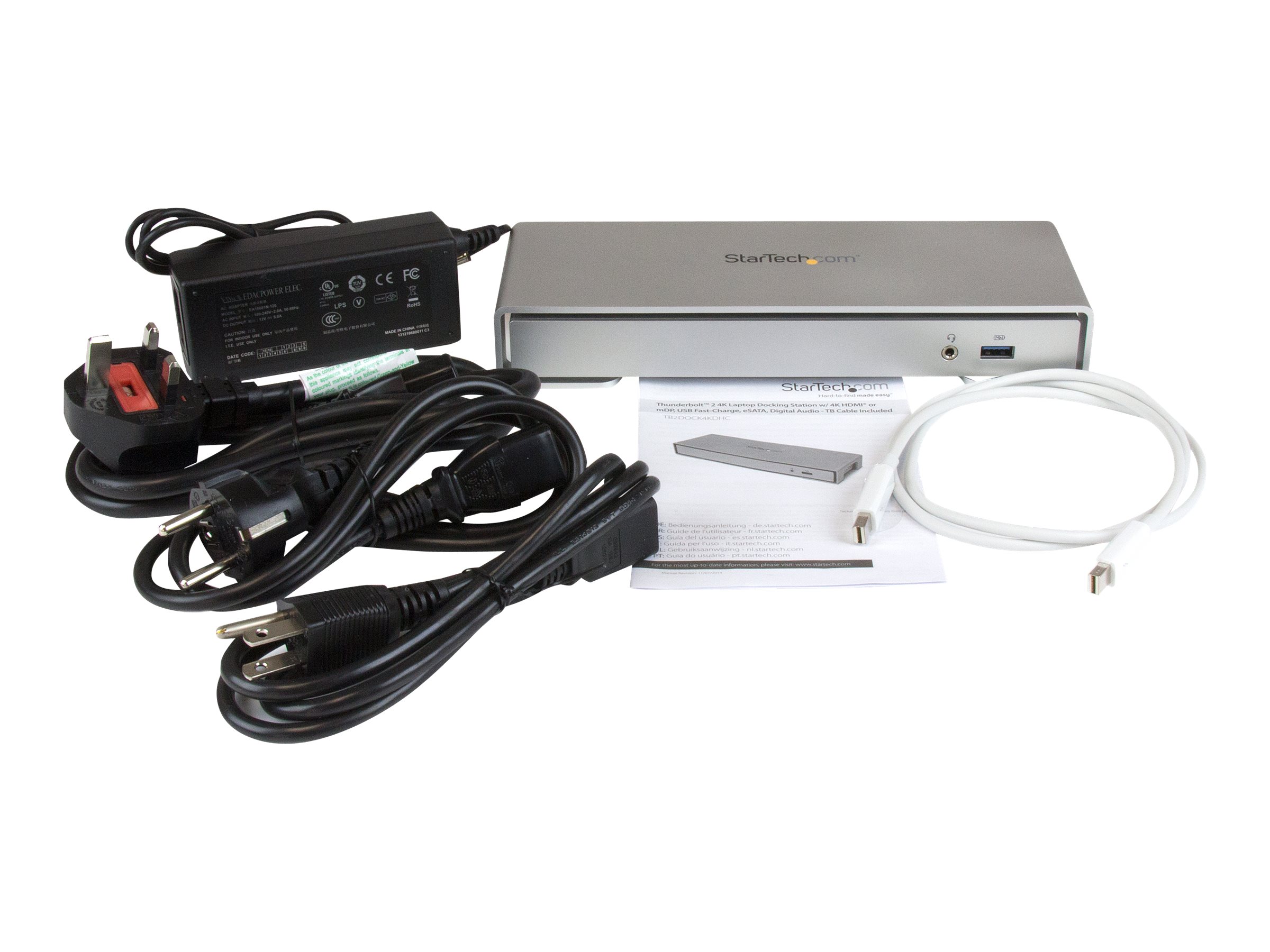

Cables Included1 x Thunderbolt cable - external
Compliant StandardsFCC, RoHS

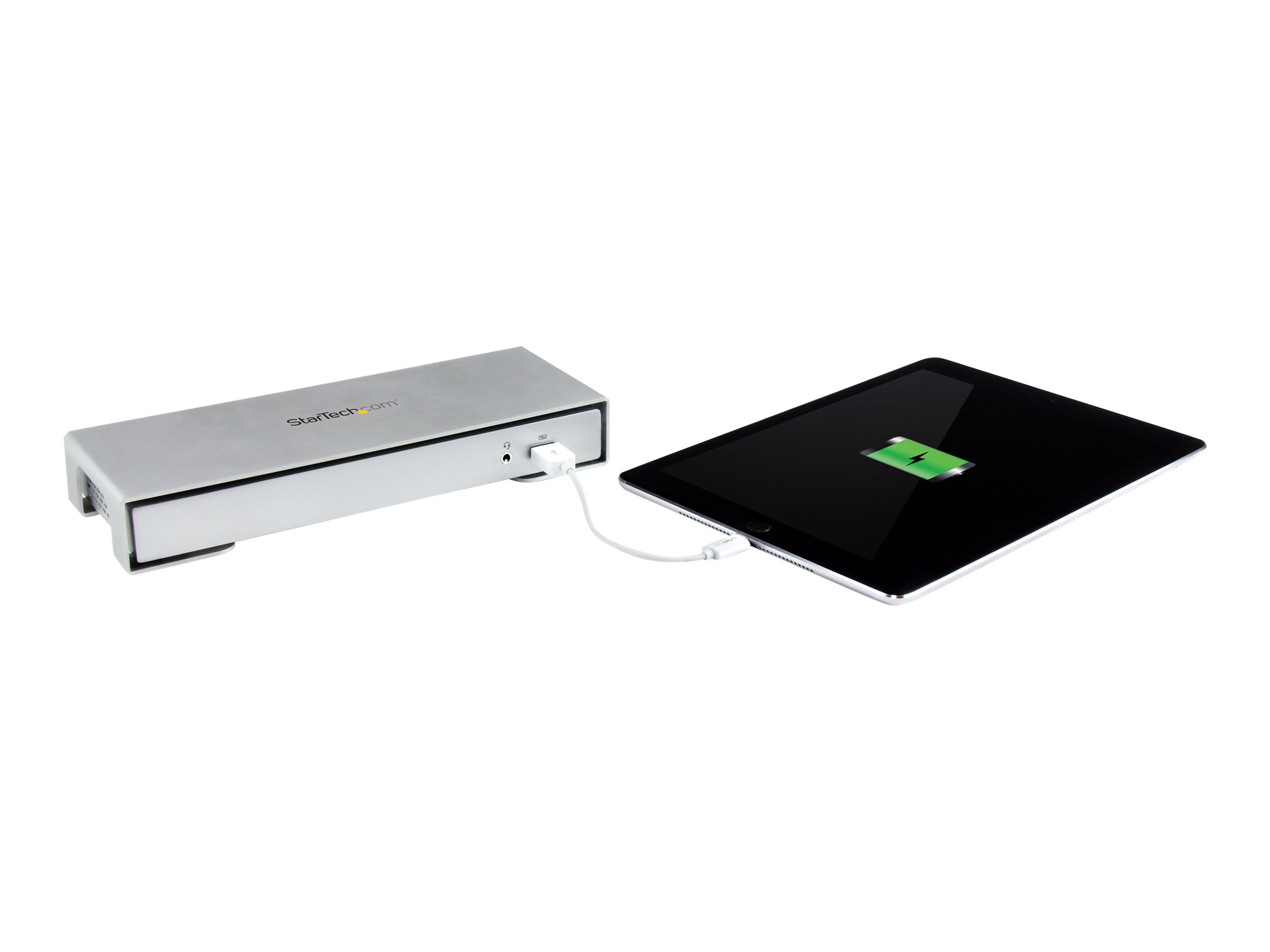

FeaturesSecurity lock slot (cable lock sold separately), LED indicator, 1 USB 3.0 fast charging port
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Power
Power DevicePower adapter
Voltage RequiredAC 100/230 V
System Requirements
OS RequiredApple MacOS X 10.9 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0
