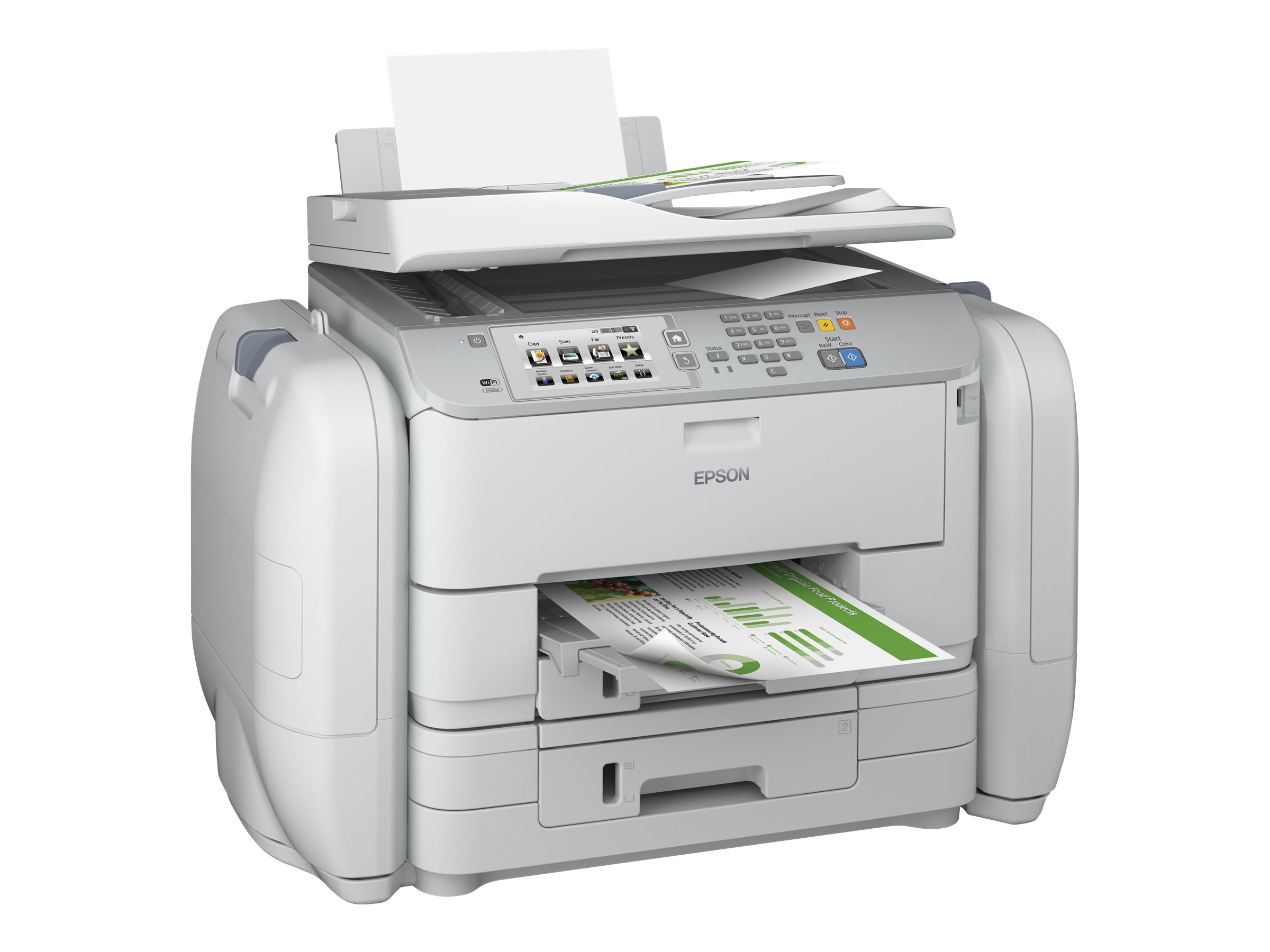

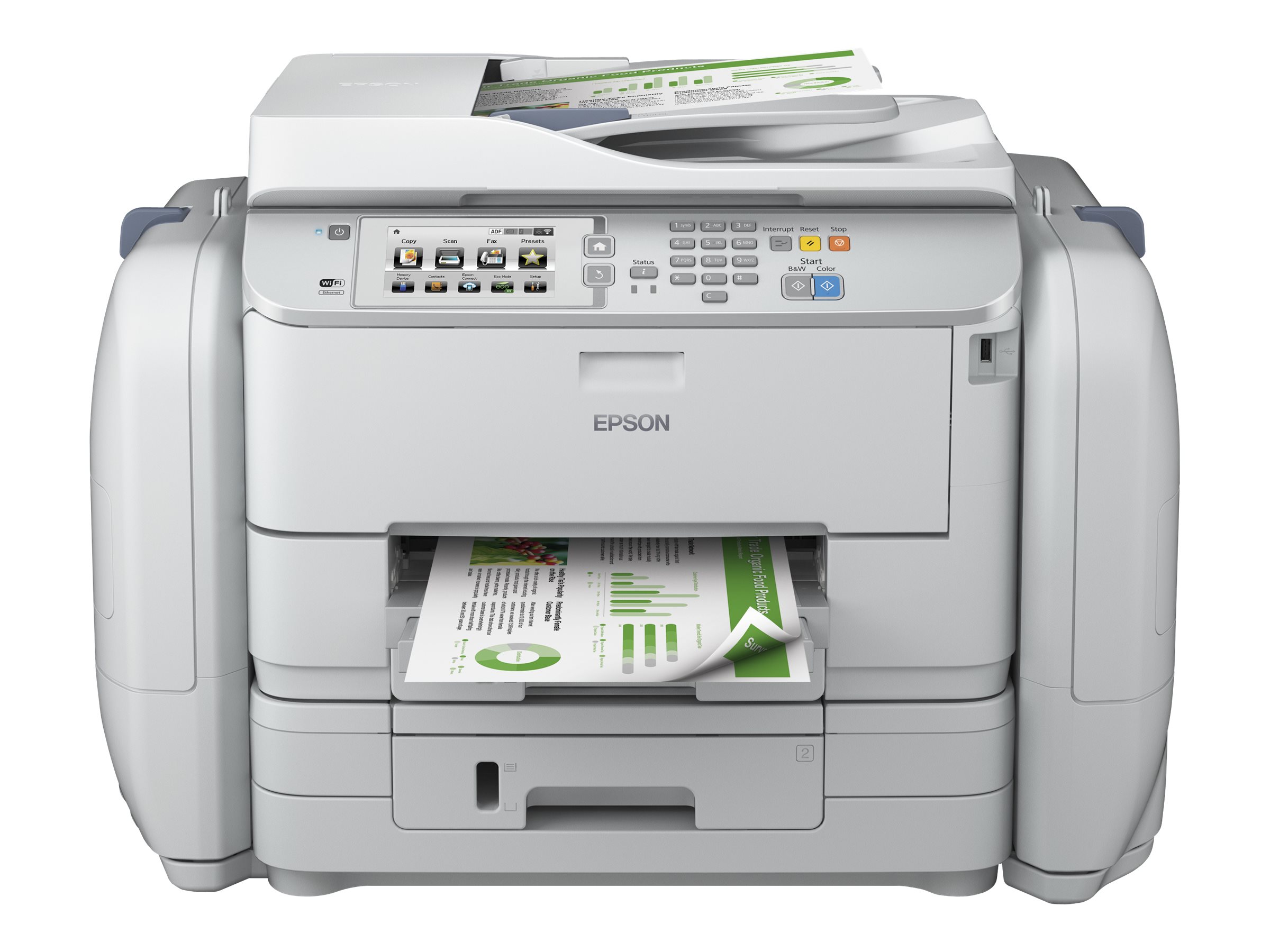

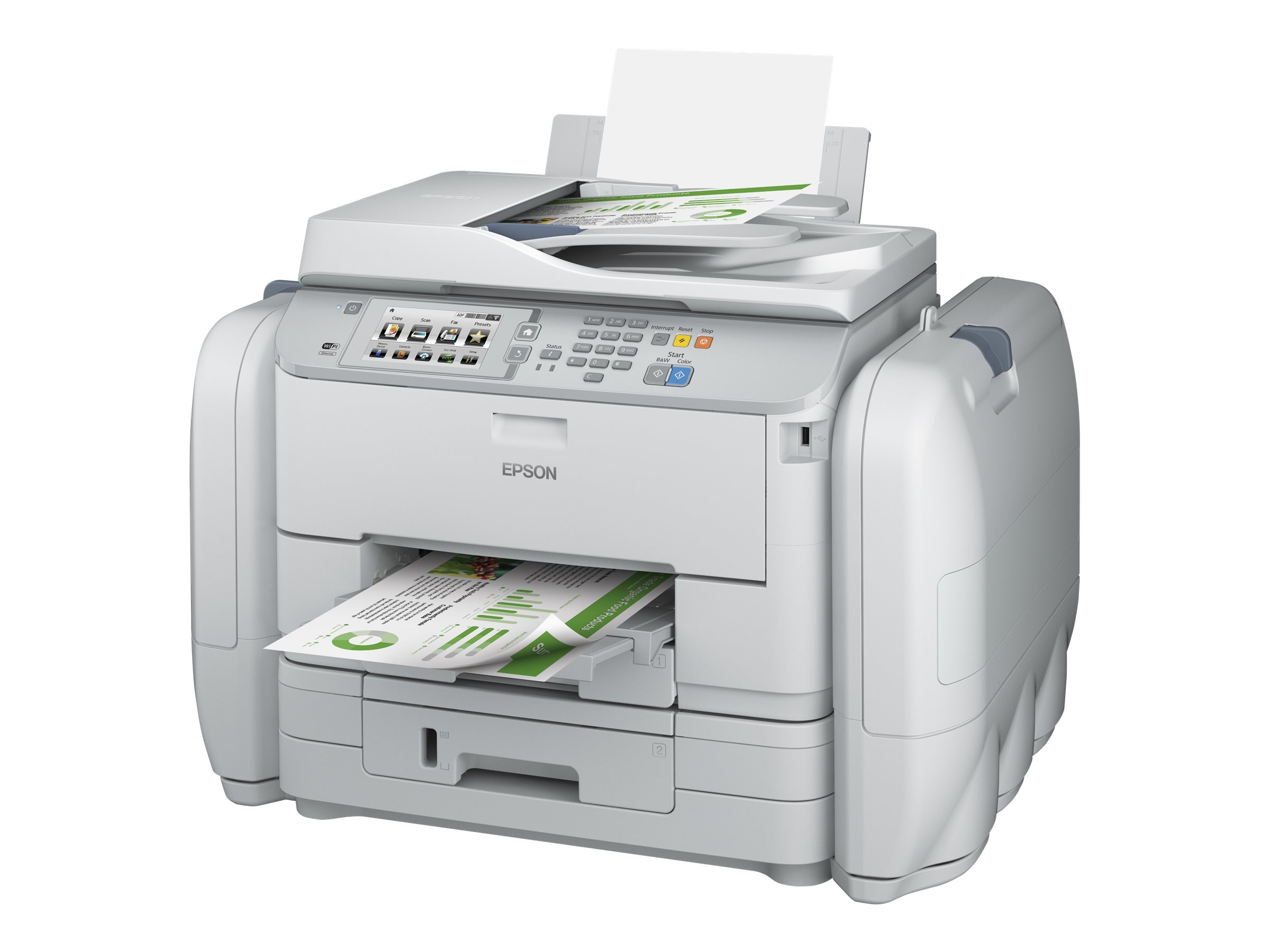

Epson WorkForce Pro WF-R5690

Login for Price
Epson WorkForce Pro WF-R5690
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Multifunction printer
  • color
  • ink-jet
  • Legal (216 x 356 mm) (original)
  • A4/Legal (media)
Contracts
   DIR-CPO-5094
Epson WorkForce Pro WF-R5690
  • Multifunction printer
  • color
  • ink-jet
  • Legal (216 x 356 mm) (original)
  • A4/Legal (media)
  • up to 19 ppm (copying)
  • up to 20 ppm (printing)
  • 580 sheets
  • 33.6 Kbps
  • USB 2.0, Gigabit LAN, Wi-Fi(n), USB host
  Additional Details
Mfr Part #: C11CE27201
SHI Part #: 30693460
Category: Multifunction machines
UNSPSC: 44101503
Manufacturer: Epson
Product Type: Hardware
General Information
CategoryMultifunction machines
DescriptionEpson WorkForce Pro WF-R5690 - Multifunction printer - color - ink-jet - Legal (216 x 356 mm) (original) - A4/Legal (media) - up to 19 ppm (copying) - up to 20 ppm (printing) - 580 sheets - 33.6 Kbps - USB 2.0, Gigabit LAN, Wi-Fi(n), USB host
ManufacturerEpson
UNSPSC44101503
Main Specifications
Copying / Automatic DuplexingYes
Dimensions & Weight / Depth43.4 cm
Dimensions & Weight / Height47.2 cm
Dimensions & Weight / Weight23.8 kg
Dimensions & Weight / Width66.3 cm
Document & Media Handling / Standard Media Capacity580 sheets
Fax Machine / CompatibilitySuper G3
Fax Machine / PC FaxingYes
Header / BrandEpson
Miscellaneous / Product ColorGray
Office Machine / Fax TypePlain paper
Office Machine / Functions
  • Copier
  • Fax
  • Printer
  • Scanner
Office Machine / Printing Output TypeColor
Office Machine / Printing TechnologyInk-jet
Office Machine / TypeFax / copier / printer / scanner
Packaged Quantity1
PC Connectivity / PC Connection
  • Gigabit LAN
  • USB 2.0
  • USB host
  • Wi-Fi(n)
PC Connectivity / PC Connection AvailabilityYes
Service & Support / Type1-year warranty
Connections
Interfaces
  • 1 x USB 2.0 - 4 pin USB Type B
  • 1 x USB host - 4 pin USB Type A
  • 1 x Gigabit LAN - RJ-45
Operating System SupportMS Windows Server 2003, MS Windows XP Professional x64 Edition, MS Windows XP SP3, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2003 R2, MS Windows Server 2012, MS Windows Server 2012 R2, Apple Mac OS X 10.5.8 - 10.9.x, MS Windows Vista (32/64 bits), MS Windows 7 (32/64 bits), Windows 8 (32/64-bits), Windows 8.1 (32/64-bits)
Security Protocols & FeaturesSSL, WEP, WPA-PSK, TLS, IPsec, AES, PING, Wi-Fi Direct
Software IncludedEpson Connect
Copying
Automatic DuplexingYes
Copying FeaturesID Card Copy, collation copy
Max Copying SpeedUp to 19 ppm (mono) / up to 19 ppm (color)
Maximum Copies999
Dimensions & Weight
Depth43.4 cm
Height47.2 cm
Weight23.8 kg
Width66.3 cm
Document & Media Handling
Borderless Photo SizesANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), 203 x 254 mm, 101.6 x 152.4 mm, 127 x 177.8 mm
Bypass Feeder Capacity80 sheets
Document & Media Handling Details

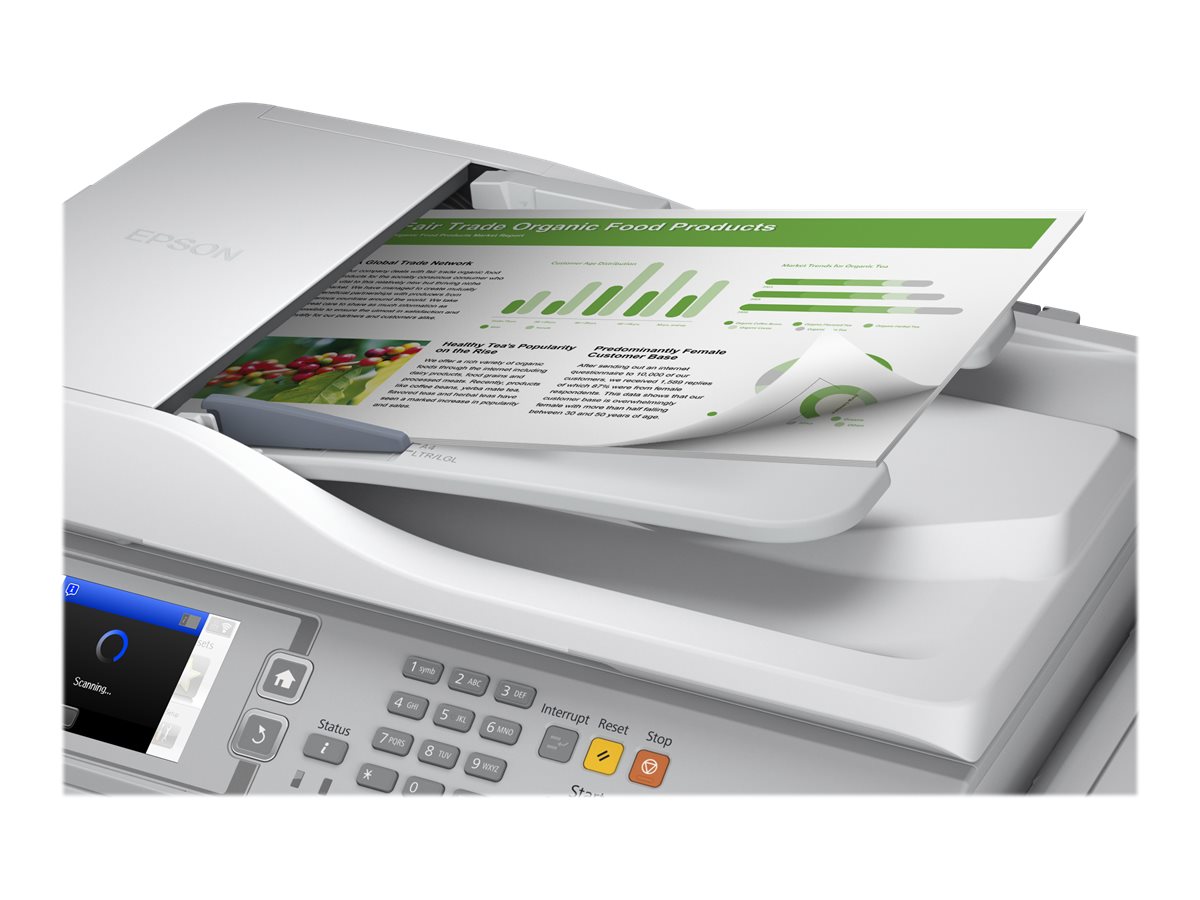

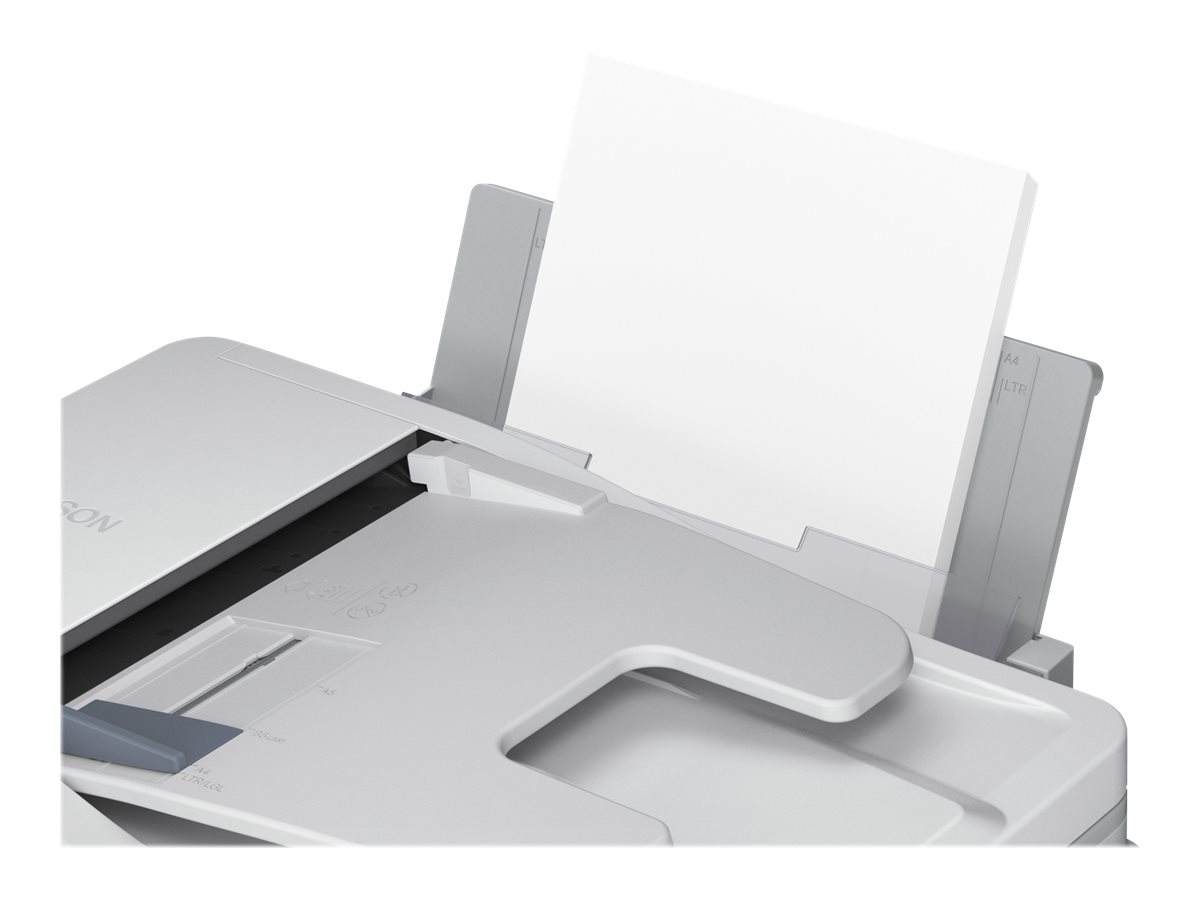

  • ADF - 35 sheets
  • Input tray - 80 sheets

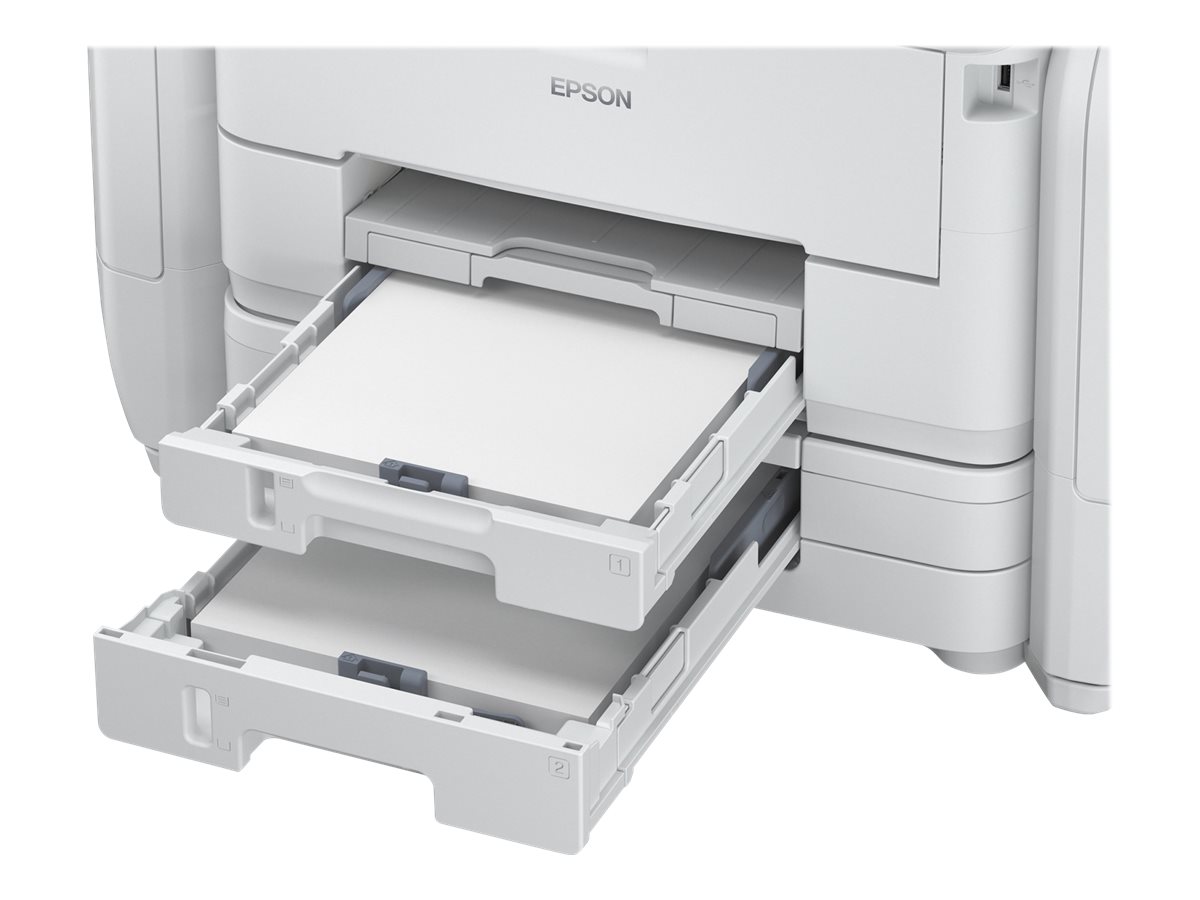

  • 2 x input tray - 250 sheets
Document Feeder Capacity35 sheets
Max Media SizeA4/Legal
Max Original SizeLegal (216 x 356 mm)
Original TypeSheets
Speed Details
  • Printing: up to 34 ppm - B/W draft
  • Printing: up to 34 ppm - color draft
  • Printing: up to 20 ppm - B/W (ISO/IEC 24734)
  • Printing: up to 20 ppm - color (ISO/IEC 24734)
  • Printing: up to 11 ppm - B/W duplex (ISO/IEC 24734)
  • Printing: up to 11 ppm - color duplex (ISO/IEC 24734)
  • Copying: up to 19 ppm - B/W
  • Copying: up to 19 ppm - color
Standard Media Capacity580 sheets
Supported Envelope SizesUS No 10 (104.7 x 241.3 mm)
Supported Media SizesANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A6 (105 x 148 mm), 203 x 254 mm, 101.6 x 152.4 mm, 88.9 x 127 mm, 127 x 177.8 mm, 215.9 x 1198.9 mm
Supported Media TypePlain paper, bond paper, glossy photo paper, matte paper
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Sound Emission52 dBA (operating)
Environmental Standards
ENERGY STAR CertifiedYes
Fax Machine
CompatibilitySuper G3
Max Transmission Speed33.6 Kbps
PC FaxingYes
Total Memory CapacityUp to 550 pages
Fax Machine Features
FeaturesColor faxing
Speed Dialing200 station(s)
General
AirPrint EnabledYes
Connection AvailabilityYes
Device TypeMultifunction printer
Display Diagonal Size4.3"
Display FeaturesTouch screen
Fax TypePlain paper
InterfaceUSB 2.0, Gigabit LAN, Wi-Fi(n), USB host
Monthly Duty Cycle (max)45000 pages
Office Machine FeaturesPrint from USB flash drive, save to USB flash drive, scan to e-mail, scan to folder, scan to network, Replaceable Ink Pack System (RIPS)
Printing TechnologyInk-jet - color
Recommended Monthly Volume2500 pages
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant StandardsRoHS
Consumables Included
  • 1 x ink tank (black) - up to 50000 pages
  • 1 x ink tank (yellow) - up to 50000 pages
  • 1 x ink tank (cyan) - up to 50000 pages
  • 1 x ink tank (magenta) - up to 50000 pages
Power
Power Consumption Operational22 Watt
Power Consumption Sleep3 Watt
Power Consumption Standby9.6 Watt
Voltage RequiredAC 120/230 V (50/60Hz)
Printing
Automatic DuplexingYes
Color4-ink
Ink Cartridge Configuration4 individual ink tanks
Ink Palette Supported (Colors)Cyan, magenta, yellow, black
Ink TypeEpson DURABrite Ultra inks
Inkjet TechnologyEpson PrecisionCore
Max Printing ResolutionUp to 4800 x 1200 dpi (mono) / up to 4800 x 1200 dpi (color)
Max Printing SpeedUp to 20 ppm (mono) / up to 20 ppm (color)
Minimum Ink Droplet Size2.8 pl
Scanning
Automatic DuplexingYes
Color Depth24-bit
Color Depth (Internal)48-bit
Interpolated Resolution9600 x 9600 dpi
Optical Resolution1200 x 2400 dpi
Scan ElementCIS
