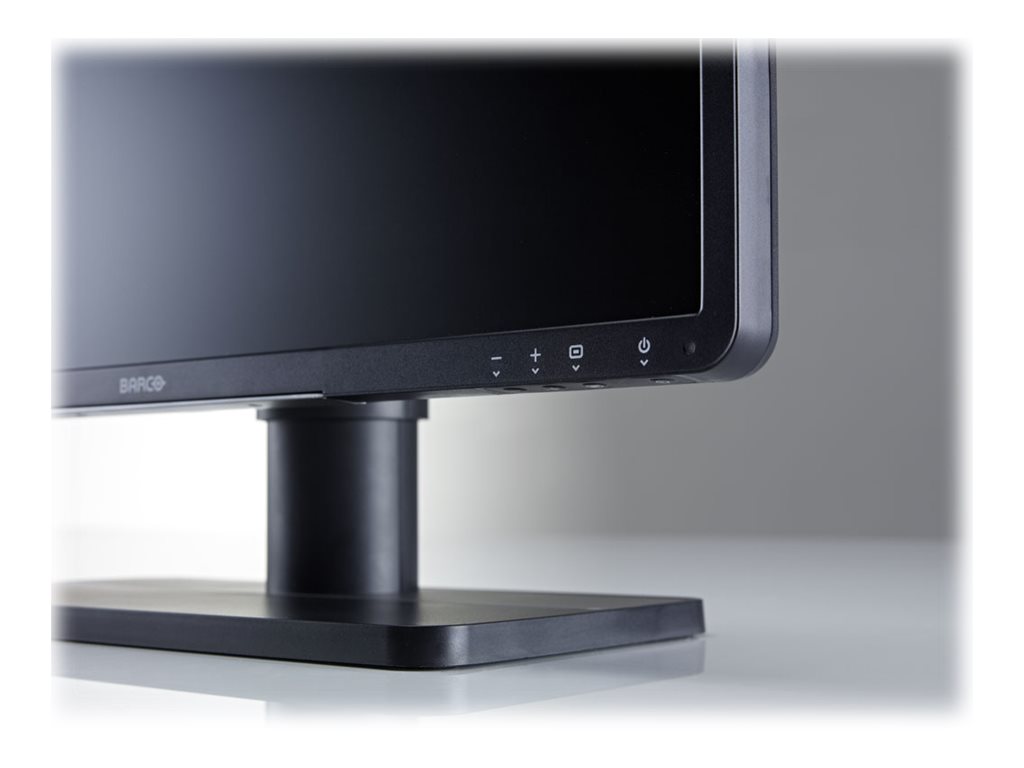

Barco Eonis MDRC-2224 BL
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

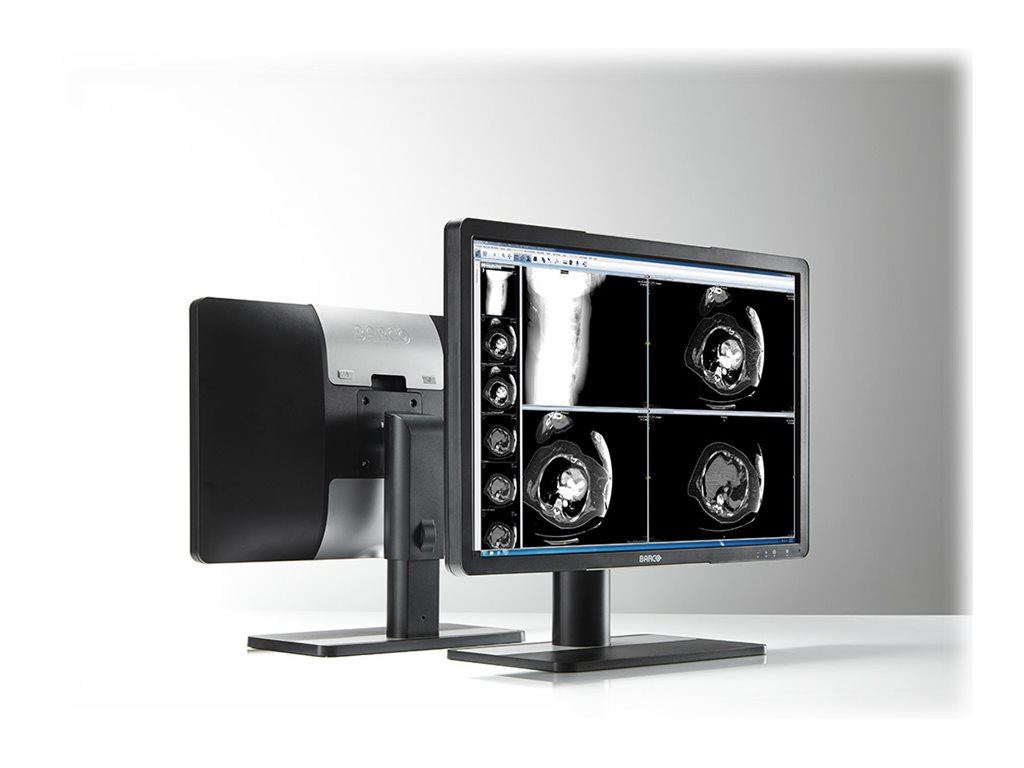

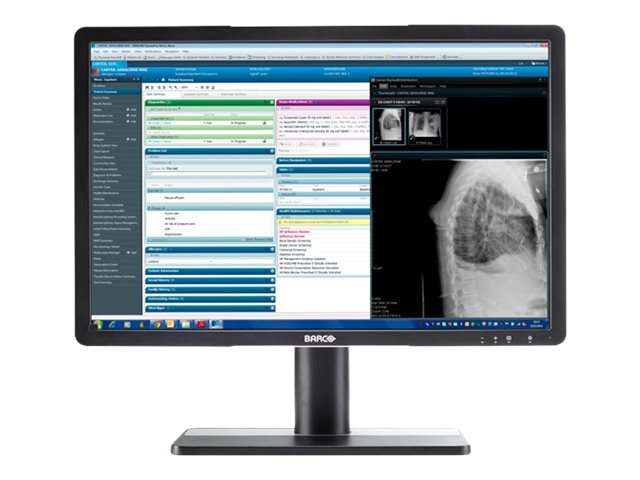

Barco Eonis MDRC-2224 BL
- LED monitor
- 2MP
- color
- 24" (24.1" viewable)
- 1920 x 1200
- IPS
- 300 cd/m²
- 1000:1
- 14 ms
- HDMI, VGA, DisplayPort
- black, silver
| Additional Details | |
|---|---|
| Mfr Part #: | K9301808A |
| SHI Part #: | 32328441 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco Eonis MDRC-2224 BL - LED monitor - 2MP - color - 24" (24.1" viewable) - 1920 x 1200 - IPS - 300 cd/m² - 1000:1 - 14 ms - HDMI, VGA, DisplayPort - black, silver |
| Manufacturer | Barco |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.445 cm |
| Dimensions & Weight / Height | 53.3 cm |
| Dimensions & Weight / Weight | 8.58 kg |
| Dimensions & Weight / Width | 56.04 cm |
| Display / Diagonal Size | 24 in |
| Display / Diagonal Size (metric) | 61 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1200 |
| Display / Pixel Pitch | 0.27 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 300 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Connectivity | |

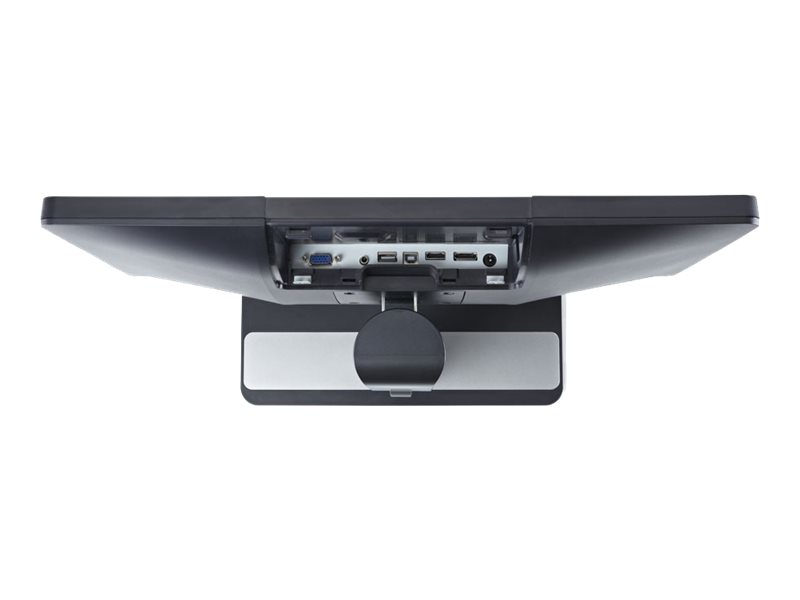

| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | LED backlight |
| Brightness | 300 cd/m² |
| Built-in Devices | USB 2.0 hub |
| Color | Black, silver |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 24" |
| Dimensions (WxDxH) | 56.04 cm x 16.445 cm x 53.3 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix - 2MP - color |
| Features | Ambient Light Compensation (ALC), DICOM calibrated, DPMS support |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 1920 x 1200 |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Dutch, Japanese, Korean |
| Panel Type | IPS |
| Pixel Pitch | 0.27 mm |
| Response Time | 14 ms |
| Screen Coating | Anti-reflective |
| Vertical Viewing Angle | 178 |
| Video Bandwidth | 165 MHz |
| Viewable Size | 24.1" |
| Weight | 8.58 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| Display Position Adjustments | Height, swivel, tilt |
| Height Adjustment | 100 mm |
| Swivel Angle | 90 |
| Tilt Angle | -5/+20 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class B certified, VCCI, DEMKO, CCC, CEBEC, KEMA, RoHS, EN 60601-1, KC, IEC 60601-1, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No. 60601-1, ICES-001 level B, MDD 93/42/EEC class I, FDA Class 1 |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 40 watt |
| Power Consumption Stand by | 1 watt |
| Power Supply | External |
| Software / System Requirements | |
| Included Software | Barco MediCal QAWeb, Barco QAWeb Private Practice |
