Hardware

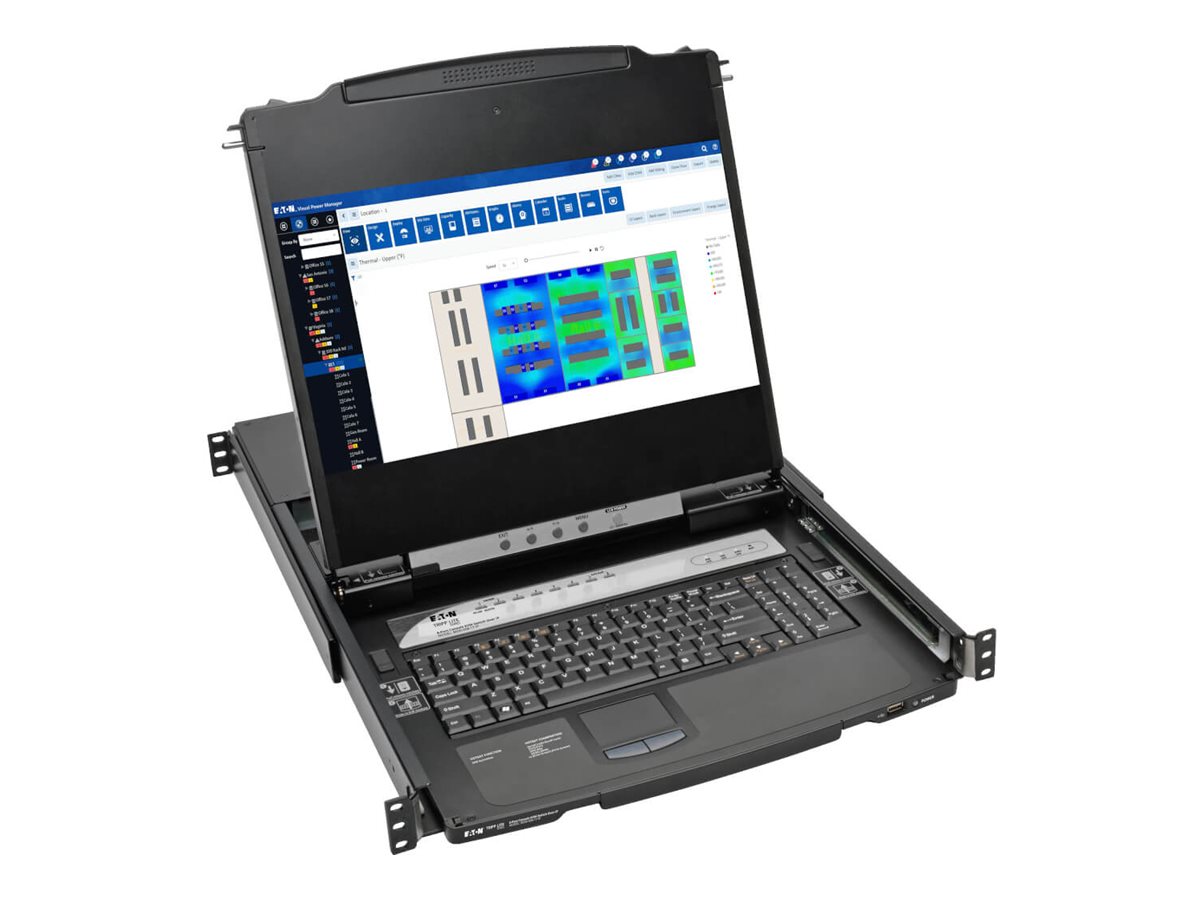

Tripp Lite NetDirector 8-Port Rackmount Console HDMI KVM Switch 17" LCD IP Remote Access

MSRP$5,850.14

$5,658.26

Tripp Lite NetDirector 8-Port Rackmount Console HDMI KVM Switch 17" LCD IP Remote Access

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM switch 8 x KVM port(s) 1 local user rack-mountable TAA Compliant

Contracts
DIR-CPO-5094

Tripp Lite NetDirector 8-Port Rackmount Console HDMI KVM Switch 17" LCD IP Remote Access

KVM switch
8 x KVM port(s)
1 local user
rack-mountable
TAA Compliant

Additional Details
Price:	$5,658.26
MSRP:	$5,850.14
Mfr Part #:	B030-008-17-IP
SHI Part #:	32744649
Category:	Peripheral switch boxes
UNSPSC:	43211604
Manufacturer:	Eaton
Product Type:	Hardware

Complete Control from Anywhere

? Combines 8-port KVM switch, 17 in. LCD screen, keyboard and touchpad to save rack space

? Built-in IP access lets you control up to 8 computers directly from the next room, next door, or the next continent via LAN, WAN or the Internet

? Supports IPv4, IPv6 and network interfaces TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping

? Windows- and Java-based applications provide access without a browser

Simplifies IT Tasks

? Switch easily between ports via on-console buttons, on-screen display or hot keys

? Panel array mode lets you monitor multiple ports at the same time

? Add or remove computers without powering down switch

? Auto-scan mode automatically sequences through all accessible active ports

? Windows-based log server records events and saves them to a searchable database

Large 17 in. LCD

? Supports video resolutions up to 1920 x 1080

? LCD flips up and folds down for full access to rack equipment when not in use

? Dual-rail design lets you push in keyboard while LCD stays open

? Wide display makes multitasking easier

? DDC emulation allows settings of each computer to be automatically adjusted for optimal output to LCD

Advanced Security Features

? Features advanced encryption technologies, such as 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL

? Supports RADIUS and LDAP/S remote authentication

? Allows up to 64 user accounts

? Up to 32 users can log on simultaneously with multi-user operation enabled

Expandability and Long-Lasting Reliability

? Compatible with all major operating systems and browsers

? Flash firmware is upgradable over a network connection

? Heavy-duty steel housing stands up to frequent use

Rack-Mounted Convenience

? Mounts into 1U of EIA-standard 19 in. rack

? Also mounts in 2-post rack using optional B019-000 rack-mount kit

TAA-Compliant

? Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Audio/Video Cables

Tripp Lite 10ft Cat5e / Cat5 Snagless Molded Patch Cable RJ45 M/M Blue 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 5e
booted, snagless

MSRP $8.50

$8.22

Tripp Lite 5ft Cat5e / Cat5 Snagless Molded Patch Cable RJ45 M/M Blue 5'

Patch cable
RJ-45 (M) to RJ-45 (M)
1.5 m
UTP
CAT 5e
molded, snagless, stranded

MSRP $5.41

$5.23

Tripp Lite 10ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Blue 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 6
molded, snagless, stranded

MSRP $12.98

$12.55

Power Cables

Tripp Lite 6ft Computer Power Cord Cable 5-15P to C13 10A 18AWG 6'

Power cable
IEC 60320 C13 to NEMA 5-15 (M)
AC 110 V
1.8 m
black

MSRP $12.50

$12.09

Eaton Tripp Lite Series Desktop Computer AC Power Cable, NEMA 5-15P to C13

10A, 125V, 18 AWG, 10 ft. (3.05 m), Black
Power cable
power IEC 60320 C13 to NEMA 5-15 (M)
AC 110 V
3 m
black

MSRP $16.80

$16.25

Tripp Lite 6ft Computer Power Cord Cable 5-15P to Left Angle C13 10A 18AWG 6'

Power cable
IEC 60320 C13 to NEMA 5-15 (M)
AC 110 V
1.8 m
left-angled connector
black

MSRP $14.21

$13.74

General Information
Category	Peripheral switch boxes
Description	Tripp Lite NetDirector 8-Port Rackmount Console HDMI KVM Switch 17" LCD IP Remote Access - KVM switch - 8 x KVM port(s) - 1 local user - rack-mountable - TAA Compliant
Manufacturer	Eaton
MSRP	$5,850.14
UNSPSC	43211604
Main Specifications
Dimensions & Weight / Depth	68 cm
Dimensions & Weight / Height	4.39 cm
Dimensions & Weight / Weight	11.8 kg
Dimensions & Weight / Width	48.1 cm
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Form Factor	Rack-mountable
Networking / Ports Qty	8
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	3-year warranty
Dimensions & Weight
Depth	68 cm
Height	4.39 cm
Weight	11.8 kg
Width	48.1 cm
Environmental Parameters
Humidity Range Operating	0 - 80% (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	60 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	8 x HDMI output 8 x KVM RJ-45
General
Authentication Method	RADIUS, LDAP
Built-in Devices	Keyboard, touchpad, display
Device Type	KVM switch - 8 ports
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	1024-bit RSA, 256-bit AES, DES, 128-bit SSL
Features	IPv4 support, IPv6 support
Keyboard / Mouse Interface	USB
KVM Local Users Qty	1 local user
Max Resolution	1920 x 1080
Ports	8 x KVM port(s)
Subtype	KVM
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous

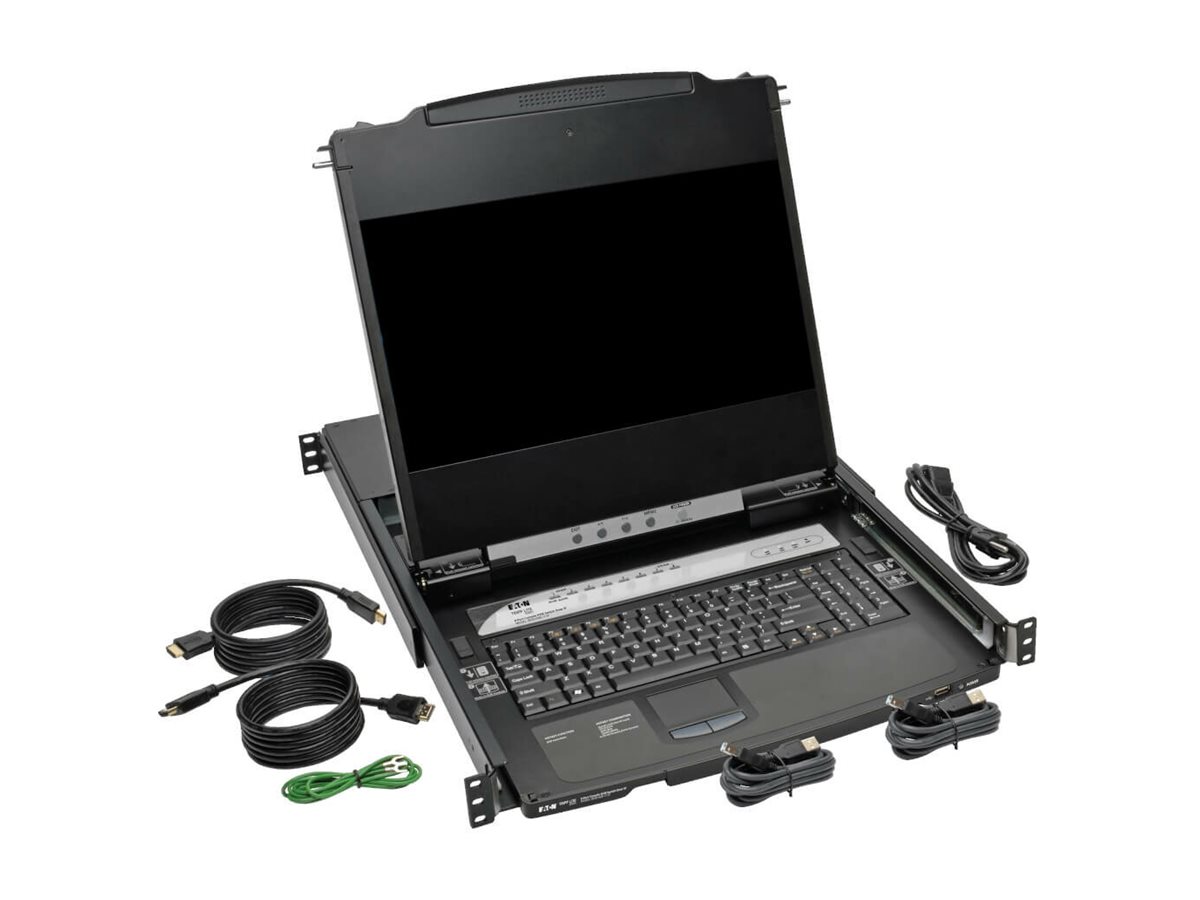

Cables Included	2 x HDMI cable - 1.83 m 2 x USB cable - 1.83 m
Color	Black
Compliant Standards	UL 60950-1, FCC Part 15 A, RoHS
Rack Mounting Kit	Included
TAA Compliant	Yes
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
