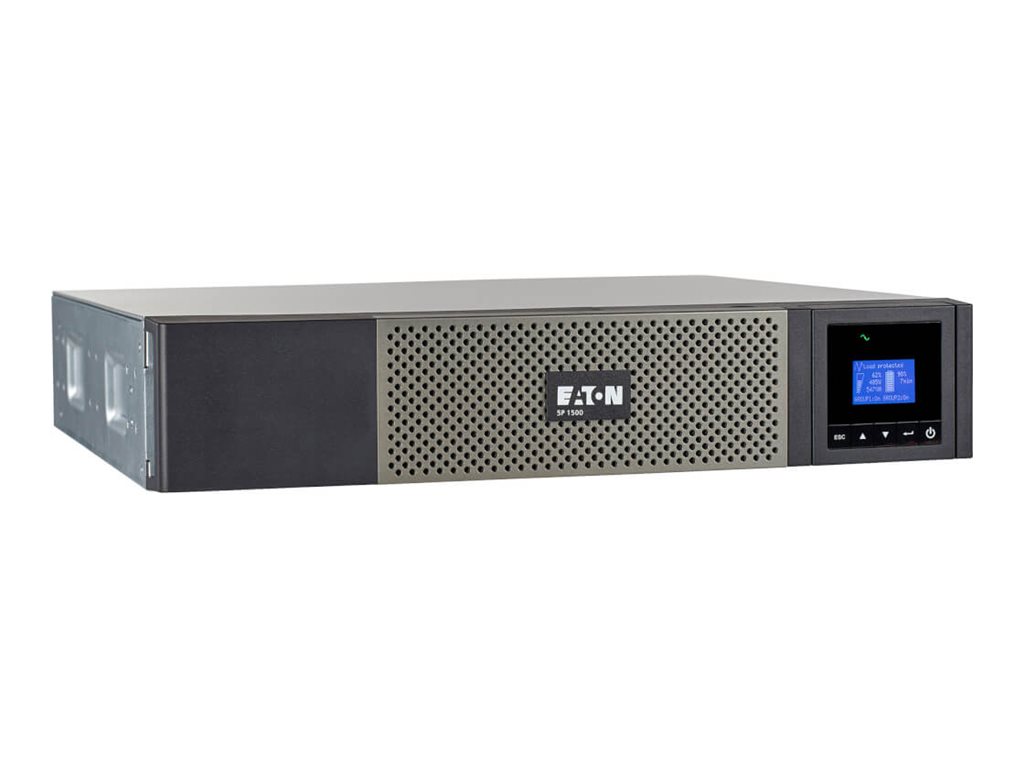

5P 1500VA SHORT RACK 2URACK 2U


MSRP$998.00
$922.00
5P 1500VA SHORT RACK 2URACK 2U

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
5P 1500VA SHORT RACK 2URACK 2U
  Additional Details
Price: $922.00
MSRP: $998.00
Mfr Part #: 5P1500RC
SHI Part #: 33268486
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: Eaton
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
Description5P 1500VA SHORT RACK 2URACK 2U
ManufacturerEaton
MSRP$998.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth40.5 cm
Dimensions & Weight / Height8.62 cm
Dimensions & Weight / Weight18.6 kg
Dimensions & Weight / Width44 cm
General / SubcategoryUPS
Header / BrandEaton
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty10
Power Device / Power Capacity (VA)1440 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
FeaturesMaintenance free, sealed
TechnologyLead acid lead acid
Compatibility Information
Designed ForP/N: 744-A4060
Dimensions & Weight
Depth40.5 cm
Height8.62 cm
Weight18.6 kg
Width44 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature0 °C
Sound Emission45 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x Communication slot
Interfaces
  • 1 x USB - 4 pin USB Type B
  • 1 x RS-232 - RJ-45
  • 1 x EPO (emergency power off) - terminal block
General
ColorBlack, silver
Device TypeUPS - rack-mountable
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - batteries - 3 years with product registration
Miscellaneous
Cables Included
  • USB cable - external - 1.83 m
  • Serial cable - external - 1.83 m
  • Power cable - integrated - 1.8 m
Compliant StandardsCISPR 22 Class B, UL 1778, UL 497A, EN55024, FCC Part 15 B, IEC 62040-2, RoHS, cULus
FeaturesReplaceable battery, Advance Battery Management (ABM), LCD display, automatic self-test, Remote Emergency Power Off (REPO)
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Efficiency96%
Frequency Provided50/60 Hz
Frequency Required47 - 70 Hz
Input ConnectorsPower NEMA 5-15P
Input VoltageAC 120 V
Input Voltage RangeAC 89 - 151 V
Input Voltage Range (Adjustable)AC 70 - 153 V
Output VoltageAC 120 V + 6% / - 10% - 50/60 Hz
Power Capacity1100 Watt / 1440 VA
Power Output Connectors Details10 x power NEMA 5-15
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedIntelligent Power Manager
