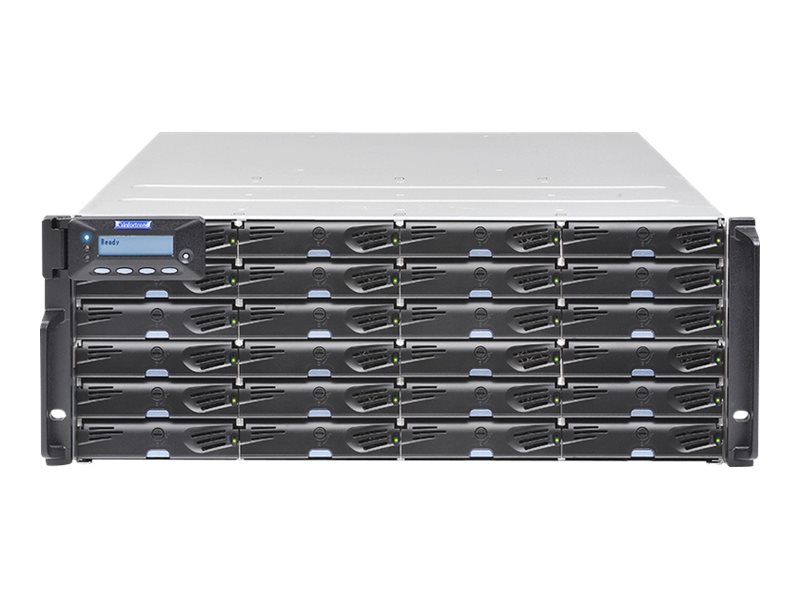

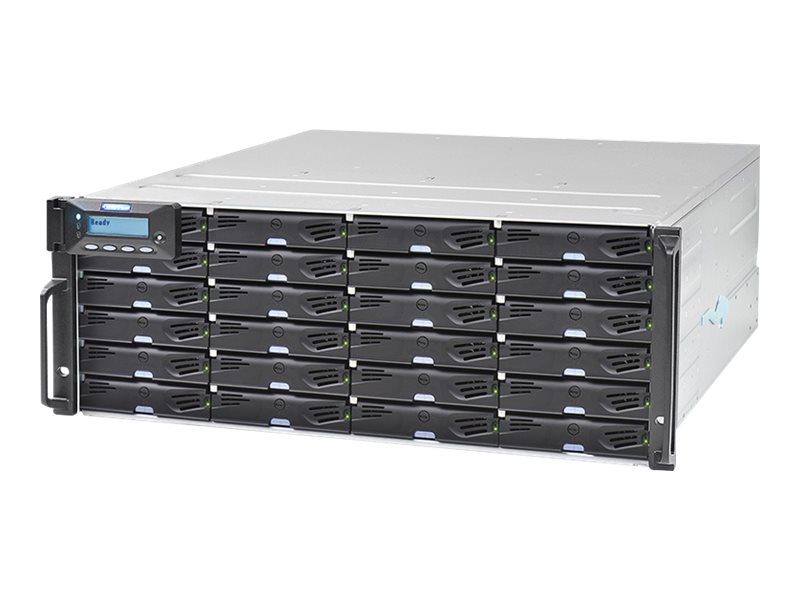

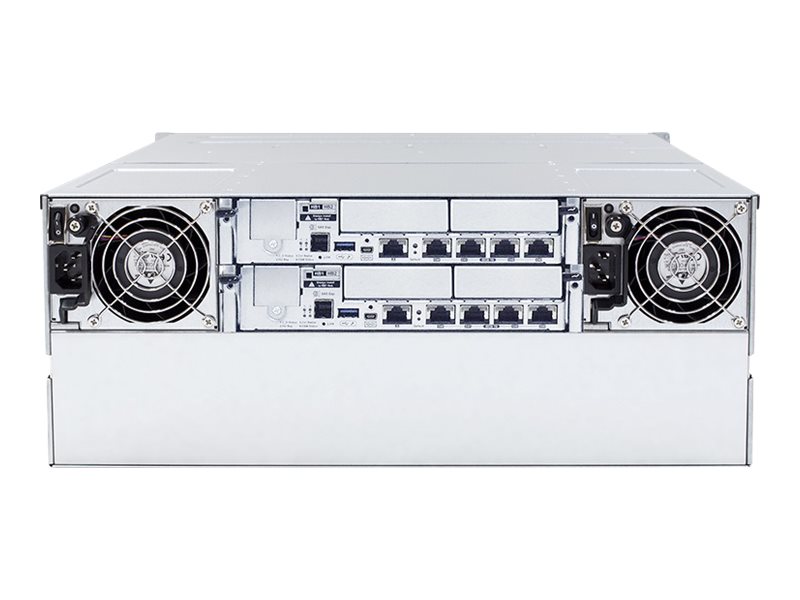

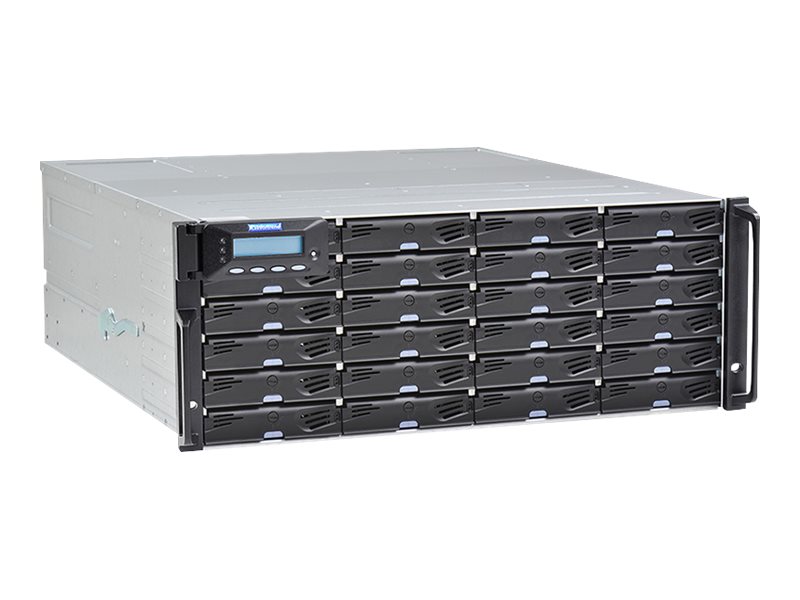

Infortrend EonStor DS 3024RU
MSRP$12,978.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Infortrend EonStor DS 3024RU
- Hard drive array
- 24 bays (SAS-3)
- iSCSI (10 GbE), 16Gb Fibre Channel, 56Gb InfiniBand, iSCSI (40 GbE) (external)
- rack-mountable
- 4U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $12,978.00 |
| Mfr Part #: | DS3024RUC000F-0030 |
| SHI Part #: | 34288561 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Infortrend |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | Infortrend EonStor DS 3024RU - Hard drive array - 24 bays (SAS-3) - iSCSI (10 GbE), 16Gb Fibre Channel, 56Gb InfiniBand, iSCSI (40 GbE) (external) - rack-mountable - 4U |
| Manufacturer | Infortrend |
| MSRP | $12,978.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 55 cm |
| Dimensions & Weight / Height | 17.4 cm |
| Dimensions & Weight / Width | 44.5 cm |
| Header / Brand | Infortrend |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface |
|
| Storage / HDD Array External Interface Class |
|
| Storage / Rack-mountable | Rack-mountable |
| Storage / Type | Hard drive array |
| Chassis | |
| Built-in Devices | Status LCD, LED panel |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 55 cm |
| Height | 17.4 cm |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Hard Drive | |
| Type | No HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | UL, BSMI, CB, FCC, KC, EAC |
| Features | Flash backup module, super capacitor battery, S.M.A.R.T. support, Self-Encrypting Drive (SED) support |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 460 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| RAM | |
| Installed Size | 32 GB |
| Storage | |
| HDD Array External Interface | iSCSI (10 GbE), 16Gb Fibre Channel, 56Gb InfiniBand, iSCSI (40 GbE) |
| Maximum LUNs | 4000 |
| Storage Controller | |
| Cache / Buffer Size (Max) | 32 GB (installed) / 32 GB (max) |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, RAID 0+1, RAID 60 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | IBM AIX, SunSoft Solaris, HP-UX, Apple MacOS X, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Citrix XenServer, Microsoft Windows Server 2012 R2, SUSE Linux Enterprise |
