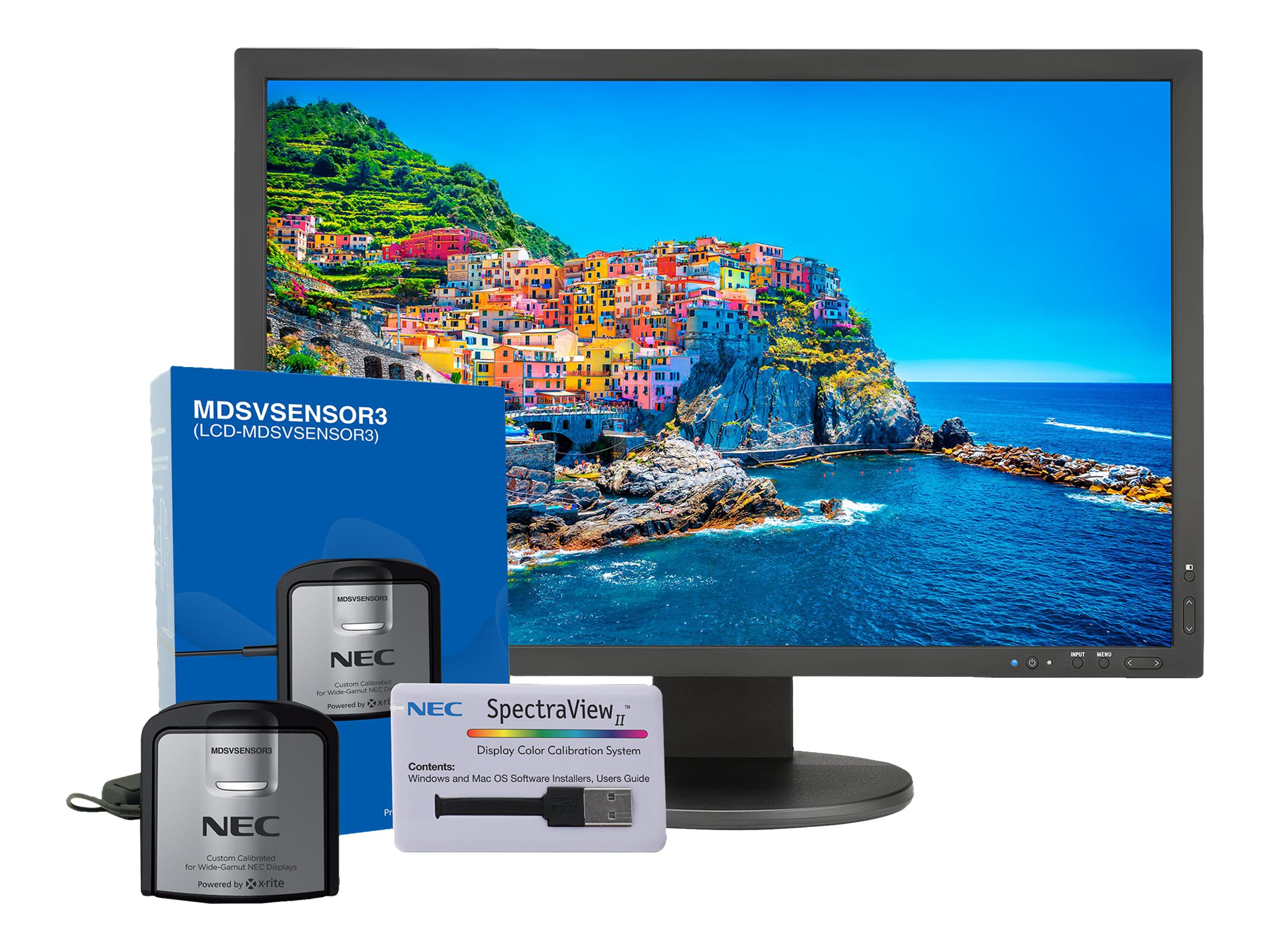

NEC MultiSync PA243W-BK-SV
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
NEC MultiSync PA243W-BK-SV
- LED monitor
- 24.1" (24.1" viewable)
- 1920 x 1200
- AH-IPS
- 350 cd/m²
- 1000:1
- 8 ms
- HDMI, DVI-D, VGA, DisplayPort
- speakers
- black
| Additional Details | |
|---|---|
| Mfr Part #: | PA243W-BK-SV |
| SHI Part #: | 34400277 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | NEC |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | NEC MultiSync PA243W-BK-SV - LED monitor - 24.1" (24.1" viewable) - 1920 x 1200 - AH-IPS - 350 cd/m² - 1000:1 - 8 ms - HDMI, DVI-D, VGA, DisplayPort - speakers - black |
| Manufacturer | NEC |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.3 cm |
| Dimensions & Weight / Height | 37.91 cm |
| Dimensions & Weight / Weight | 8 kg |
| Dimensions & Weight / Width | 55.62 cm |
| Display / Diagonal Size | 24.1 in |
| Display / Diagonal Size (metric) | 61.1 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1200 |
| Display / Pixel Pitch | 0.27 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | NEC |
| Image Brightness | 350 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 4-year warranty |
| Audio | |
| Output Power / Channel | 1 Watt |
| Type | Speakers - stereo |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | WLED |
| Brightness | 350 cd/m² |
| Built-in Devices | USB 3.1 Gen 1 hub |
| Color | Black |
| Color Gamut | 100% ISOcoated v2 (UDACT), 100% SMPTE, 100% sRGB, 80.1% Rec 2020, 96.9% DCI-P3, 97.1% NTSC, 99.6% RGB |
| Color Support | 16.8 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 24.1" |
| Dimensions (WxDxH) | 55.62 cm x 23.3 cm x 37.91 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | Picture in picture, XtraView+, CableComp, Rapid Response, No Touch Auto Adjust, picture by picture, Sync on Green, AmbiBright, Backlight Sensor, Picture Mode, DisplaySync Pro, 14-bit 3D lookup table, OSD lock, automatic black level adjustment, NaViSet Administrator 2, Composite Sync, SpectraView Engine Color Control |
| Horizontal Refresh Rate | 31.5 - 118.4 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 1920 x 1200 |
| Panel Type | AH-IPS |
| Pixel Per Inch | 93 |
| Pixel Pitch | 0.27 mm |
| Response Time | 8 ms (gray-to-gray) |
| Vertical Refresh Rate | 50 - 85 Hz |
| Vertical Viewing Angle | 178 |
| Weight | 8 kg |
| Manufacturer Warranty | |
| Service & Support |
|
| Mechanical | |
| Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
| Height Adjustment | 150 mm |
| Rotation Angle | 90 |
| Swivel Angle | 90 |
| Tilt Angle | -5/+30 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | DDC/CI, RoHS |
| Features | Security lock slot (cable lock sold separately), cable organizer |
| Included Accessories | NEC custom calibrator |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 35 Watt |
| Power Consumption Stand by | 0.3 Watt |
| Software / System Requirements | |
| Included Software | SpectraViewII software |
