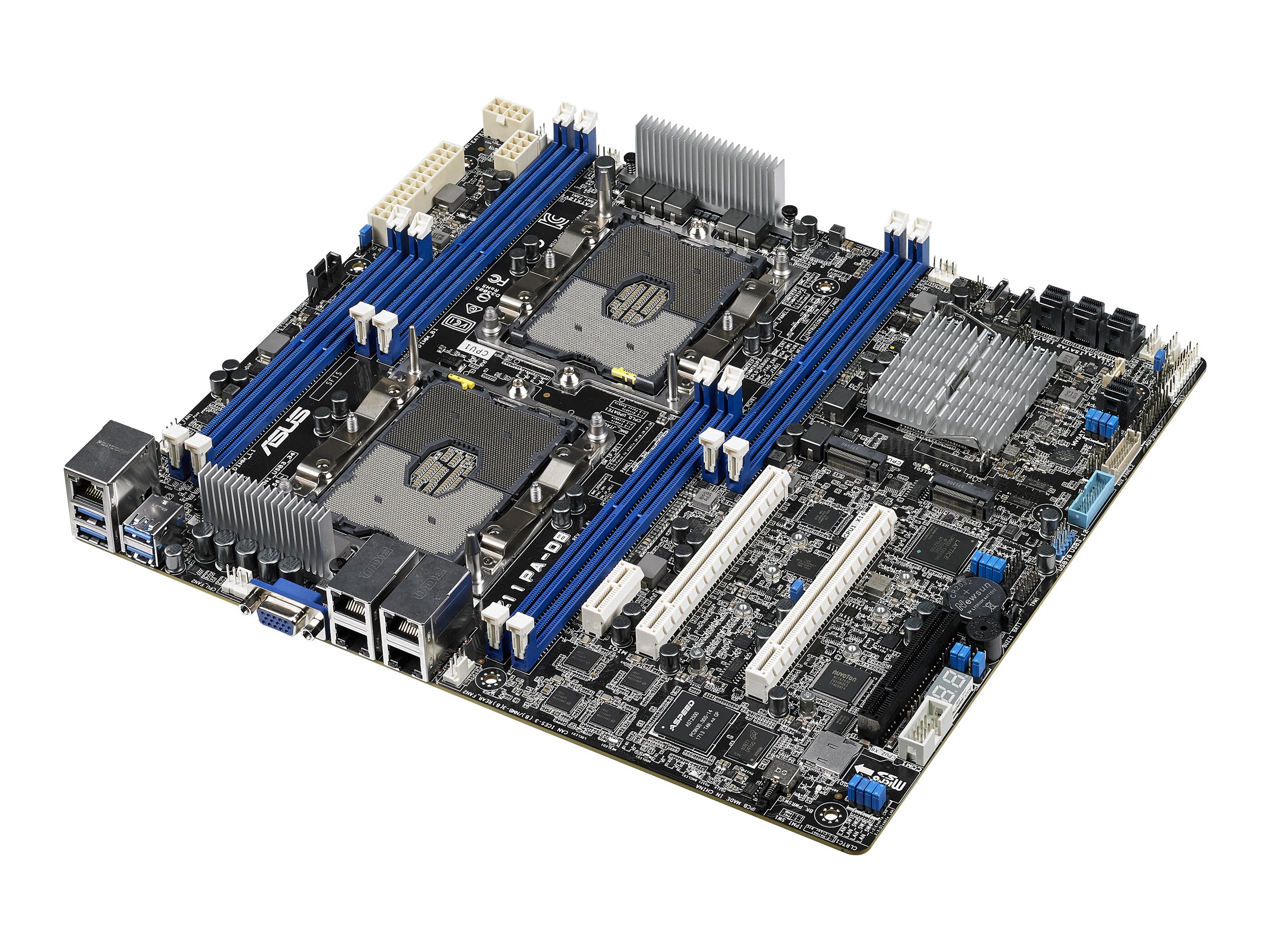

ASUS Z11PA-D8 - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASUS Z11PA-D8 - Motherboard
- SSI CEB
- Socket P
- 2 CPUs supported
- C621 Chipset
- USB 3.0
- 4 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Mfr Part #: | Z11PA-D8 |
| SHI Part #: | 34846415 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS Z11PA-D8 - Motherboard - SSI CEB - Socket P - 2 CPUs supported - C621 Chipset - USB 3.0 - 4 x Gigabit LAN - onboard graphics |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Compatible Processors | Xeon |
| Mainboard / Processor Socket | Socket P |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| Hardware Features | Intel VROC support, OCuLink, ASMB9-iKVM |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, chassis fan tachometer |
| General | |
| Chipset Type | Intel C621 |
| Compatible Processors | Xeon (Maximum TDP 165 Watt) |
| Data Bus Transfer Rate | 10.4 GT/s |
| Max Processors Qty | 2 |
| Processor Socket | Socket P |
| Product Type | Motherboard - SSI CEB |
| Graphics | |
| Dedicated Video Memory | 64 MB |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | 4 x Intel I210AT |
| Network Interfaces | 4 x Gigabit Ethernet |
| Miscellaneous | |
| Included Accessories | I/O back cover |
| Software Included | Drivers & utilities |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Details |
|
| Features | Quad channel memory architecture |
| Max Size | 1024 GB |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
