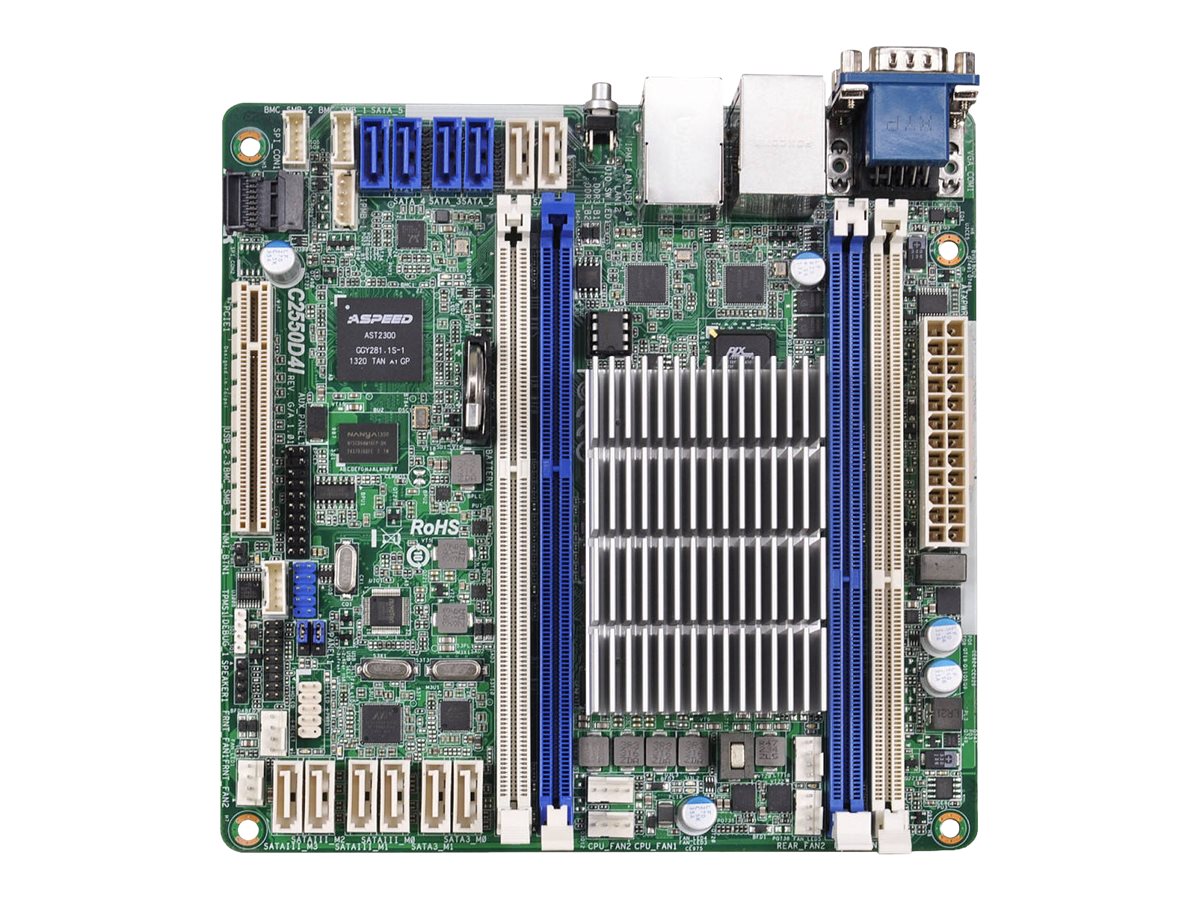

ASRock C2550D4I - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock C2550D4I - Motherboard
- mini ITX
- Intel Atom C2550
- 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C2550D4I/C0 |
| SHI Part #: | 35134605 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock C2550D4I - Motherboard - mini ITX - Intel Atom C2550 - 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.02 cm |
| Dimensions & Weight / Width | 17.02 cm |
| Header / Brand | ASRock |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Processor / Manufacturer | Intel |
| Processor / Type | Atom |
| Video Output / Graphics Processor | ASPEED AST2300 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces | 1 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | SMBIOS 2.3.1 support, IPMI support, ACPI 1.1 support, UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | Chassis intrusion detection, WatchDog Timer, ASRock Instant Flash, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Processor | Intel Atom C2550 (Quad-Core) |
| Product Type | Motherboard - mini ITX |
| Graphics | |
| Dedicated Video Memory | 16 MB DDR3 SDRAM |
| Graphics Controller | ASPEED AST2300 |
| LAN | |
| Network Controller | 2 x Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 6 x Serial ATA cable |
| Compliant Standards | ACPI 1.1 |
| Depth | 17.02 cm |
| Included Accessories | I/O back plate |
| Software Included | Drivers & utilities |
| Width | 17.02 cm |
| Supported RAM | |
| Bus Clock | 1600 MHz, 1333 MHz |
| Max Size | 64 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR3 |
