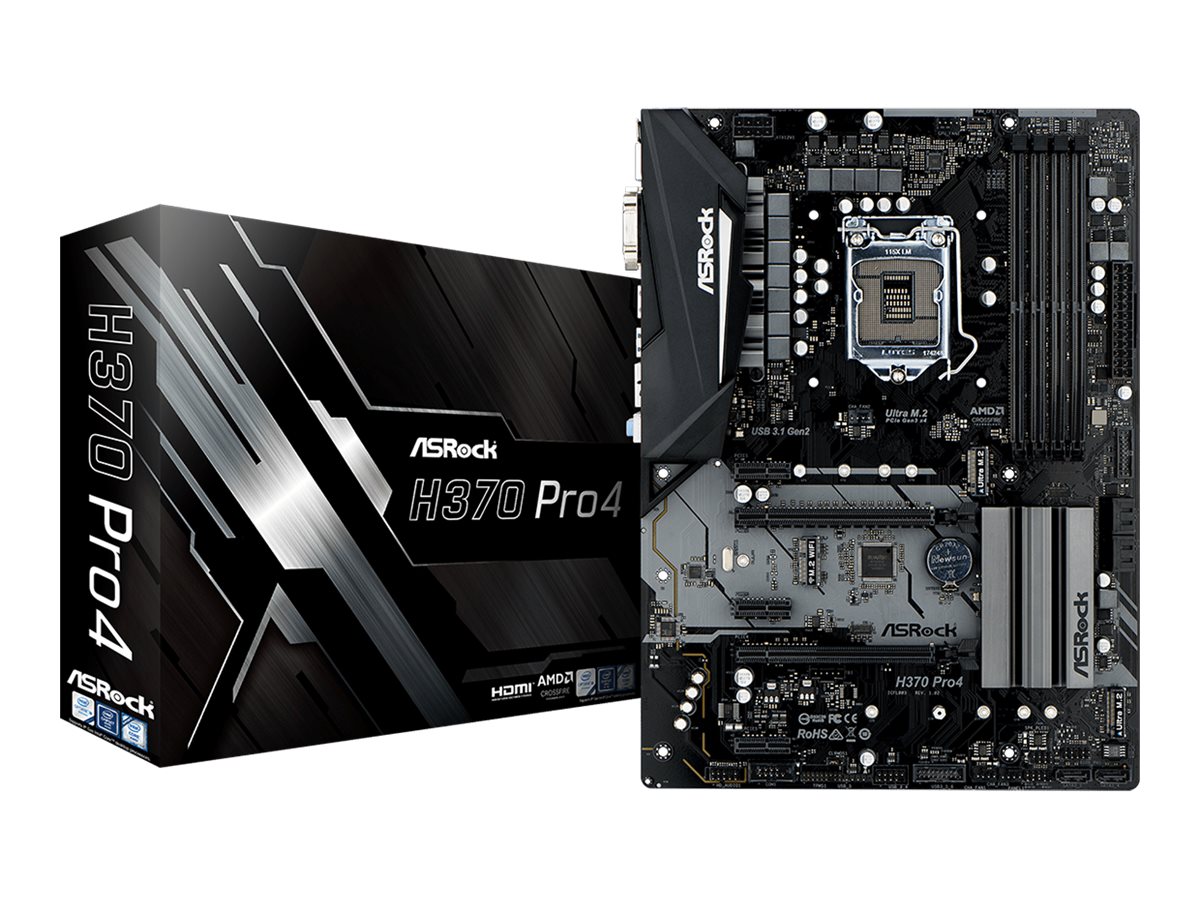

ASRock H370 Pro4 - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock H370 Pro4 - Motherboard
- ATX
- LGA1151 Socket
- H370 Chipset
- USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | H370 PRO4 |
| SHI Part #: | 35289399 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock H370 Pro4 - Motherboard - ATX - LGA1151 Socket - H370 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel H370 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1151 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio, Premium Blu-ray audio support |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, HDCP compliant, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, 4K resolution support, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, 10 Phase Power Design, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 50A Power Choke, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel H370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7, Maximum TDP 95 Watt) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1151 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Depth | 22.4 cm |
| Included Accessories | I/O back plate, 3 x M.2 screws |
| Software Included | Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
