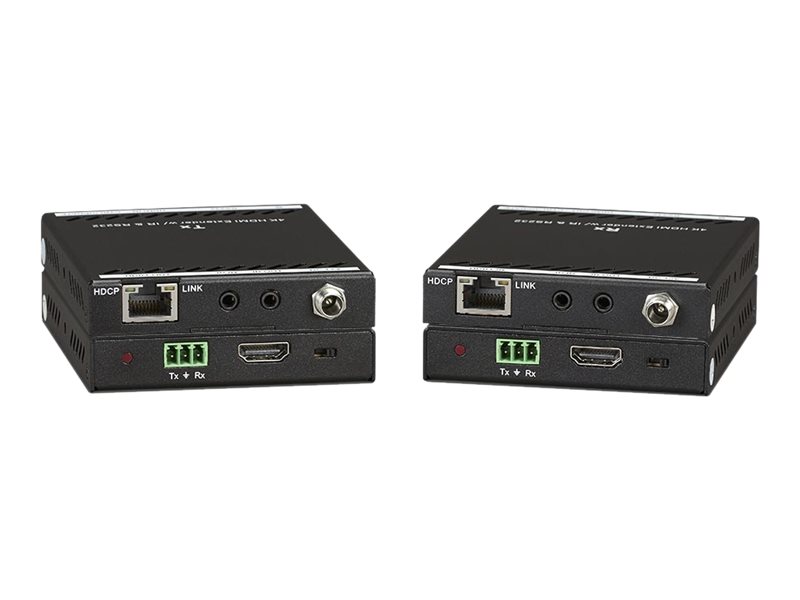

KanexPro 4K/30 HDMI Extender over HDBaseT (Transmitter and Receiver Units)
MSRP$262.45
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
KanexPro 4K/30 HDMI Extender over HDBaseT (Transmitter and Receiver Units)
- Video/audio/infrared/serial extender
- HDMI, HDBaseT
- up to 70 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $262.45 |
| Mfr Part #: | EXT-HDBT70C |
| SHI Part #: | 35474075 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | KanexPro |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | KanexPro 4K/30 HDMI Extender over HDBaseT (Transmitter and Receiver Units) - Video/audio/infrared/serial extender - HDMI, HDBaseT - up to 70 m |
| Manufacturer | KanexPro |
| MSRP | $262.45 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.38 cm |
| Dimensions & Weight / Height | 1.52 cm |
| Dimensions & Weight / Weight | 250 g |
| Dimensions & Weight / Width | 10.6 cm |
| Header / Brand | KanexPro |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 8.38 cm |
| Height | 1.52 cm |
| Weight | 250 g |
| Width | 10.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | CEC |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Features | HDCP compliant, 4K resolution support, power over HDBaseT (PoH), Dolby TrueHD support, DTS-HD Master Audio support, 1080p resolution support |
| Max Transfer Distance | 70 m |
| Power | |
| Power Consumption Operational | 14 Watt |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoH |
| Voltage Required | AC 120/230 V (50/60 Hz) |
