ASUS WS C422 SAGE/10G
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

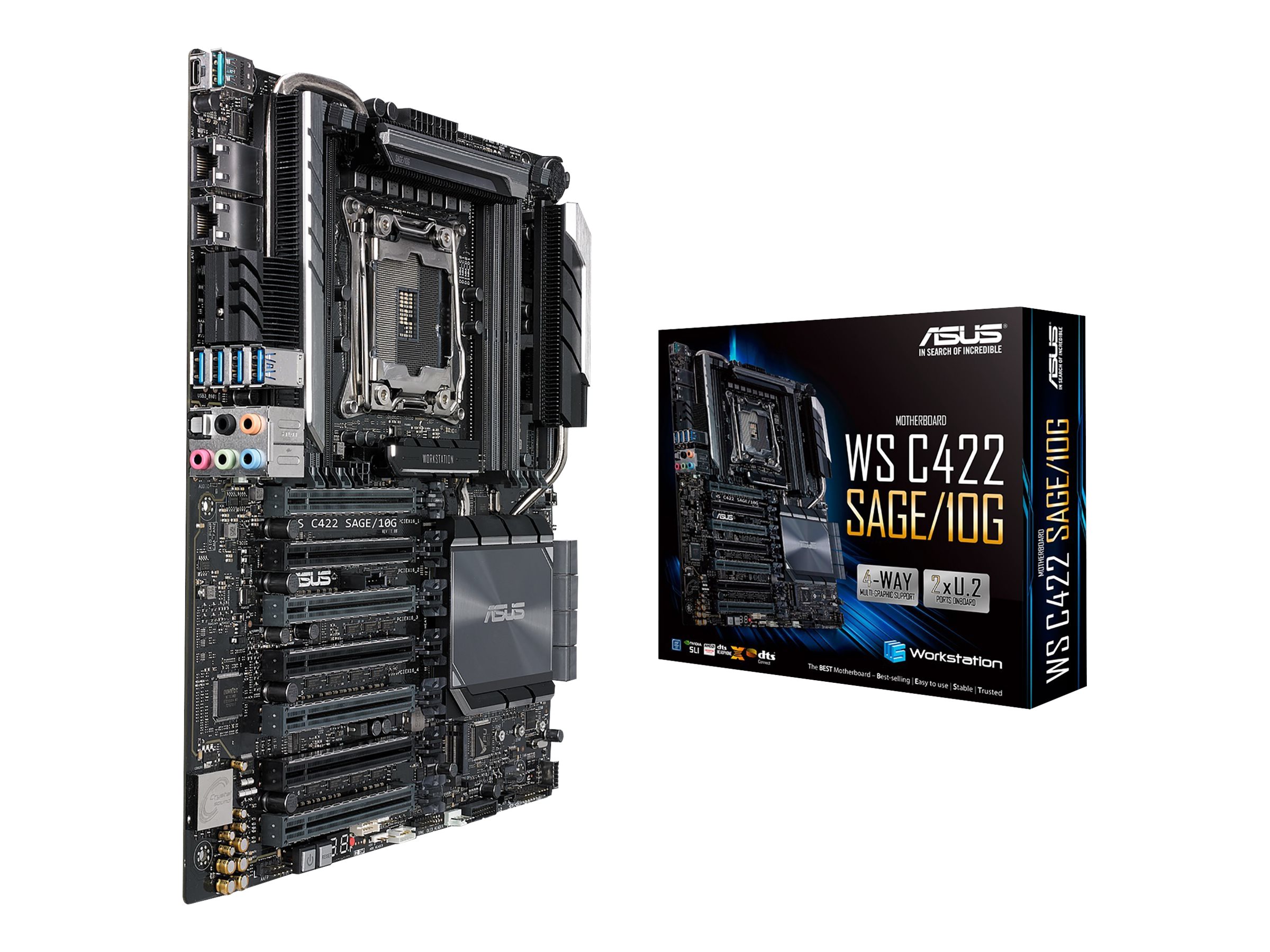

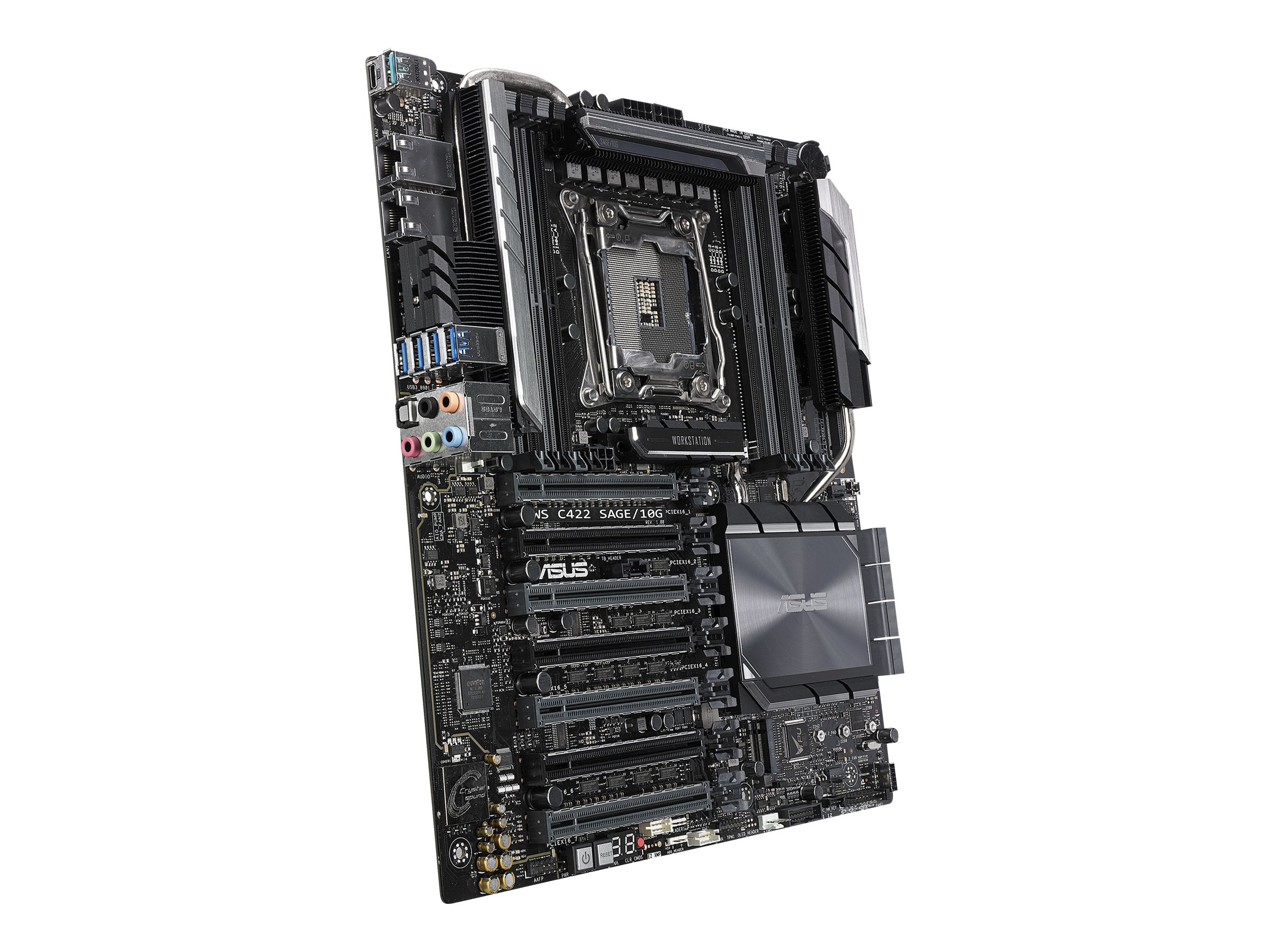

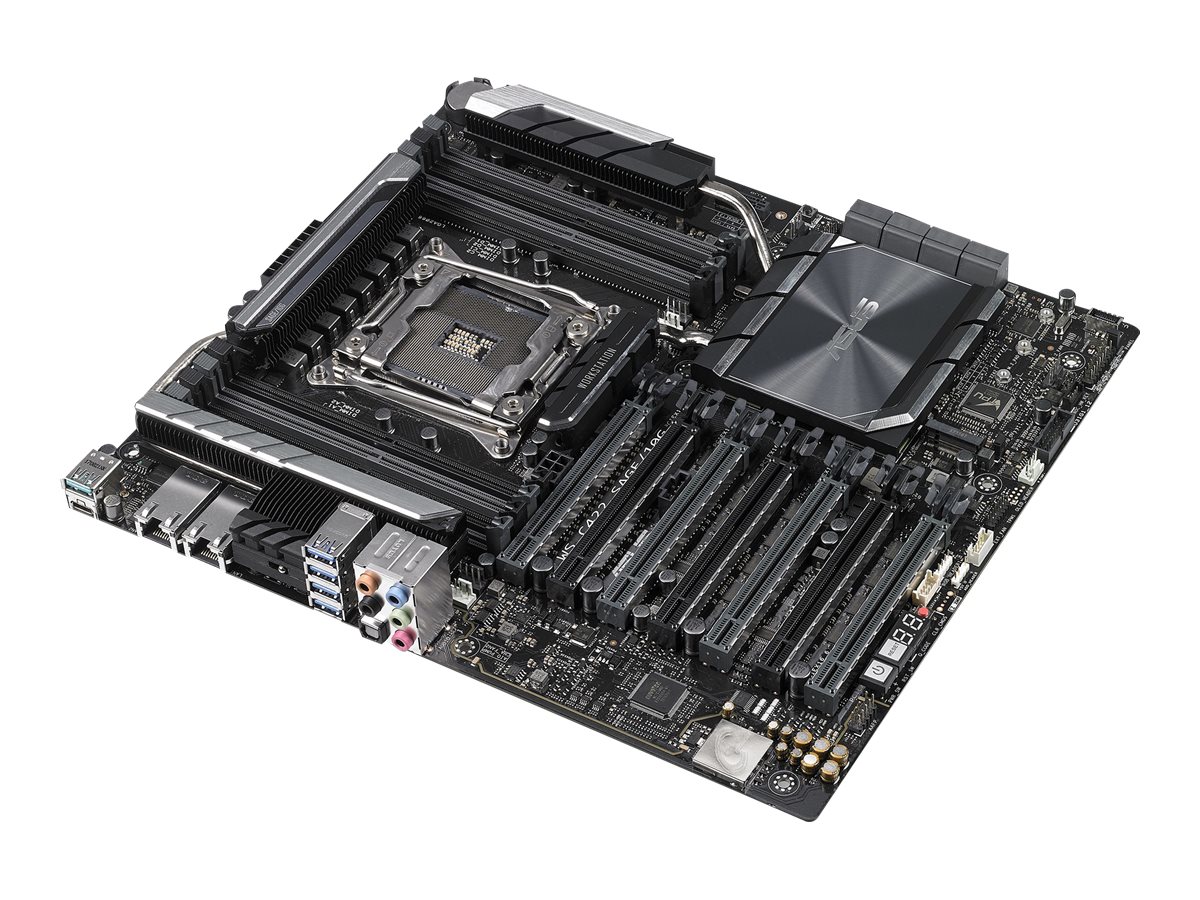

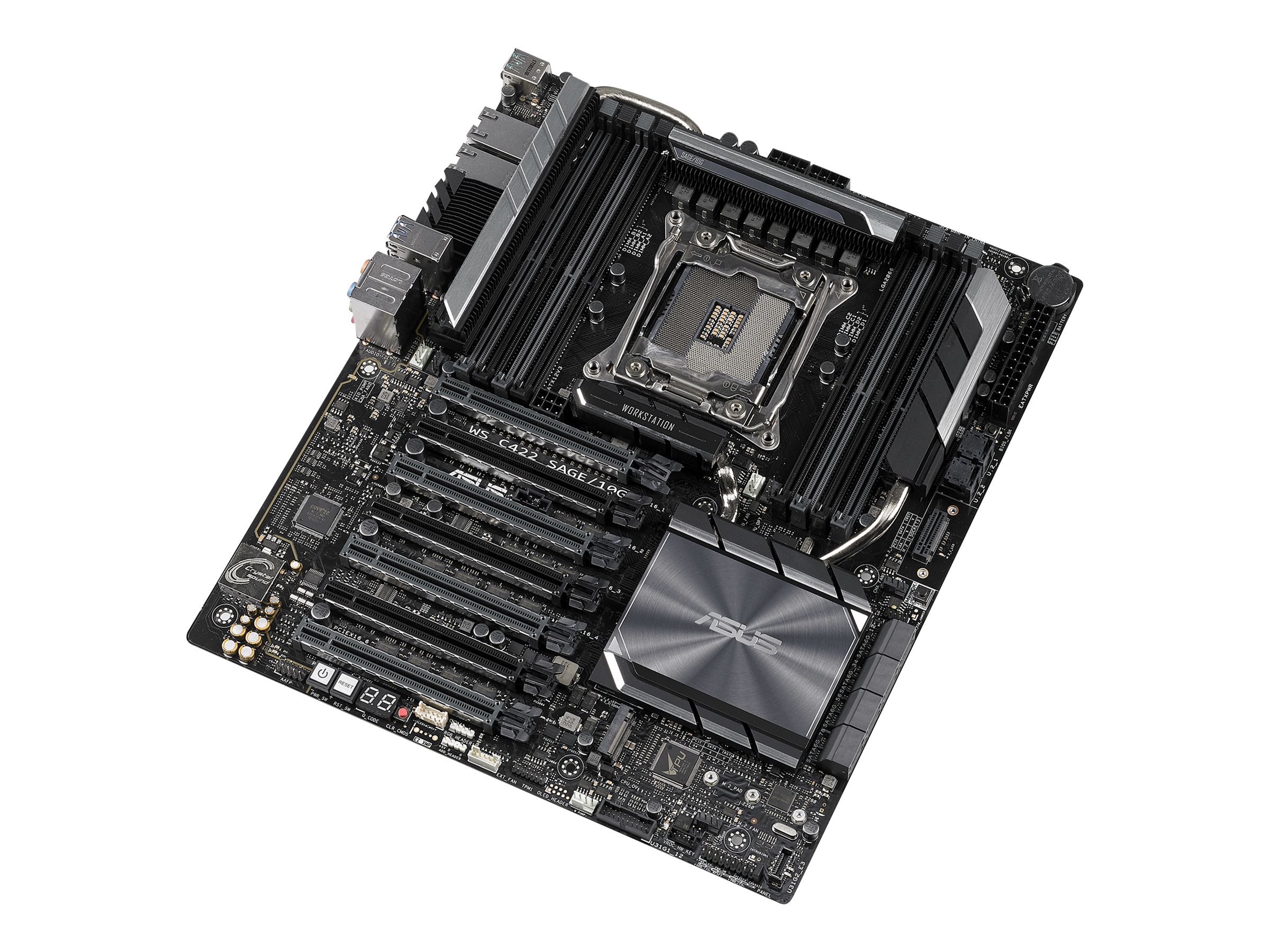

ASUS WS C422 SAGE/10G
- Motherboard
- SSI CEB
- LGA2066 Socket
- C422 Chipset
- USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
- 2 x 10 Gigabit LAN
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | WS C422 SAGE/10G |
| SHI Part #: | 35678915 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS WS C422 SAGE/10G - Motherboard - SSI CEB - LGA2066 Socket - C422 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x 10 Gigabit LAN - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.7 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel C422 |
| Mainboard / Compatible Processors | Xeon W |
| Mainboard / Processor Socket | LGA2066 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | None |
| Audio | |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | USB BIOS Flashback |
| Hardware Features | Jack retasking, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS Q-Shield, ASUS 8 Phase Power Design, Intel Turbo Boost Technology 2.0, NVIDIA 4-way SLI Technology Support, Q-Code, ASUS DIGI+ Power Control, Onboard Button, ASUS 2 Phase DRAM Power Design, AMD 4-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, ProCool Power Connector, ASUS Overvoltage Protection, ASUS Crystal Sound 3, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, Intel VROC support |
| General | |
| Chipset Type | Intel C422 |
| Compatible Processors | Xeon W |
| Max Processors Qty | 1 |
| Processor Socket | LGA2066 Socket |
| Product Type | Motherboard - SSI CEB |
| LAN | |
| Network Controller | Intel X550-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Miscellaneous | |
| Depth | 26.7 cm |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Features | Quad channel memory architecture |
| Max Size | 512 GB |
| Registered or Buffered | Registered, Load-Reduced |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
