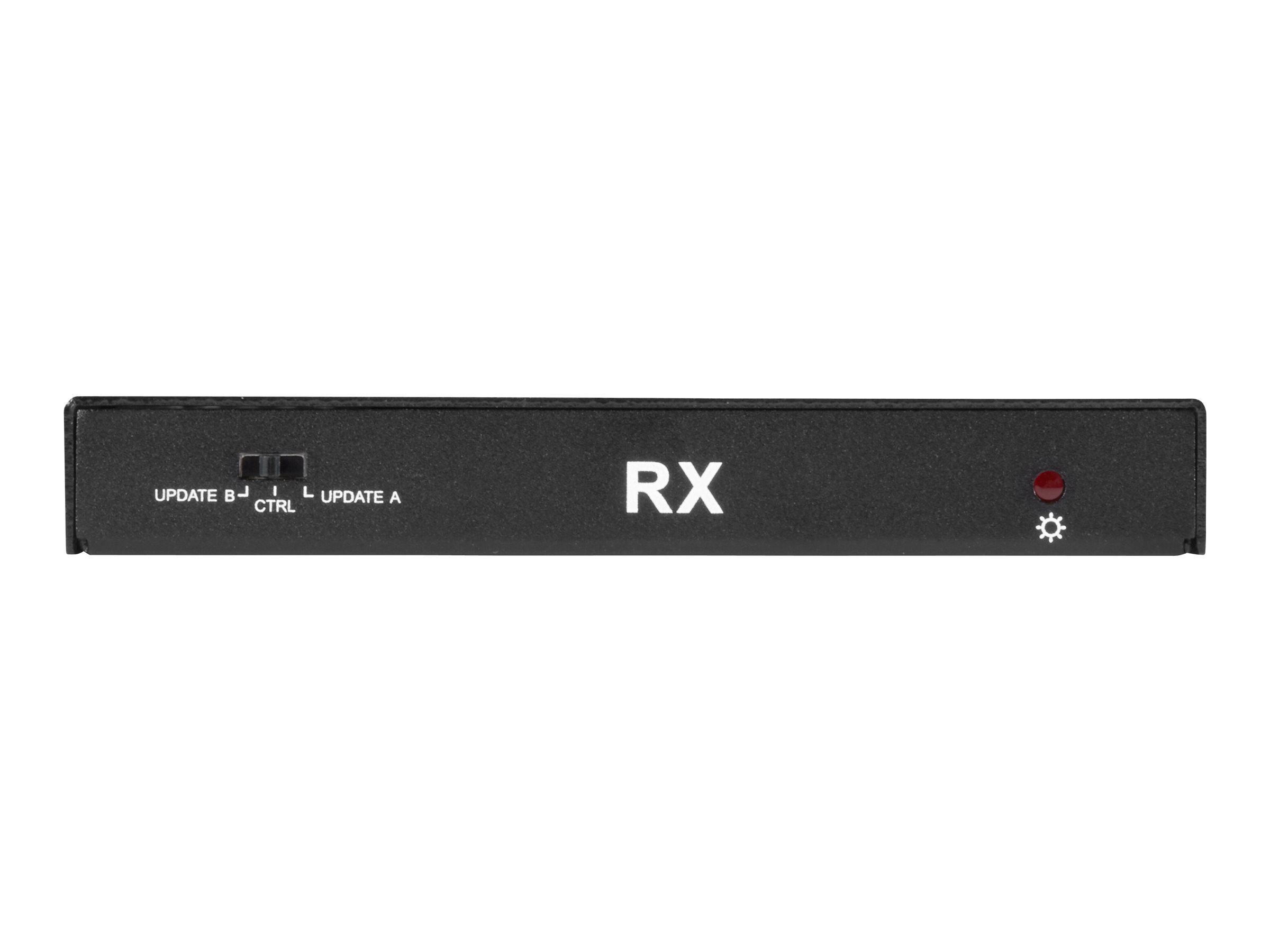

Black Box HDR CATx Video Extender Receiver
MSRP$304.27
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Black Box HDR CATx Video Extender Receiver
- Video/audio/infrared/serial extender
- receiver
- RS-232, HDMI, infrared, CATx
- up to 70 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $304.27 |
| Mfr Part #: | VX-HDB2-RX |
| SHI Part #: | 36057576 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Black Box HDR CATx Video Extender Receiver - Video/audio/infrared/serial extender - receiver - RS-232, HDMI, infrared, CATx - up to 70 m |
| Manufacturer | Black Box |
| MSRP | $304.27 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.4 cm |
| Dimensions & Weight / Height | 1.6 cm |
| Dimensions & Weight / Weight | 153 g |
| Dimensions & Weight / Width | 11.5 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8.4 cm |
| Height | 1.6 cm |
| Weight | 153 g |
| Width | 11.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, infrared, CATx |
| Features | HDCP compliant, built-in DIP switch, 4K resolution support, 1080p resolution support, HDR support |
| Max Resolution | 60 Hz |
| Max Transfer Distance | 70 m |
| Power | |
| Power Consumption Operational | 14 Watt |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoC |
| Voltage Required | AC 120/230 V (50/60 Hz) |
