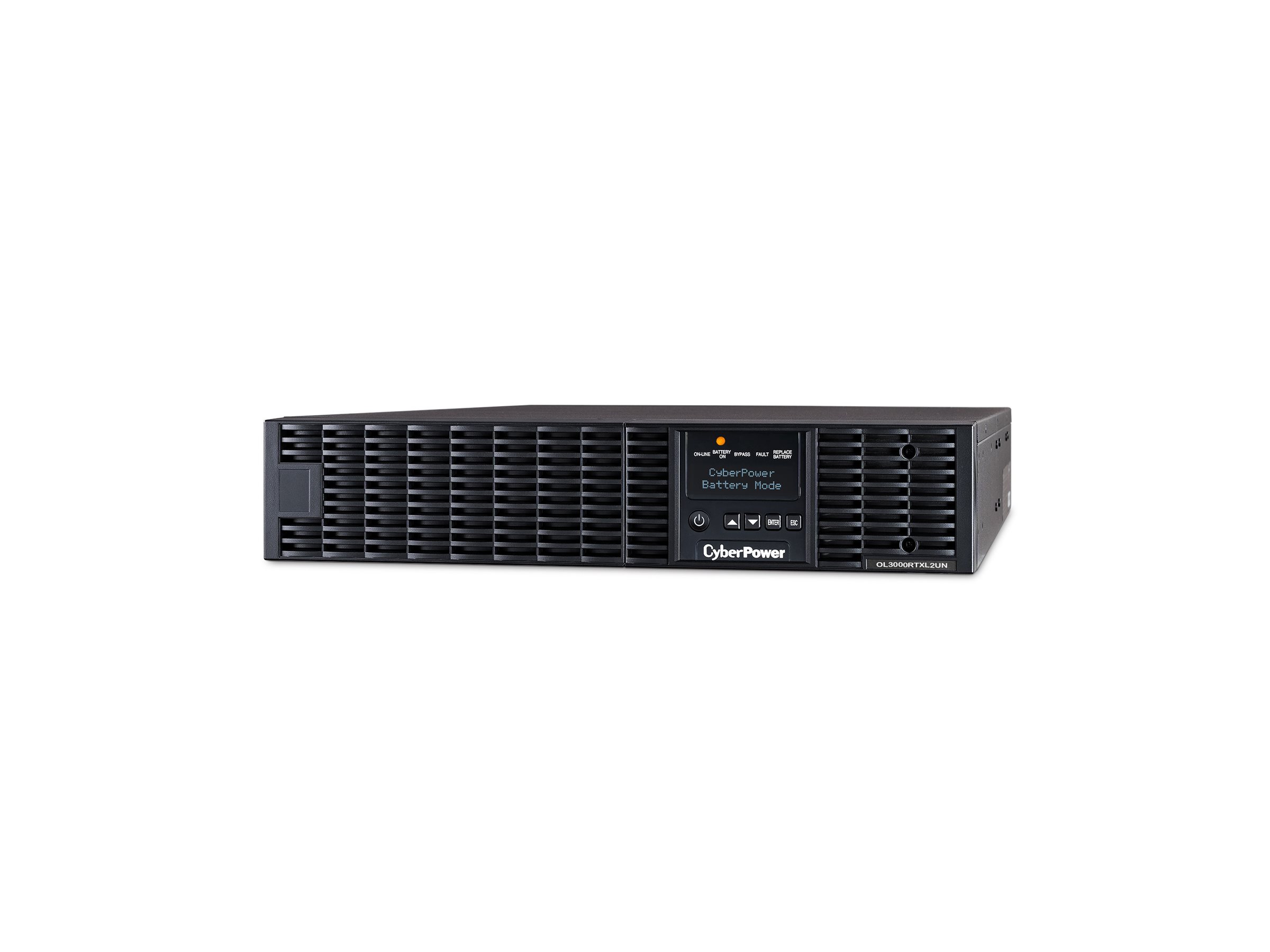

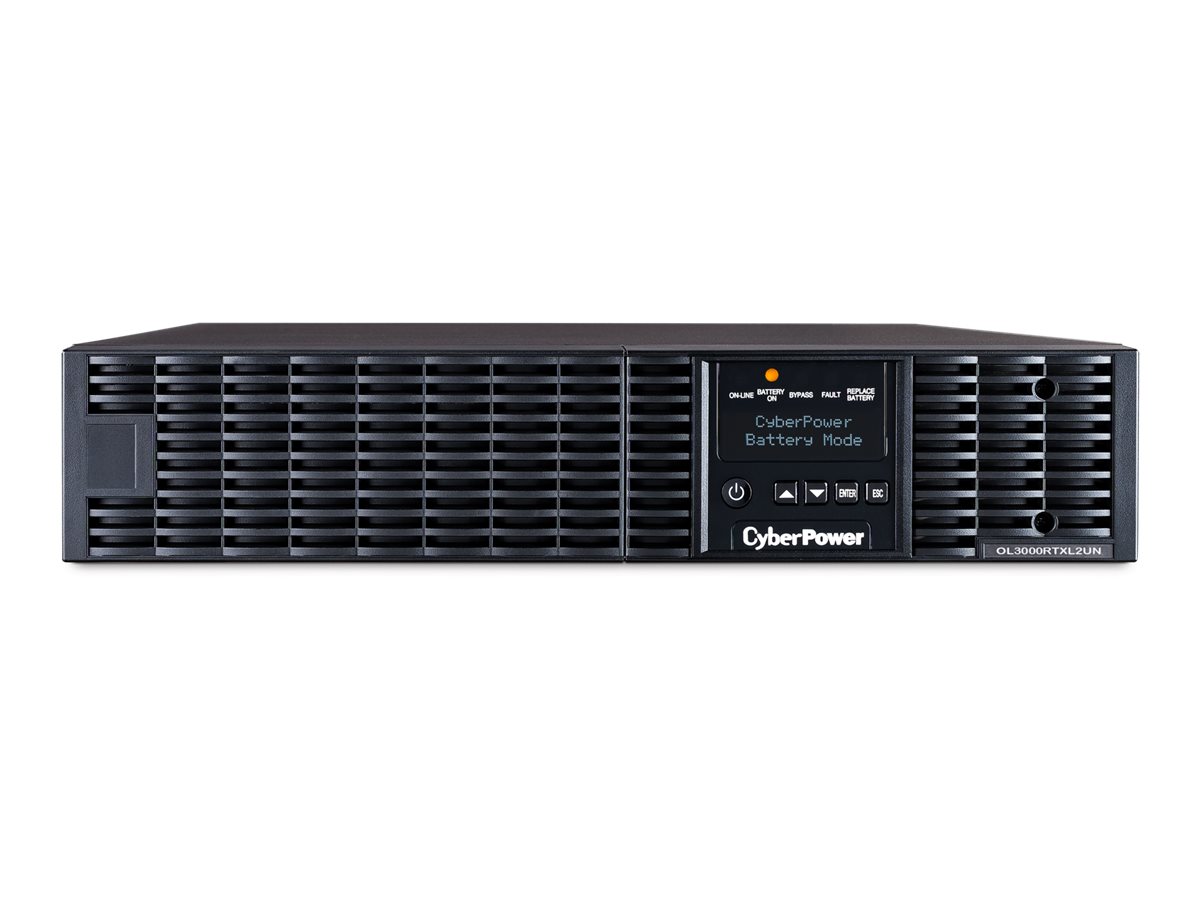

CyberPower Smart App Online UPS Series OL3000RTXL2UN
MSRP$4,660.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
CyberPower Smart App Online UPS Series OL3000RTXL2UN
- UPS (rack-mountable / external)
- 2.7 kW
- 3000 VA 9 Ah
- RS-232, USB
- output connectors: 7
- active PFC
- 2U
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,660.00 |
| Mfr Part #: | OL3000RTXL2UN |
| SHI Part #: | 37070617 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | CyberPower Smart App Online UPS Series OL3000RTXL2UN - UPS (rack-mountable / external) - 2.7 kW - 3000 VA 9 Ah - RS-232, USB - output connectors: 7 - active PFC - 2U - black |
| Manufacturer | CyberPower |
| MSRP | $4,660.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 60 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 30.93 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | Cyberpower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | On-line |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Battery | |
| Capacity | 9 Ah |
| Features | Sealed |
| Quantity | 6 |
| Recharge Time | 5 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Dimensions & Weight | |
| Depth | 60 cm |
| Height | 8.9 cm |
| Weight | 30.93 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 56.515 cm |
| Shipping Height | 87.63 cm |
| Shipping Weight | 38.78 kg |
| Shipping Width | 23.495 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | IEC 61000-4-5, RoHS, FCC Part 15 A, UL 1778 5th edition, CSA C22.2 No.107.3-05 |
| Equipment Protection Value | 400000 US Dollars |
| Features | Audible alarm, LCD display, internal bypass, LED indicators, GreenPower UPS Technology, overload protection, cold-start function, firmware upgradable, automatic shut down, hot-swappable batteries, Smart Battery Management (SMB), Eco-Mode, generator compatible, converter mode, Fast Charge technology |
| Included Accessories | Screws, rack mounting rails, rack mounting ears, 2 mounting brackets, 12 rubber pads, 8 plastic washers, 12 screw hole dust covers |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Remote Management Protocol | HTTP, CLI |
| Power Device | |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
| Frequency Provided | 50/60 Hz ± 0.25Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage Range | AC 60 - 150 V |
| Output Voltage | AC 100/110/115/120/125 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2.7 kW / 3000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details |
|
| Supported Battery Technology | Lead acid |
| Surge Energy Rating | 1335 joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows 2000, Microsoft Windows 7, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits) |
| Software Included | PowerPanel Business Edition |
