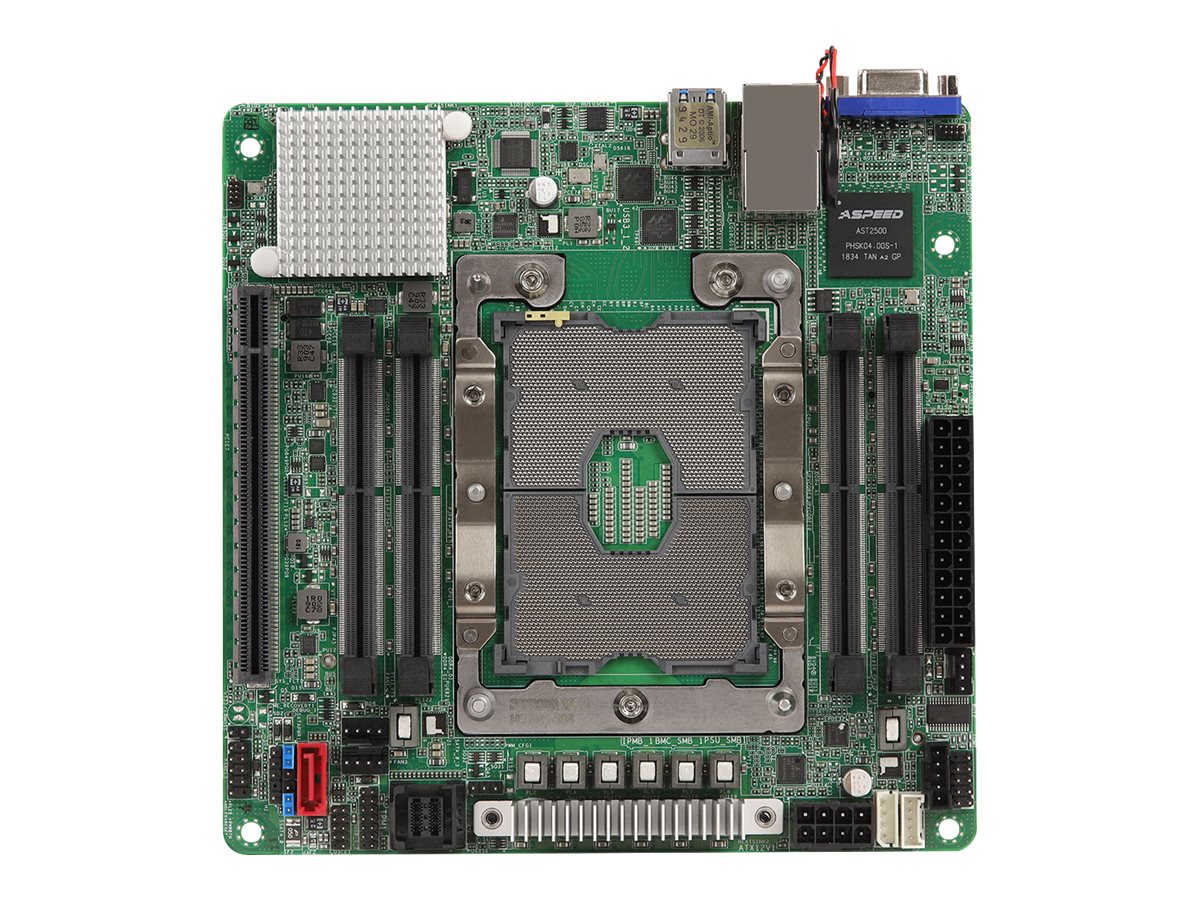

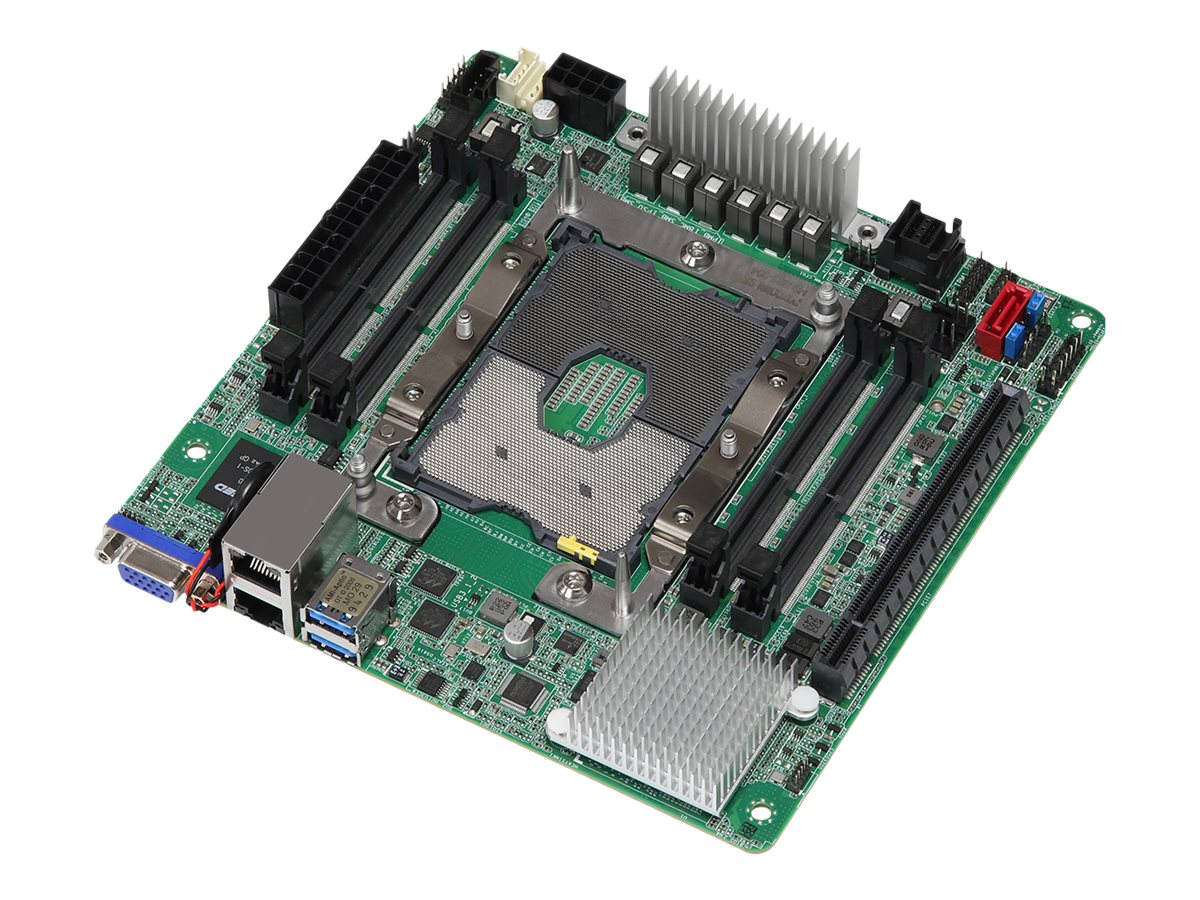

ASRock Rack EPC621D4I-2M
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock Rack EPC621D4I-2M
- Motherboard
- mini ITX
- Socket P
- C621
- USB 3.2 Gen 2
- 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EPC621D4I-2M |
| SHI Part #: | 38270177 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack EPC621D4I-2M - Motherboard - mini ITX - Socket P - C621 - USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.02 cm |
| Dimensions & Weight / Width | 17.02 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Compatible Processors | Xeon |
| Mainboard / Processor Socket | Socket P |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, SMBIOS 2.8 support, ACPI 2.0 support |
| BIOS Type | AMI |
| Hardware Features | Energy Efficient Ethernet 802.3az, Dual LAN Teaming, Preboot eXecution Environment (PXE), WatchDog Timer, ASRock Rack Instant Flash |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel C621 |
| Compatible Processors | Xeon (supports 1st and 2nd Generation Intel Xeon Scalable CPU) |
| Max Processors Qty | 1 |
| Processor Socket | Socket P |
| Product Type | Motherboard - mini ITX |
| Graphics | |
| Dedicated Video Memory | 256 MB DDR4 SDRAM |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Marvell Alaska 88E1514 / Intel X722 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Depth | 17.02 cm |
| Width | 17.02 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz |
| Max Size | 64 GB |
| Registered or Buffered | Registered |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
