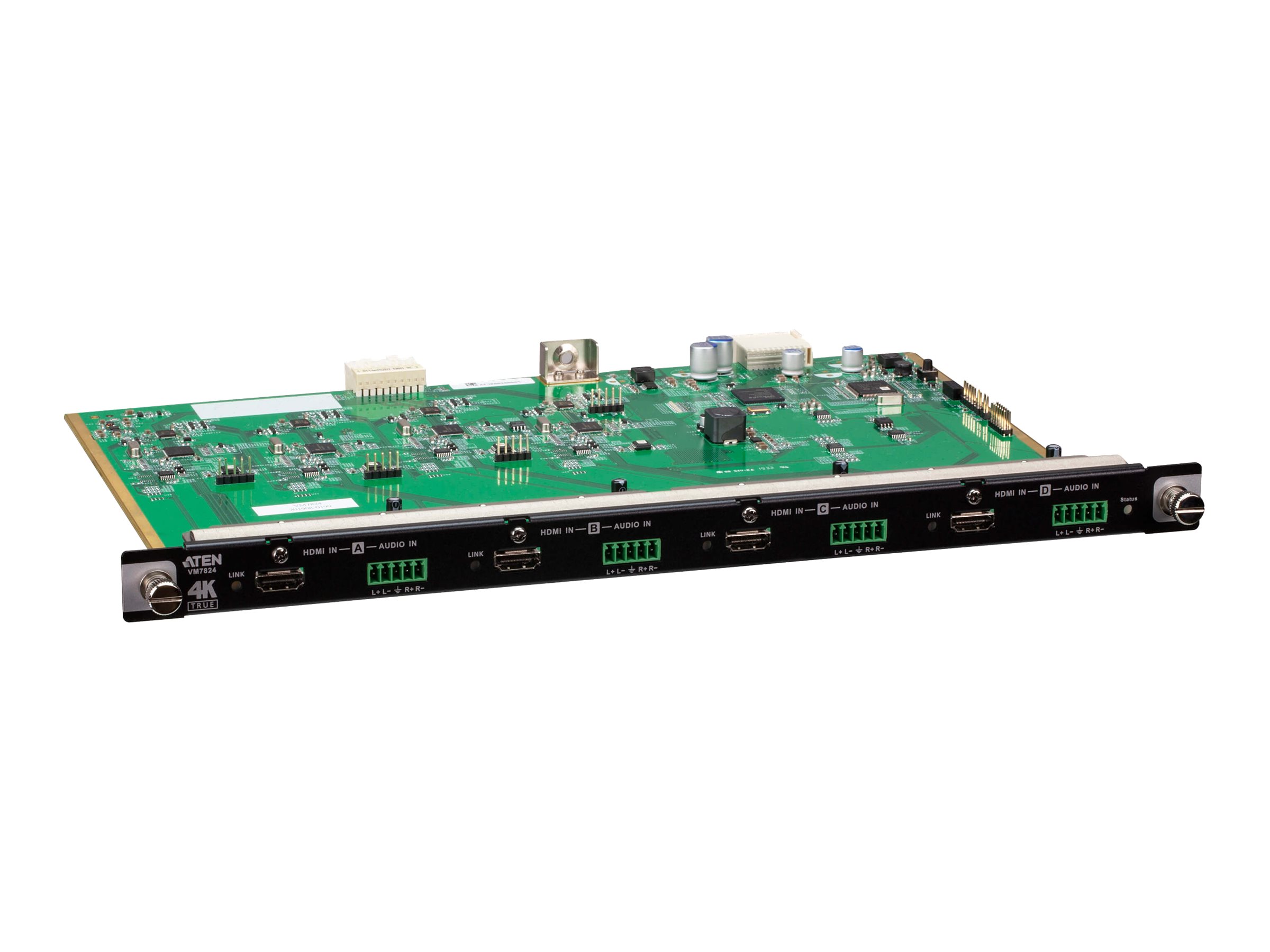

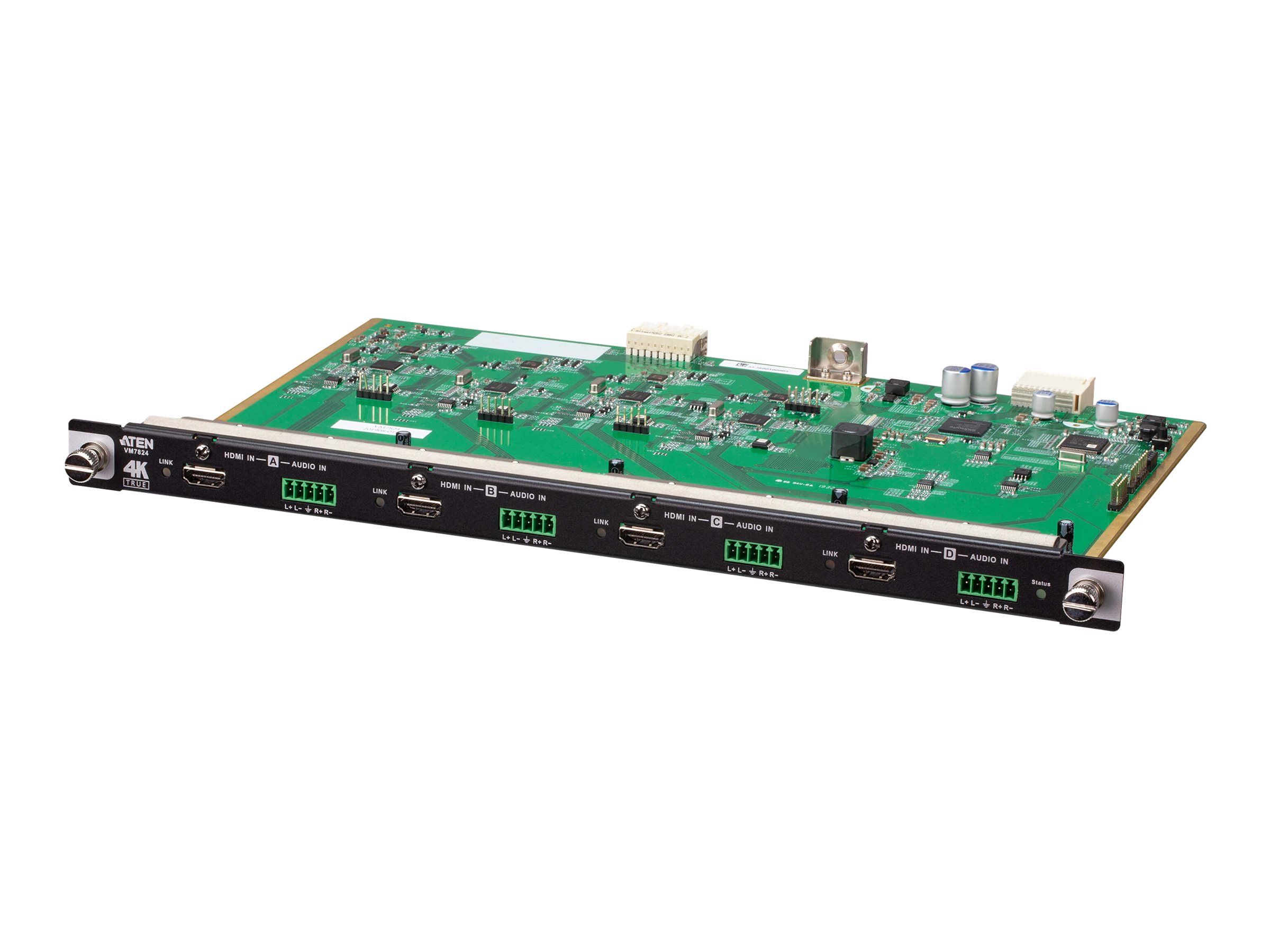

ATEN VM7824 4-Port True 4K HDMI Input Board

MSRP$1,724.00
$1,667.45
ATEN VM7824 4-Port True 4K HDMI Input Board
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Expansion module
  • HDMI x 4
  • for VanCryst VM1600A, VM3200, VM3250, VS182B, VS184B
Contracts
   DIR-CPO-5094
ATEN VM7824 4-Port True 4K HDMI Input Board
  • Expansion module
  • HDMI x 4
  • for VanCryst VM1600A, VM3200, VM3250, VS182B, VS184B
  Additional Details
Price: $1,667.45
MSRP: $1,724.00
Mfr Part #: VM7824
SHI Part #: 40029299
Category: Network interface cards
UNSPSC: 43201404
Manufacturer: ATEN
Product Type: Hardware
General Information
CategoryNetwork interface cards
DescriptionATEN VM7824 4-Port True 4K HDMI Input Board - Expansion module - HDMI x 4 - for VanCryst VM1600A, VM3200, VM3250, VS182B, VS184B
ManufacturerATEN
MSRP$1,724.00
UNSPSC43201404
Main Specifications
Dimensions & Weight / Depth35.2 cm
Dimensions & Weight / Height2.33 cm
Dimensions & Weight / Weight550 g
Dimensions & Weight / Width23.8 cm
Header / BrandATEN
Miscellaneous / Product Color
  • Black
  • Green
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolHDMI
Networking / Data Transfer Rate18 Gbps
Networking / TypeExpansion module
Packaged Quantity1
Service & Support / Type3-year warranty
Compatibility Information
Designed ForATEN VanCryst VM1600A, VM3200, VM3250, VS182B, VS184B
Dimensions & Weight
Depth35.2 cm
Height2.33 cm
Weight550 g
Width23.8 cm
Environmental Parameters
Humidity Range Operating0 - 80% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces

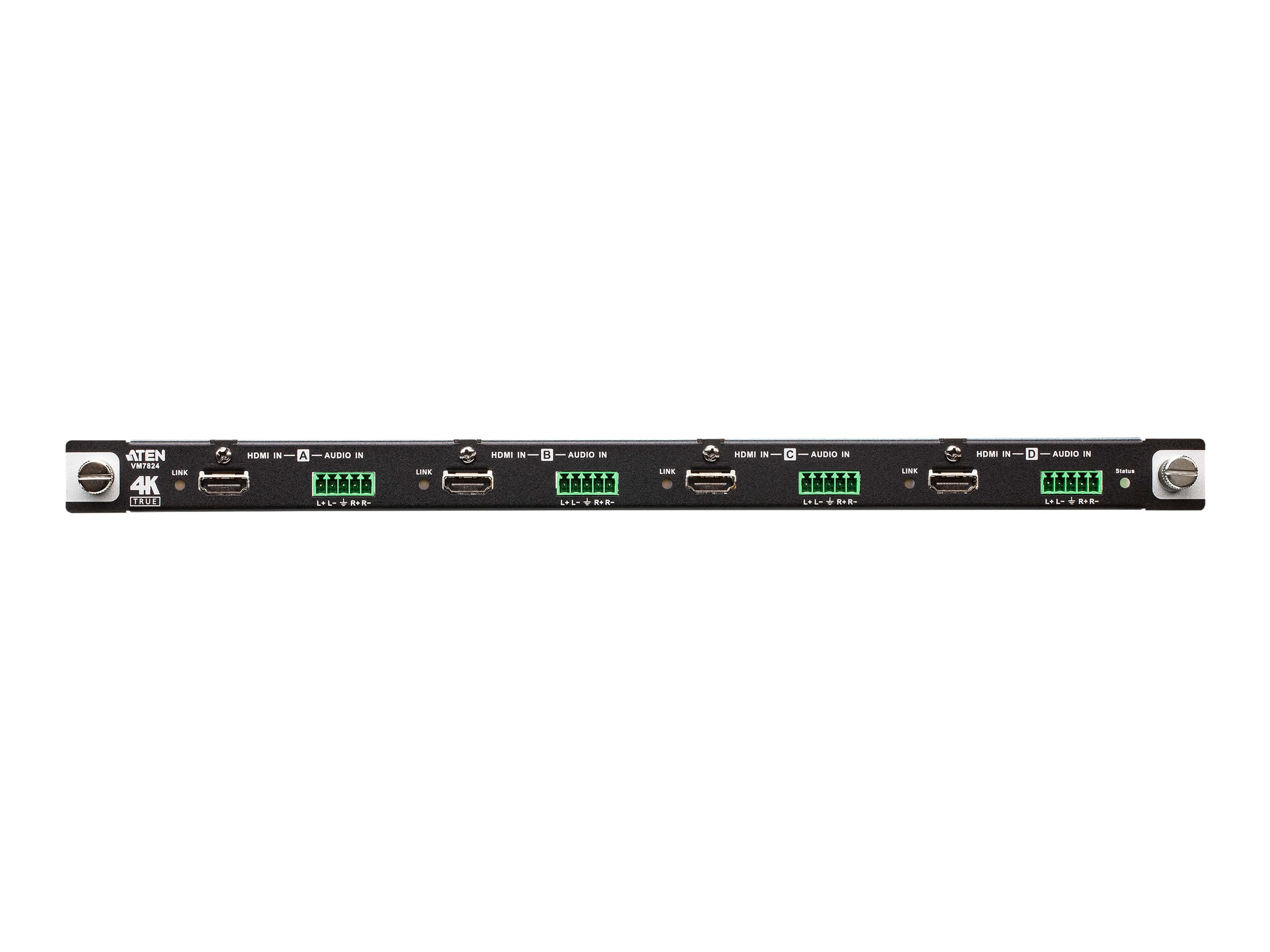

  • 4 x HDMI input - 19 pin HDMI Type A
  • 4 x audio line-in - 5 pin terminal block
General
Device TypeExpansion module
Form FactorPlug-in module
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Compliant StandardsCEC
Networking
Compliant StandardsHDCP 2.2
Connectivity TechnologyWired
Data Link ProtocolHDMI
Data Transfer Rate18 Gbps
Features4K resolution support, 3D support, HDCP compliant, Seamless Switch, FrameSync, EDID Expert
PortsHDMI x 4
