ASRock Rack ROMED8-2T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

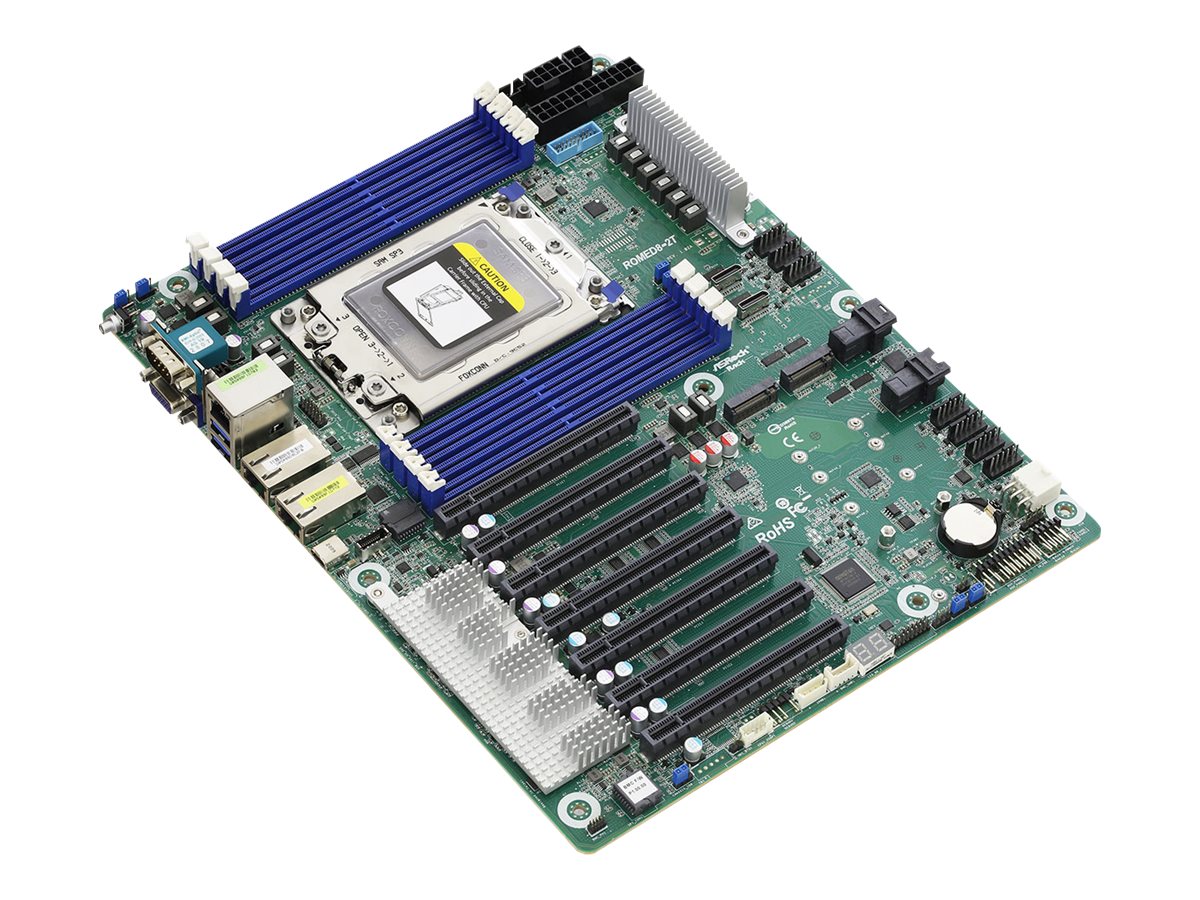

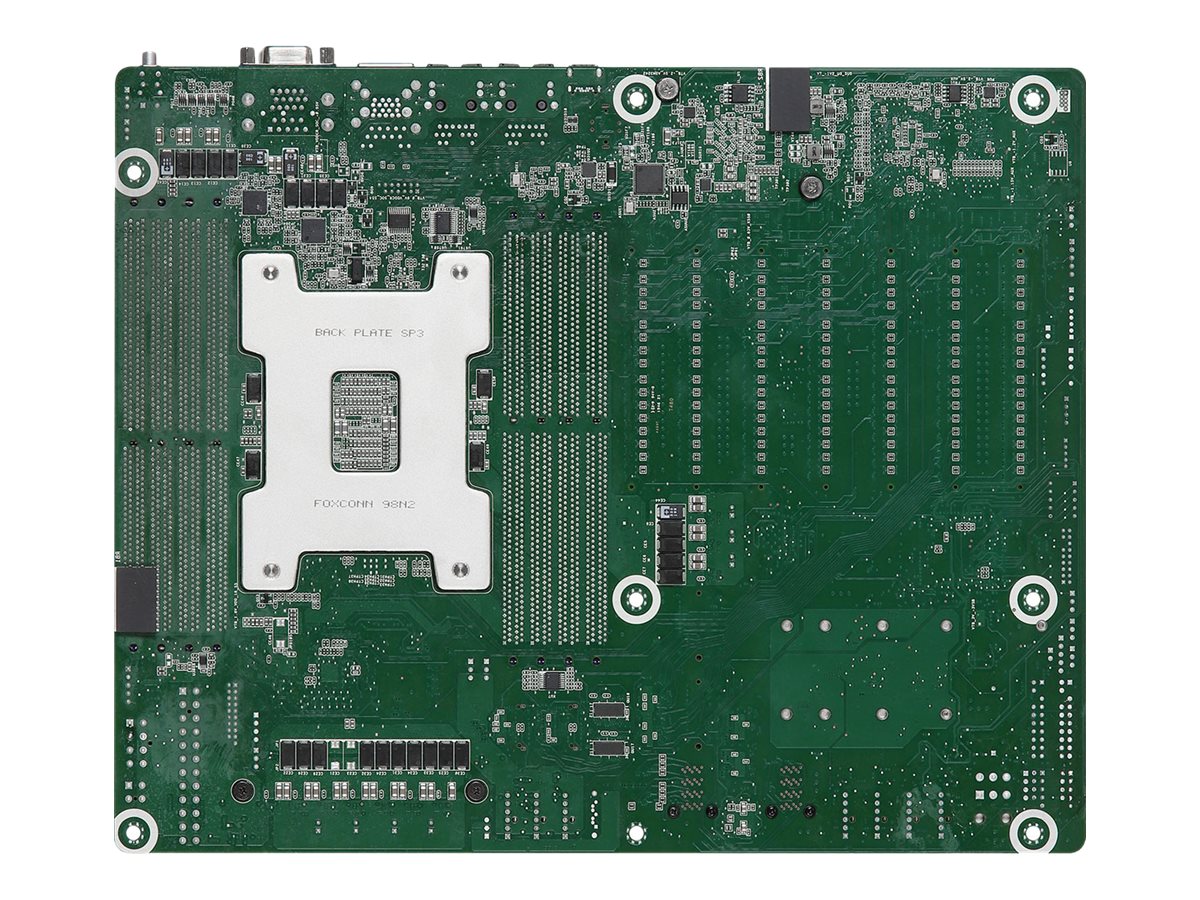

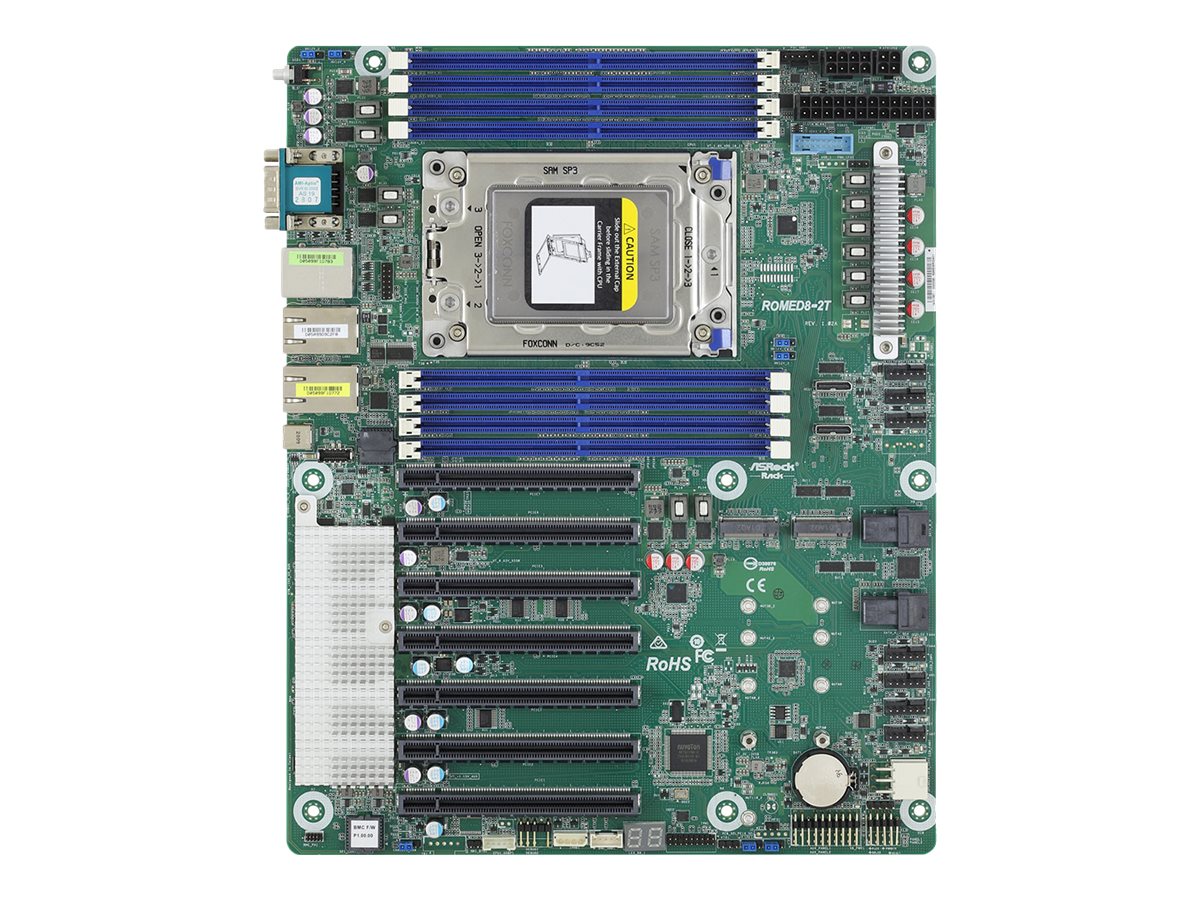

ASRock Rack ROMED8-2T
- Motherboard
- ATX
- Socket SP3

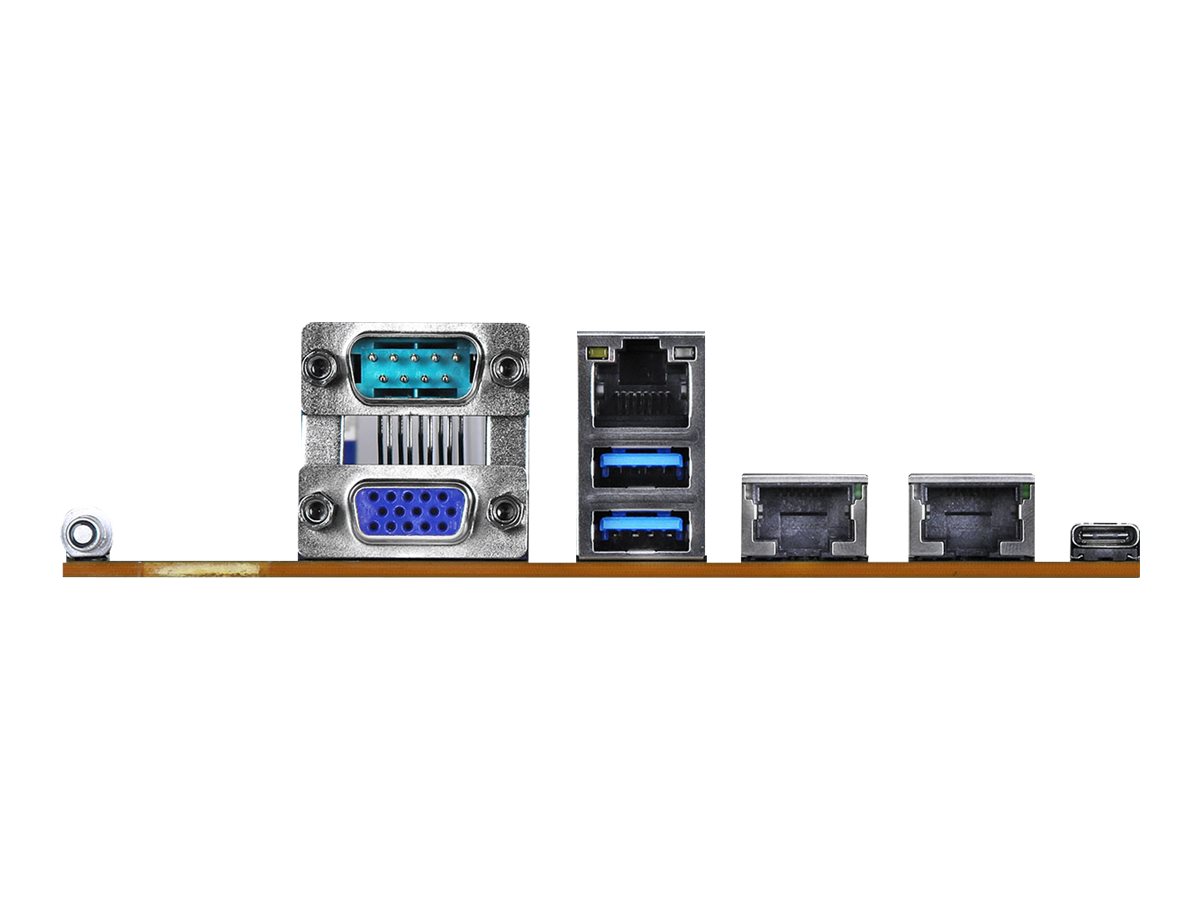

- USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
- 2 x 10 Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ROMED8-2T |
| SHI Part #: | 40100610 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack ROMED8-2T - Motherboard - ATX - Socket SP3 - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x 10 Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | Socket SP3 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | ACPI 2.0 support, IPMI support, SMBIOS 2.8 support |
| BIOS Type | AMI |
| Hardware Features | WatchDog Timer, Dual LAN Teaming, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Compatible Processors | EPYC 7002 series, EPYC 7001 series (Maximum TDP 225 Watt) |
| Max Processors Qty | 1 |
| Processor Socket | Socket SP3 |
| Product Type | Motherboard - ATX |
| Graphics | |
| Dedicated Video Memory | 512 MB DDR4 SDRAM |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel X550-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Features | 8-channel memory architecture |
| Registered or Buffered | Registered, Load-Reduced, Non-Volatile |
