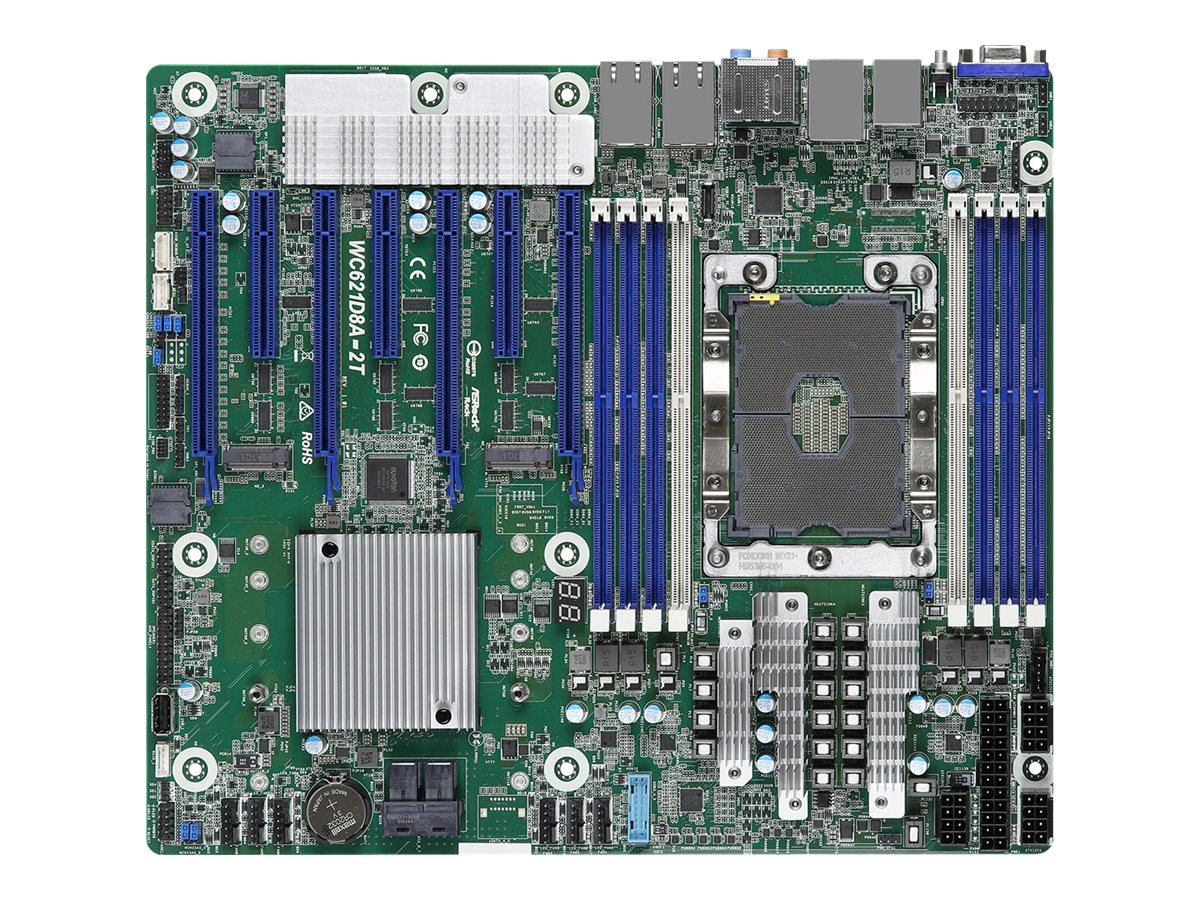

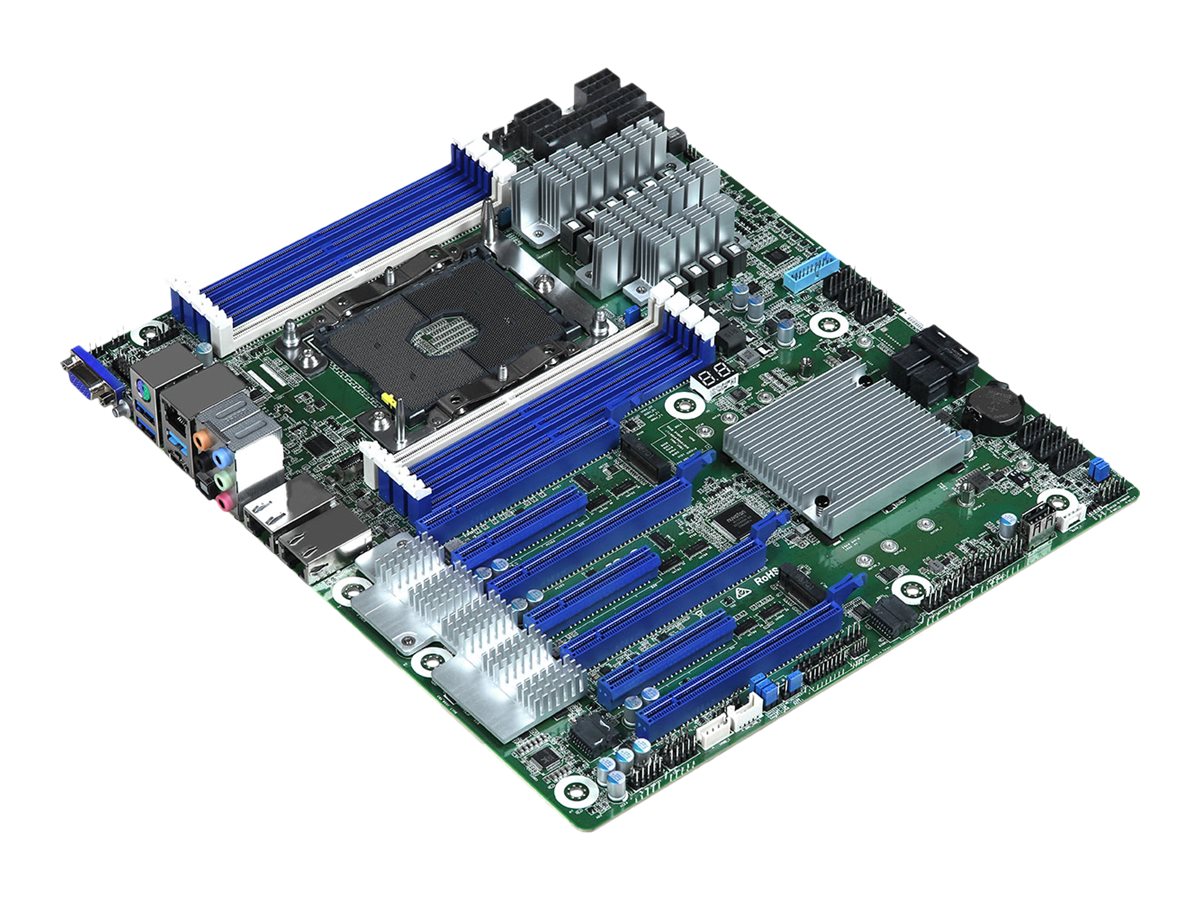

ASRock Rack WC621D8A-2T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock Rack WC621D8A-2T
- Motherboard
- SSI CEB
- Socket P
- C621 Chipset

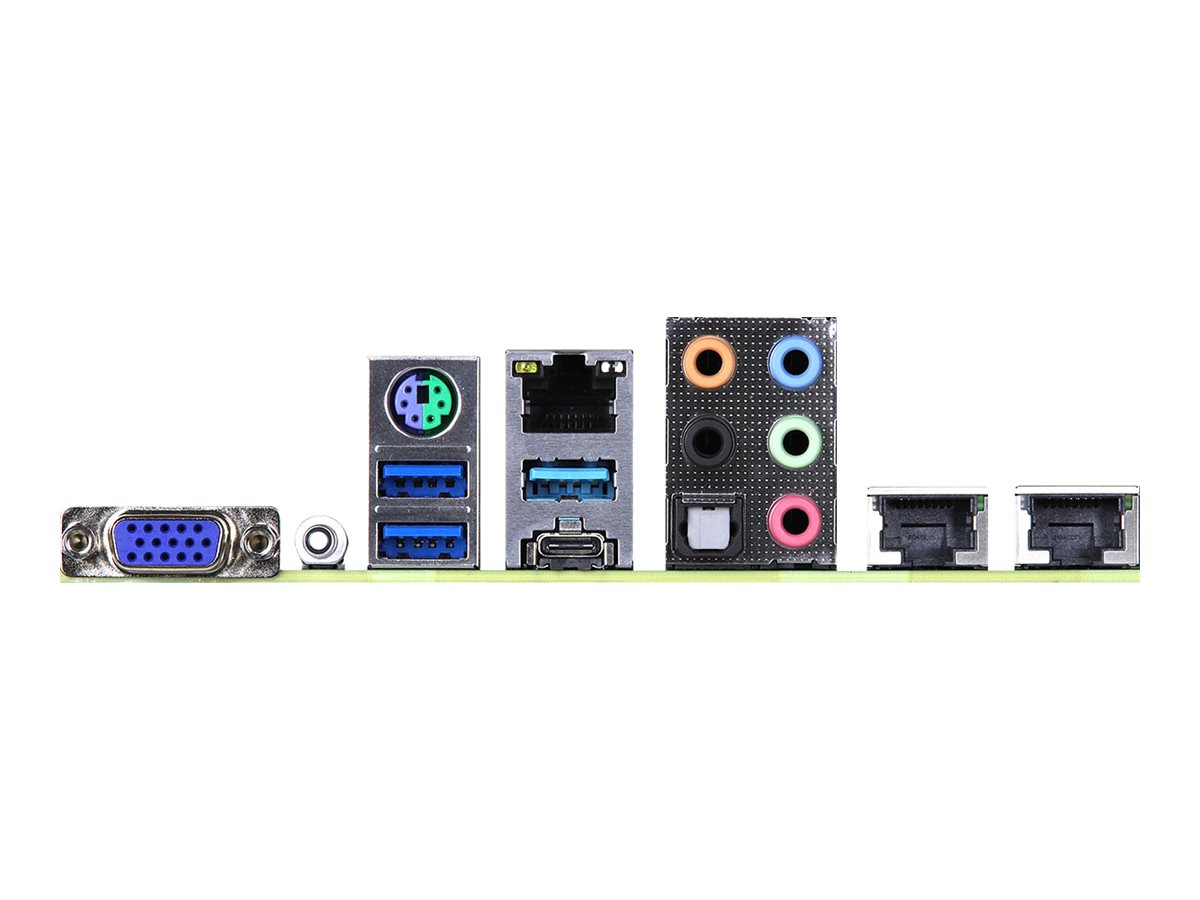

- USB-C Gen2, USB 3.2 Gen 1
- 2 x 10 Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | WC621D8A-2T |
| SHI Part #: | 40315061 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack WC621D8A-2T - Motherboard - SSI CEB - Socket P - C621 Chipset - USB-C Gen2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.7 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Compatible Processors | Xeon |
| Mainboard / Processor Socket | Socket P |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Audio | |
| Audio Codec | Realtek ALC892 |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| Hardware Features | Energy Efficient Ethernet 802.3az, Dual LAN Teaming, Preboot eXecution Environment (PXE) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel C621 |
| Compatible Processors | Xeon (Maximum TDP 255 Watt) |
| Max Processors Qty | 1 |
| Processor Socket | Socket P |
| Product Type | Motherboard - SSI CEB |
| Graphics | |
| Dedicated Video Memory | 256 MB DDR4 SDRAM |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel X550-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 26.7 cm |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2666 MHz, 2933 MHz |
| Features | 6-channel memory architecture |
| Registered or Buffered | Registered, Load-Reduced, Optane DC Persistent |
| Technology | DDR4 |
