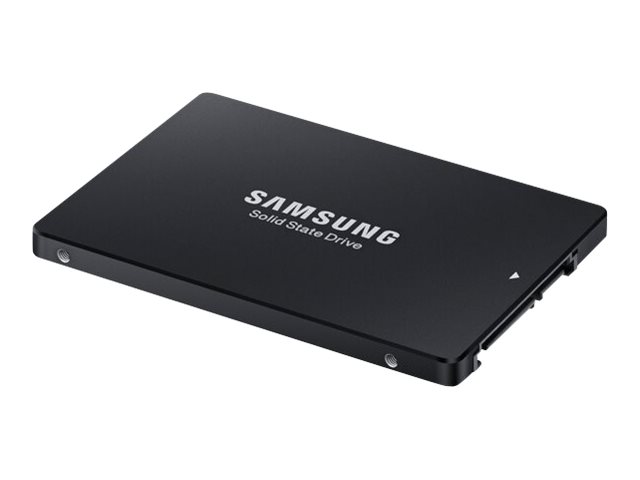

Samsung 883 DCT MZ-7LH240NE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
Samsung 883 DCT MZ-7LH240NE
- Solid state drive
- 240 GB
- internal
- 2.5"
- SATA 6Gb/s
- buffer: 512 MB
- 256-bit AES
| Additional Details | |
|---|---|
| Mfr Part #: | MZ-7LH240NE |
| SHI Part #: | 40685947 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung 883 DCT MZ-7LH240NE - Solid state drive - 240 GB - internal - 2.5" - SATA 6Gb/s - buffer: 512 MB - 256-bit AES |
| Manufacturer | Samsung |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 6.8 mm |
| Dimensions & Weight / Weight | 70 g |
| Dimensions & Weight / Width | 69.85 mm |
| Hard Drive / Capacity | 240 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Buffer Size | 512 MB |
| Capacity | 240 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | TRIM support, Auto Garbage Collection Algorithm, V-NAND Technology, Samsung MARU Controller, S.M.A.R.T. |
| Form Factor | 2.5" |
| Height | 6.8 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 70 g |
| Width | 69.85 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | WWN |
| Performance | |
| Data Transfer Rate Details | Serial ATA: 600 MB/s |
| Internal Data Rate | 550 MBps (read) / 520 MBps (write) |
| Maximum 4KB Random Read | 98000 IOPS |
| Maximum 4KB Random Write | 14000 IOPS |
| SSD Endurance | 341 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Software & System Requirements | |
| Software Included | Samsung SSD Magician DC |
