ASRock B550M Phantom Gaming 4

$94.89
ASRock B550M Phantom Gaming 4
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • micro ATX
  • Socket AM4
  • AMD B550
  • USB 3.2 Gen 1
Contracts
   DIR-CPO-5094
ASRock B550M Phantom Gaming 4
  • Motherboard
  • micro ATX
  • Socket AM4
  • AMD B550
  • USB 3.2 Gen 1
  • Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $94.89
Mfr Part #: B550M PHANTOM GAMING 4
SHI Part #: 41074693
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASRock
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASRock B550M Phantom Gaming 4 - Motherboard - micro ATX - Socket AM4 - AMD B550 - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASRock
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width24.4 cm
Header / BrandASRock
Mainboard / Chipset TypeAMD B550
Mainboard / Compatible ProcessorsRyzen
Mainboard / Processor SocketSocket AM4
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC887/ALC897
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs))
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x1

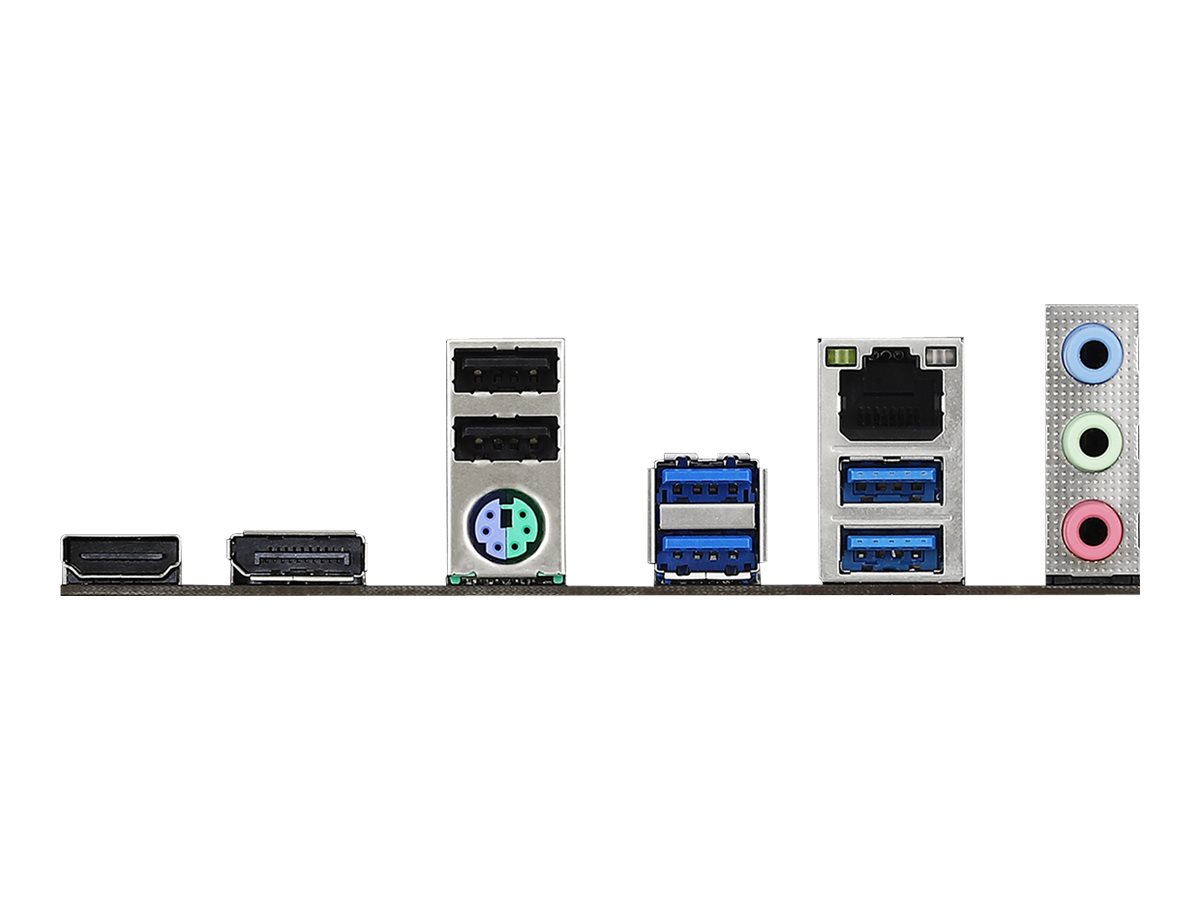

Interfaces
  • 1 x LAN (Gigabit Ethernet)
  • 1 x HDMI
  • 4 x USB 3.2 Gen 1
  • 1 x microphone - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x PS/2 keyboard / mouse
  • 1 x DisplayPort
  • 2 x USB 2.0
Internal Interfaces
  • 4 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2
  • PCIe 4.0 -connectors: 1 x M.2
Features
BIOS FeaturesJumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
BIOS TypeAMI
Hardware FeaturesASRock Super Alloy, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Hyper M.2, ASRock Full Spike Protection, ASRock APP Shop, ASRock Live Update, 8 Phase Power Design, Digi Power Design, 15µ Gold Contact, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Full HD UEFI, ASRock Instant Flash, All-Solid Capacitor motherboard Design, ASRock VR Ready, AMD StoreMI technology
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeAMD B550
Compatible ProcessorsRyzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Processors Qty1
Processor SocketSocket AM4
Product TypeMotherboard - micro ATX
Graphics
Max Allocated RAM Size16 GB
LAN
Network ControllerRealtek RTL8111H
Network InterfacesGigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsFCC, EuP Ready, ErP Ready
Depth24.4 cm
Included AccessoriesI/O back plate, 2 x M.2 screws
Software IncludedDrivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Polychrome SYNC
Width24.4 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC
TechnologyDDR4
