Hardware Computer Components Control/Interface Boards

Control/Interface Boards

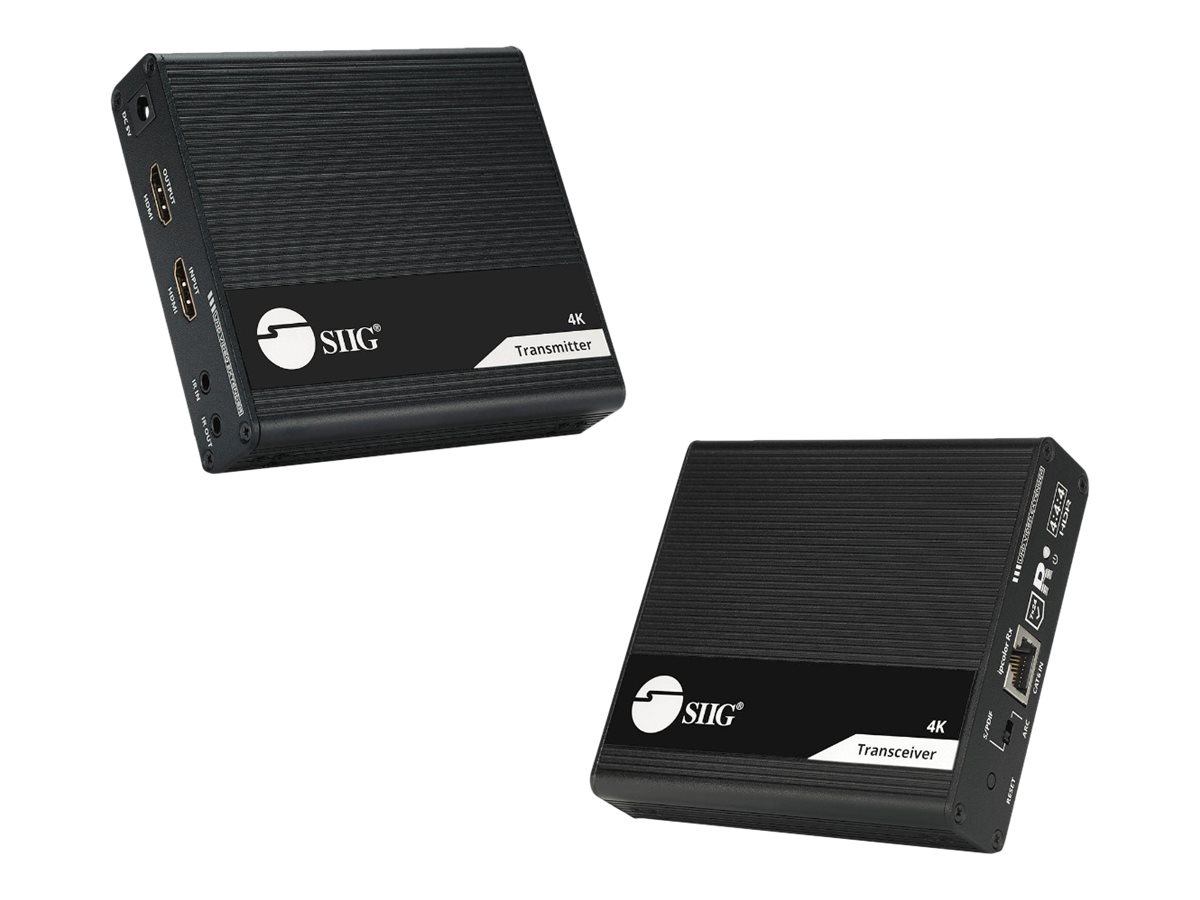

SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit

MSRP$189.99

$183.76

SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Transmitter and receiver video/audio extender HDMI up to 70 m

Contracts
DIR-CPO-5094

SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit

Transmitter and receiver
video/audio extender
HDMI
up to 70 m

Additional Details
Price:	$183.76
MSRP:	$189.99
Mfr Part #:	CE-H26M11-S1
SHI Part #:	41773704
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	SIIG
Product Type:	Hardware

General Information
Category	Serial port cards
Description	SIIG ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit - Transmitter and receiver - video/audio extender - HDMI - up to 70 m
Manufacturer	SIIG
MSRP	$189.99
UNSPSC	43201559
Main Specifications
Header / Brand	SIIG
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	HDMI
Networking / Form Factor	External
Networking / Type	Video/audio extender
Packaged Quantity	1
Service & Support / Type	2-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Transmitter: 9.9 cm x 10.6 cm x 2.6 cm / 209 g Receiver: 9.9 cm x 10.6 cm x 2.6 cm / 209 g
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity

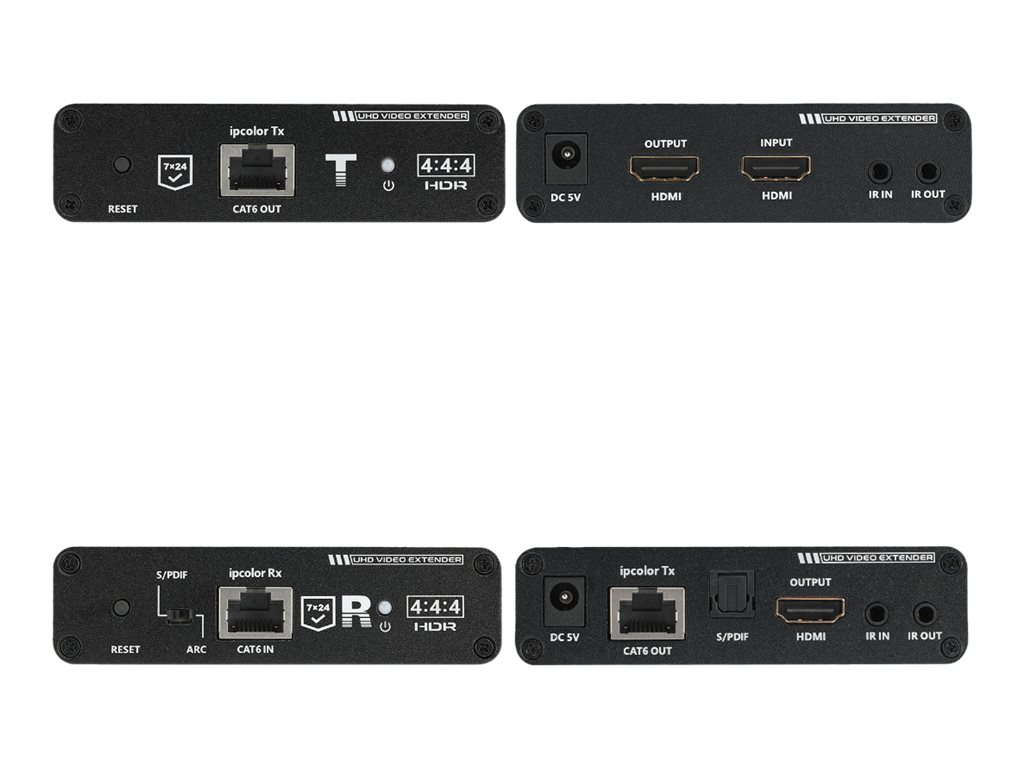

Interfaces	1 x HDMI (transmitter) - 19 pin HDMI Type A 1 x HDMI (loop output) - 19 pin HDMI Type A female 1 x Ethernet (transmitter) - RJ-45 female 2 x IR (transmitter) - mini jack 2 x IR (receiver) - mini jack 1 x HDMI output (receiver) - 19 pin HDMI Type A 1 x Ethernet (receiver output) - RJ-45 1 x SPDIF (receiver) - TOSLINK
General
Color	Black
Device Type	Video/audio extender
Form Factor	External
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous

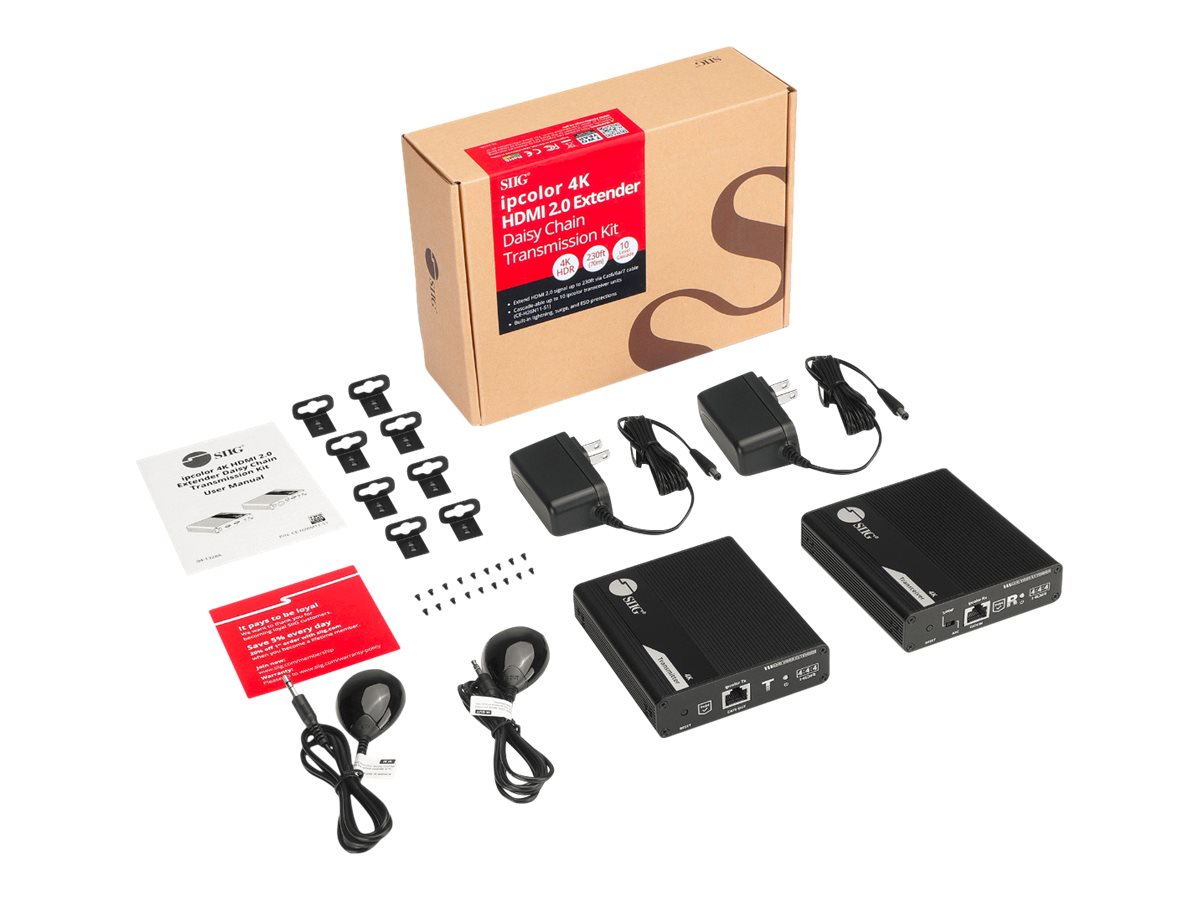

Cables Included	1 x IR blaster cable 1 x IR receiver cable
Compliant Standards	FCC, RoHS
Included Accessories	8 mounting ears
Networking
Compliant Standards	HDCP 2.2
Connectivity Technology	Wired
Data Link Protocol	HDMI
Features	Audio Return Channel (ARC), 4K resolution support, 7.1 channel audio support, 5.1 channel audio support, DTS Digital Surround 5.1 support
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	70 m
Power
Installed Qty	2
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
