ASRock Rack E3C242D2I
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

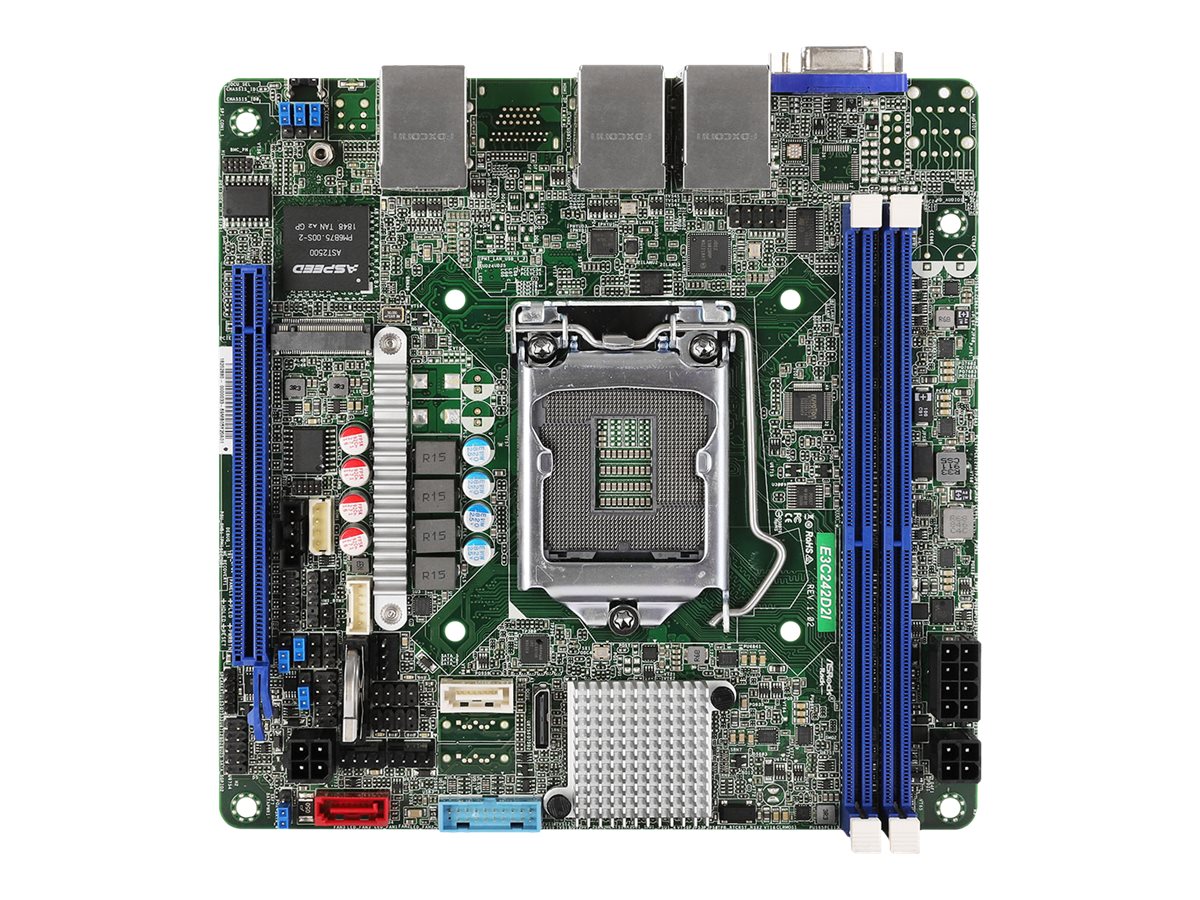

ASRock Rack E3C242D2I
- Motherboard
- mini ITX
- LGA2011 Socket
- C242 Chipset
- USB 3.2 Gen 1, USB 3.2 Gen 2
- 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | E3C242D2I |
| SHI Part #: | 42880920 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack E3C242D2I - Motherboard - mini ITX - LGA2011 Socket - C242 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.02 cm |
| Dimensions & Weight / Width | 17.02 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel C242 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA2011 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ACPI 2.0 support, SMBIOS 2.8 support |
| BIOS Type | AMI |
| Hardware Features | Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), WatchDog Timer, ASRock Instant Flash |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel C242 |
| Compatible Processors | Xeon E3-2100 series, Xeon E3-2200 series |
| Max Processors Qty | 1 |
| Processor Socket | LGA2011 Socket |
| Product Type | Motherboard - mini ITX |
| Graphics | |
| Dedicated Video Memory | 16 MB DDR4 SDRAM |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel I210 / I219LM |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 17.02 cm |
| Width | 17.02 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2666 MHz |
| Features | Dual channel memory architecture |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
