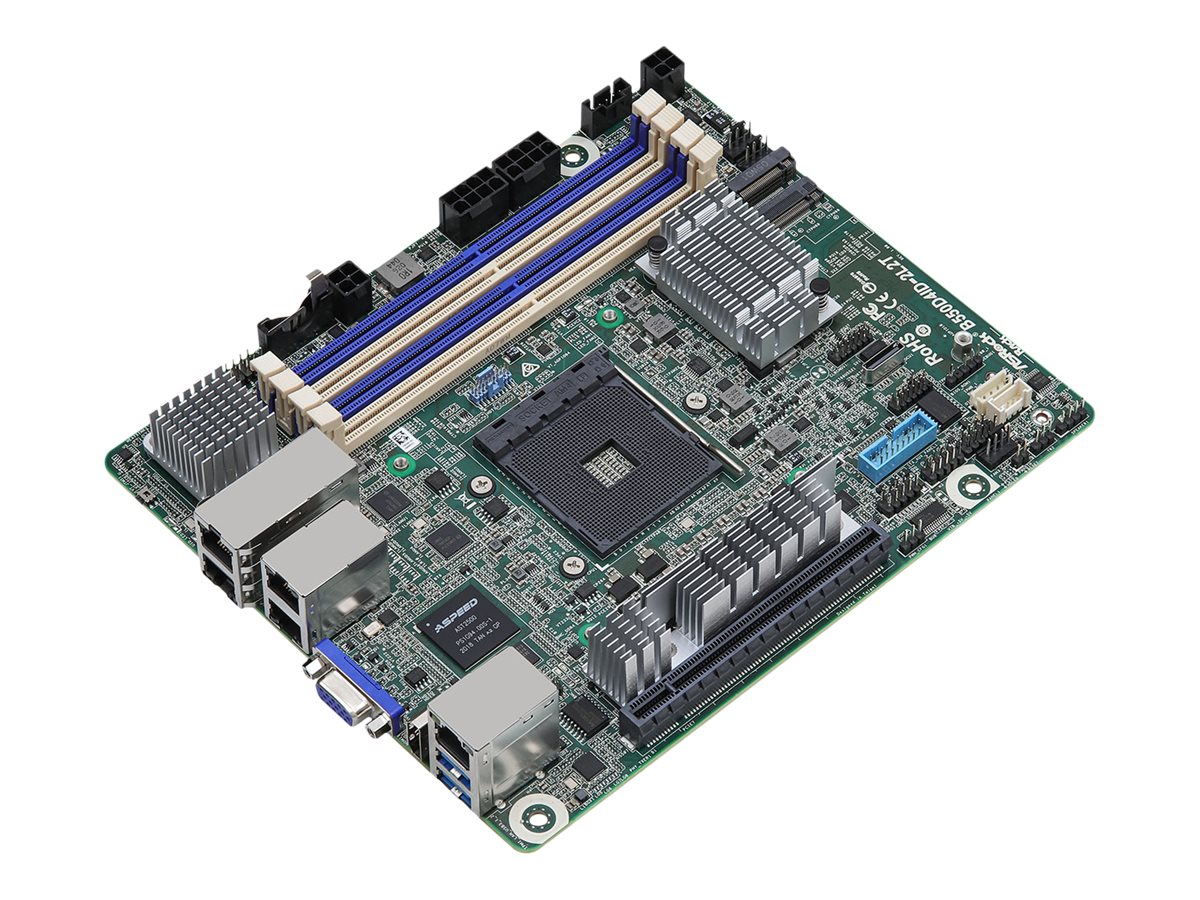

ASRock Rack B550D4ID-2L2T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock Rack B550D4ID-2L2T
- Motherboard
- deep mini-ITX
- Socket AM4
- AMD B550 Chipset
- USB 3.2 Gen 1
- 2 x 10 Gigabit LAN, 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B550D4ID-2L2T |
| SHI Part #: | 43517349 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack B550D4ID-2L2T - Motherboard - deep mini-ITX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.8 cm |
| Dimensions & Weight / Width | 17 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | AMD B550 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, SPI BIOS flashing, ACPI 5.1 support, SMBIOS 2.3 support, IPMI support |
| BIOS Type | AMI |
| Hardware Features | Debug LED |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| General | |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - deep mini-ITX |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel I210 / Intel X710-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 20.8 cm |
| Width | 17 cm |
| Supported RAM | |
| Bus Clock | 3200 MHz |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
