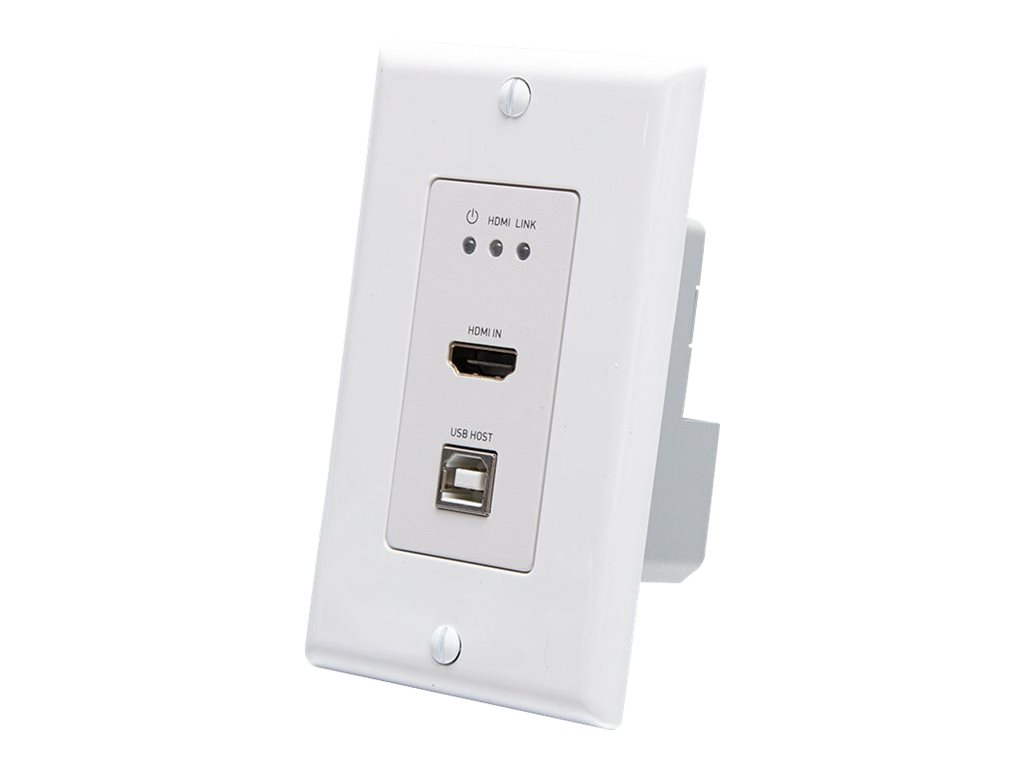

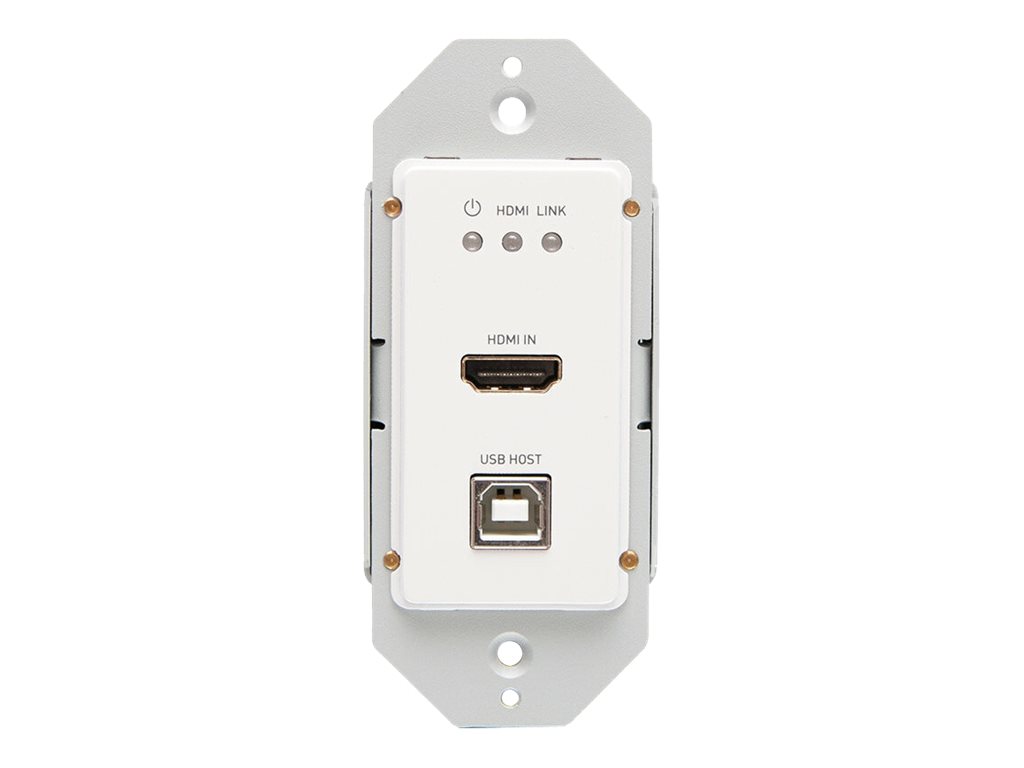

C2G 4K HDMI HDBaseT + USB-B and RS232 Wall Plate Transmitter to Receiver
MSRP$872.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
C2G 4K HDMI HDBaseT + USB-B and RS232 Wall Plate Transmitter to Receiver
- Video/audio/serial extender
- transmitter
- HDMI, HDBaseT
- over CAT 6a
- up to 40 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $872.99 |
| Mfr Part #: | C2G30024 |
| SHI Part #: | 43601918 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | C2G |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | C2G 4K HDMI HDBaseT + USB-B and RS232 Wall Plate Transmitter to Receiver - Video/audio/serial extender - transmitter - HDMI, HDBaseT - over CAT 6a - up to 40 m |
| Manufacturer | C2G |
| MSRP | $872.99 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Header / Brand | C2G |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 18 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Multicolor |
| Device Type | Video/audio/serial extender (transmitter) |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Data Transfer Rate | 18 Gbps |
| Features | Dolby TrueHD support, Dolby Atmos support, DTS-HD Master Audio support, DTS:X support, CEC passthrough, 8KV ESD Protector, power over HDBaseT (PoH), 4K resolution support |
| Frequency Band | 600 MHz |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 40 m |
| Power | |
| Power Consumption Operational | 18 Watt |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
