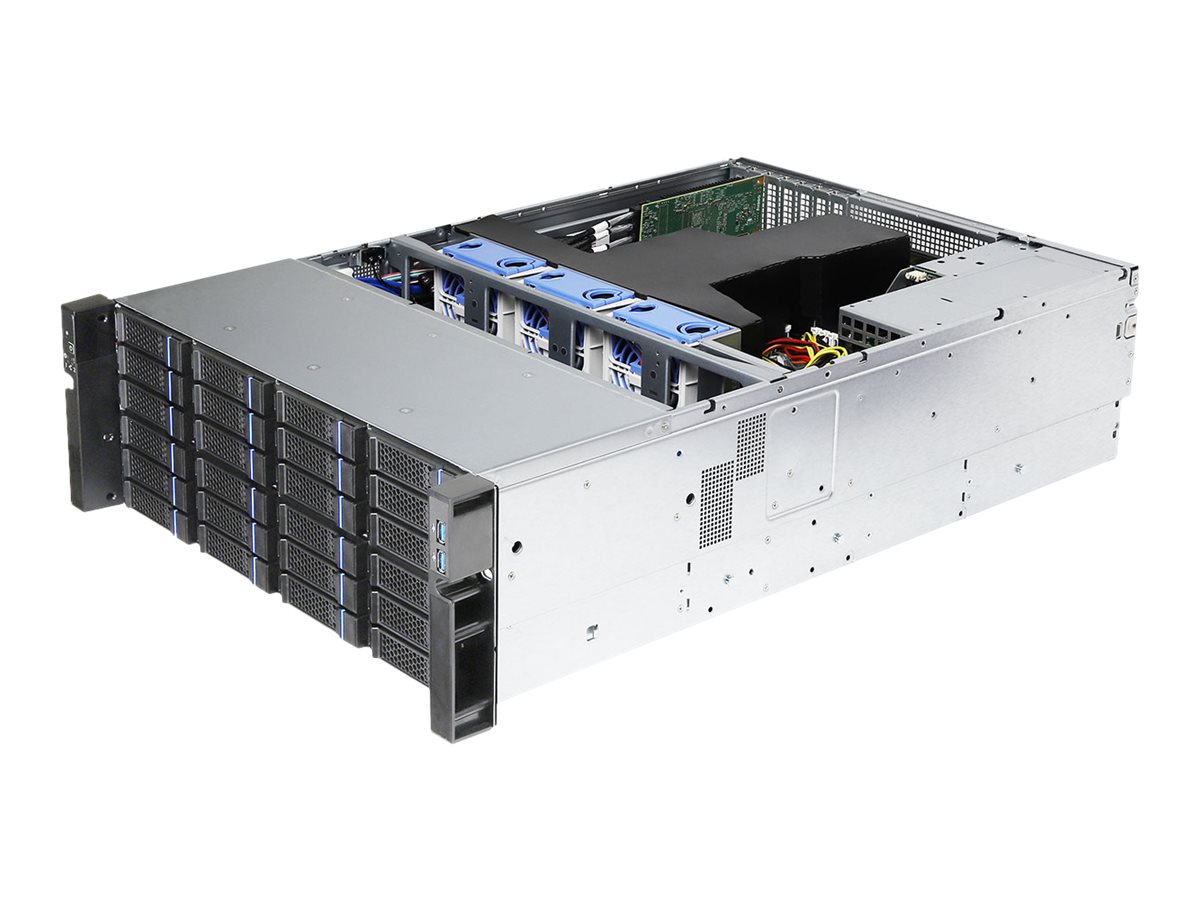

ASRock Rack 4U36L2S-C621
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASRock Rack 4U36L2S-C621
- Server
- rack-mountable 4U
- 2-way
- no CPU
- RAM 0 GB
- SATA/PCI Express
- hot-swap 2.5", 3.5" bay(s)
- no HDD
- AST2500
- Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4U36L2S-C621 |
| SHI Part #: | 43731941 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | ASRock Rack 4U36L2S-C621 - Server - rack-mountable 4U - 2-way - no CPU - RAM 0 GB - SATA/PCI Express - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | ASRock |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/PCI Express |
| Dimensions & Weight / Depth | 69.9 cm |
| Dimensions & Weight / Height | 17.6 cm |
| Dimensions & Weight / Width | 43.2 cm |
| Display / Type | None. |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Processor Socket | LGA3647-P0 Socket |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Dimensions & Weight | |
| Depth | 69.9 cm |
| Height | 17.6 cm |
| Width | 43.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Hot-Swap Bays Qty | 38 |
| Product Form Factor | Rack-mountable - 4U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Ethernet Controller | Realtek RTL8211E |
| Remote Management Controller | Aspeed AST2500 |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Power Provided | 1200 watt |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C621 |
| CPU | No CPU |
| CPU Socket | LGA3647-P0 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| RAM | |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB |
| Slots | 16 (total) / 16 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | SATA |
| Storage Controller (2nd) | |
| Type | - PCIe |
