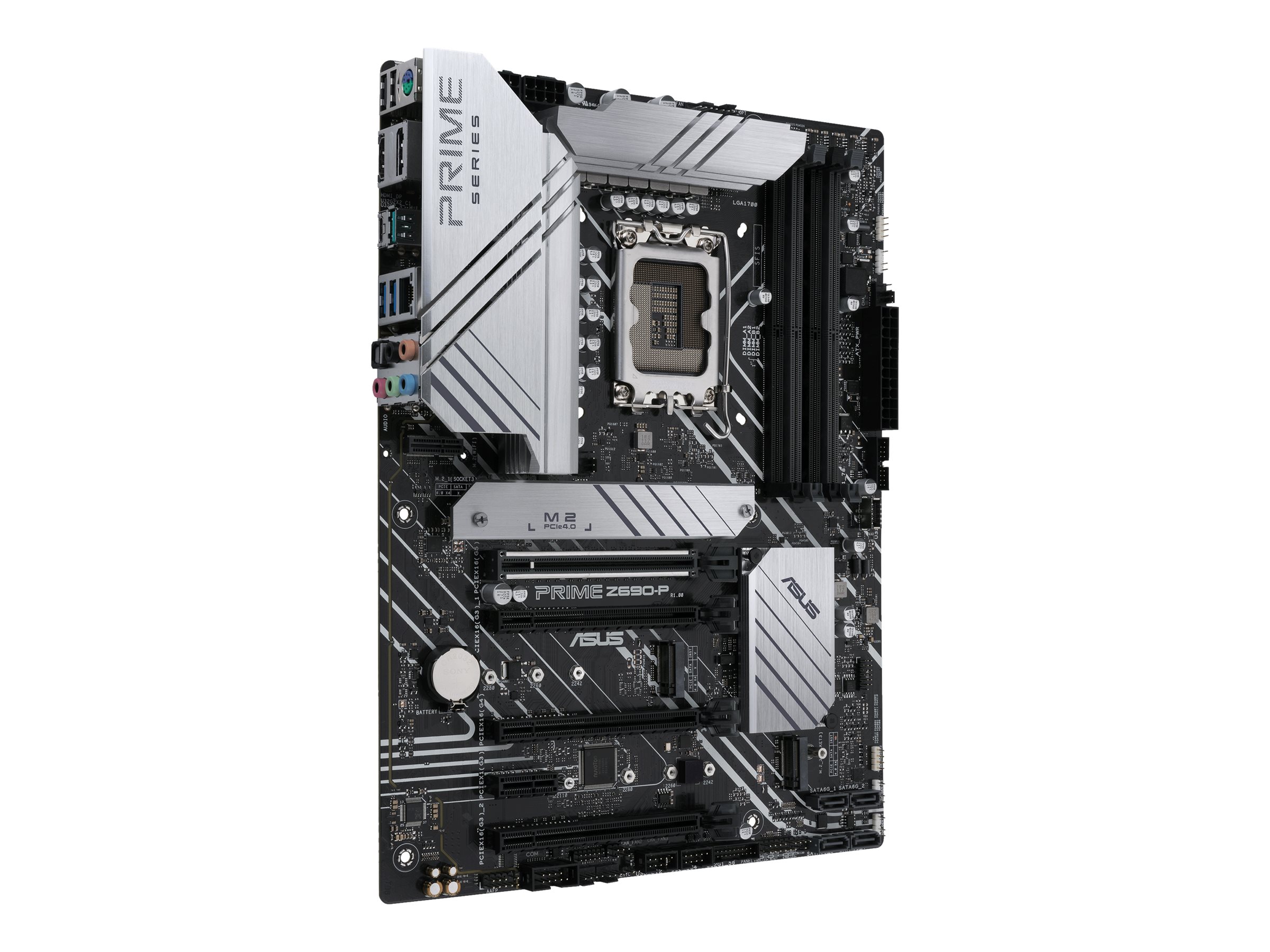

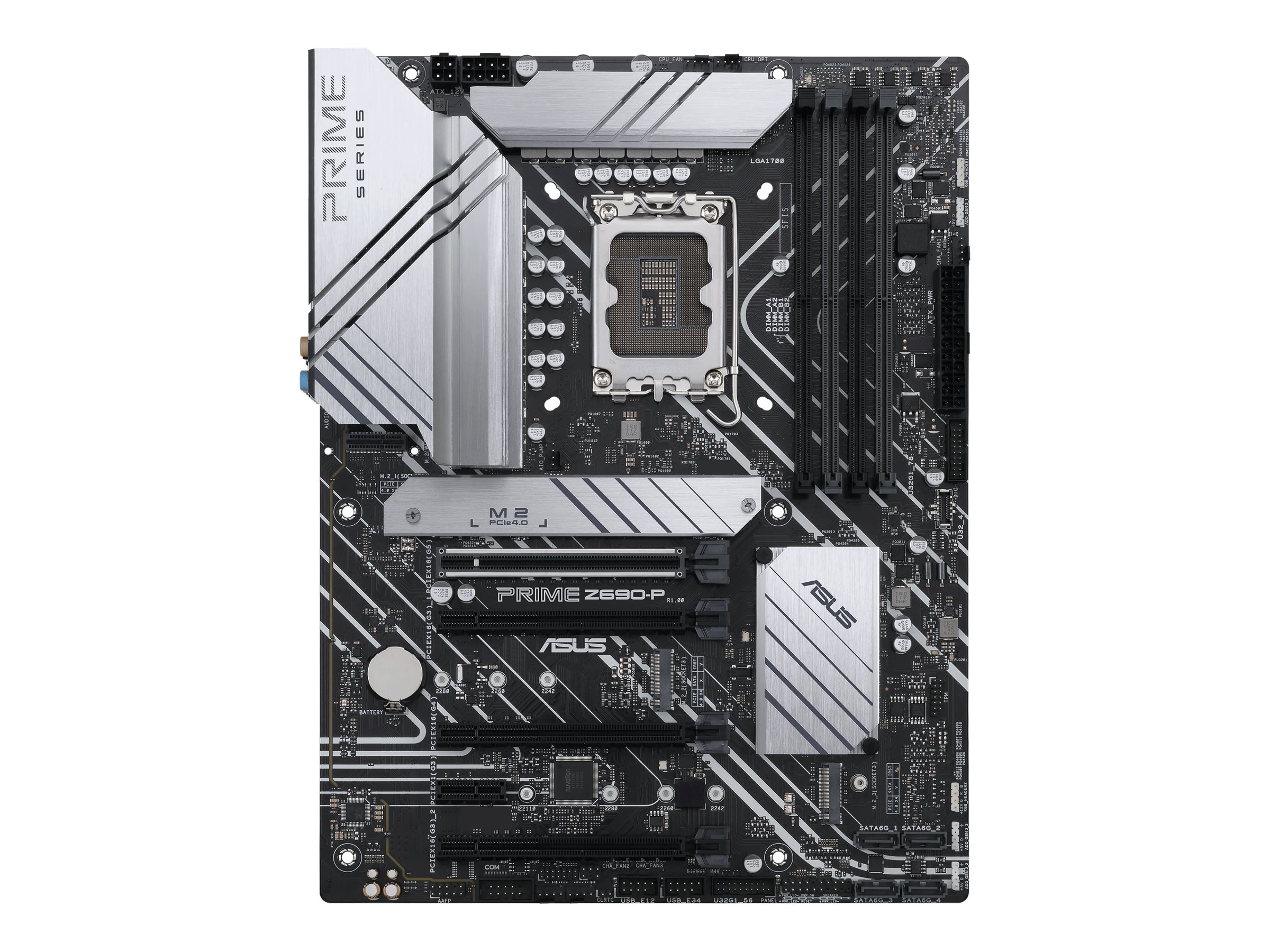

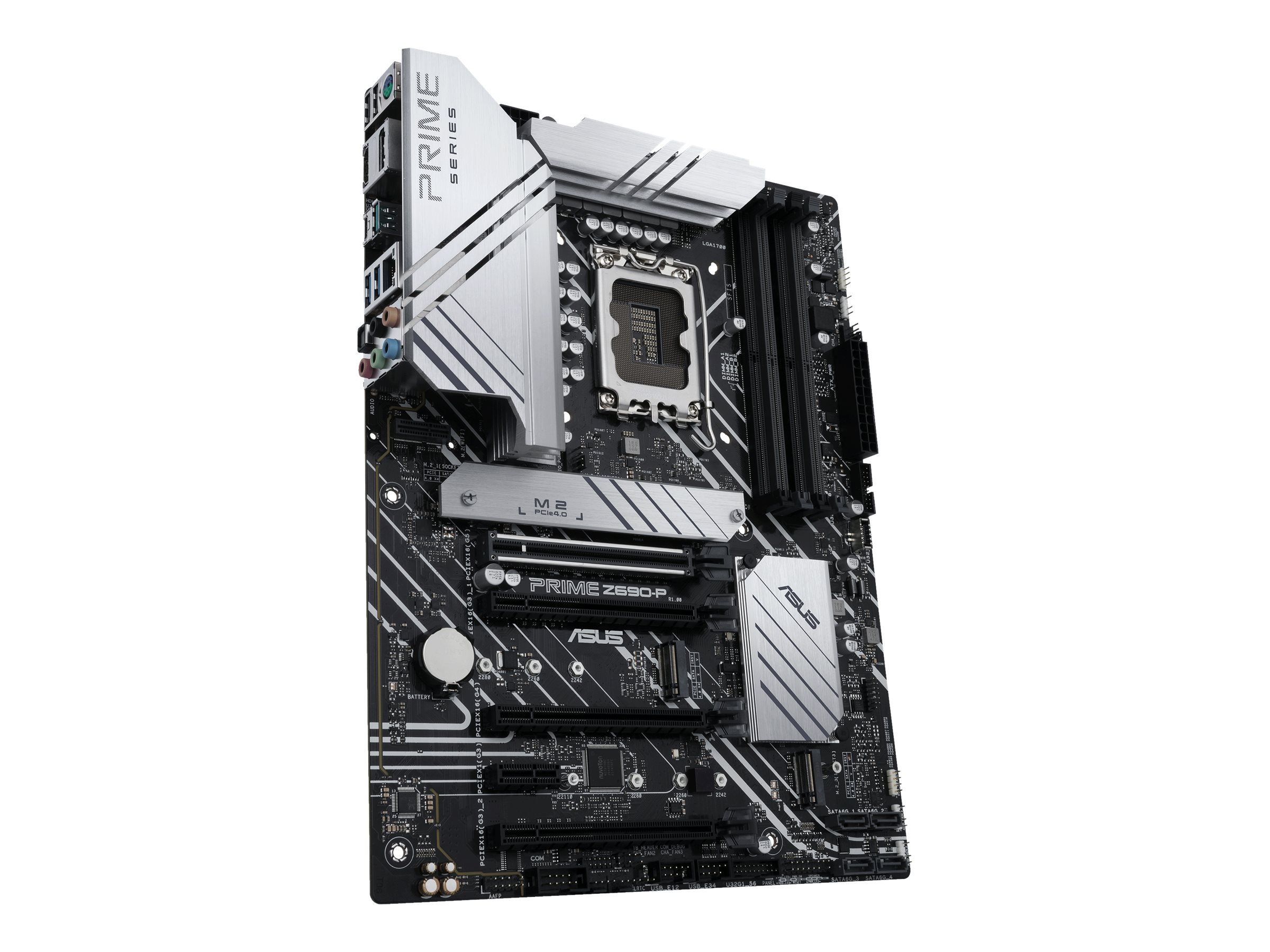

ASUS PRIME Z690-P - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASUS PRIME Z690-P - Motherboard
- ATX
- LGA1700 Socket
- Z690 Chipset
- USB 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 2, USB-C Gen1
- 2.5 Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | PRIME Z690-P |
| SHI Part #: | 43780410 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS PRIME Z690-P - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 2, USB-C Gen1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel Z690 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol | 2.5 Gigabit Ethernet |
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, M.2 heatsink, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 4, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), CrashFree BIOS 3, Preboot eXecution Environment (PXE), 14+1 DrMOS power stages, Q-LED Core |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel Z690 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 23.4 cm |

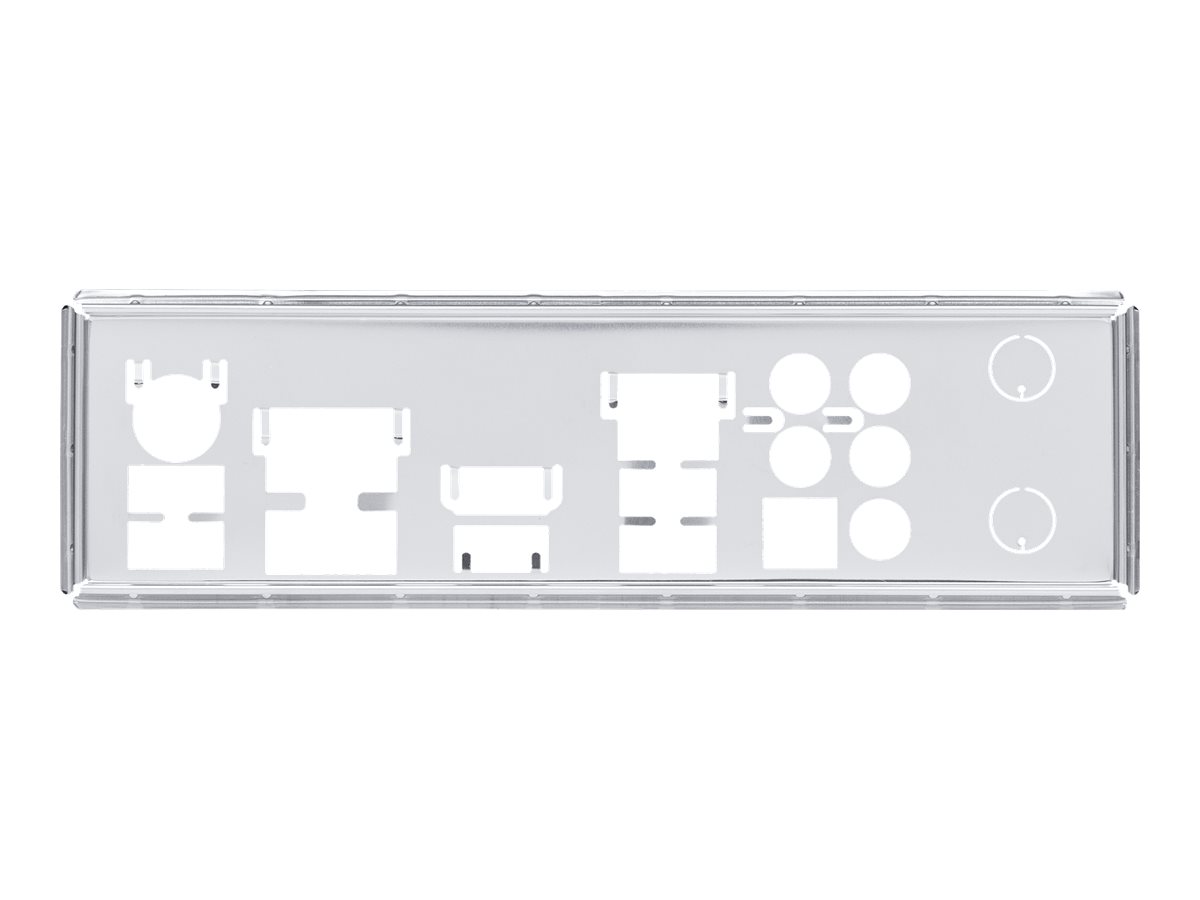

| Included Accessories | I/O back plate, 1 x M.2 rubber package, 2 x M.2 screws |
| Software Included | Drivers & utilities, ASUS AI Suite III, ASUS TurboV EVO Utility, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
