ASRock Rack SPC621D8-2L2T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |

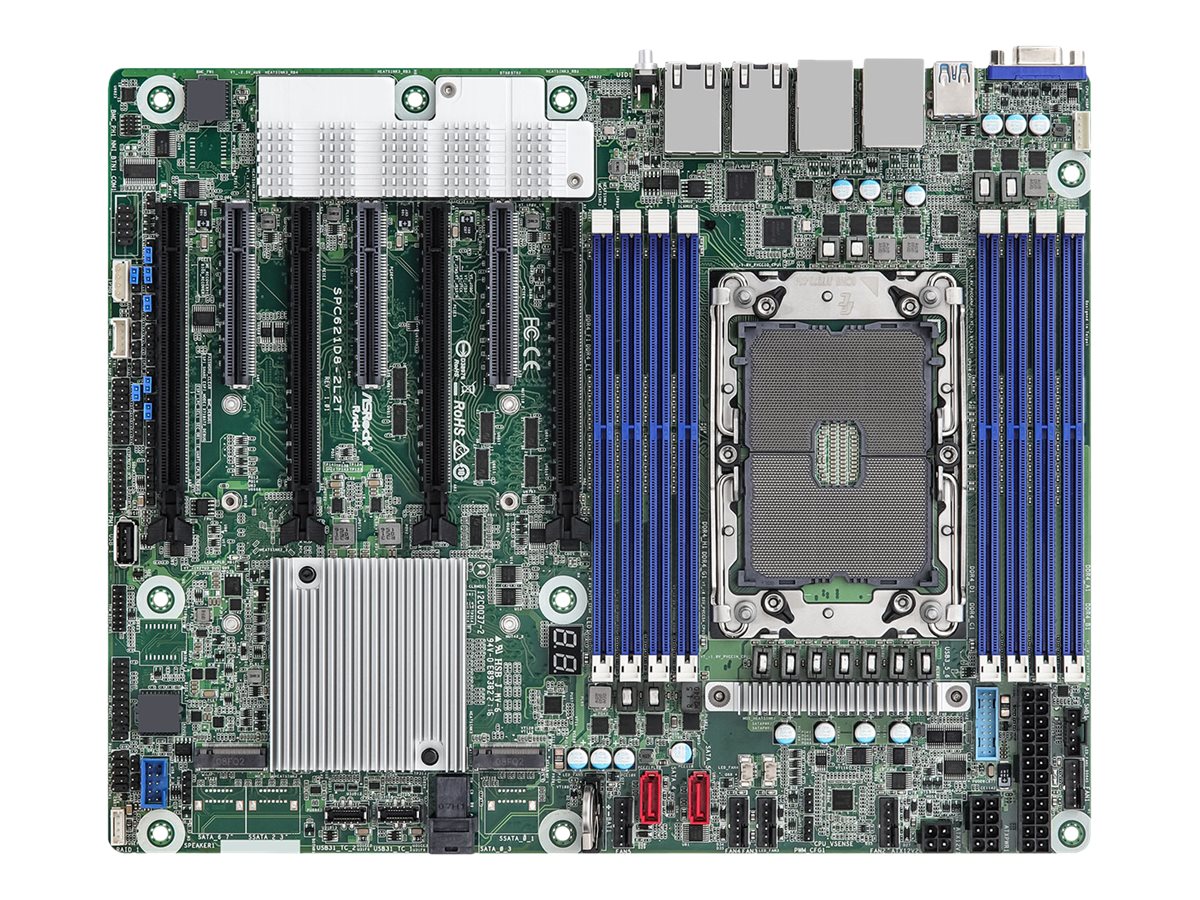

ASRock Rack SPC621D8-2L2T
- Motherboard
- ATX
- Socket P+
- C621A Chipset
- USB 3.2 Gen 1, USB-C Gen2
- 2 x 10 Gigabit LAN, 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SPC621D8-2L2T |
| SHI Part #: | 43856170 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack SPC621D8-2L2T - Motherboard - ATX - Socket P+ - C621A Chipset - USB 3.2 Gen 1, USB-C Gen2 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel C621A |
| Mainboard / Compatible Processors | Xeon |
| Mainboard / Processor Socket | Socket P+ |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, SPI BIOS flashing, IPMI support |
| BIOS Type | AMI |
| Hardware Features | Debug LED |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| General | |
| Chipset Type | Intel C621A |
| Compatible Processors | Xeon |
| Max Processors Qty | 1 |
| Processor Socket | Socket P+ |
| Product Type | Motherboard - ATX |
| Graphics | |
| Dedicated Video Memory | DDR4 SDRAM |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel I210 / Intel X710-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Miscellaneous | |
| Depth | 24.4 cm |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 3200 MHz |
| Features | Supports Intel Optane DC Persistent Memory (DCPMM) |
| Registered or Buffered | Registered, 3DS Load-Reduced, Load-Reduced, 3DS registered, Optane DC Persistent |
| Technology | DDR4 |
