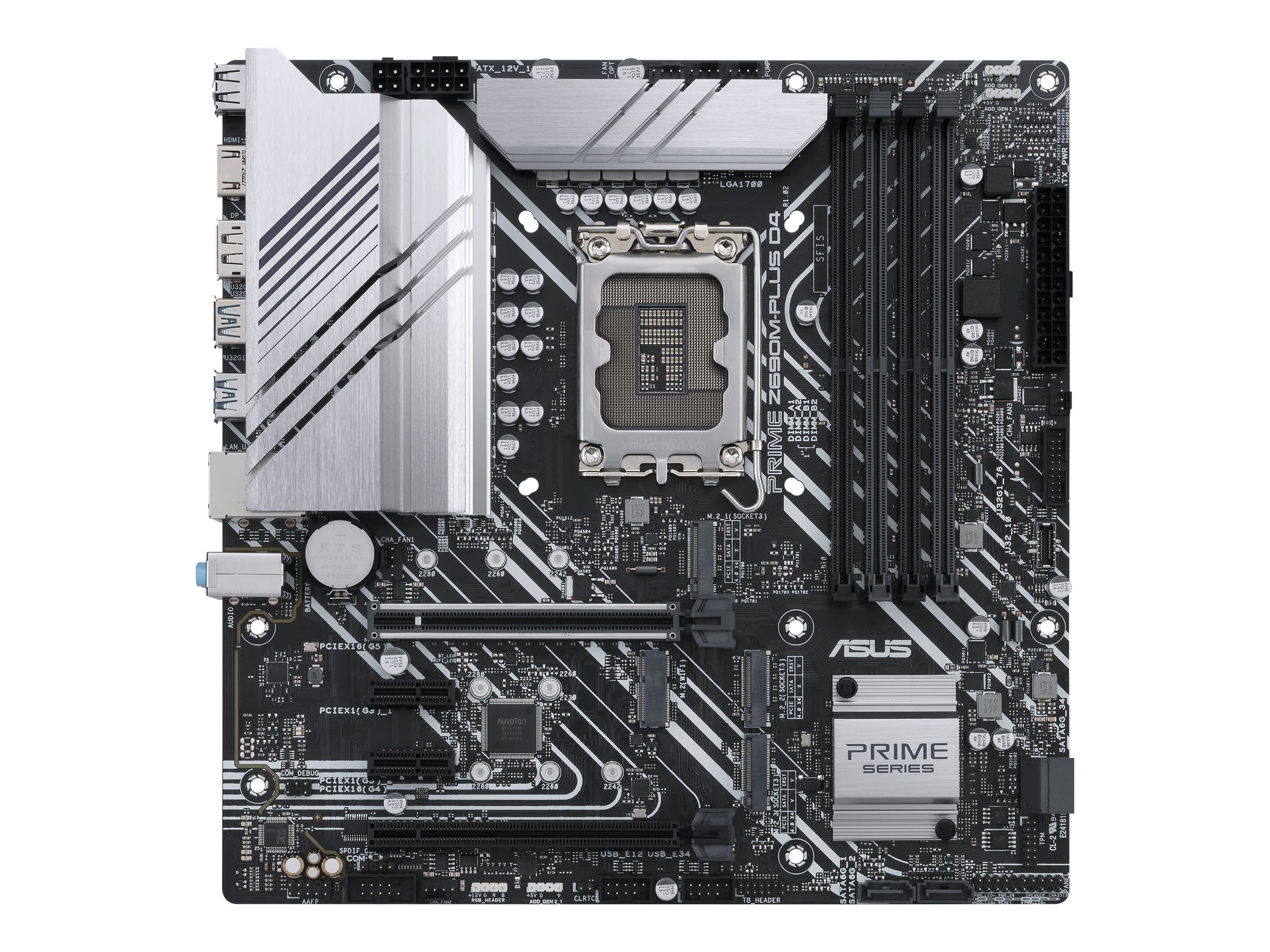

ASUS PRIME Z690M-PLUS D4
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
ASUS PRIME Z690M-PLUS D4
- Motherboard
- micro ATX
- LGA1700 Socket
- Z690 Chipset
- USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | PRIME Z690M-PLUS D4 |
| SHI Part #: | 44082458 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS PRIME Z690M-PLUS D4 - Motherboard - micro ATX - LGA1700 Socket - Z690 Chipset - USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel Z690 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, audio jack detect technology, jack retasking, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 4, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), 10+1 DrMOS power stages |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel Z690 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |

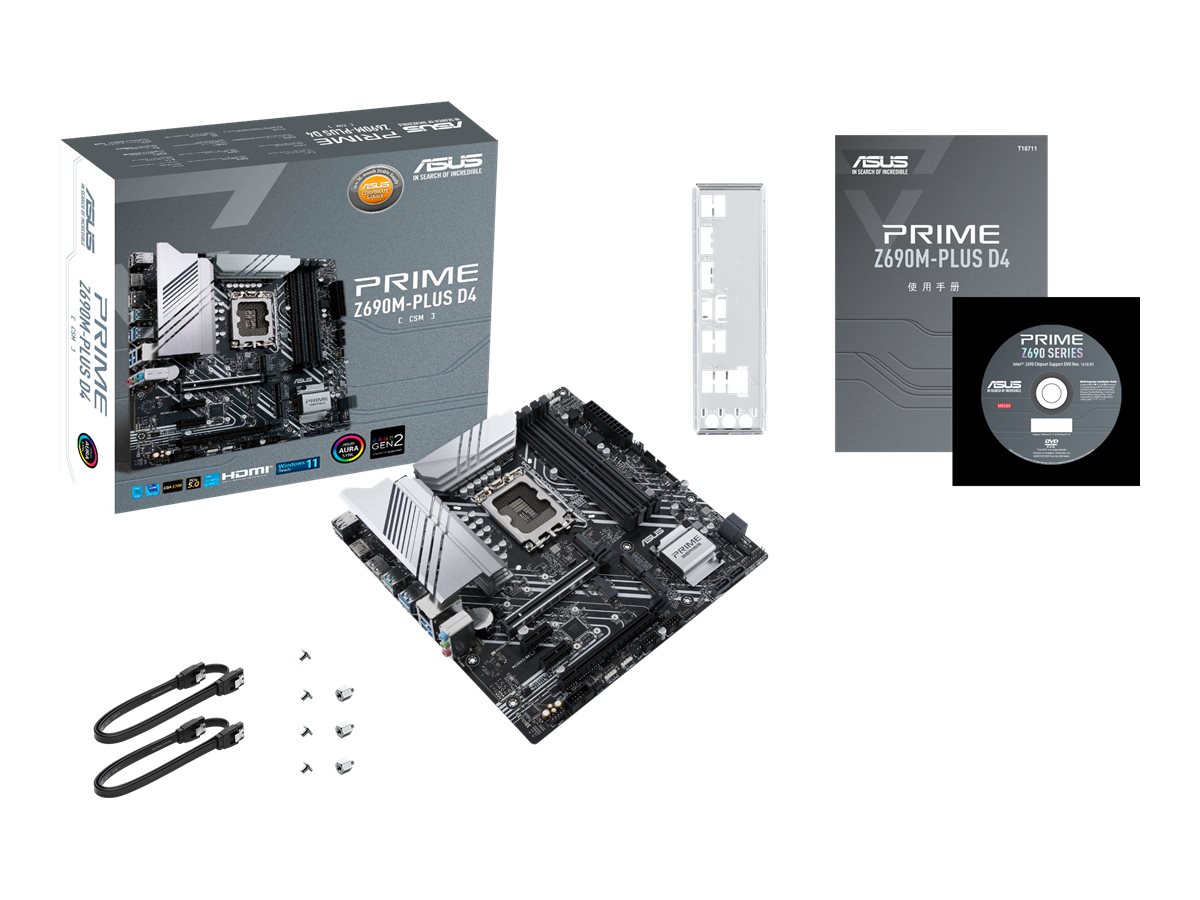

| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |

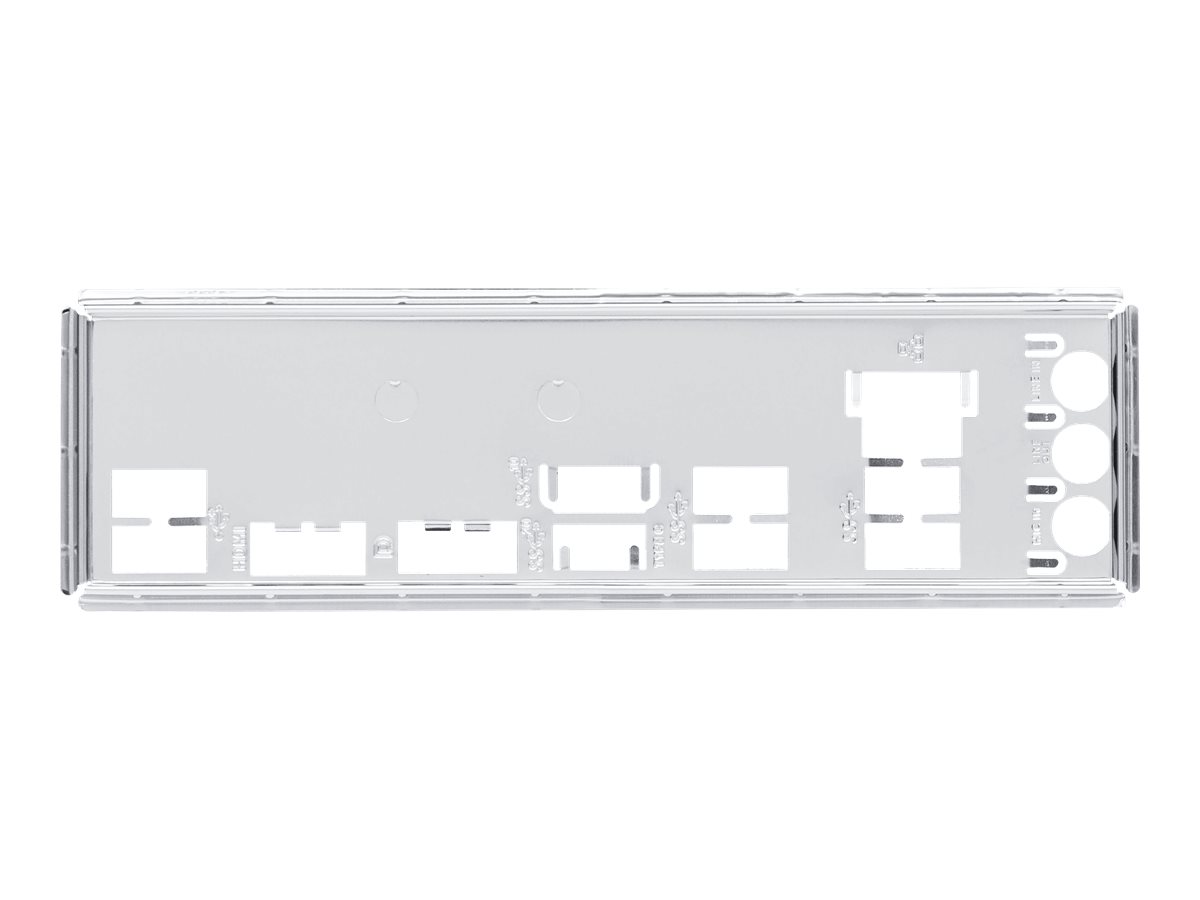

| Included Accessories | I/O back plate, 2 x M.2 screws |
| Software Included | Drivers & utilities, ASUS AI Suite III, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3 |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
