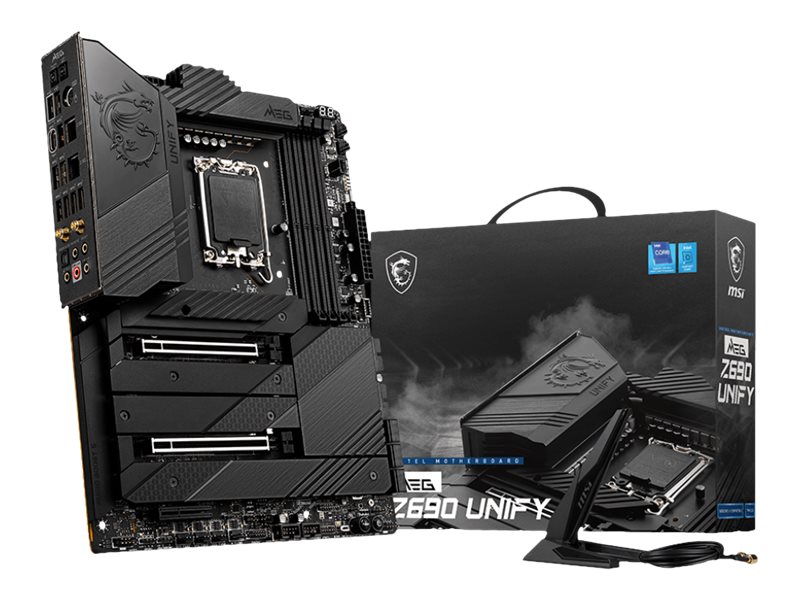

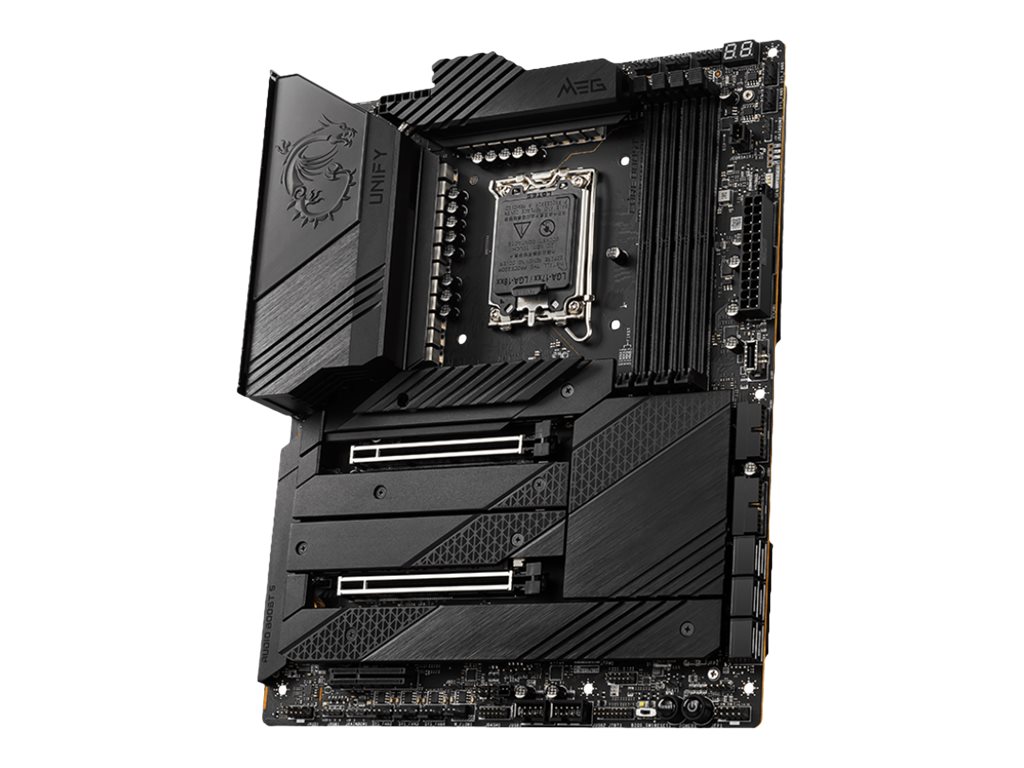

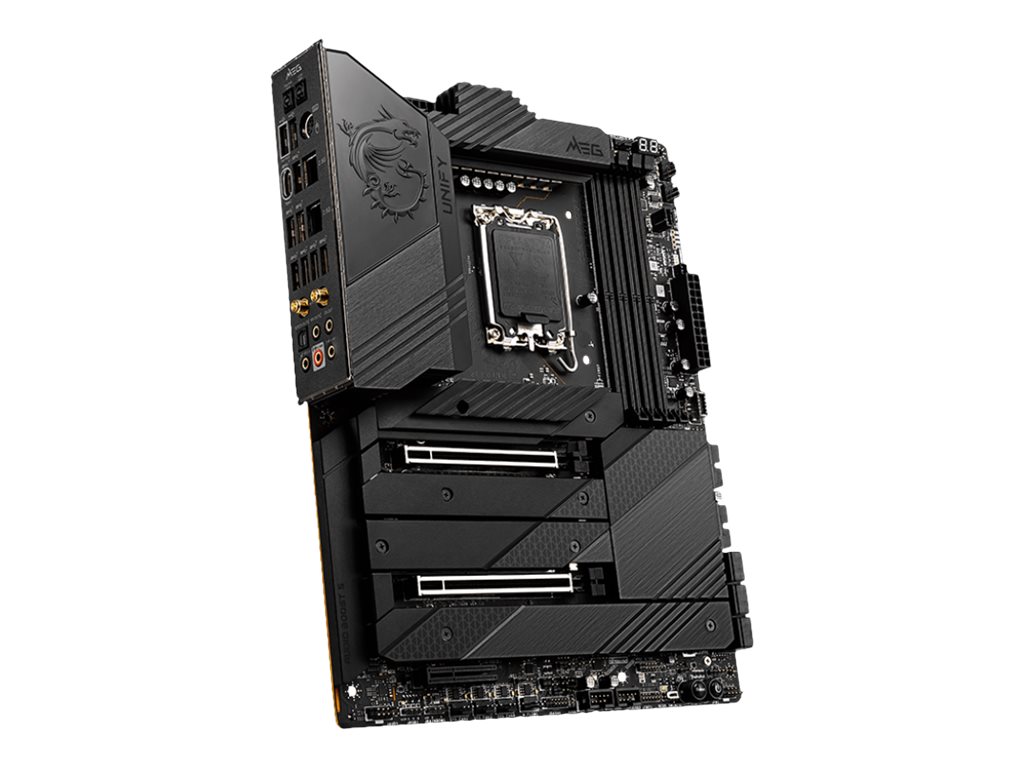

MSI MEG Z690 UNIFY - Motherboard
MSRP$449.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
|
Contracts
|
|---|
DIR-CPO-5094  |
MSI MEG Z690 UNIFY - Motherboard
- ATX
- LGA1700 Socket
- Z690 Chipset

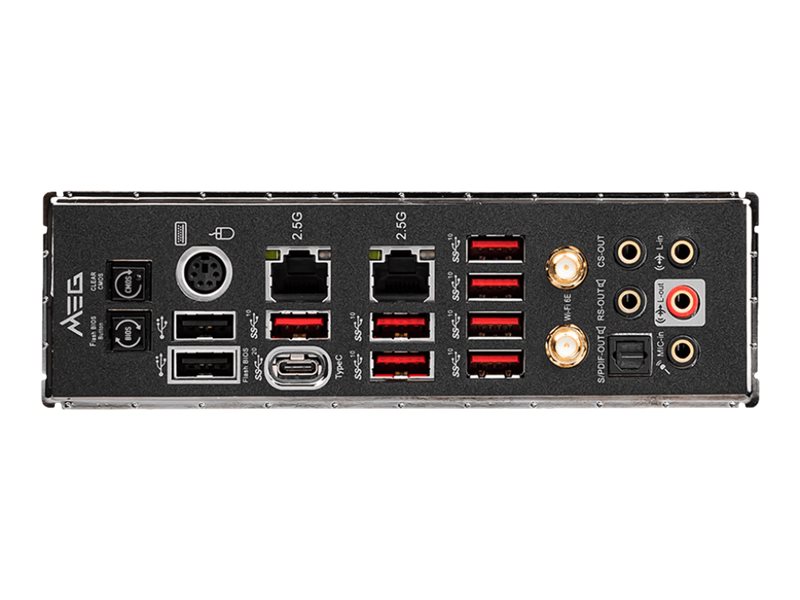

- USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1
- 2 x 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $449.99 |
| Mfr Part #: | Z690UNIFY |
| SHI Part #: | 44083142 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI MEG Z690 UNIFY - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - HD Audio (8-channel) |
| Manufacturer | MSI |
| MSRP | $449.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | Intel Z690 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | None |
| Audio | |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| RAID Features | Intel Smart Response Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, NVIDIA SLI Technology Support, Intel Optane Memory Ready, V-Check Points, Debug LED, Clear CMOS Button, M.2 Shield FROZR, 19+2 Phase Power Design, MSI Steel Armor, MSI Core Boost, pre-mounted I/O shield, Double ESD Protection, MSI Audio Boost 5, 8 Layer PCB, 2oz Copper PCB |
| General | |
| Chipset Type | Intel Z690 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | 2 x Intel I225-V |
| Network Interfaces | 2 x 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Miscellaneous | |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | FIPS, FISMA |
| Depth | 24.4 cm |
| Included Accessories | USB drive, case badge, cleaning brush, Tuning controller, DIY stands set, MEG stickers, cable labels, 2 x M.2 screws, 2 x standoff for M.2 socket, 2 x M.2 clips, screwdriver, EZ front panel cable, 2 thermistor cables, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 4800 MHz, 5600 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5200 MHz (O.C.), 5333 MHz (O.C.), 5400 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6133 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6666 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
