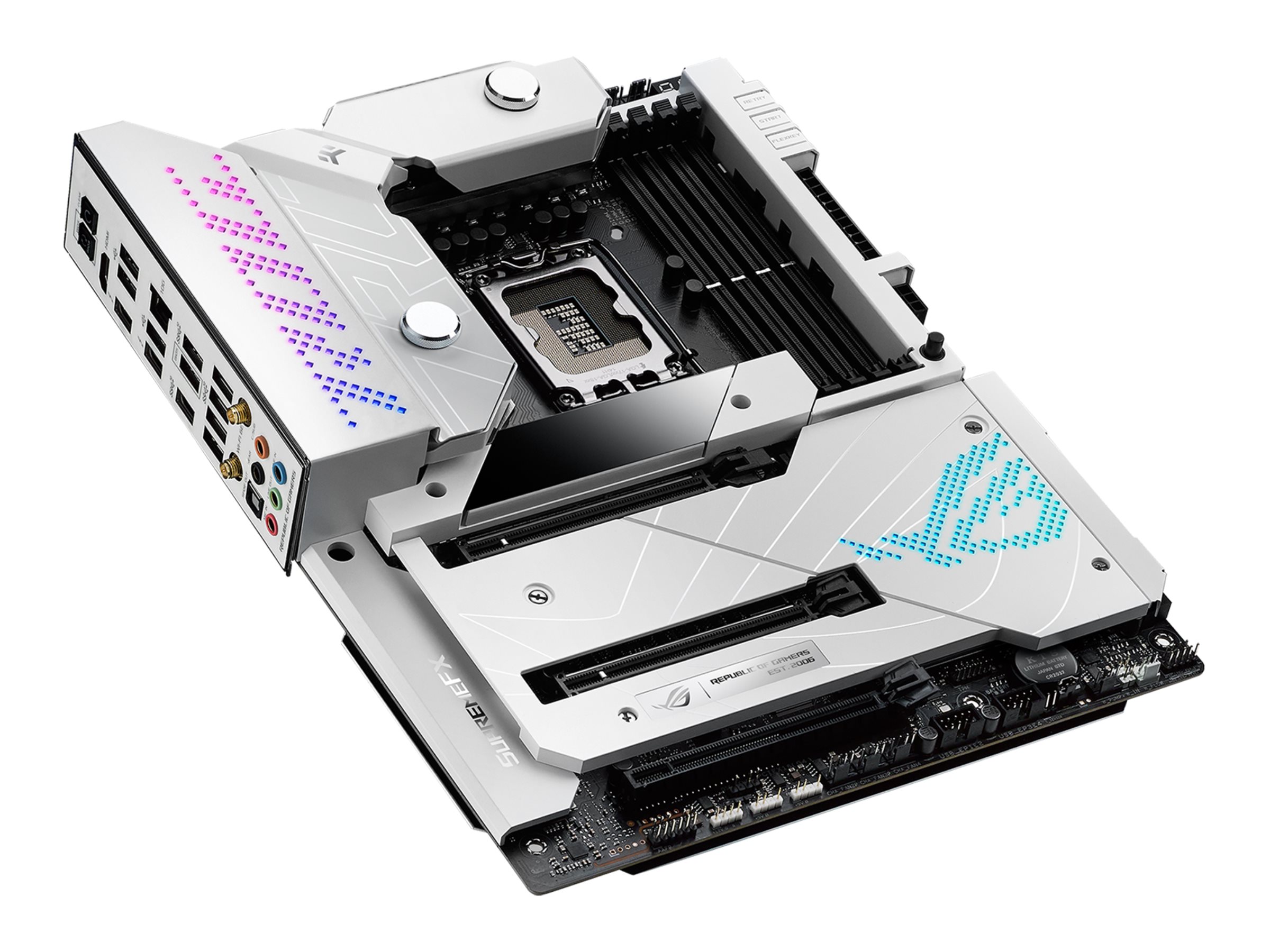

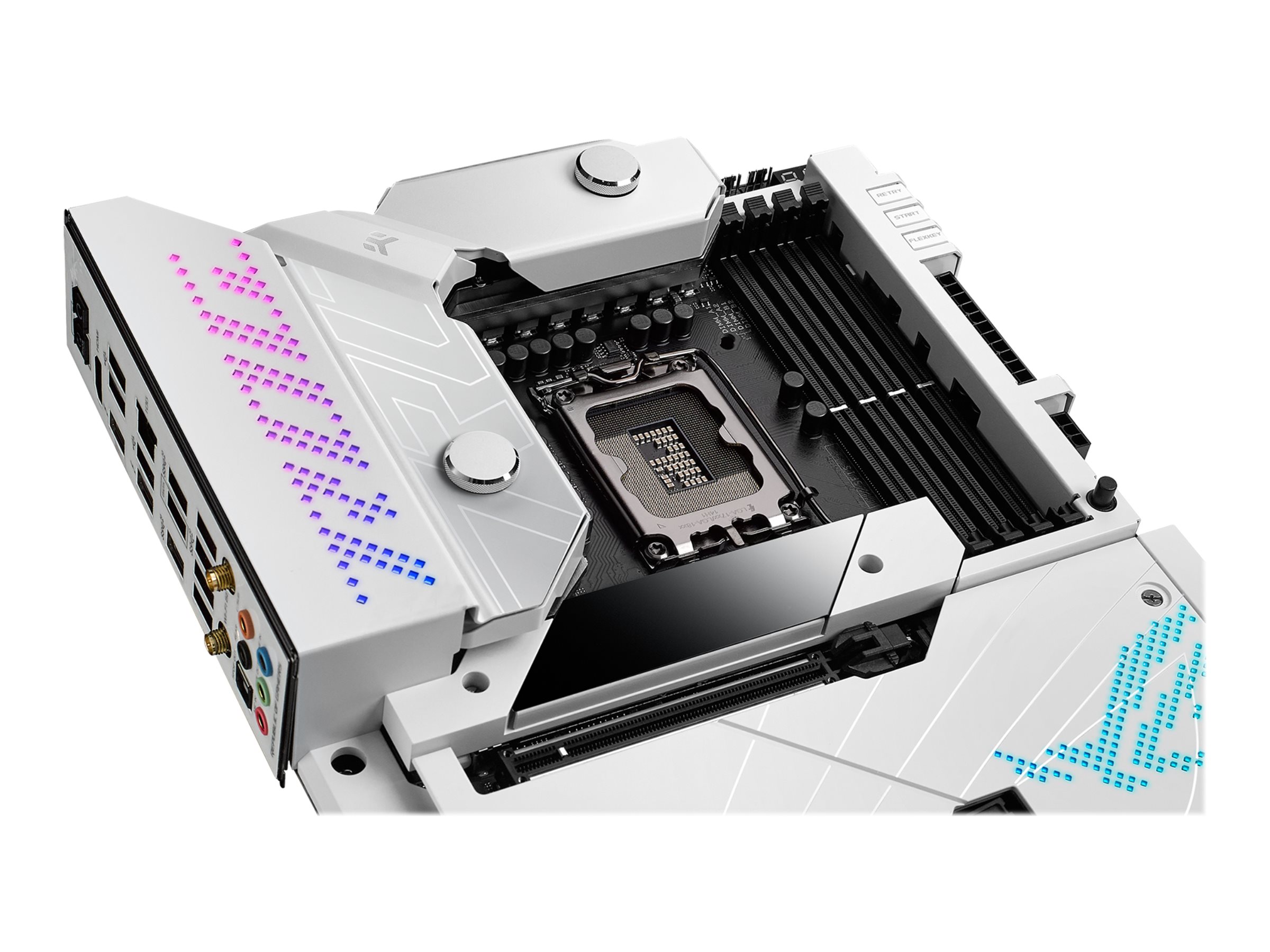

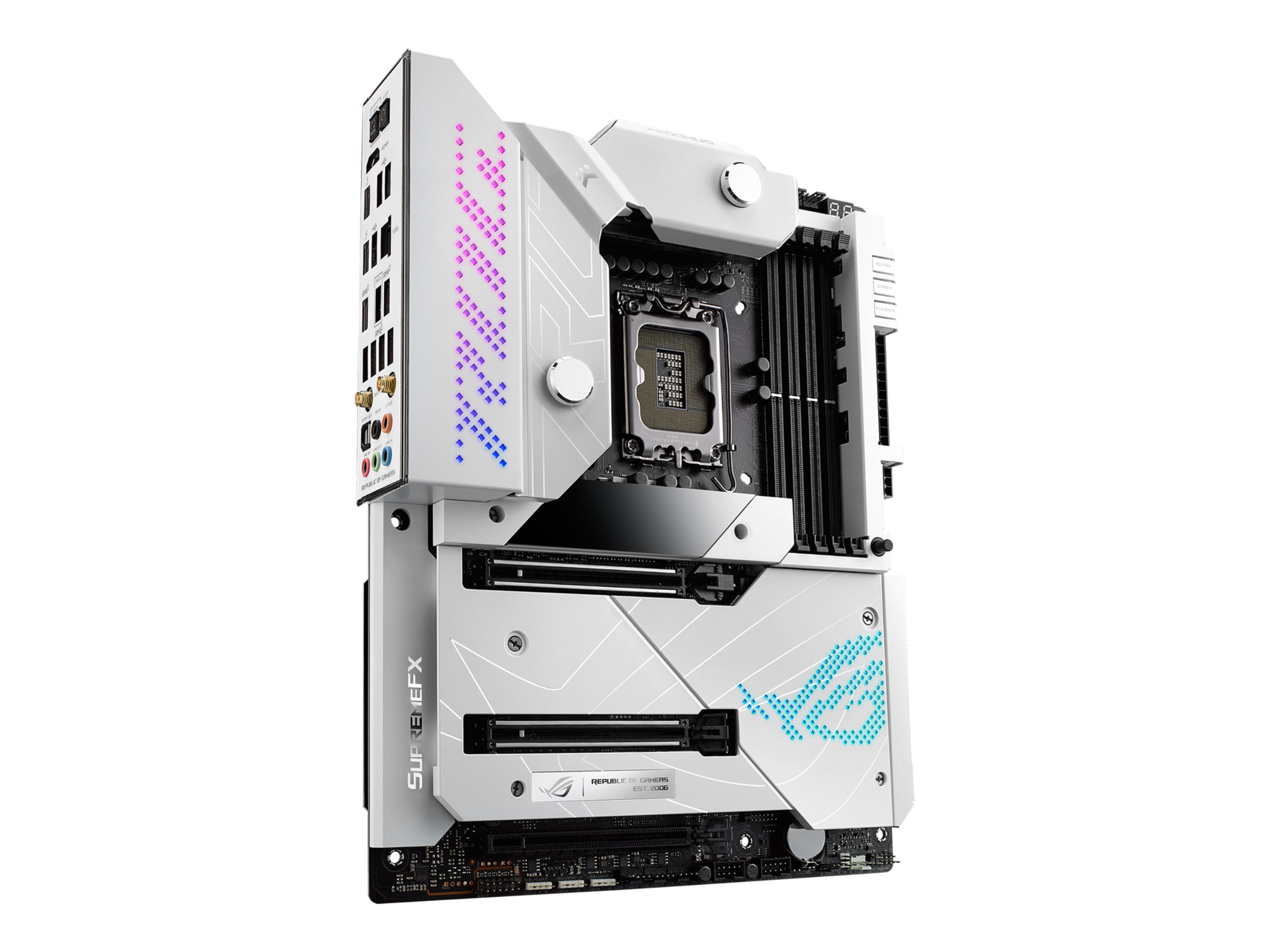

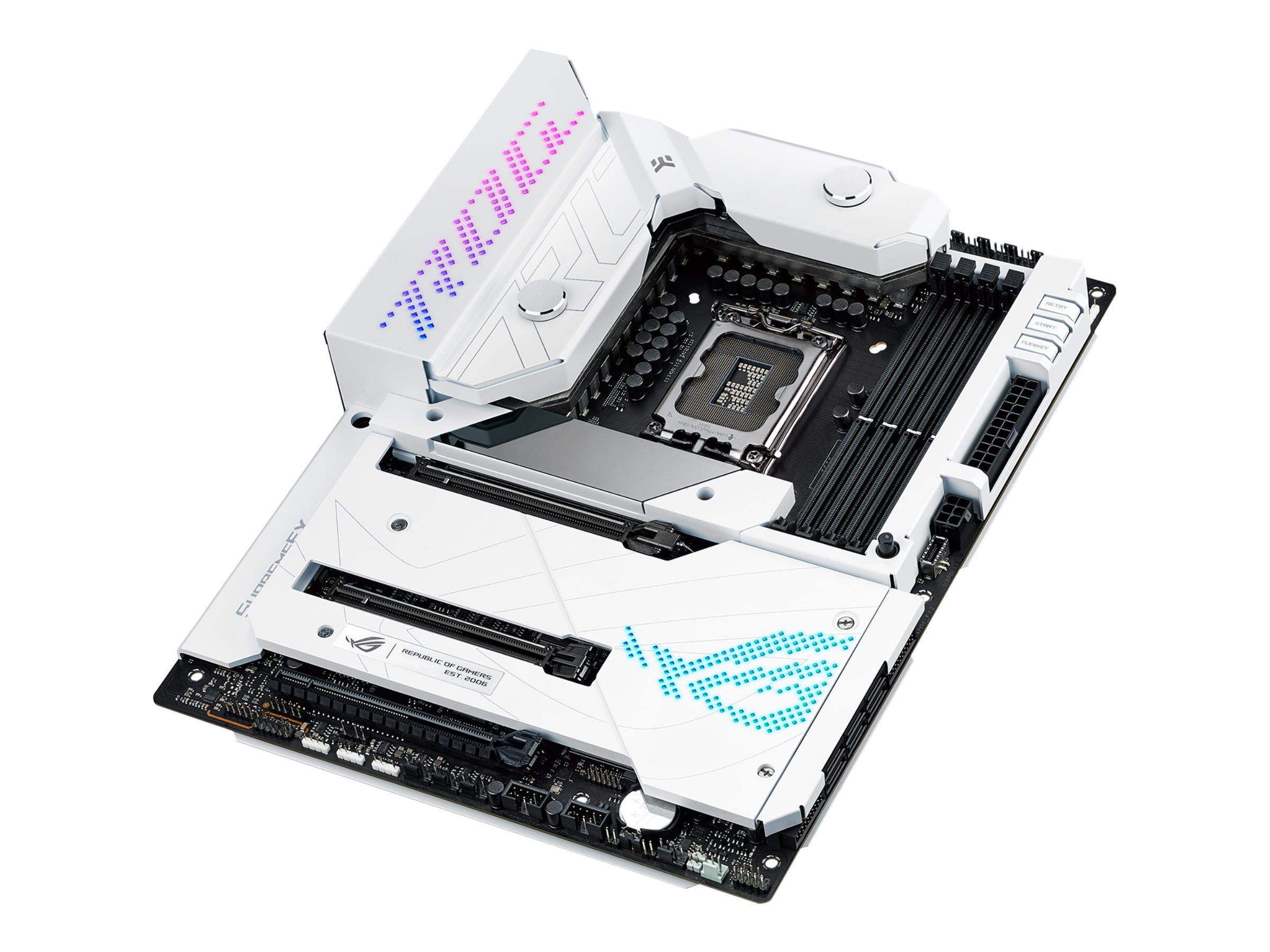

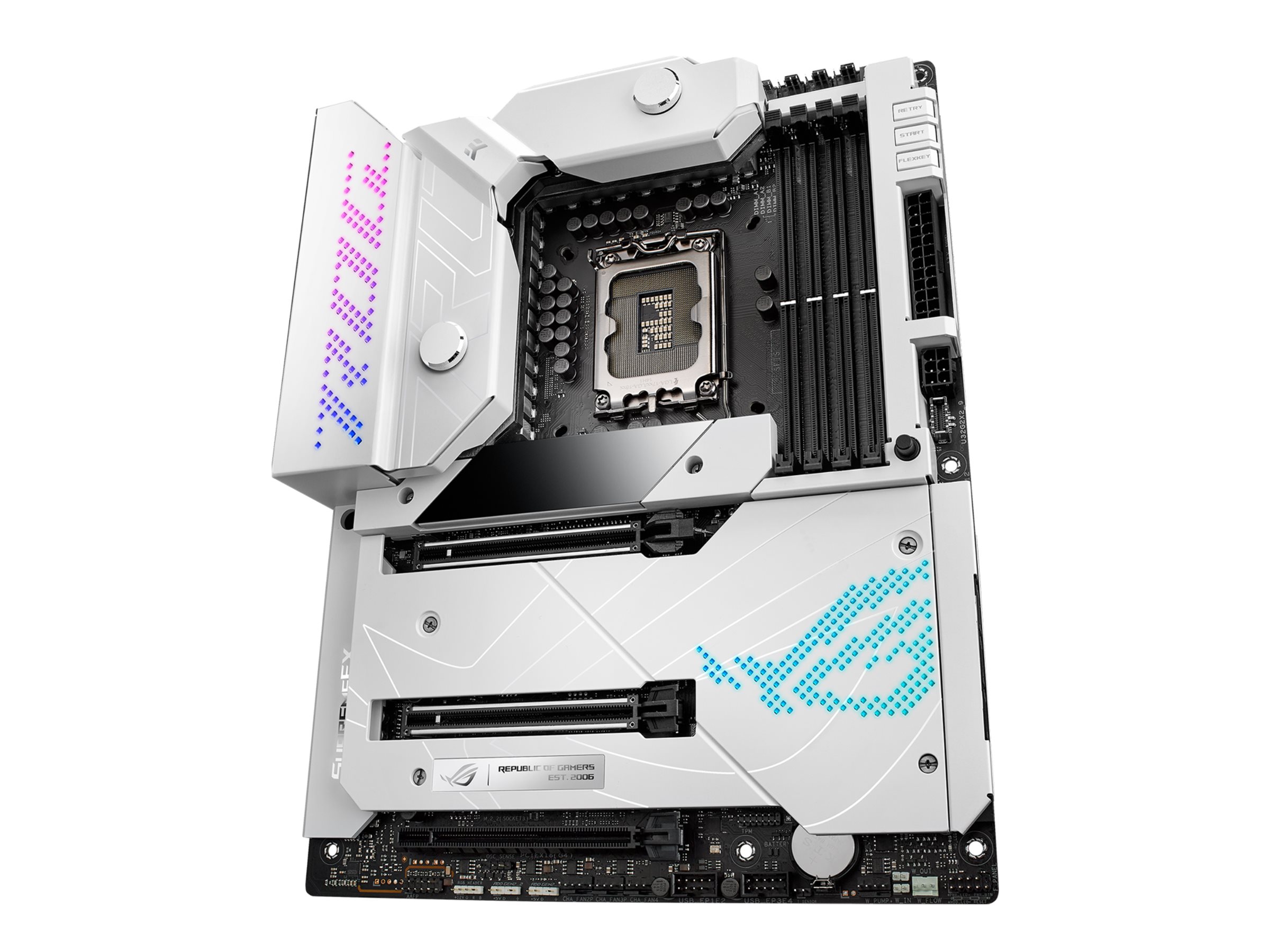

ASUS ROG MAXIMUS Z690 FORMULA

Login for Price
ASUS ROG MAXIMUS Z690 FORMULA
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen2, USB 3.2 Gen 2, USB4, USB-C Gen 2x2, USB 3.2 Gen 1
Contracts
   DIR-CPO-5094
ASUS ROG MAXIMUS Z690 FORMULA
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen2, USB 3.2 Gen 2, USB4, USB-C Gen 2x2, USB 3.2 Gen 1
  • 10 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: ROG MAXIMUS Z690 FORMULA
SHI Part #: 44094961
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG MAXIMUS Z690 FORMULA - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB-C Gen2, USB 3.2 Gen 2, USB4, USB-C Gen 2x2, USB 3.2 Gen 1 - 10 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z690
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4082)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode)
  • 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
  • 2 x Thunderbolt 4/USB4
  • 1 x HDMI
  • 6 x USB 3.2 Gen 2
  • 1 x USB-C Gen2
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 3 x USB 2.0
  • 1 x LAN (10Gigabit Ethernet)
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 -connectors: 2 x 7pin Serial ATA
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, BIOS FlashBack, MemTest86
BIOS TypeAMI
Hardware FeaturesPreboot eXecution Environment (PXE), Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, ESS SABRE9018Q2C DAC/AMP, Gold Plated Audio Hardware, FlexKey button, ReTry button, Start button, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Code, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, Crosschill EK III, M.2 heatsink, ASUS EZ DIY, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, SafeDIMM, ASUS Aura Sync, CPU Socket lever protector, Quick Charge 4+, ASUS HYDRANODE, Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 20+1 Phase Power Design, ASUS 2" LiveDash OLED, GameFirst VI, ASUS DIGI+ Power Control
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z690
Compatible Processors(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Miscellaneous
Cables Included6 x Serial ATA cable
Depth24.4 cm
Included AccessoriesARGB LED strip extension cable, RGB (RGBW) LED strip extension cable, ROG HYPER M.2 CARD, 2 x M.2 screws, ASUS Wi-Fi moving antenna, 1 x M.2 rubber package, M.2 Q-Latch, ROG VGA holder, ROG key chain, STRIX stickers, ROG thank you card
Software IncludedDrivers & utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Sonic Suite Companion, BullGuard Internet Security (1 year license), AIDA64 Extreme (1 year license), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, WinRAR, MyAsus
Width30.5 cm
Supported RAM
Bus Clock4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
