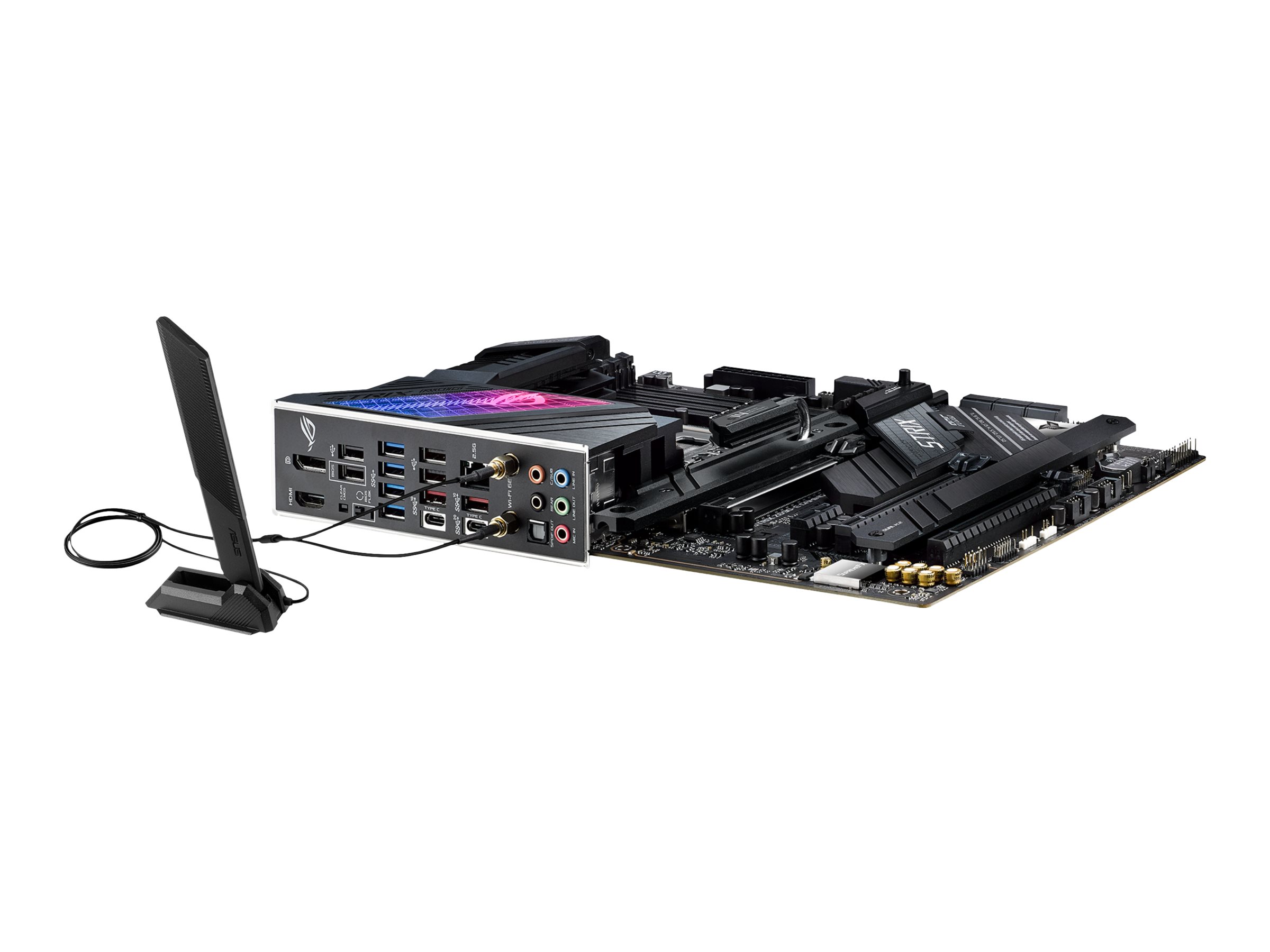

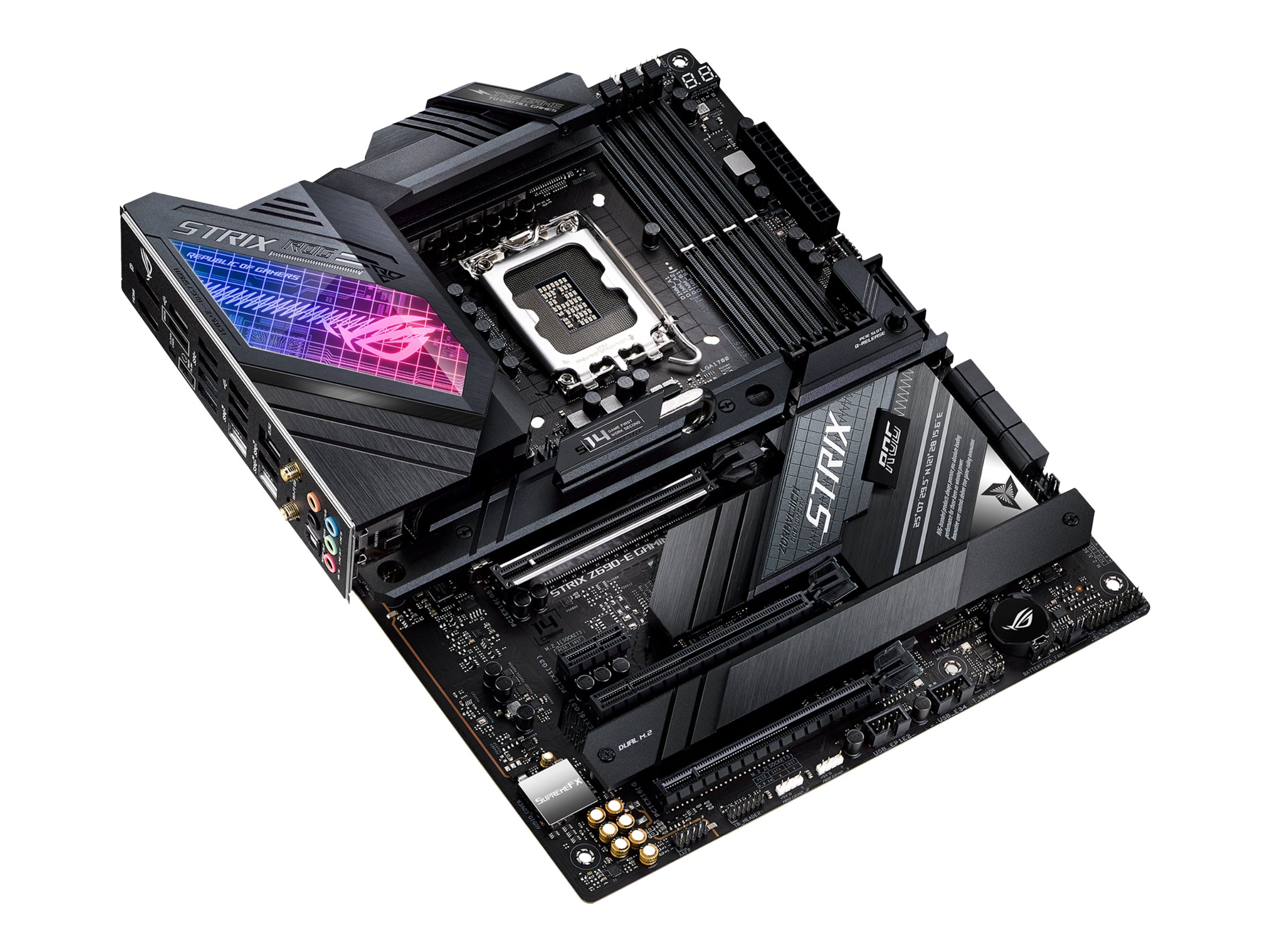

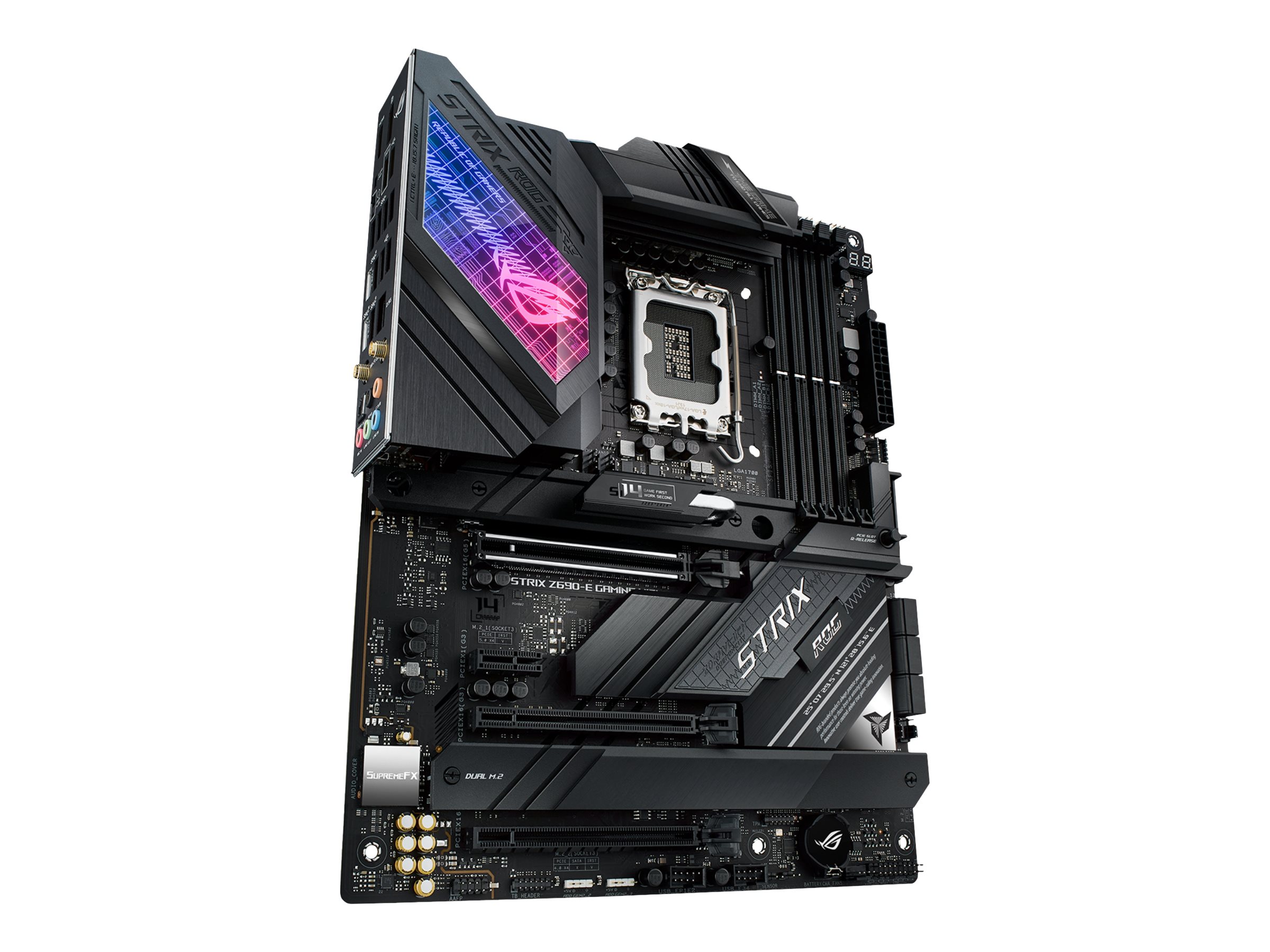

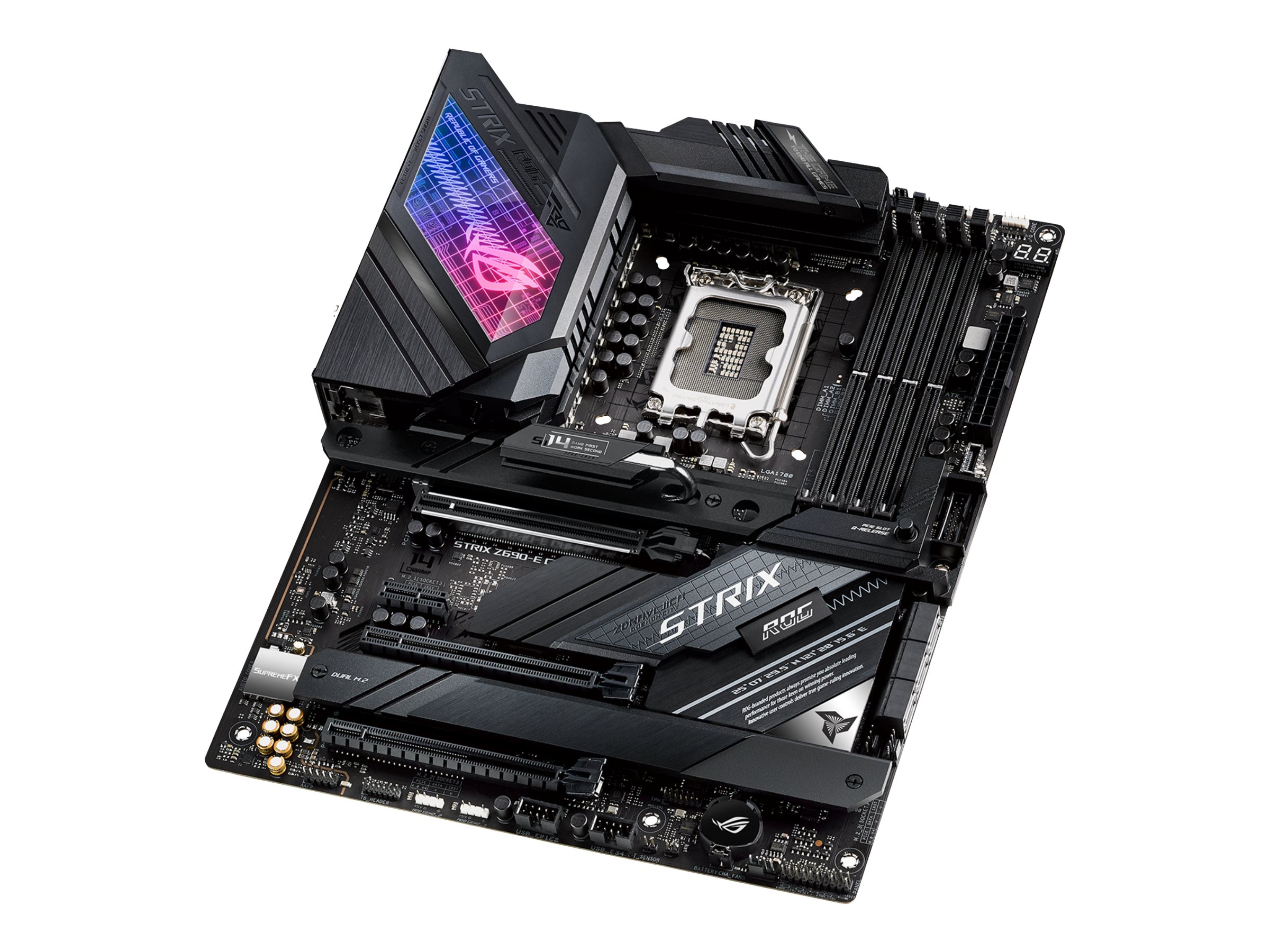

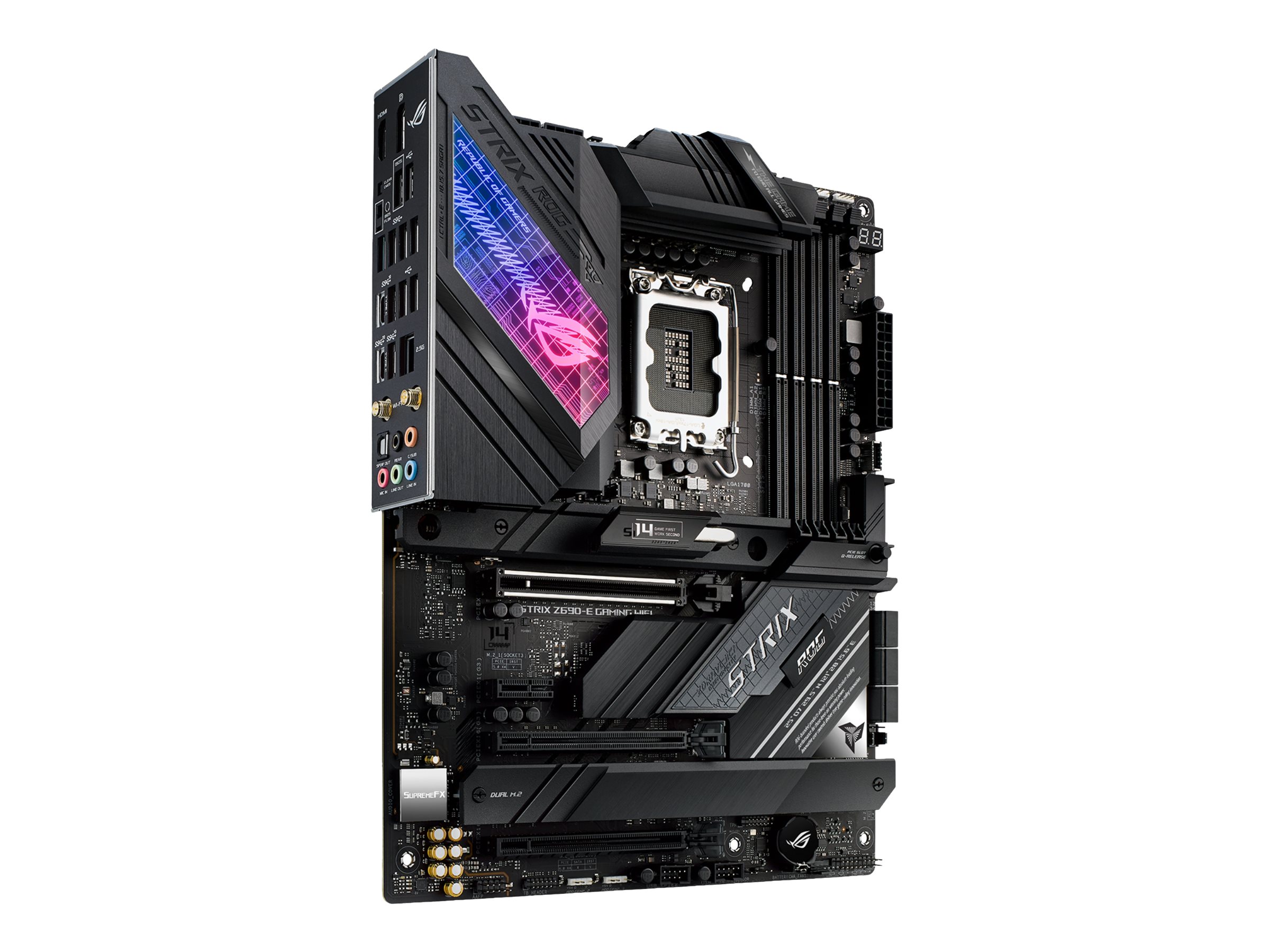

ASUS ROG STRIX Z690-E GAMING WIFI

Login for Price
ASUS ROG STRIX Z690-E GAMING WIFI
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen 2x2, USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
Contracts
   DIR-CPO-5094
ASUS ROG STRIX Z690-E GAMING WIFI
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen 2x2, USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • 2.5 Gigabit LAN, Wi-Fi, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: ROG STRIX Z690-E GAMING WIFI
SHI Part #: 44094962
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG STRIX Z690-E GAMING WIFI - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB-C Gen 2x2, USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z690
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11az (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4080)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 mode)
Interfaces
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x USB-C Gen2x2
  • 2 x USB 3.2 Gen 2
  • 1 x USB-C Gen2
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 4 x USB 2.0
  • 1 x LAN (2.5Gigabit Ethernet)
  • 4 x USB 3.2 Gen 1
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C Gen 2x2 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 -connectors: 2 x 7pin Serial ATA
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, BIOS FlashBack, MemTest86
BIOS TypeAMI
Hardware FeaturesPreboot eXecution Environment (PXE), Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, Gold Plated Audio Hardware, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, ASUS EZ DIY, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, SafeDIMM, ASUS Aura Sync, ASUS HYDRANODE, ASUS TPU (TurboV Processing Unit), ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, FlexKey button, Windows 11 compatible, 18+1 Phase Power Design, DIY Friendly Design, Sonic Studio III
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z690
Compatible Processors(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/az, Bluetooth 5.2
Miscellaneous
Cables Included4 x Serial ATA cable
Depth24.4 cm
Included AccessoriesROG HYPER M.2 CARD, ASUS Wi-Fi moving antenna, M.2 Q-Latch, 2 x M.2 screws, 1 x M.2 rubber package, ROG VGA holder, cable ties, ROG key chain, STRIX stickers, ROG thank you card
Software IncludedDrivers & utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Antivirus, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, WinRAR, MyAsus
Width30.5 cm
Supported RAM
Bus Clock4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
