ASRock B550 PG Riptide

$139.56
ASRock B550 PG Riptide
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM4
  • AMD B550 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
Contracts
   DIR-CPO-5094
ASRock B550 PG Riptide
  • Motherboard
  • ATX
  • Socket AM4
  • AMD B550 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • 2.5 Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $139.56
Mfr Part #: B550 PG RIPTIDE
SHI Part #: 44570312
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASRock
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASRock B550 PG Riptide - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASRock
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASRock
Mainboard / Chipset TypeAMD B550
Mainboard / Compatible ProcessorsRyzen
Mainboard / Processor SocketSocket AM4
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC897
Compliant StandardsHigh Definition Audio, Premium Blu-ray audio support
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs))
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x16 (x1 mode)
  • 1 x PCIe 3.0 x1
  • 1 x M.2 socket (2230 M.2 Key E slot)

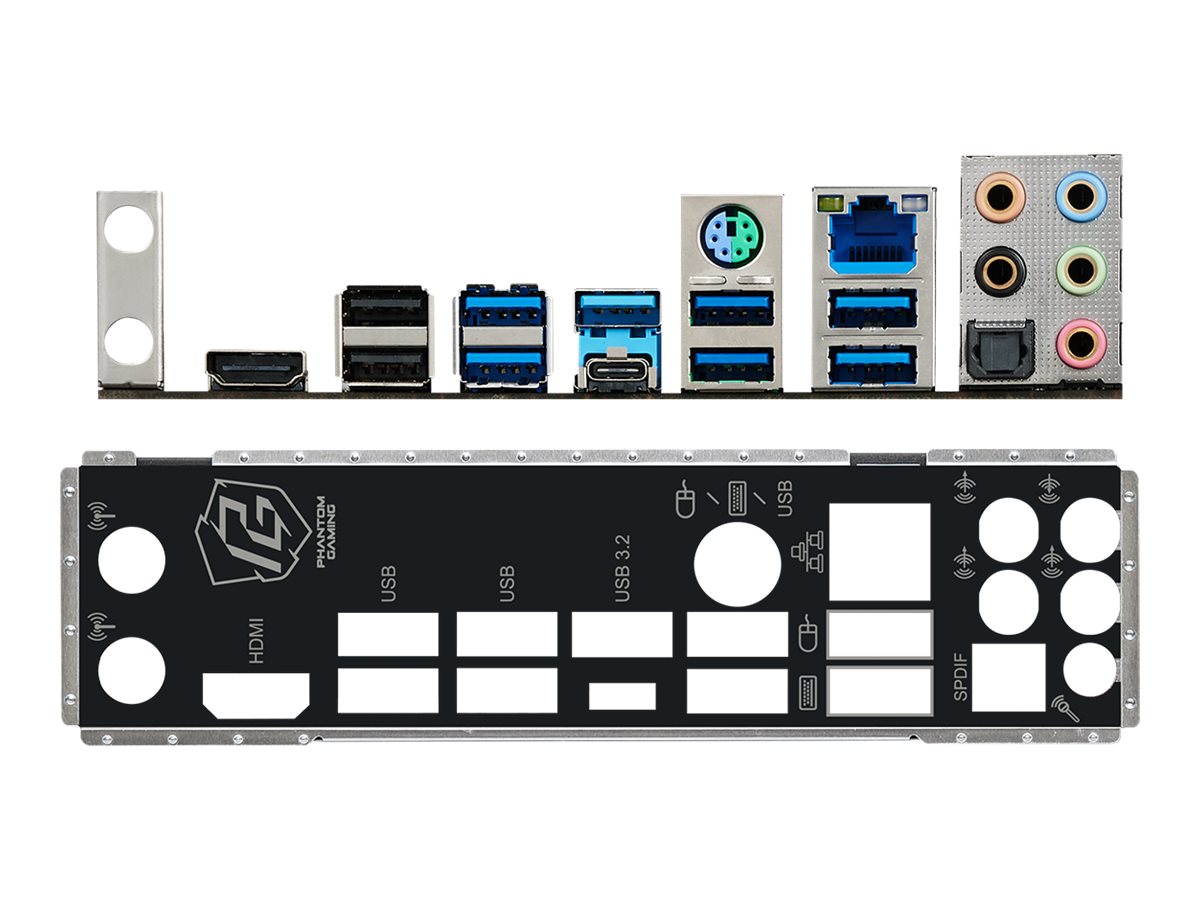

Interfaces
  • 1 x PS/2 keyboard / mouse
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x HDMI
  • 1 x TOSLINK
  • 2 x USB 2.0
  • 6 x USB 3.2 Gen 1
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x USB 3.2 Gen 2
  • 1 x USB-C Gen2
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
Internal Interfaces
  • 6 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x audio - header
  • 1 x USB-C Gen2 - header
  • 1 x Thunderbolt - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
  • PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Features
BIOS FeaturesUEFI BIOS, ACPI 5.1 support, SMBIOS 2.3 support, JumperFree
BIOS TypeAMI
Hardware FeaturesASRock Super Alloy, XXL Aluminum Alloy Heatsink, Premium 60A Power Choke, Dr.MOS MOSFET, Premium Memory Alloy Choke, Matte Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock APP Shop, ASRock Full Spike Protection, ASRock Live Update, ASRock POST Status Checker (PSC), Digi Power Design, 10 Phase Power Design, 15µ Gold Contact, Nahimic Audio Enhacer, Preboot eXecution Environment (PXE), Energy Efficient Ethernet 802.3az, ESD Protection, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Full HD UEFI, ASRock Instant Flash
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeAMD B550
Compatible ProcessorsRyzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Max Processors Qty1
Processor SocketSocket AM4
Product TypeMotherboard - ATX
Graphics
Max Allocated RAM Size2 GB
LAN
Network ControllerKiller E3100G
Network Interfaces2.5 Gigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsHDCP 2.3, EuP Ready, ErP Ready, CEC Tier II
Depth24.4 cm
Included Accessories3 x M.2 screws, standoff for M.2 socket, graphics card holder
Software IncludedDrivers & utilities, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
Width30.5 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.), 4933 MHz (O.C.)
FeaturesDual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC (operate in non-ECC mode)
TechnologyDDR4
